High bay luminaire IP65 BORIS FLEX 96700009
Source photo:
Zumtobel
(fig. might be different or similar)

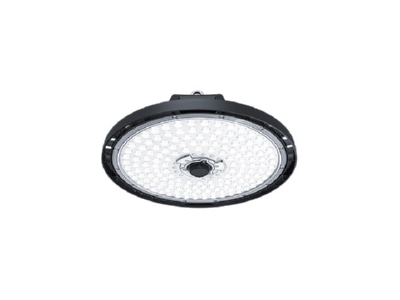

High bay luminaire IP65 BORIS FLEX 96700009

EAN/GTIN: 9010757082526
WEEE: DE 77677044
Manufacturer: Zumtobel
Manufacturer no.: BORIS FLEX #96700009
Manufact.-SKU: 96700009
Customs tariff no.: 94051190
Similar top items: Show now & compare
168,02 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

LED high-bay light 840 BORIS FLEX #96700009 LED bulb not replaceable, with bulb, pendant mounting type, suitable for number of bulbs 1, socket without, housing material aluminum, housing color black, voltage type AC, nominal voltage 100 ... 277V, control gear LED control gear current-controlled , Replaceable control gear, With control gear, Without dimming function, Light distribution asymmetrical, Reflector without, Color consistency (McAdam ellipse) SDCM5, Energy efficiency class of the permanently installed light source A++, A+, A (LED), Rated service life L70/B50 at 25 °C 74000h, Luminous flux drop at average Service life 50,000 h at 25 °C ambient temperature. 80%, protection class (IP) IP65, impact resistance IK08, protection class I, rated ambient temperature according to IEC62722-2-1 -30 ... 50°C, glow wire test according to IEC 60695-2-11 650 °C - 30 s, max. system power 195W , rated luminous flux according to IEC 62722-2-1 30000lm, light color white, color temperature 4000 ... 4000K, color rendering index CRI 80-89, power factor 0.9, color temperature adjustable no, luminous flux adjustable levels, height/depth 130mm, outer diameter 380mm, max. Number of lights, circuit breaker B16 4, Max. number of lights, circuit breaker C16 7, IP65 LED high-bay light for single-point suspension. Efficient lens technology with glare limitation and a beam angle of 90° for homogeneous illumination. The housing design allows airflow cooling of the luminaire, ensuring optimal performance in industrial environments. Total luminous flux: 30,000 lm, luminaire power: 195 W, lamp efficiency: 153 lm/W, correlated color temperature (CCT) 4000K, lifespan: 50,000h at L80, color rendering: CRI > 80, color locus tolerance (initial MacAdam): 5. Including tool-free connector, Eyebolt and chain quick release. Voltage switchable driver: 100-277V AC 50/60Hz. Surge protection up to 4kV. Pre-wired with power cord (15cm). Accessories: Plug&Play emergency light set for 3 hours of emergency lighting operation, mounting bracket, MWS, PIR sensor and remote sensor for commissioning. Lumen package adjustable on site in 3 steps (FLEX1: 30000 lm (195W), FLEX2: 25000 lm (160W), FLEX3: 20000 lm (130W). Detailed information on power setting on www.THORNeco.com. Dimensions: diameter 380 x 130 mm , Weight: 3.13 kg.
