Sensor/actuator terminal block 3-p 6,1mm DLD 2.5 DB

EAN/GTIN: 4032248189854
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: DLD 2.5 DB
Manufact.-SKU: 1784180000
Customs tariff no.: 85369010
Similar top items: Show now & compare
3,25 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Sensor/actuator terminal block 3-p 6,1mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 0,5 ... 4mm², Rated current In 24A, Rated voltage 250V, Number of levels 3, Number of clamp positions per level 2, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,2mm, Height at lowest possible mounting height 82,5mm, Length 48,5mm, Closing plate required, Colour Beige

More product images:

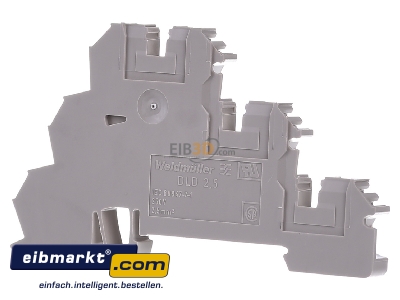

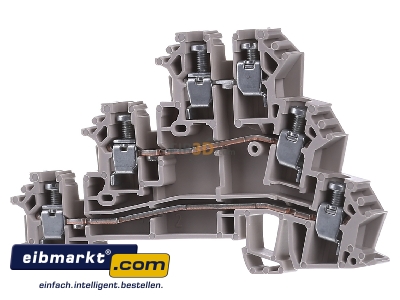

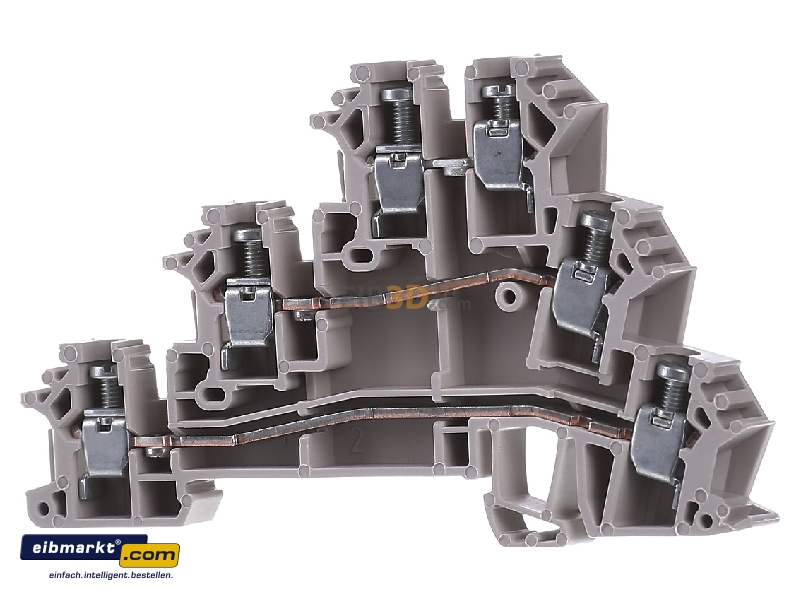

Front view Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
Front view

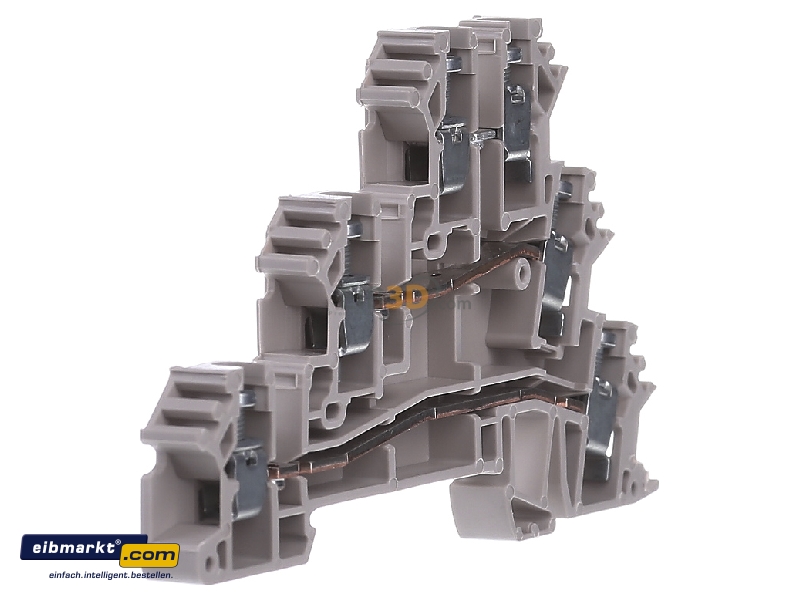

View on the left Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
View on the left
View on the right Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
View on the right

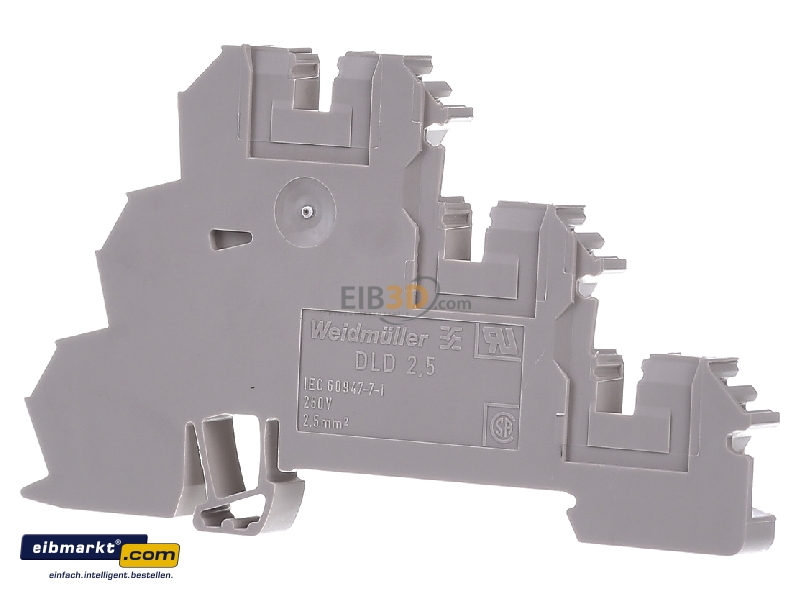

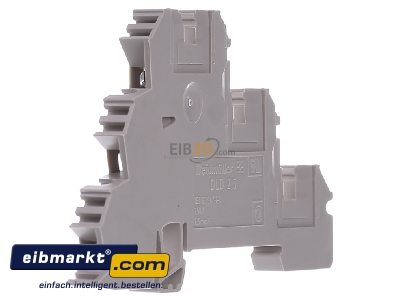

Back view Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
Back view

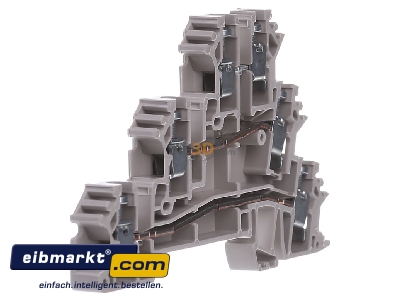

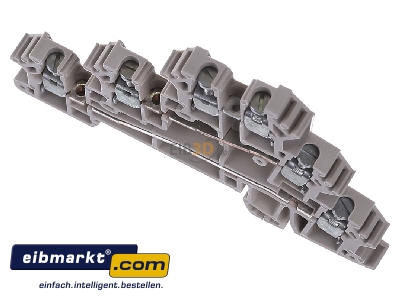

View up front Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
View up front

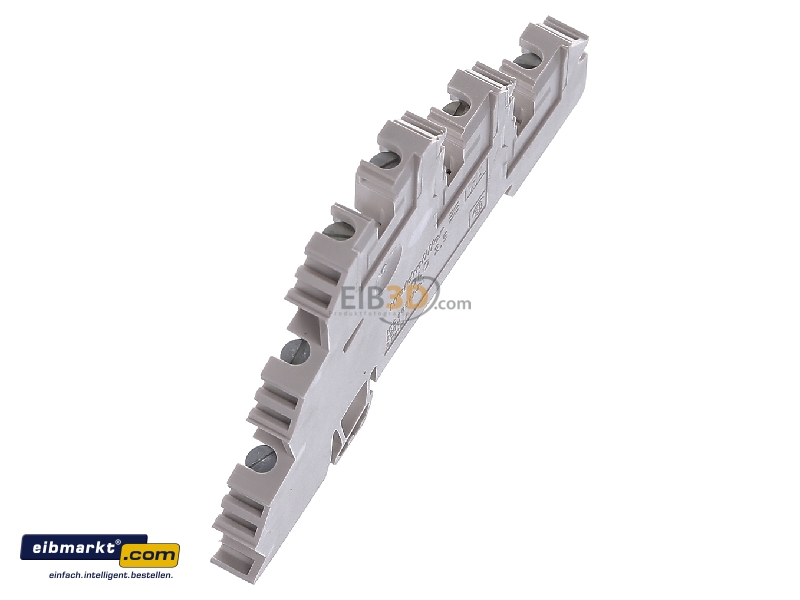

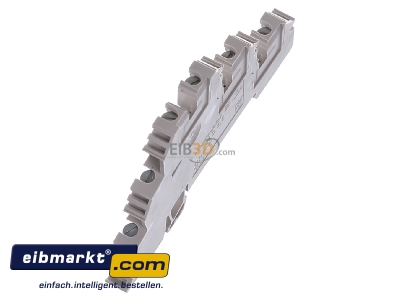

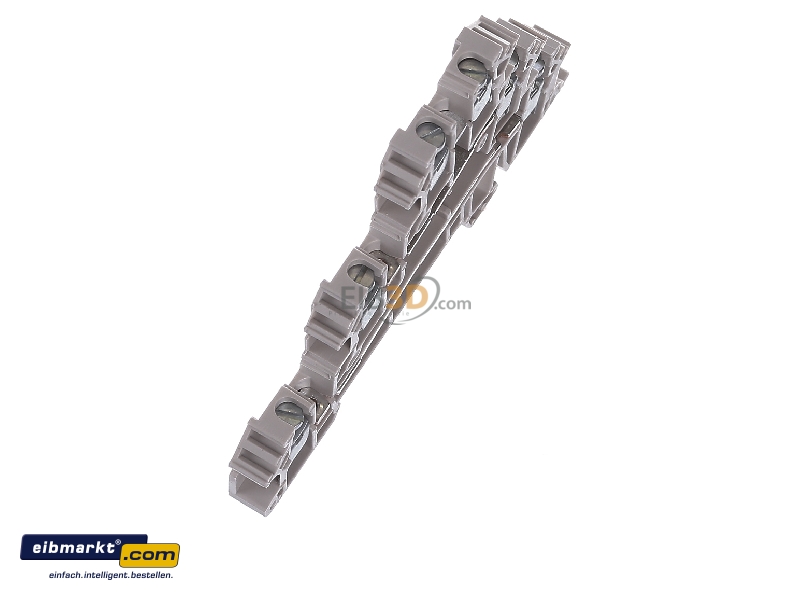

View top left Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
View top left

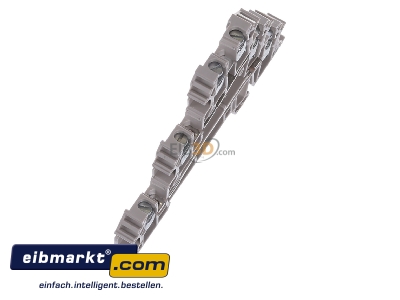

View top right Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
View top right

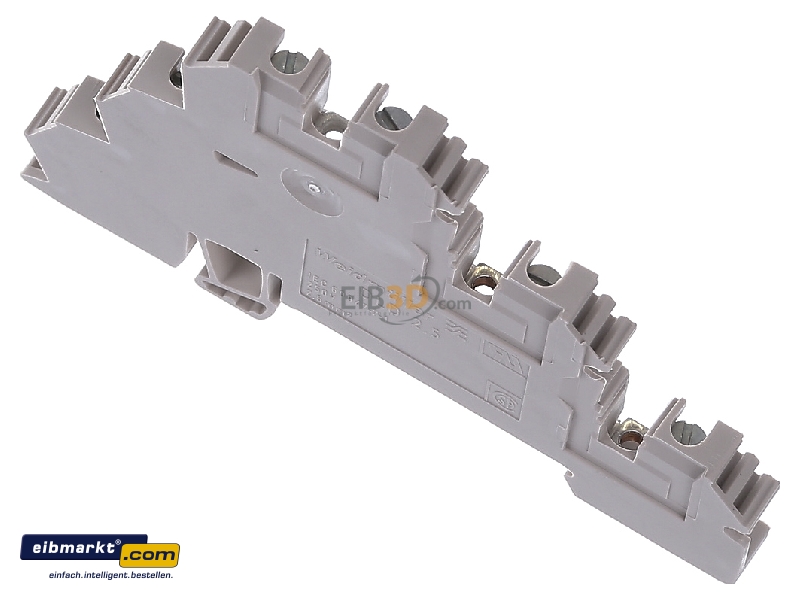

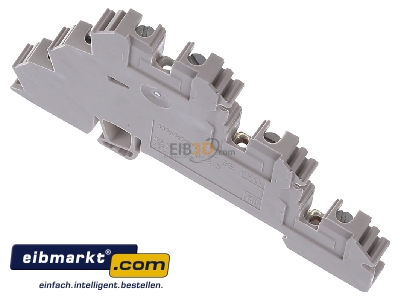

Top rear view Weidmüller DLD 2.5 DB Sensor/actuator terminal block 3-p 6,1mm
Top rear view
