Ground terminal block 2-p 5mm ZDK 2.5PE

EAN/GTIN: 4008190875466
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: ZDK 2.5PE
Manufact.-SKU: 1690000000
Customs tariff no.: 85369010
Similar top items: Show now & compare
4,58 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 2-p 5mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 1,5mm², Connectable conductor cross section solid-core 0,5 ... 2,5mm², Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 2, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5mm, Height at lowest possible mounting height 54mm, Length 79mm, Closing plate required, Colour Green/yellow

More product images:

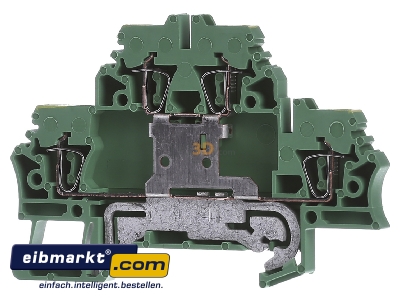

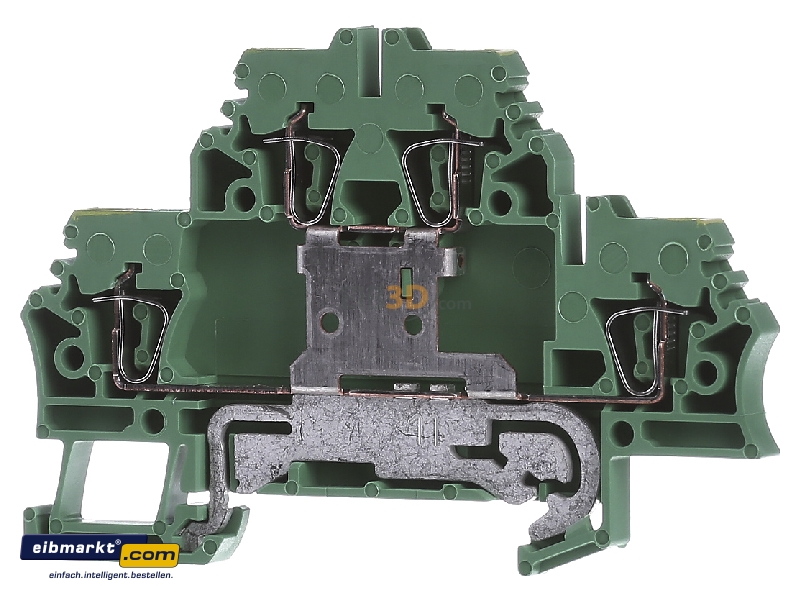

Front view Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
Front view

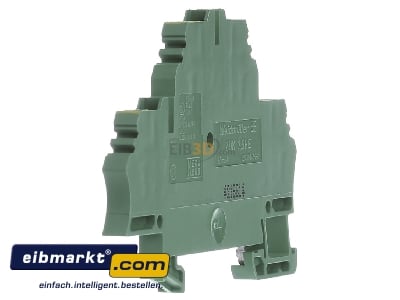

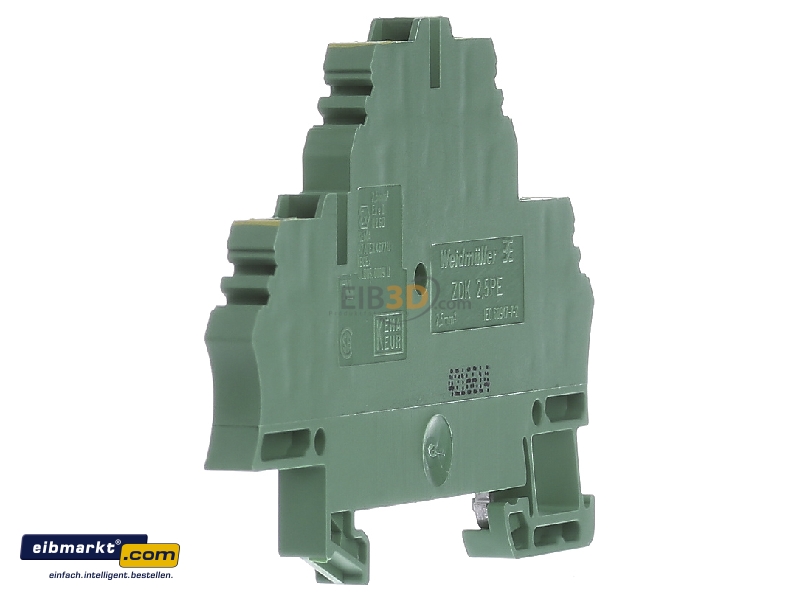

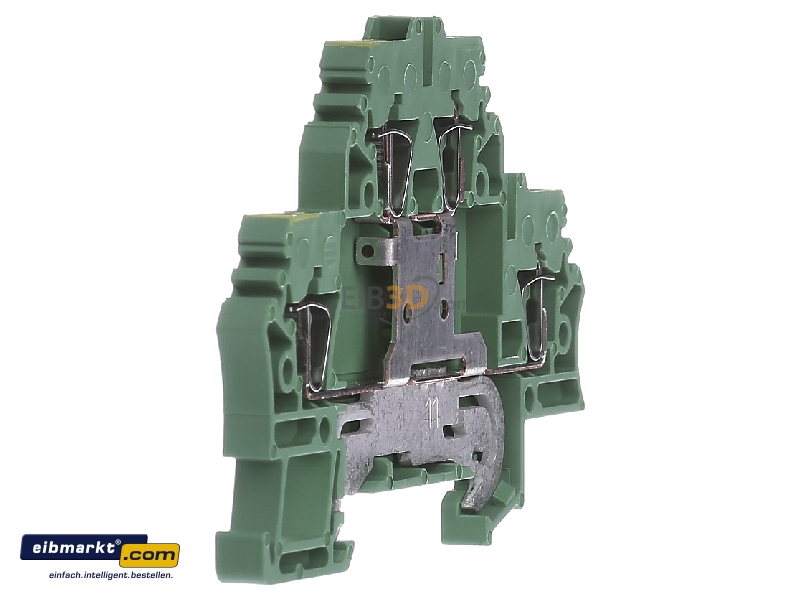

View on the left Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
View on the left

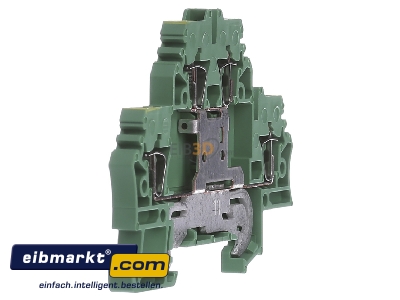

View on the right Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
View on the right

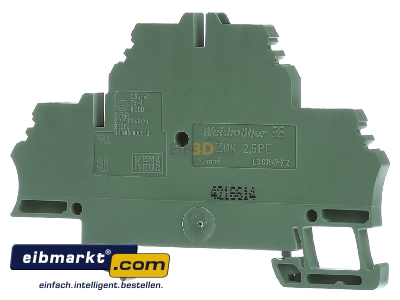

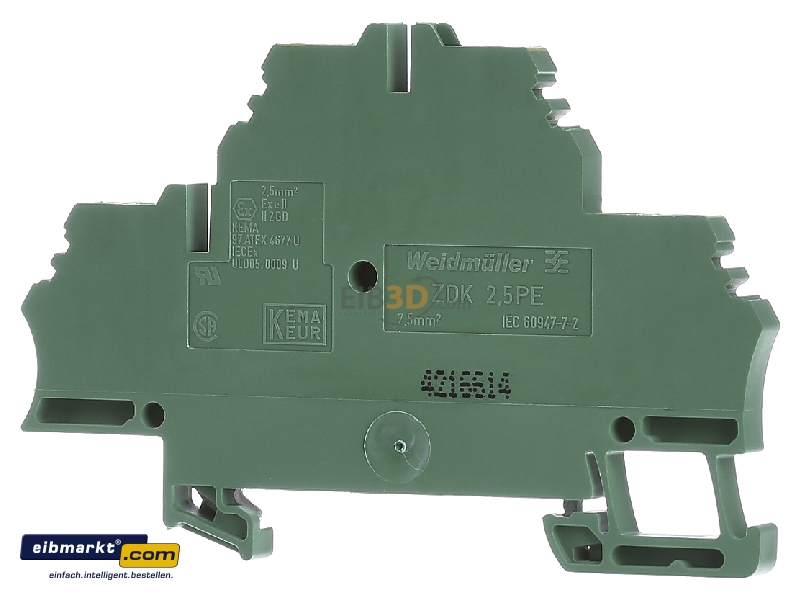

Back view Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
Back view
View up front Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
View up front

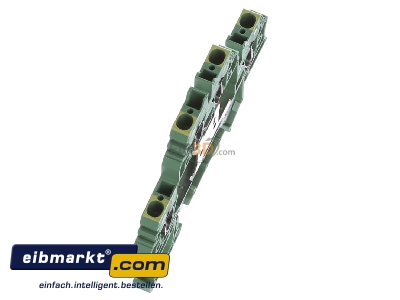

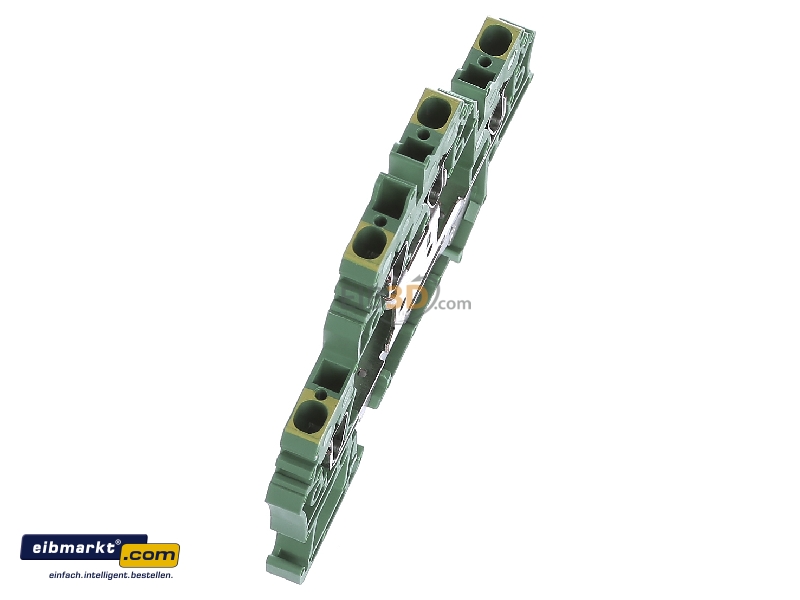

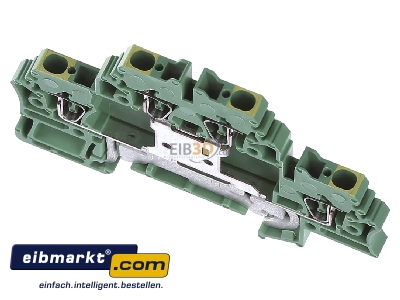

View top left Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
View top left

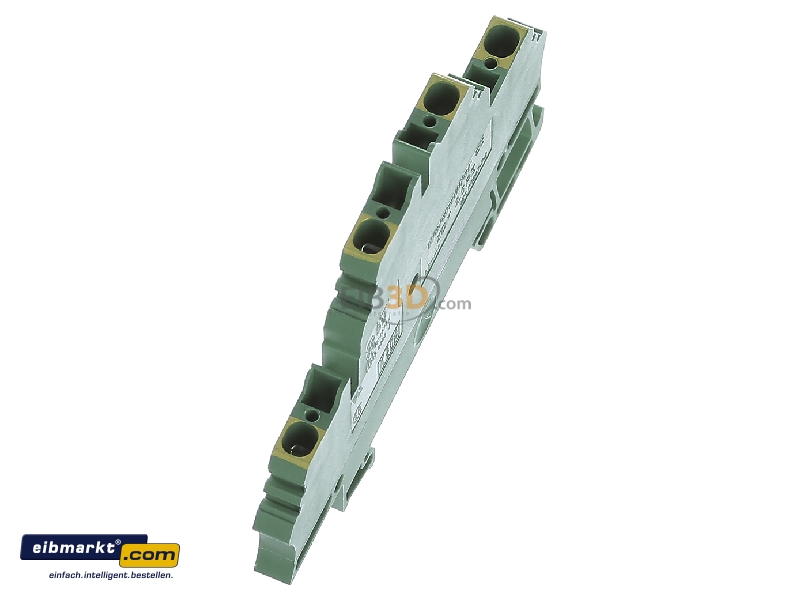

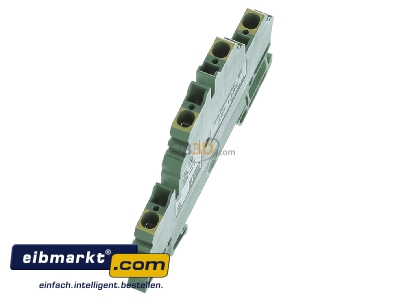

View top right Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
View top right

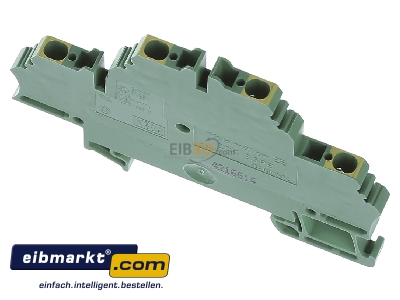

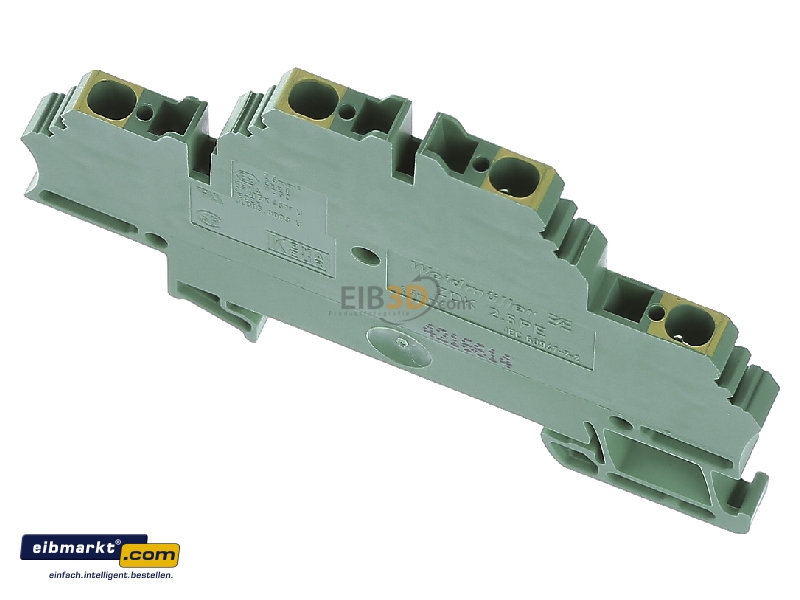

Top rear view Weidmüller ZDK 2.5PE Ground terminal block 2-p 5mm -
Top rear view
