Ground terminal block 1-p 5mm ZPE 2.5-2/3AN

EAN/GTIN: 4008190915438
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: ZPE 2.5-2/3AN
Manufact.-SKU: 1706090000
Customs tariff no.: 85369010
Similar top items: Show now & compare
3,14 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 1-p 5mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Inclined, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,1mm, Height at lowest possible mounting height 50,5mm, Length 43,5mm, Closing plate required, Colour Green/yellow

More product images:

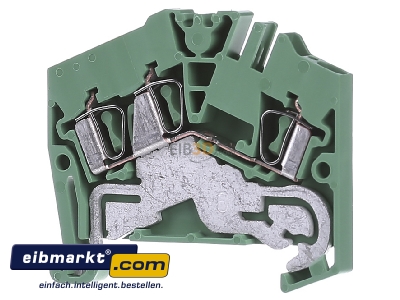

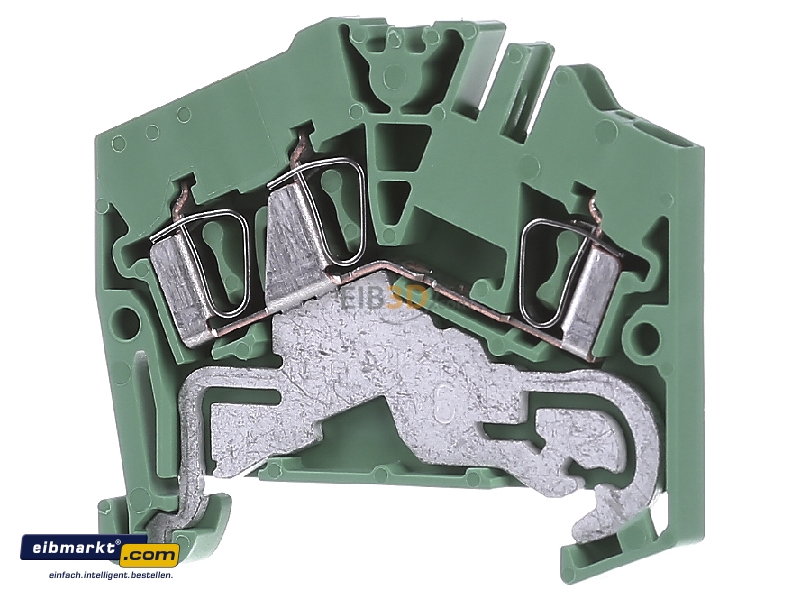

Front view Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
Front view

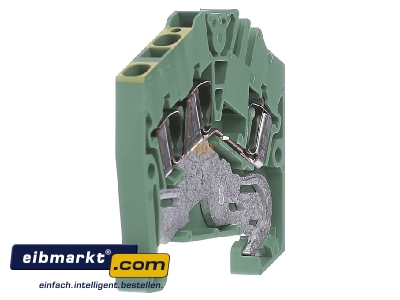

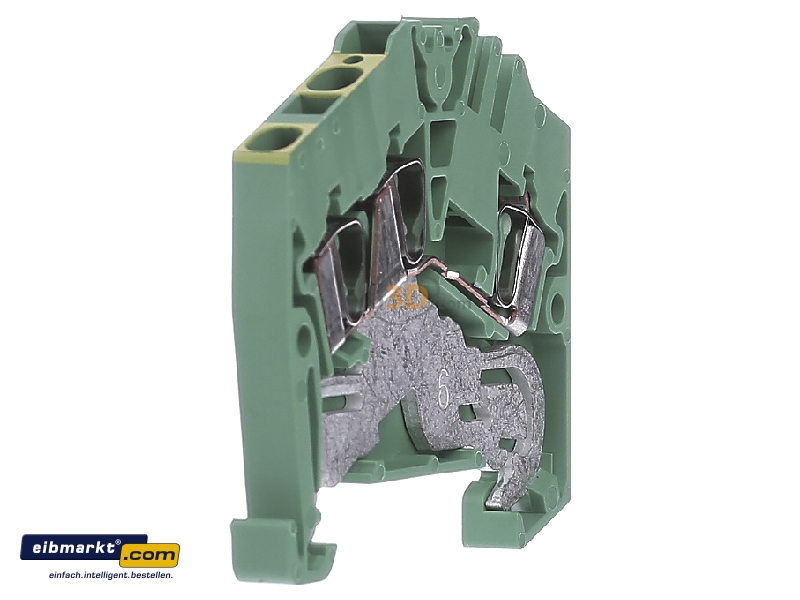

View on the left Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
View on the left

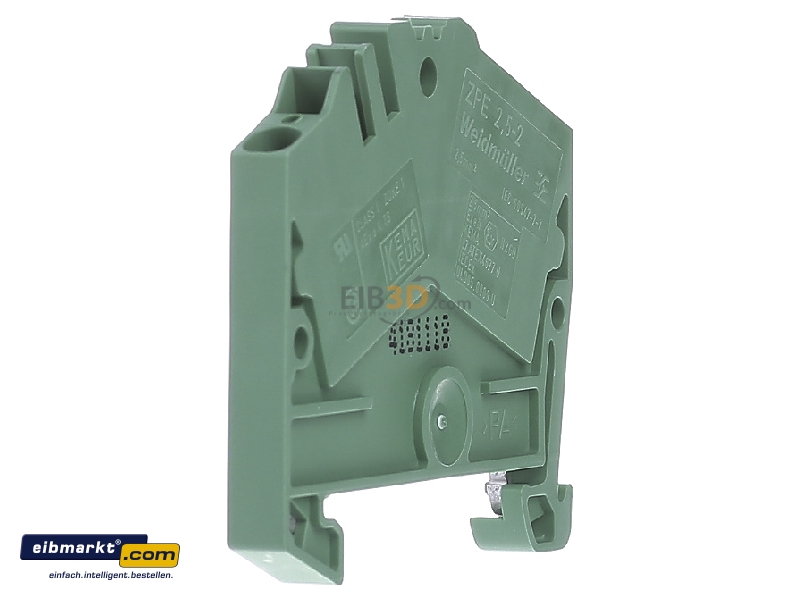

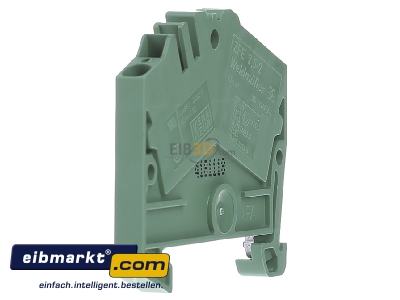

View on the right Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
View on the right

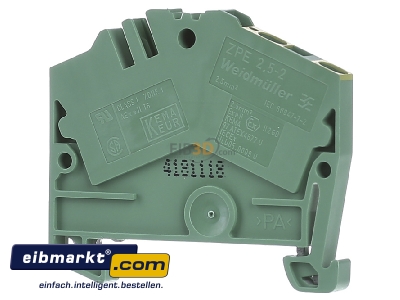

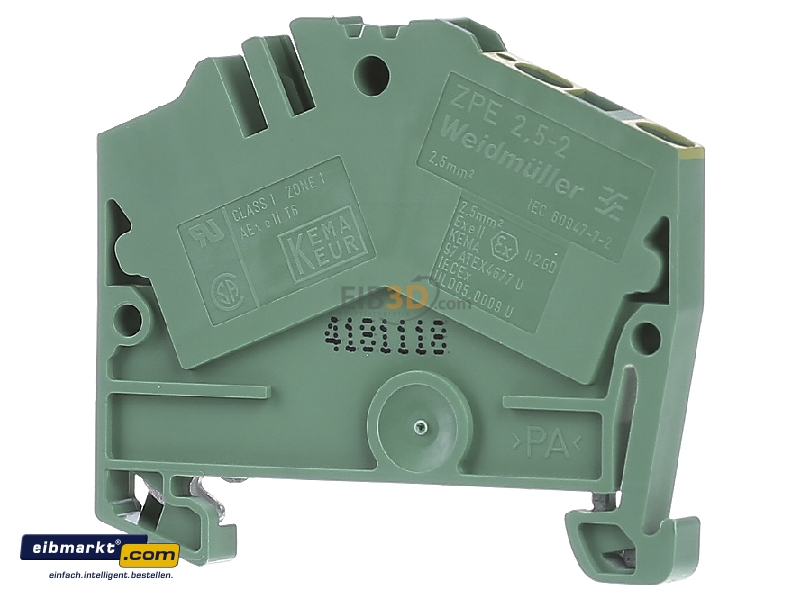

Back view Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
Back view

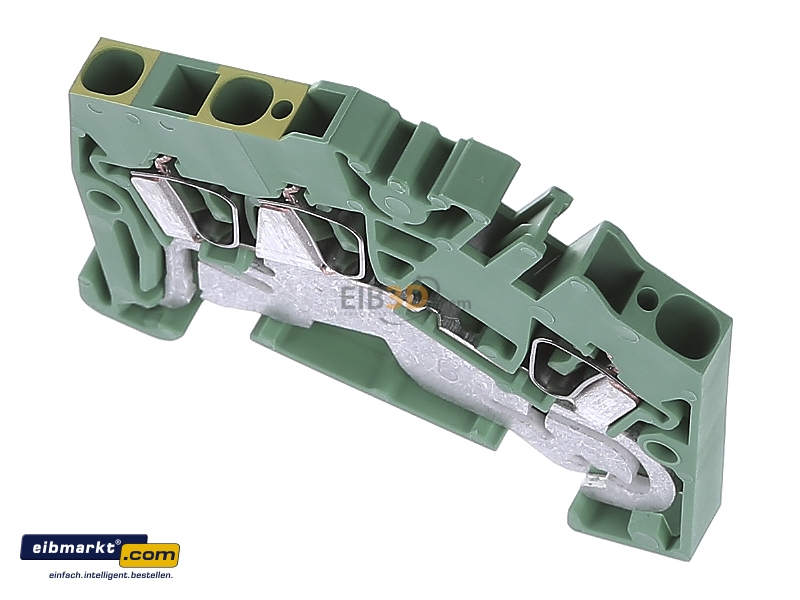

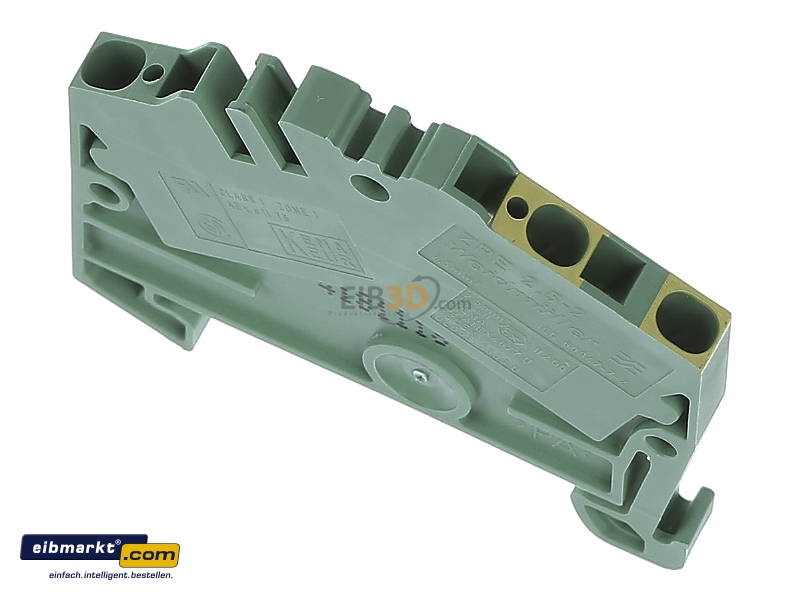

View up front Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
View up front

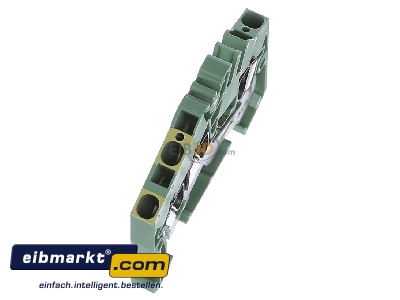

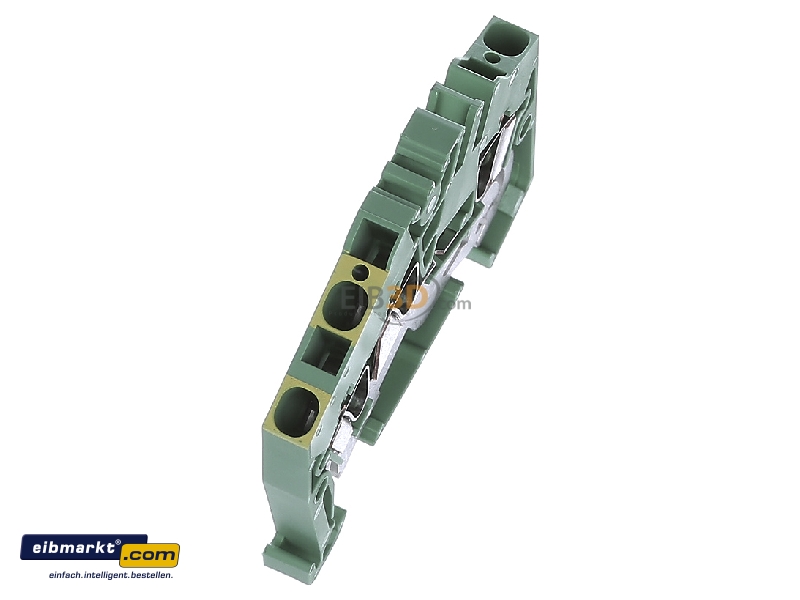

View top left Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
View top left

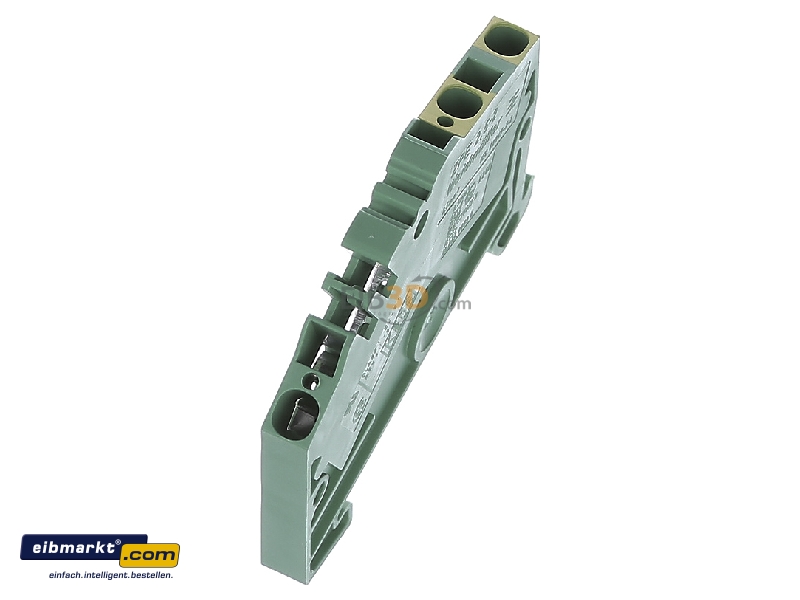

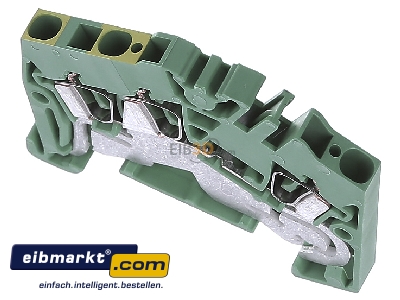

View top right Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
View top right

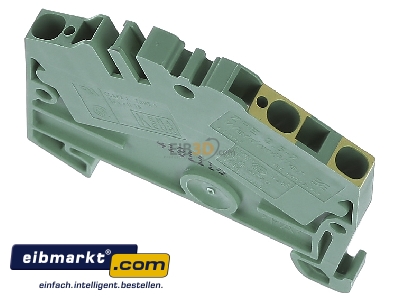

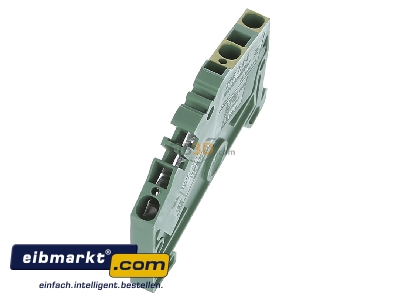

Top rear view Weidmüller ZPE 2.5-2/3AN Ground terminal block 1-p 5mm -
Top rear view
