Ground terminal block 1-p 5mm WPE 2.5

EAN/GTIN: 4008190143640
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WPE 2.5
Manufact.-SKU: 1010000000
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,62 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 1-p 5mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 1,5 ... 4mm², Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,1mm, Height at lowest possible mounting height 60mm, Length 46,5mm, Closing plate required, Colour Green/yellow

More product images:

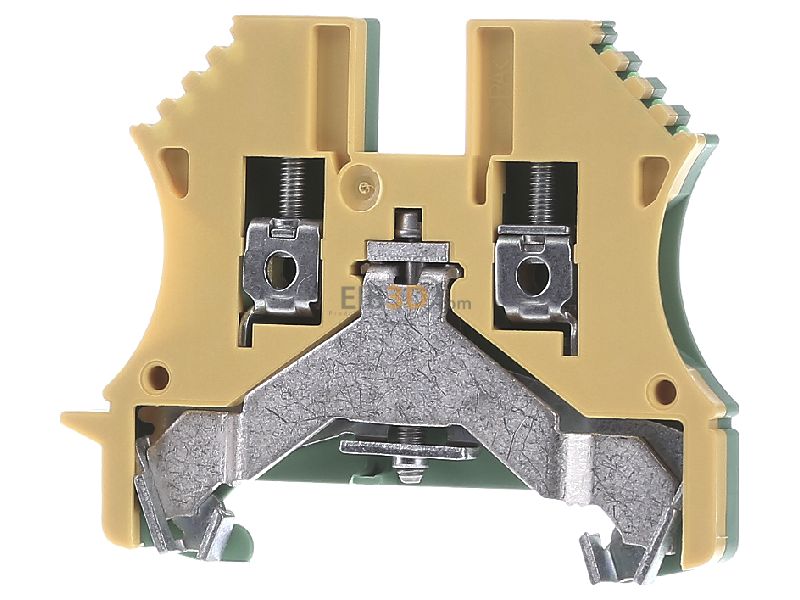

Front view Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
Front view

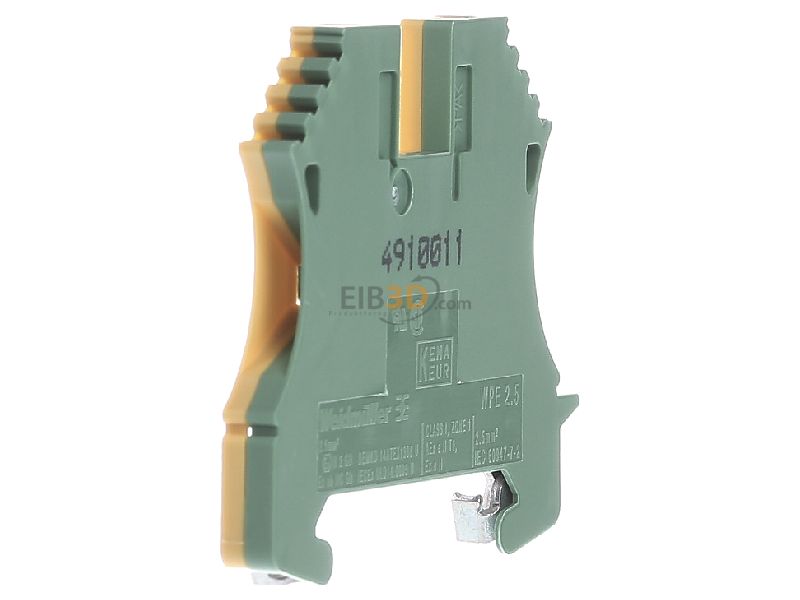

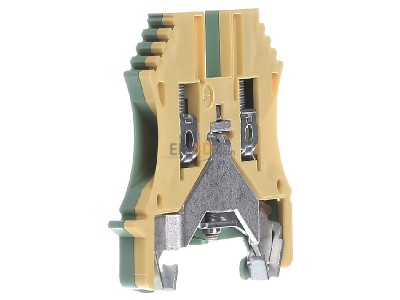

View on the left Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
View on the left

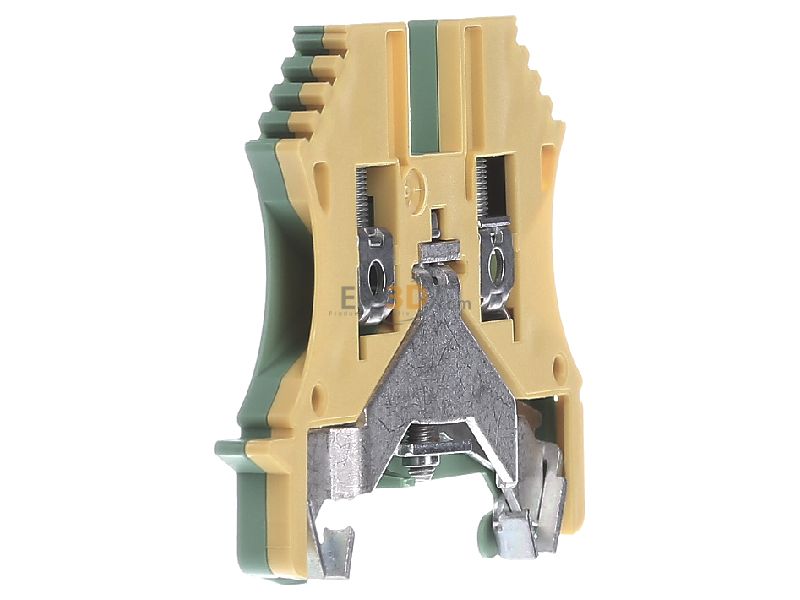

View on the right Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
View on the right

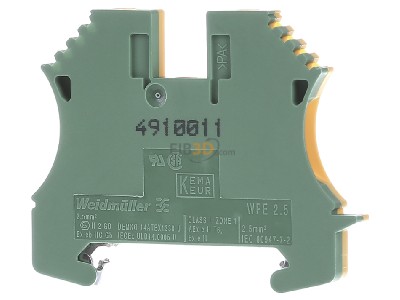

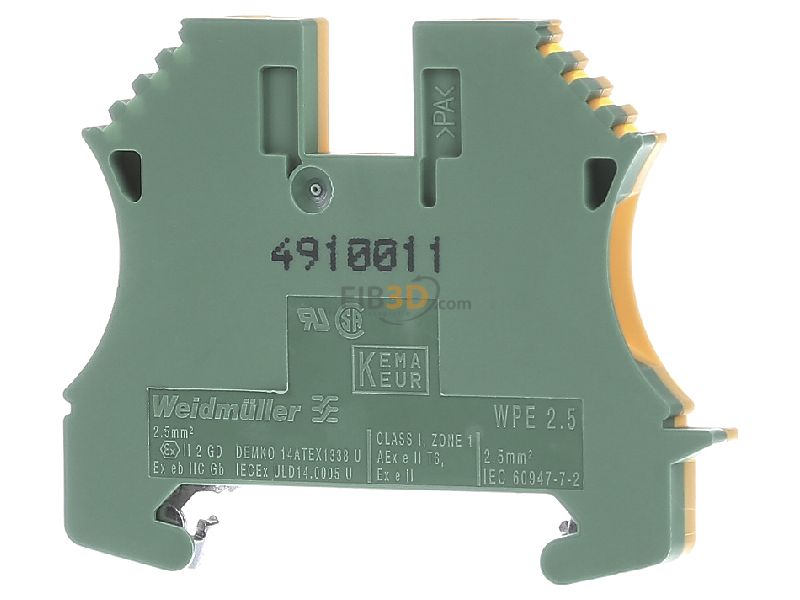

Back view Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
Back view

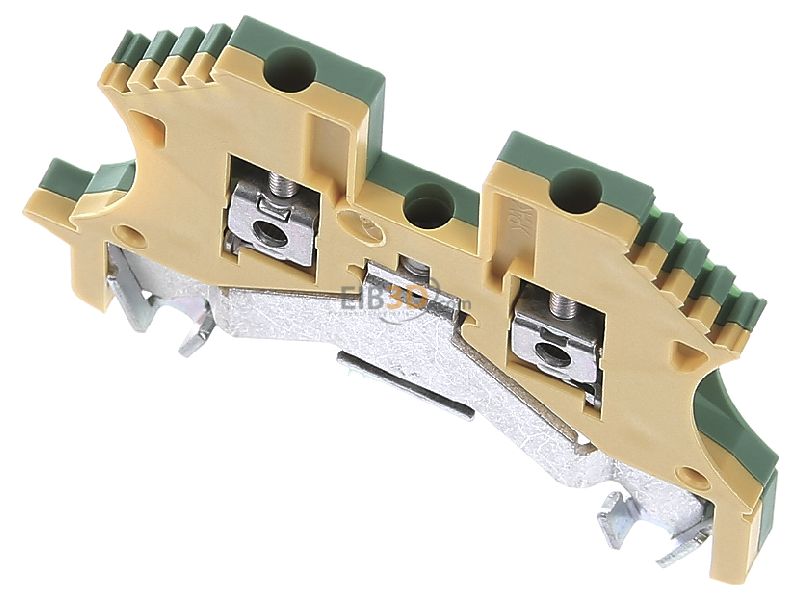

View up front Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
View up front

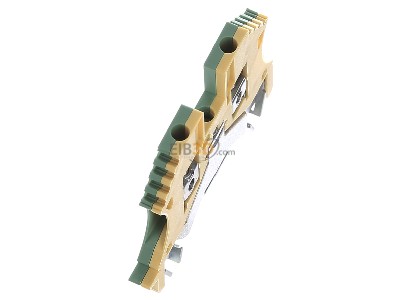

View top left Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
View top left

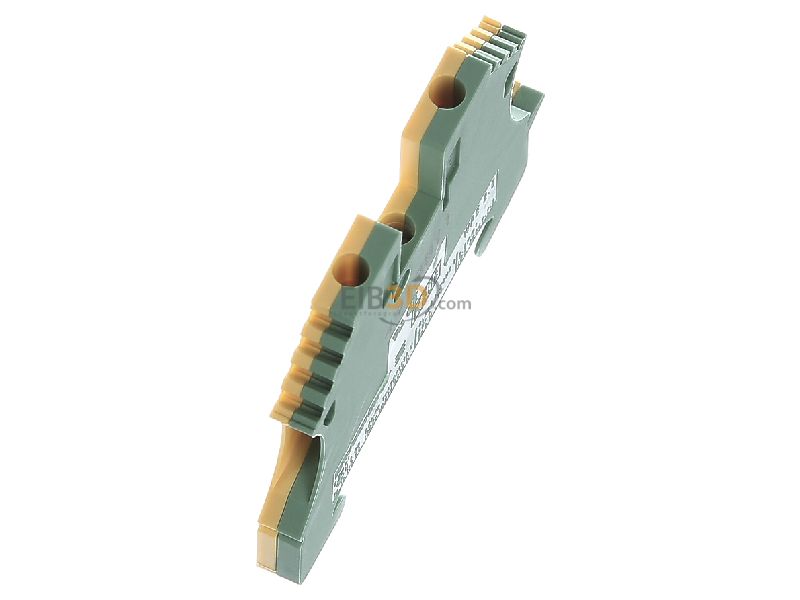

View top right Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
View top right

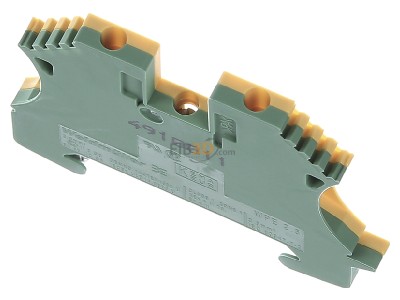

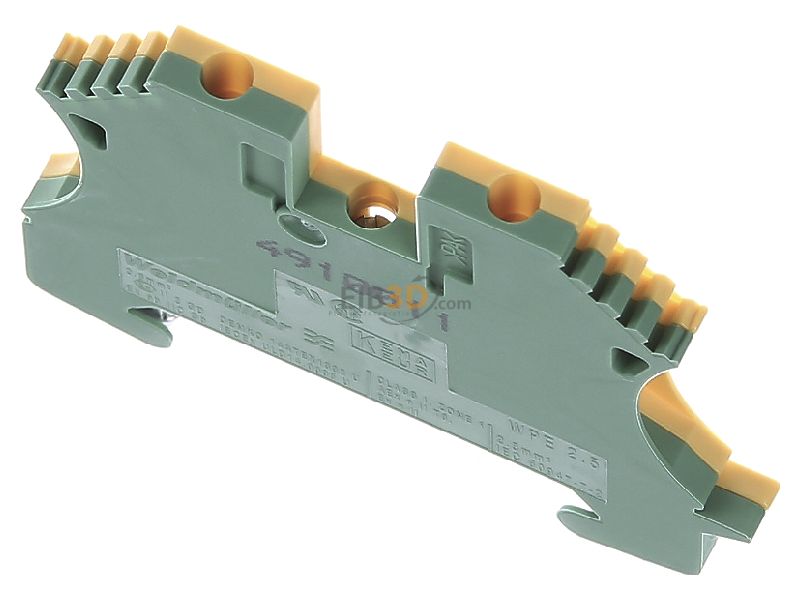

Top rear view Weidmüller WPE 2.5 Ground terminal block 1-p 5mm
Top rear view
