Ground terminal block 1-p 18,5mm WPE 50N

EAN/GTIN: 4032248394548
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WPE 50N
Manufact.-SKU: 1846040000
Customs tariff no.: 85369010
Similar top items: Show now & compare
18,79 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 1-p 18,5mm PEN function possible, Connectable conductor cross section fine-strand without cable end sleeve 10 ... 50mm², Connectable conductor cross section fine-strand with cable end sleeve 10 ... 50mm², Connectable conductor cross section solid-core 10 ... 16mm², Connectable conductor cross section multi-wired 10 ... 70mm², Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 18,5mm, Height at lowest possible mounting height 71mm, Length 69,6mm, Colour Green/yellow

More product images:

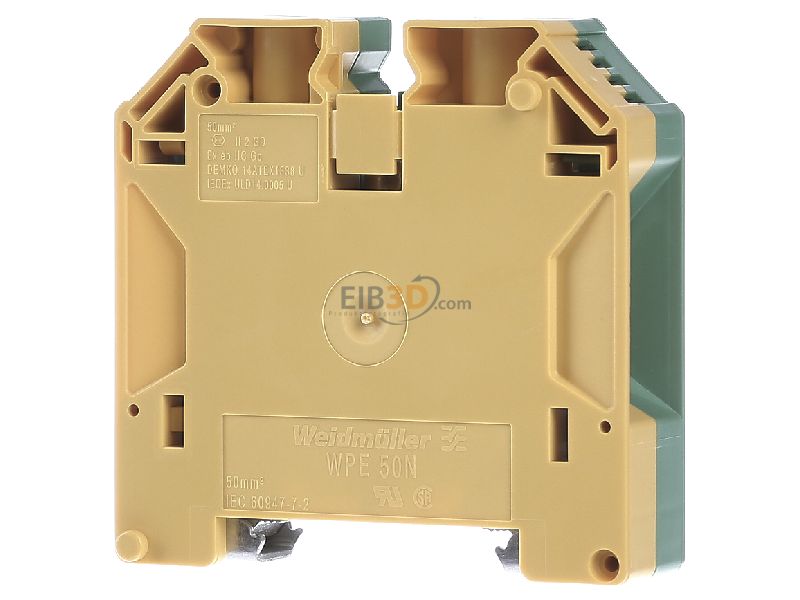

Front view Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
Front view

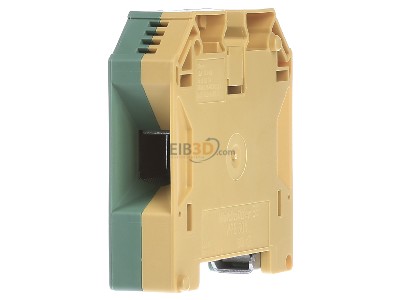

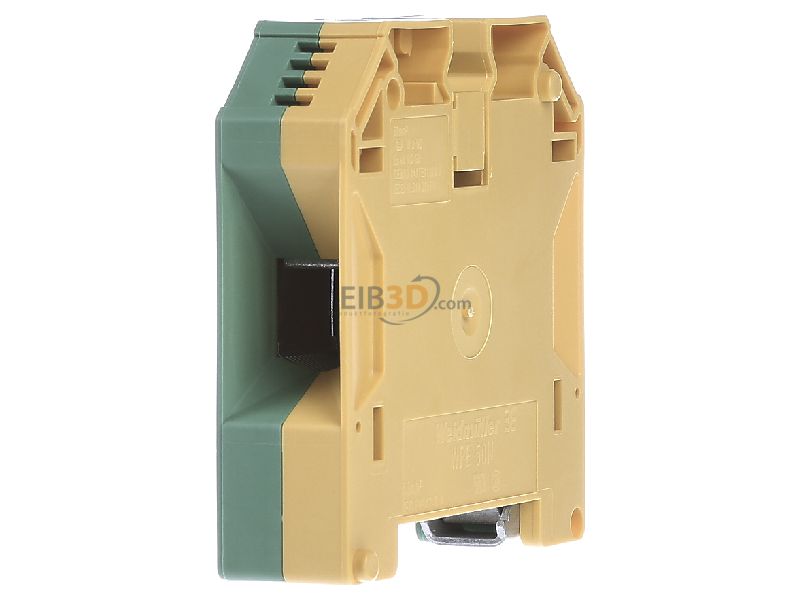

View on the left Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
View on the left

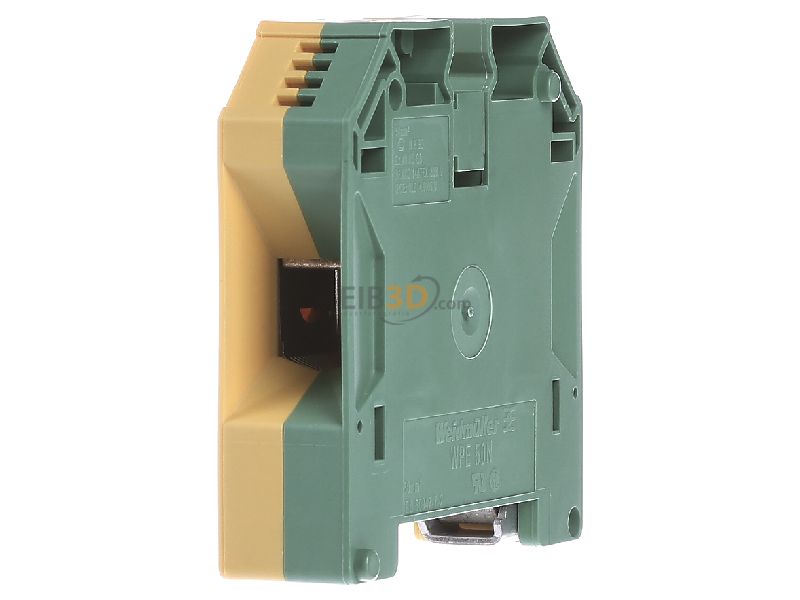

View on the right Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
View on the right

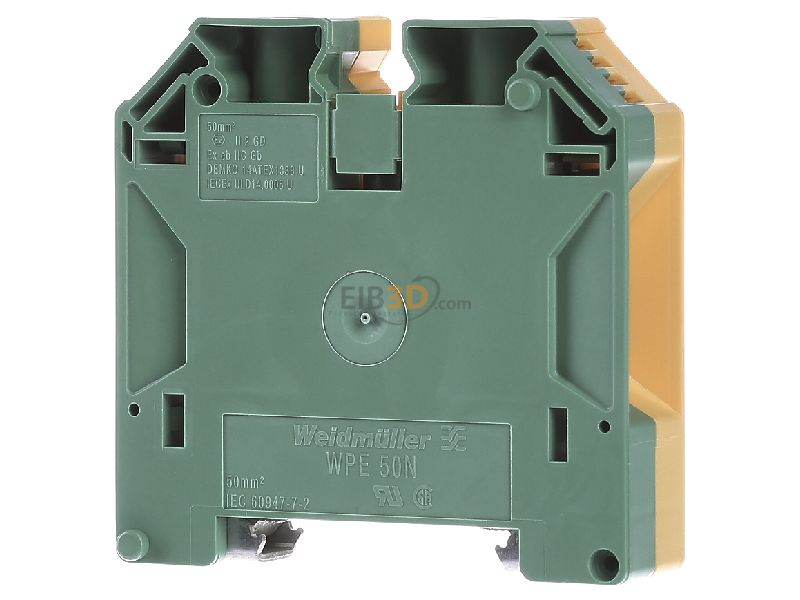

Back view Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
Back view

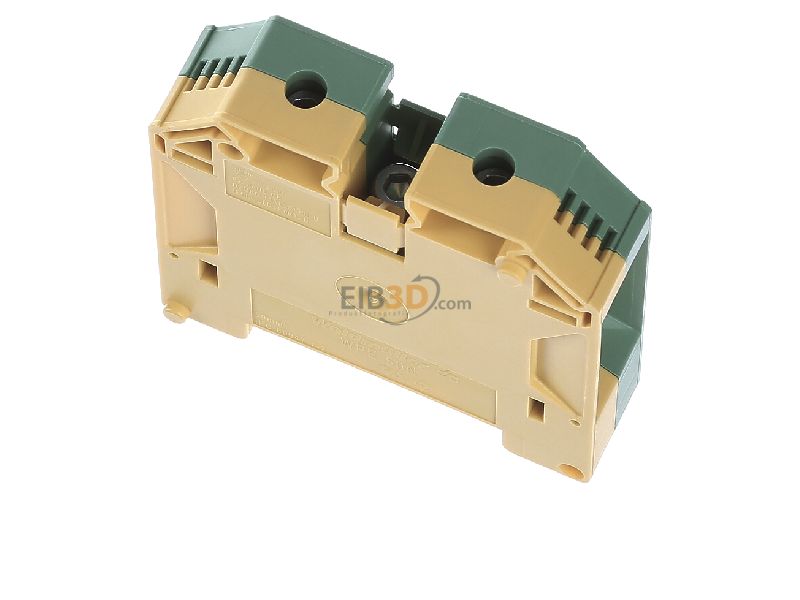

View up front Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
View up front

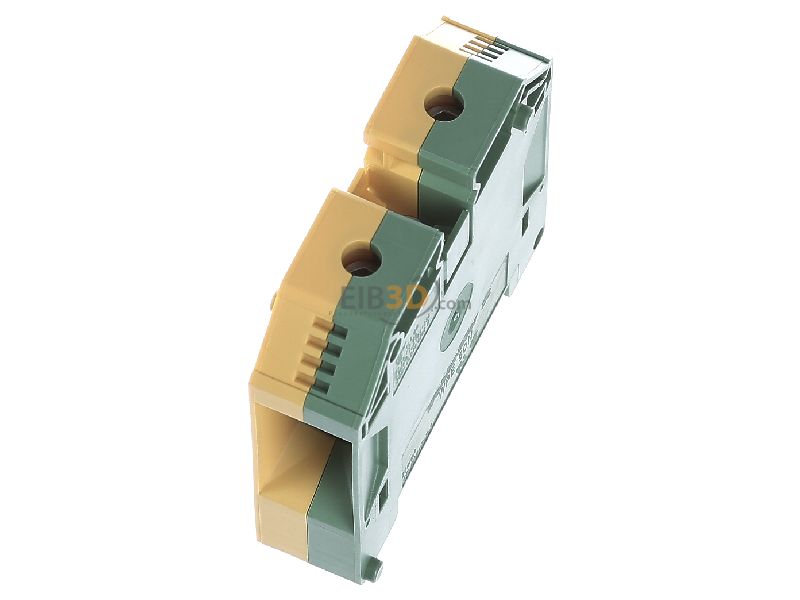

View top left Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
View top left
View top right Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
View top right

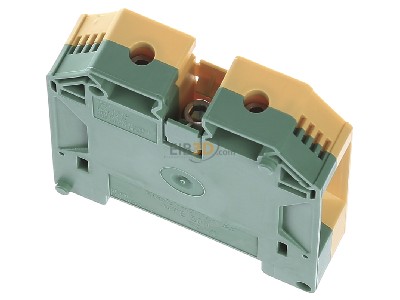

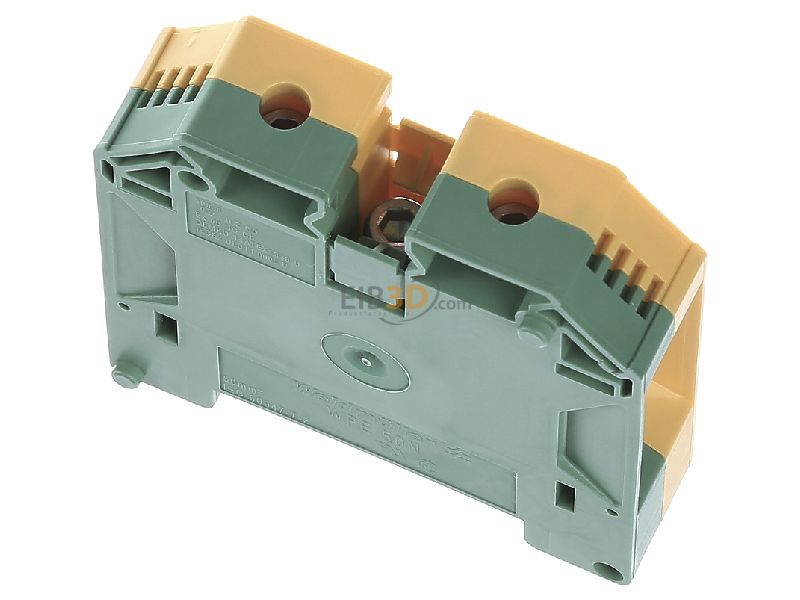

Top rear view Weidmüller WPE 50N Ground terminal block 1-p 18,5mm
Top rear view
