Ground terminal block 1-p 10mm WPE 10

EAN/GTIN: 4008190031251
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WPE 10
Manufact.-SKU: 1010300000
Customs tariff no.: 85369010
Similar top items: Show now & compare
3,94 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 1-p 10mm Connectable conductor cross section fine-strand without cable end sleeve 1,5 ... 16mm², Connectable conductor cross section fine-strand with cable end sleeve 1,5 ... 16mm², Connectable conductor cross section solid-core 1,5 ... 16mm², Connectable conductor cross section multi-wired 1,5 ... 16mm², Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 9,9mm, Height at lowest possible mounting height 56mm, Length 46,5mm, Colour Green/yellow

More product images:

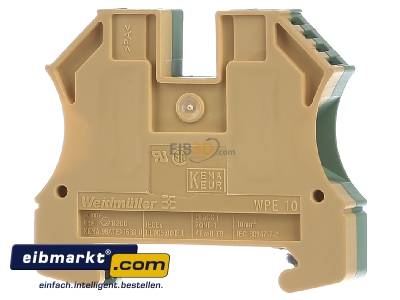

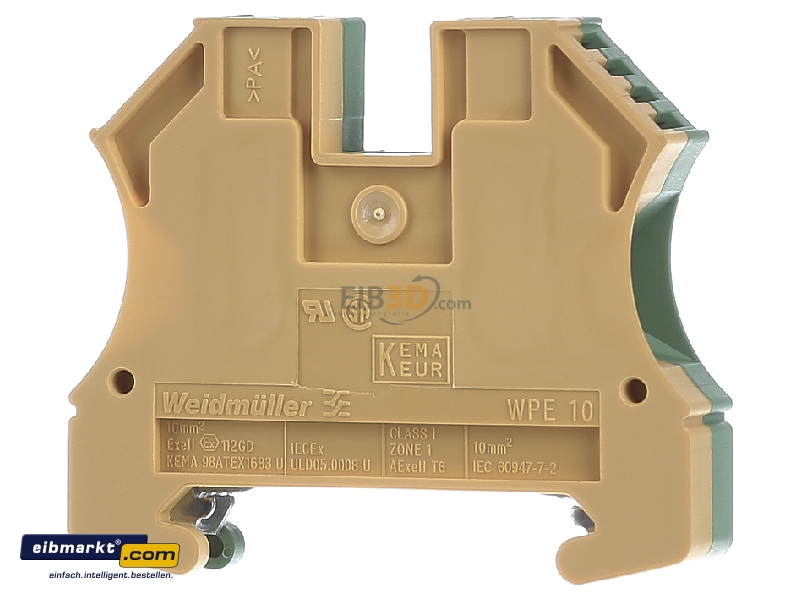

Front view Weidmüller WPE 10 Ground terminal block 1-p 10mm -
Front view

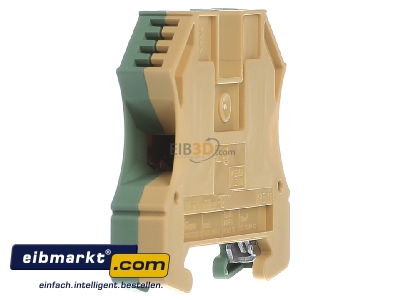

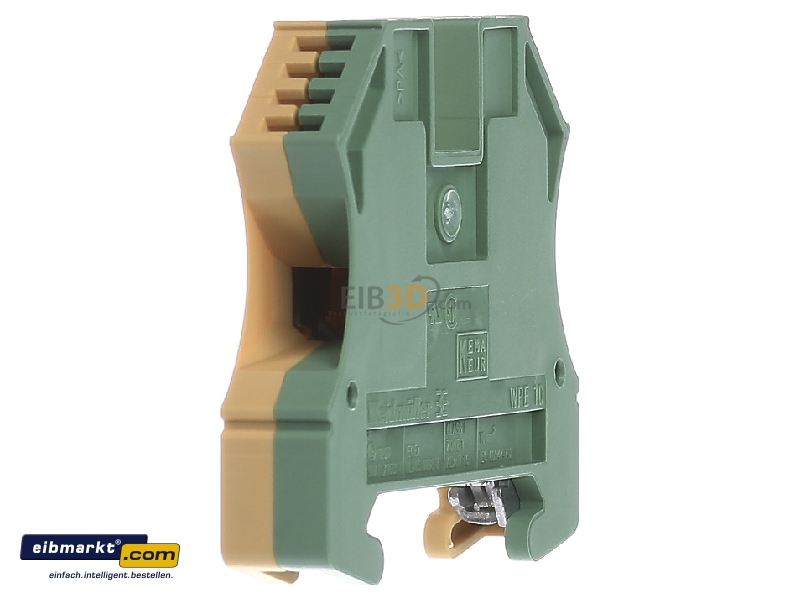

View on the left Weidmüller WPE 10 Ground terminal block 1-p 10mm -
View on the left

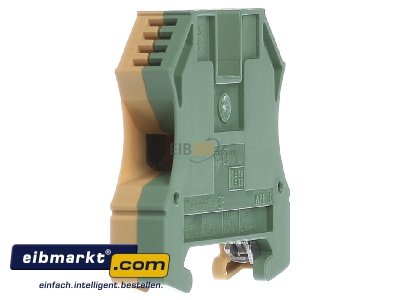

View on the right Weidmüller WPE 10 Ground terminal block 1-p 10mm -
View on the right

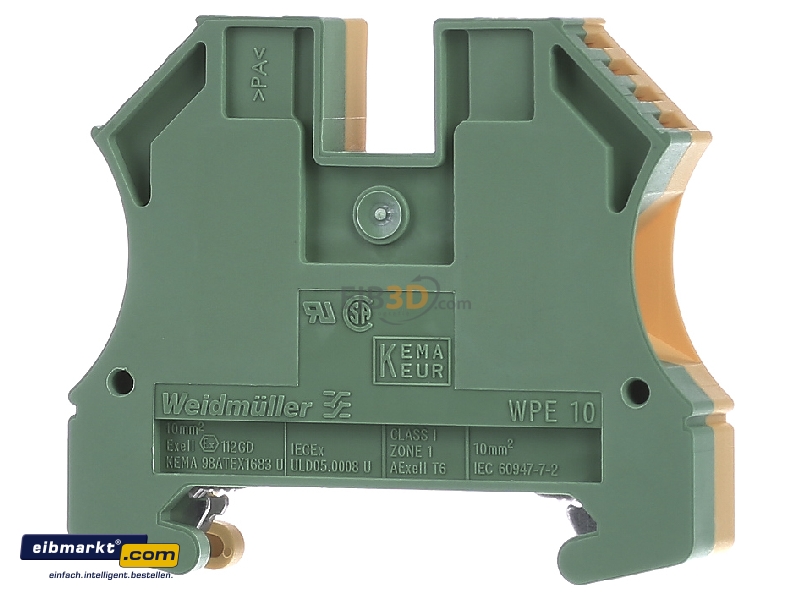

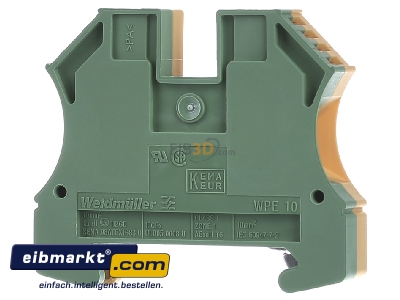

Back view Weidmüller WPE 10 Ground terminal block 1-p 10mm -
Back view

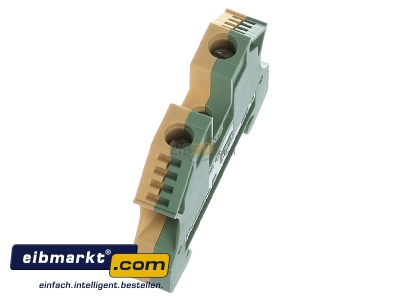

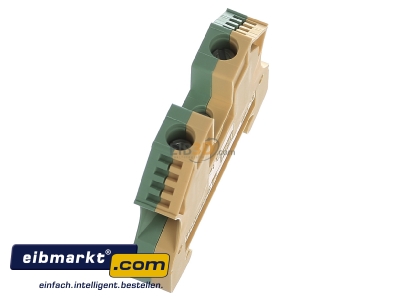

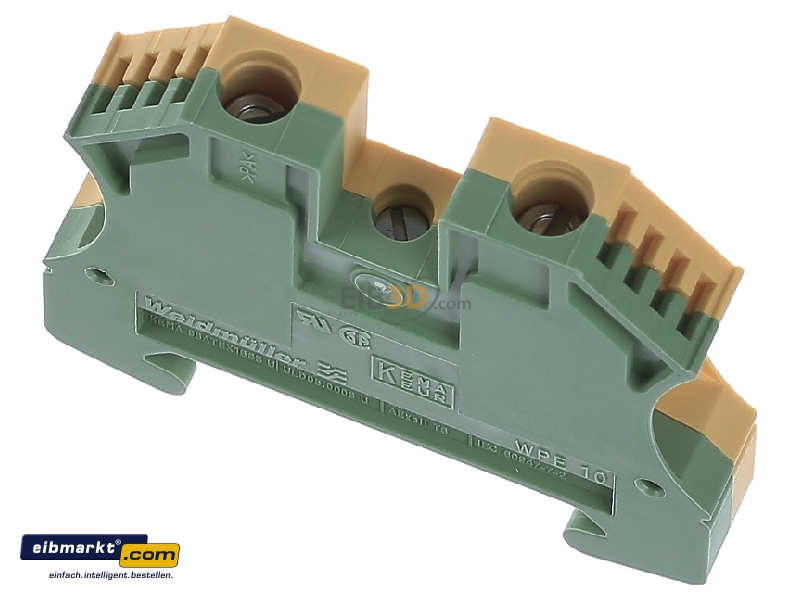

View up front Weidmüller WPE 10 Ground terminal block 1-p 10mm -
View up front

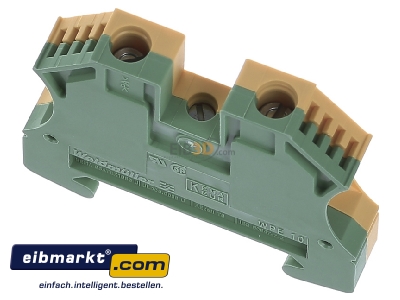

View top left Weidmüller WPE 10 Ground terminal block 1-p 10mm -
View top left

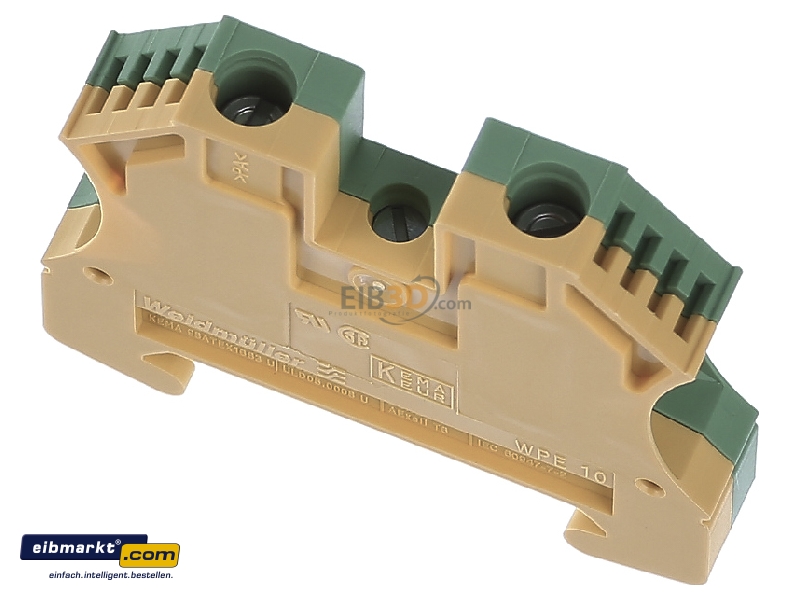

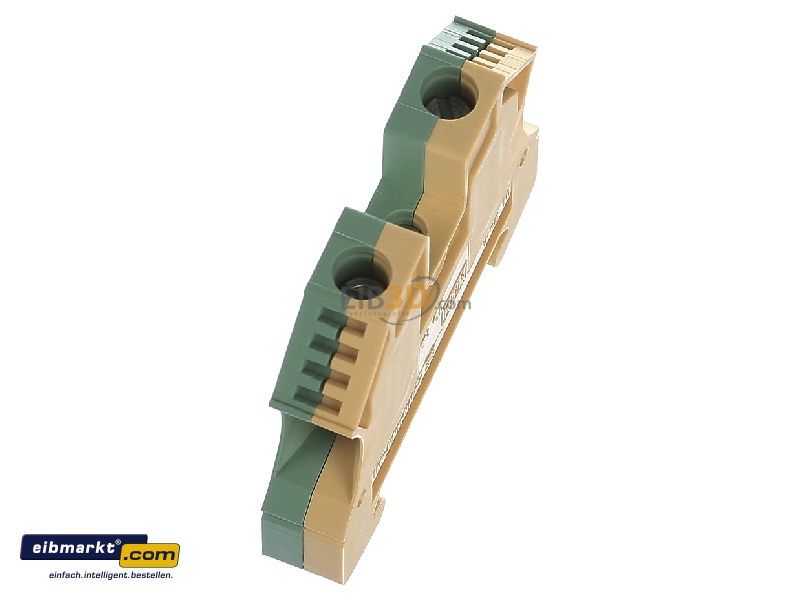

View top right Weidmüller WPE 10 Ground terminal block 1-p 10mm -
View top right

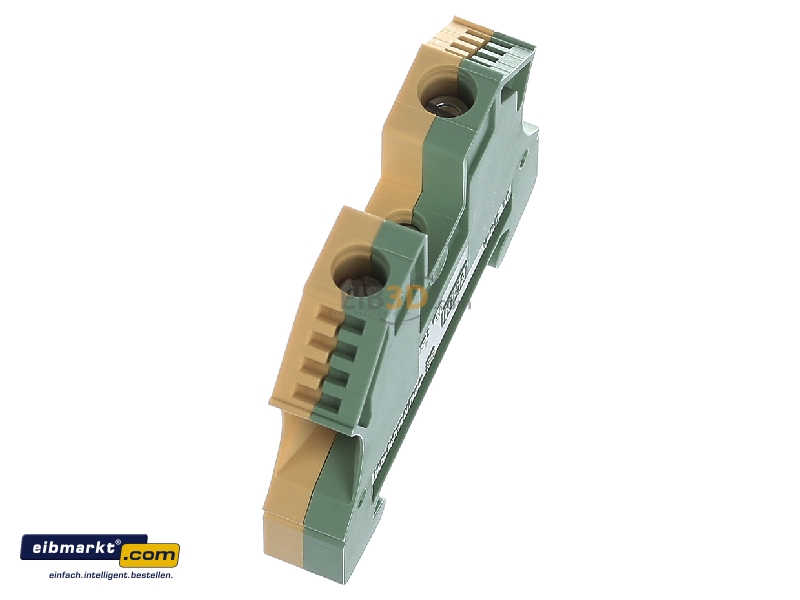

Top rear view Weidmüller WPE 10 Ground terminal block 1-p 10mm -
Top rear view
