G-fuse 5x25 mm terminal block 6,3A 8mm WSI 6

EAN/GTIN: 4008190105624
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WSI 6
Manufact.-SKU: 1011000000
Customs tariff no.: 85369095
Similar top items: Show now & compare
4,08 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

G-fuse 5x25 mm terminal block 6,3A 8mm Type of fuse insert G-fuse 5x20 mm, Type of fuse holder Swivelling, Type of indication element for defect indication None, Supply voltage for defect-indication 500 ... 500V, Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 10mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 10mm², Connectable conductor cross section multi-wired 1,5 ... 10mm², Rated current In 6,3A, Rated voltage 250V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Number of levels 1, Connection position Sideways, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 7,9mm, Height at lowest possible mounting height 61mm, Length 60mm, Closing plate required, Colour Beige

More product images:

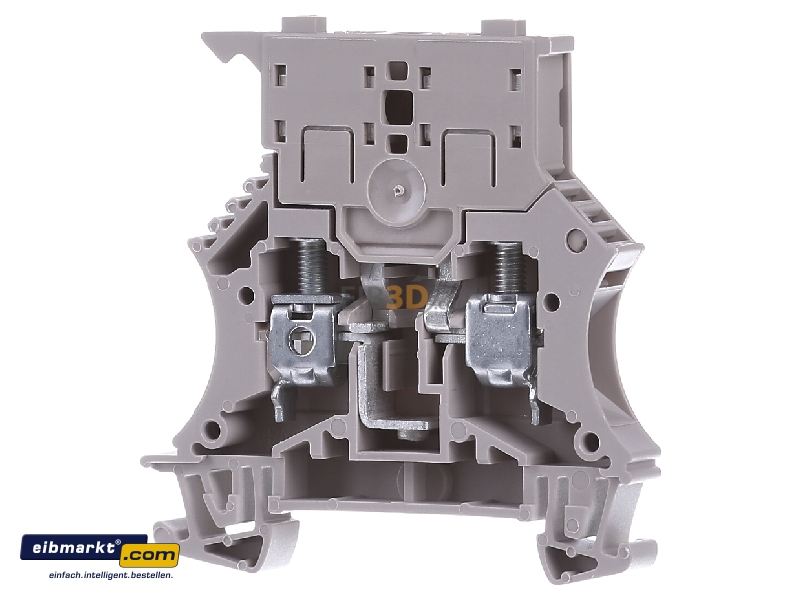

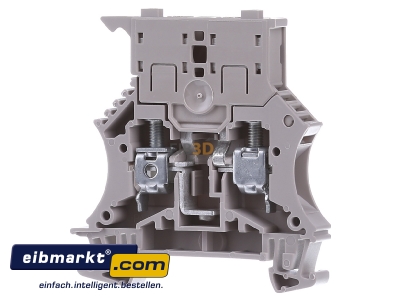

Front view Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
Front view

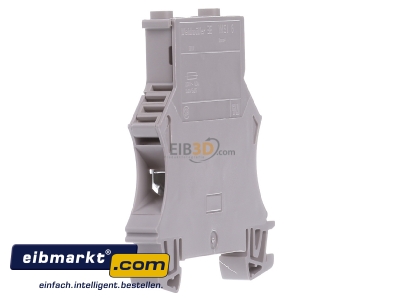

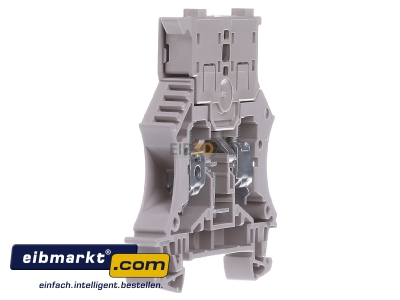

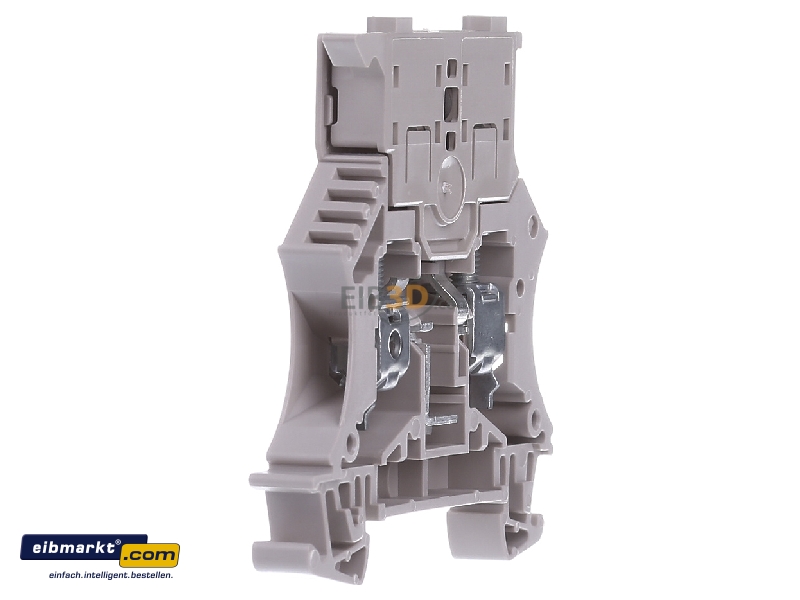

View on the left Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
View on the left

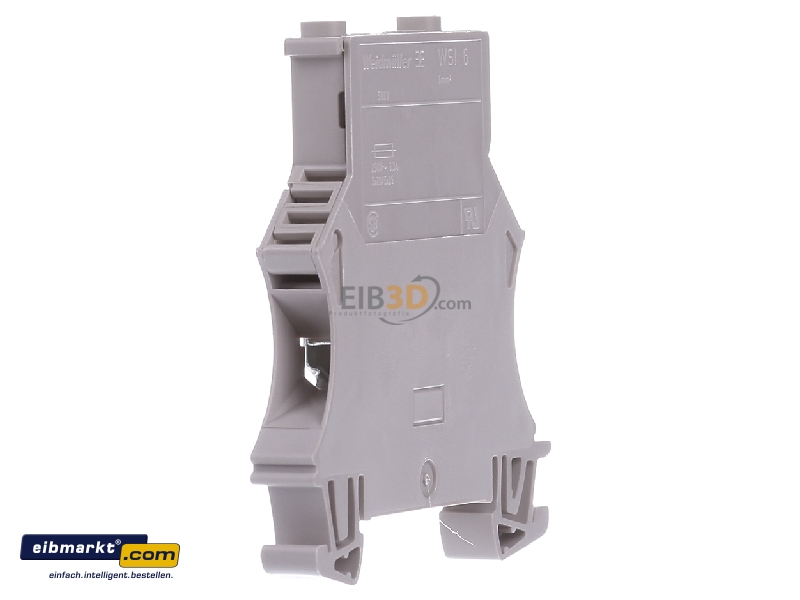

View on the right Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
View on the right

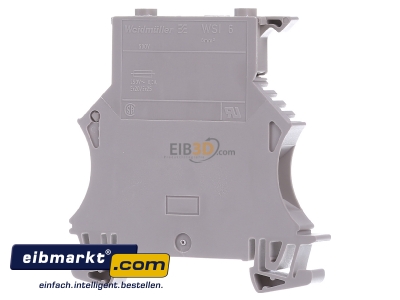

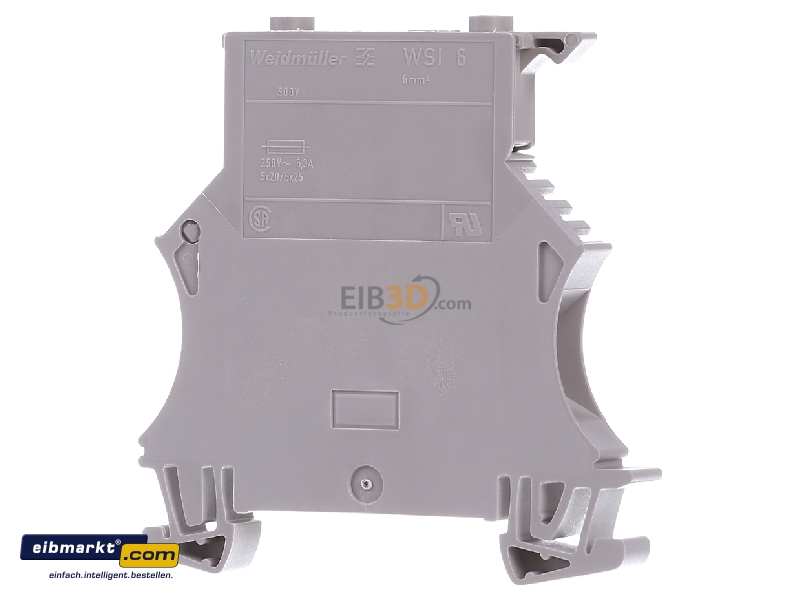

Back view Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
Back view

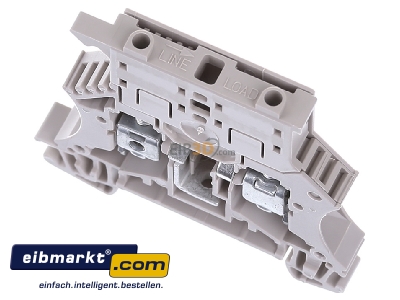

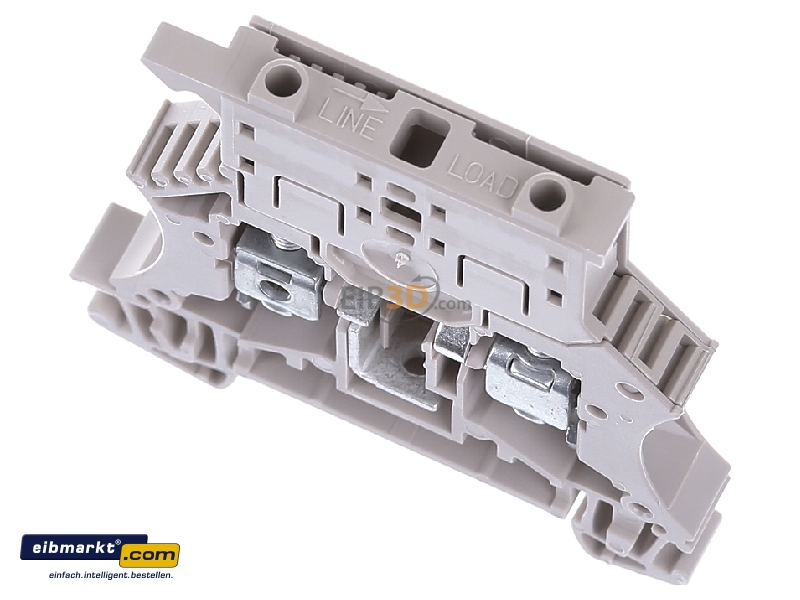

View up front Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
View up front

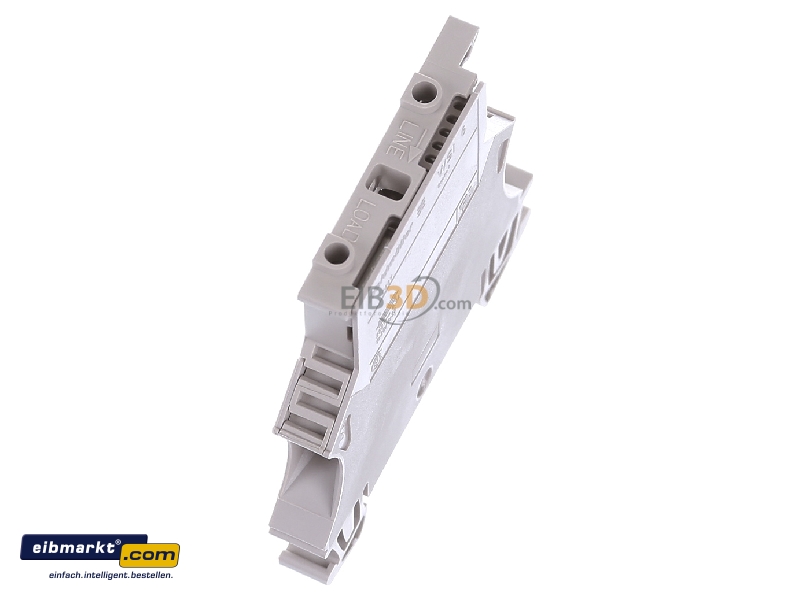

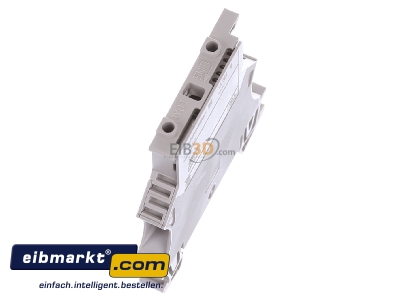

View top left Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
View top left

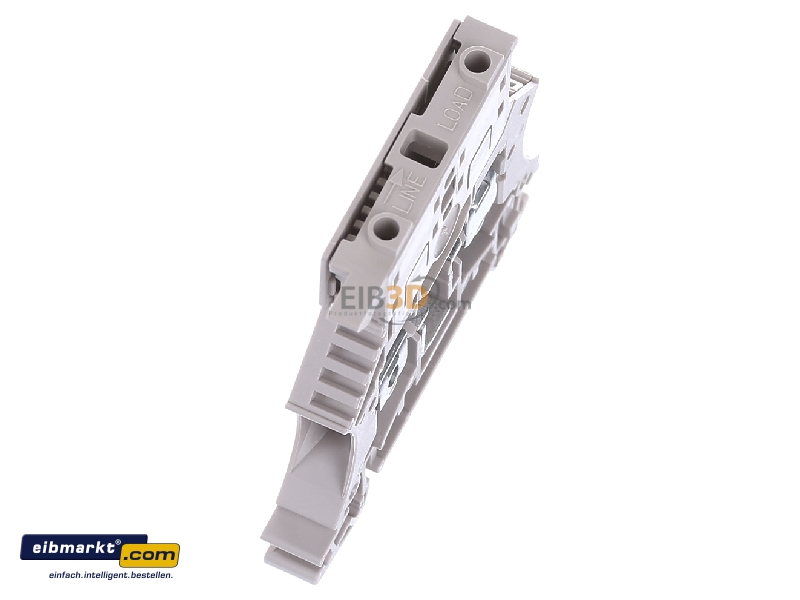

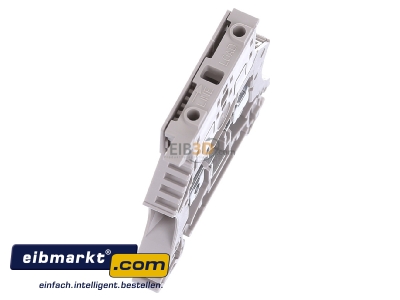

View top right Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
View top right

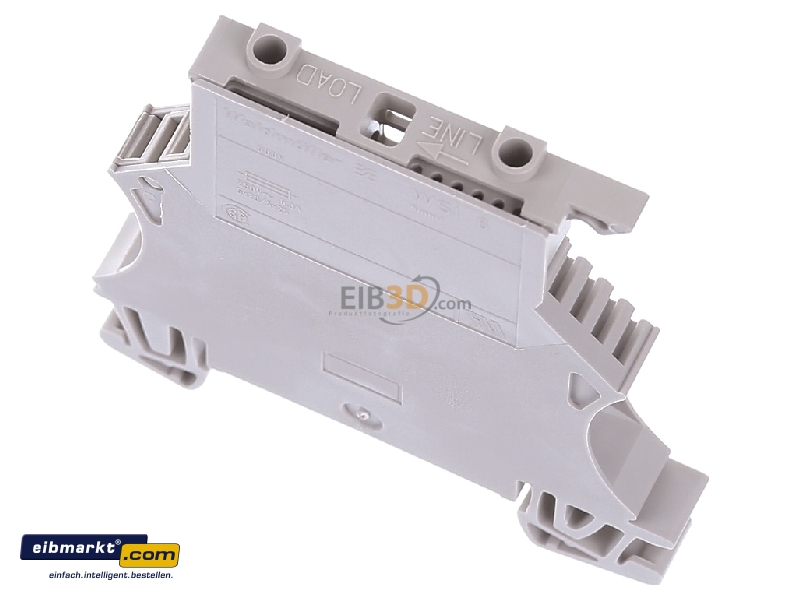

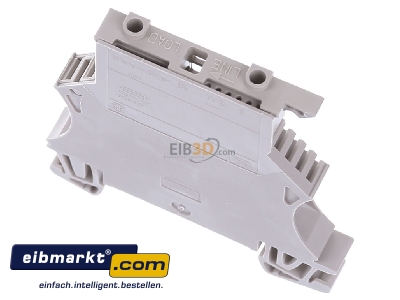

Top rear view Weidmüller WSI 6 G-fuse 5x25 mm terminal block 6,3A 8mm
Top rear view
