G-fuse 5x20 mm terminal block 6,3A 13mm SAKS 1/35/G20

EAN/GTIN: 4008190111229
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: SAKS 1/35/G20
Manufact.-SKU: 0501620000
Customs tariff no.: 85369095
Similar top items: Show now & compare
13,95 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

G-fuse 5x20 mm terminal block 6,3A 13mm Type of fuse insert G-fuse 5x20 mm, Type of fuse holder Screwable, Type of indication element for defect indication None, Supply voltage for defect-indication 500 ... 500V, Voltage type for defect indication AC/DC, Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 10mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 10mm², Connectable conductor cross section solid-core 0,5 ... 16mm², Connectable conductor cross section multi-wired 1,5 ... 10mm², Rated current In 10A, Rated voltage 500V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Number of levels 1, Connection position Sideways, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Duroplast, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 13mm, Height at lowest possible mounting height 53mm, Length 54mm, Closing plate required, Colour Yellow

More product images:

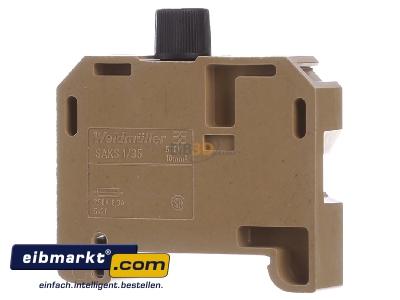

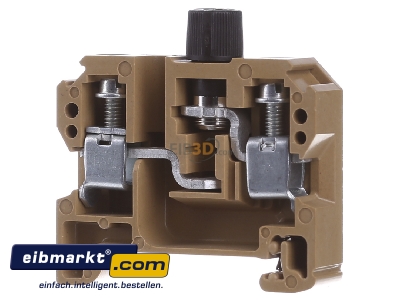

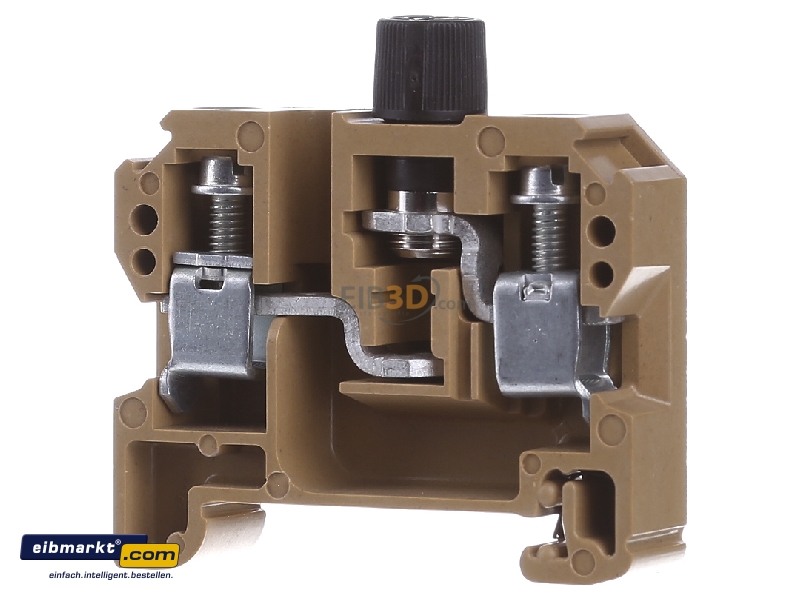

Front view Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
Front view

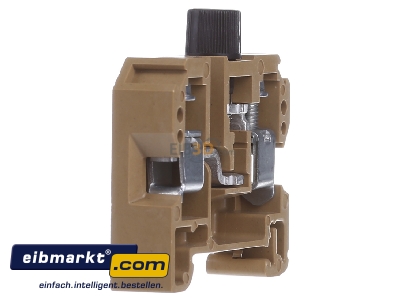

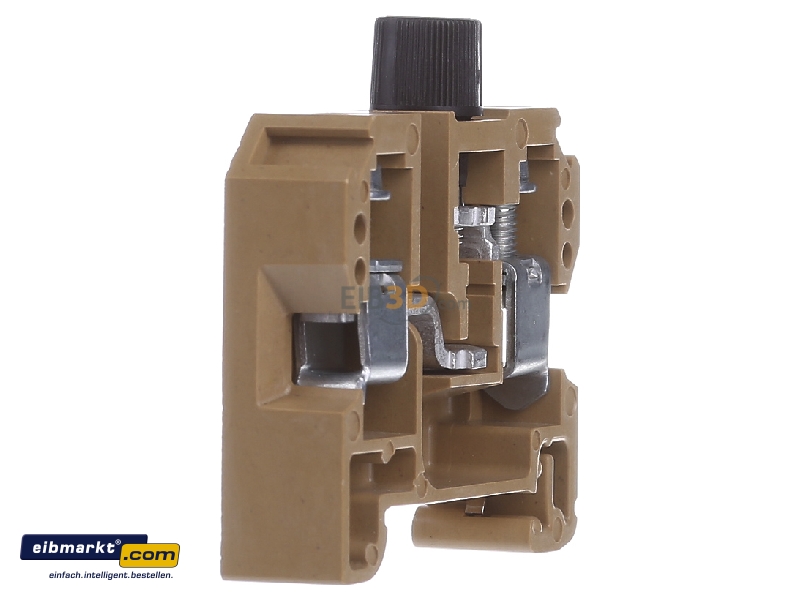

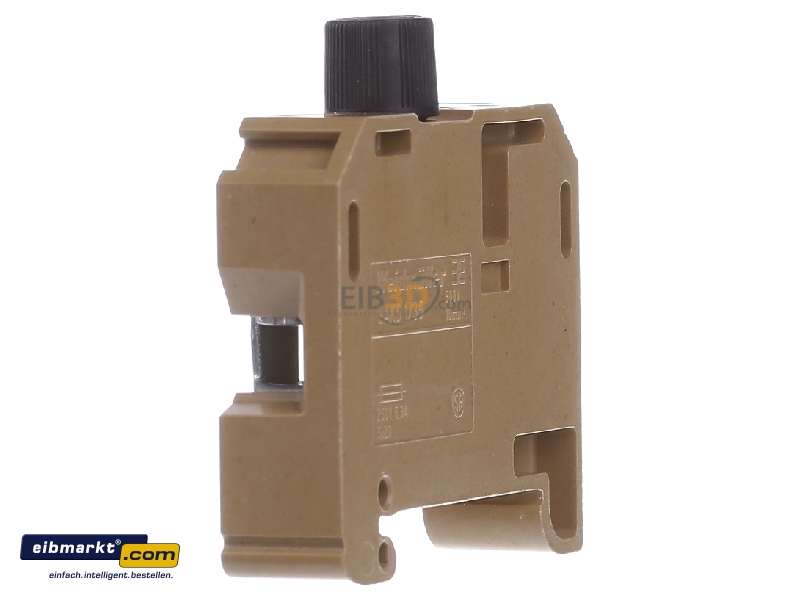

View on the left Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
View on the left

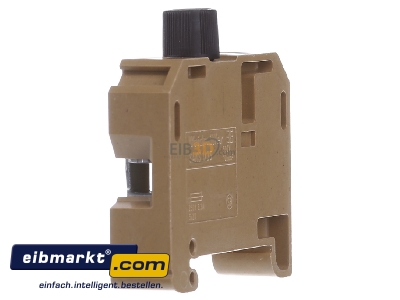

View on the right Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
View on the right

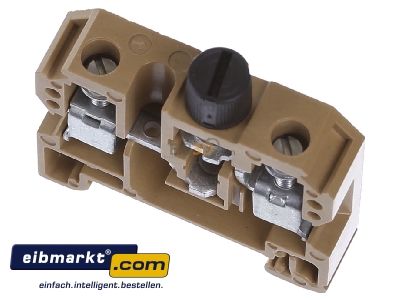

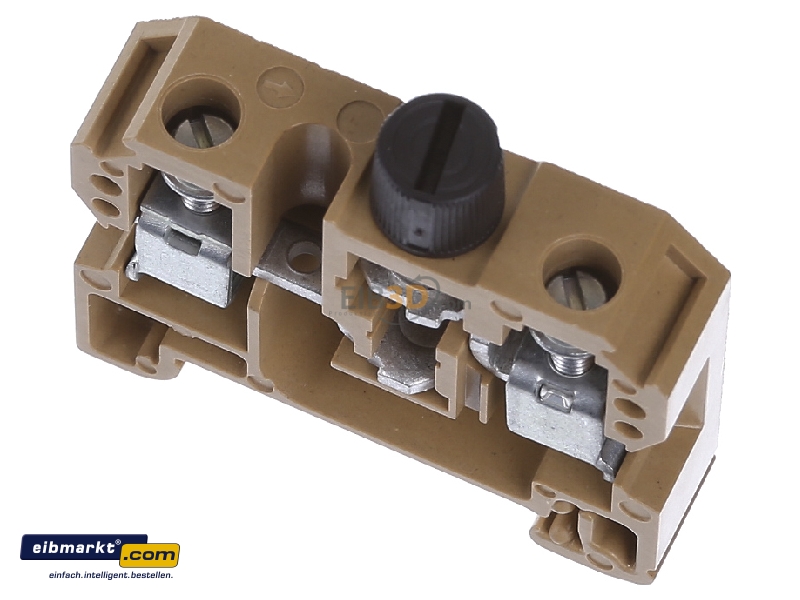

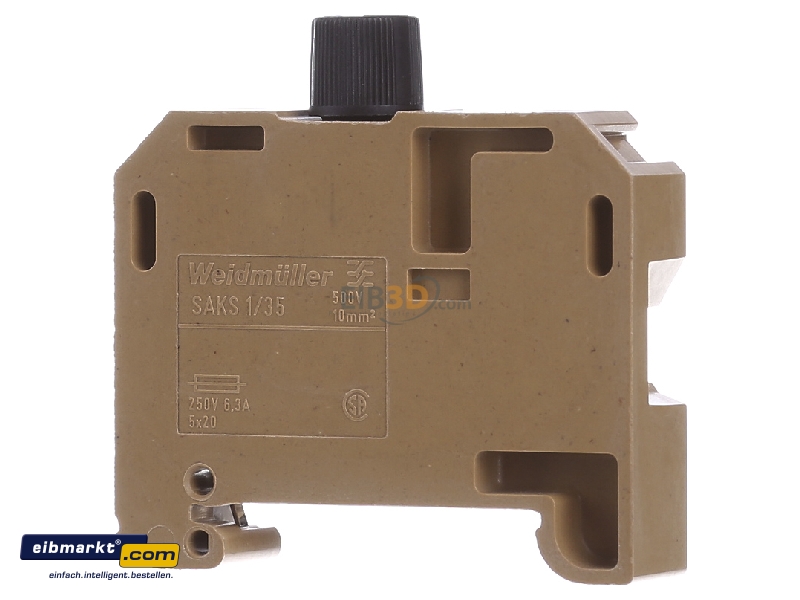

Back view Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
Back view

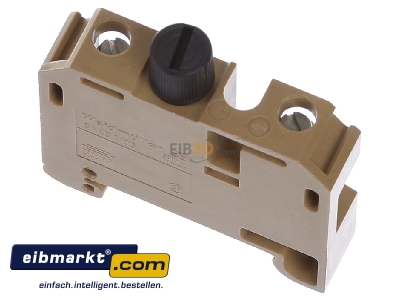

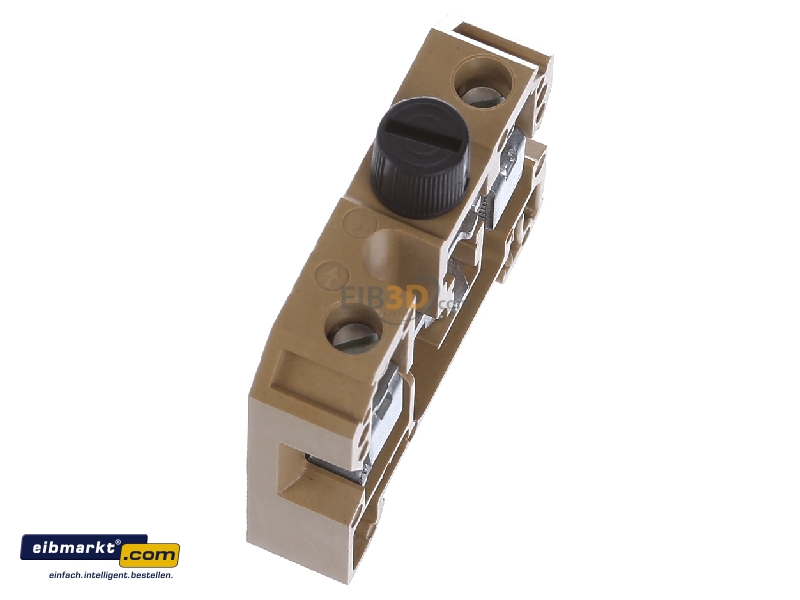

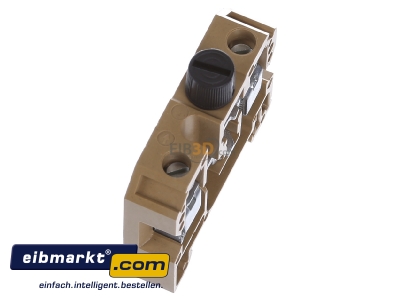

View up front Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
View up front

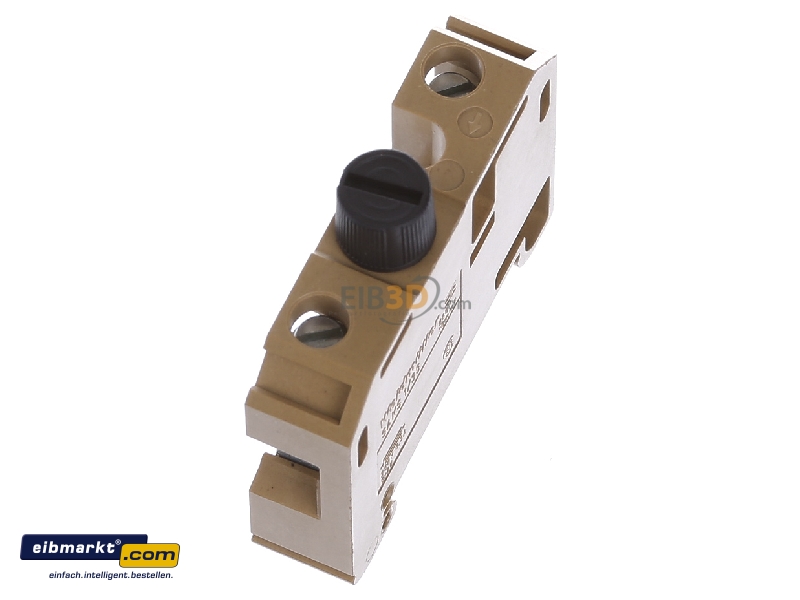

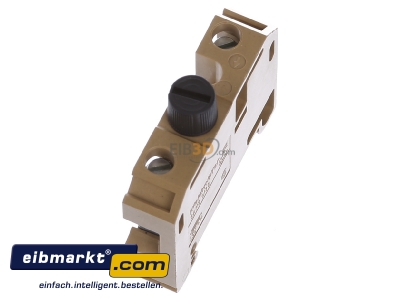

View top left Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
View top left
View top right Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
View top right

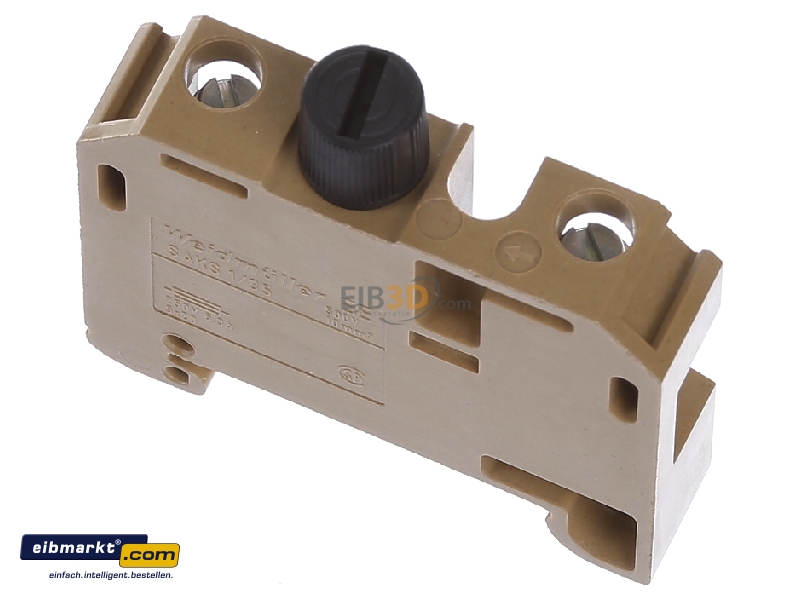

Top rear view Weidmüller SAKS 1/35/G20 G-fuse 5x20 mm terminal block 6,3A 13mm
Top rear view
