Fuse terminal block ZSI 2.5

EAN/GTIN: 4008190196592
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: ZSI 2.5
Manufact.-SKU: 1616400000
Customs tariff no.: 85369095
Similar top items: Show now & compare
4,13 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fuse terminal block Type of fuse insert G-fuse 5x20 mm, Type of fuse holder Swivelling, Type of indication element for defect indication None, Supply voltage for defect-indication 500 ... 500V, Voltage type for defect indication AC/DC, Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Rated current In 6,3A, Rated voltage 250V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Other, Number of levels 1, Connection position Inclined, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 7,9mm, Height at lowest possible mounting height 73mm, Length 79,5mm, Closing plate required, Colour Beige

More product images:

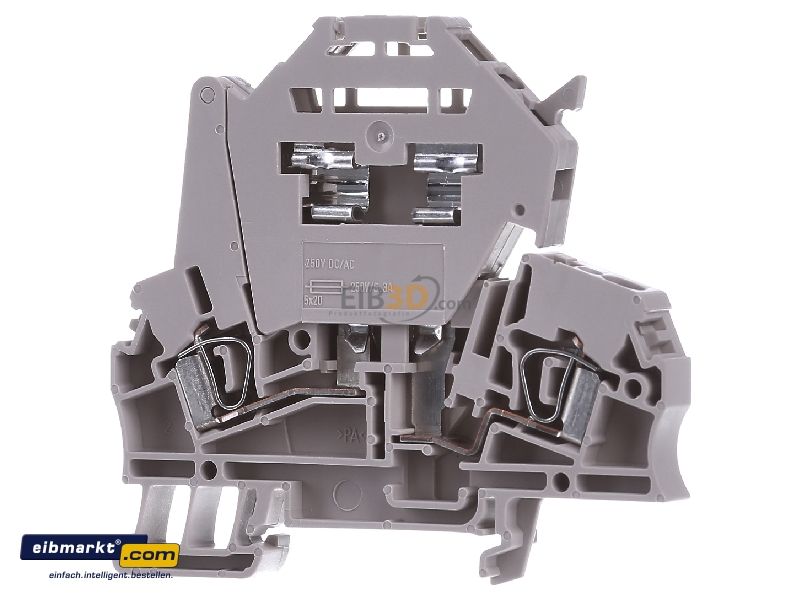

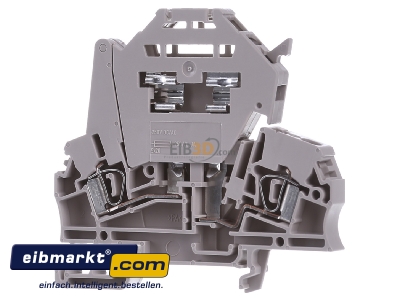

Front view Weidmüller ZSI 2.5 Fuse terminal block
Front view

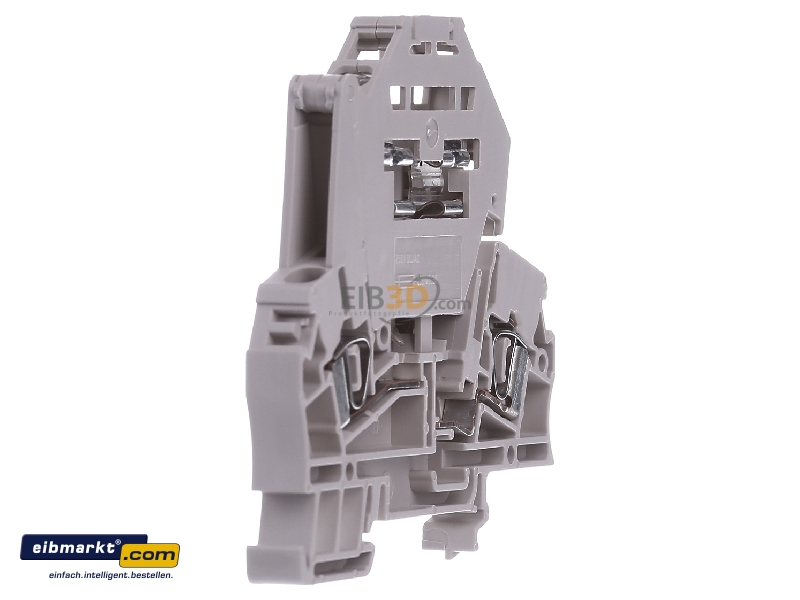

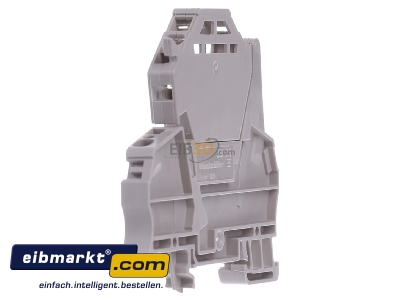

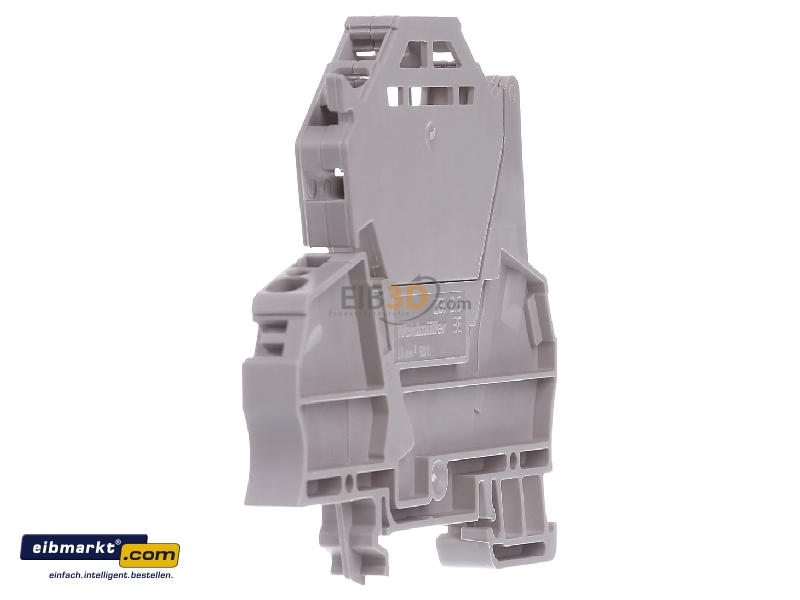

View on the left Weidmüller ZSI 2.5 Fuse terminal block
View on the left

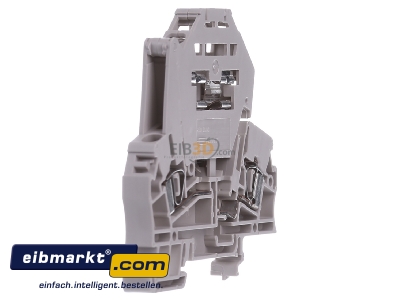

View on the right Weidmüller ZSI 2.5 Fuse terminal block
View on the right

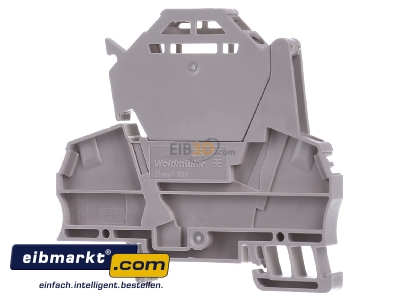

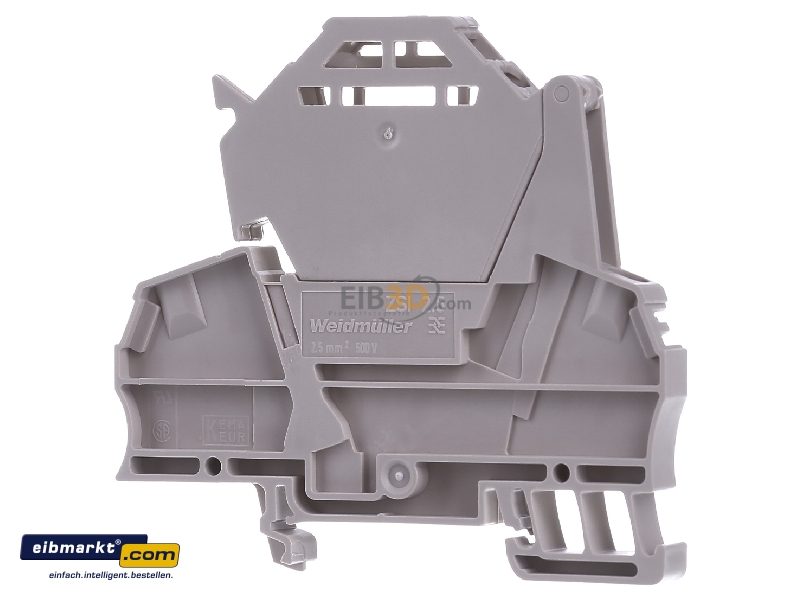

Back view Weidmüller ZSI 2.5 Fuse terminal block
Back view

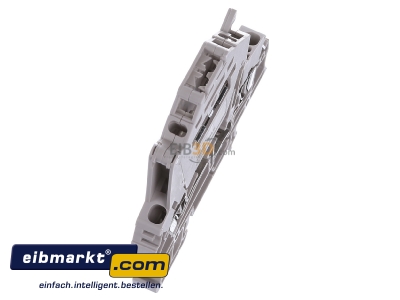

View up front Weidmüller ZSI 2.5 Fuse terminal block
View up front

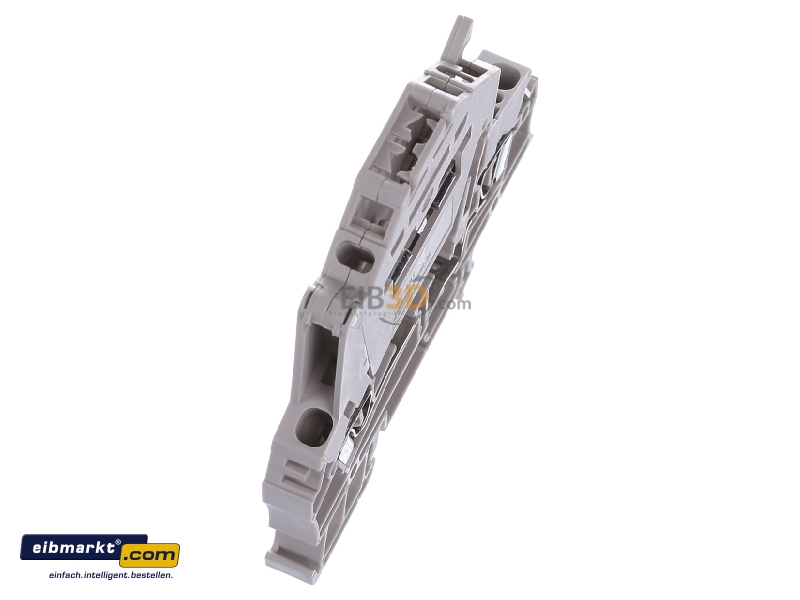

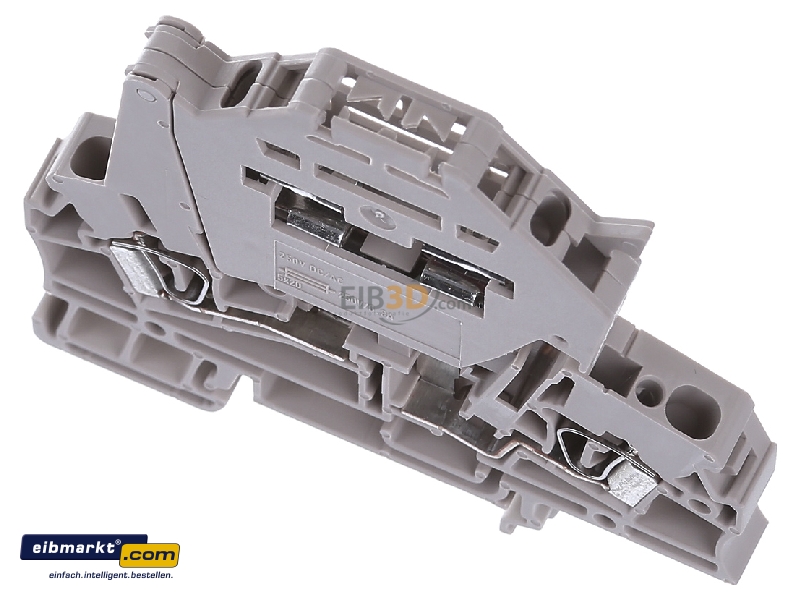

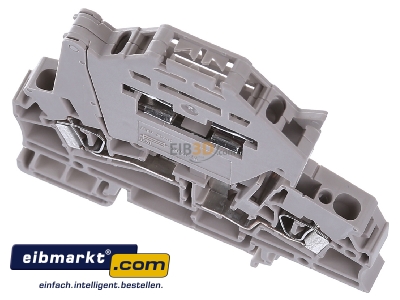

View top left Weidmüller ZSI 2.5 Fuse terminal block
View top left

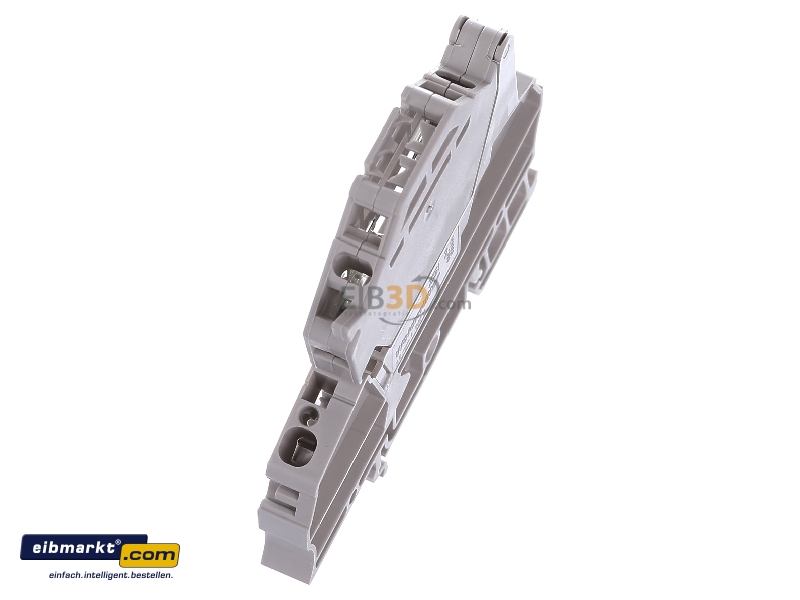

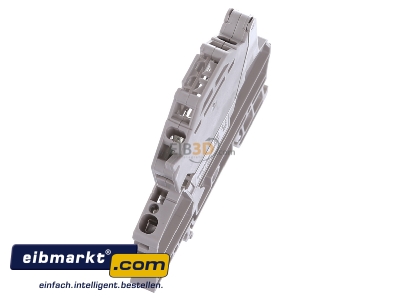

View top right Weidmüller ZSI 2.5 Fuse terminal block
View top right

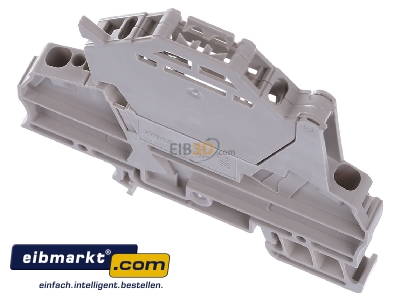

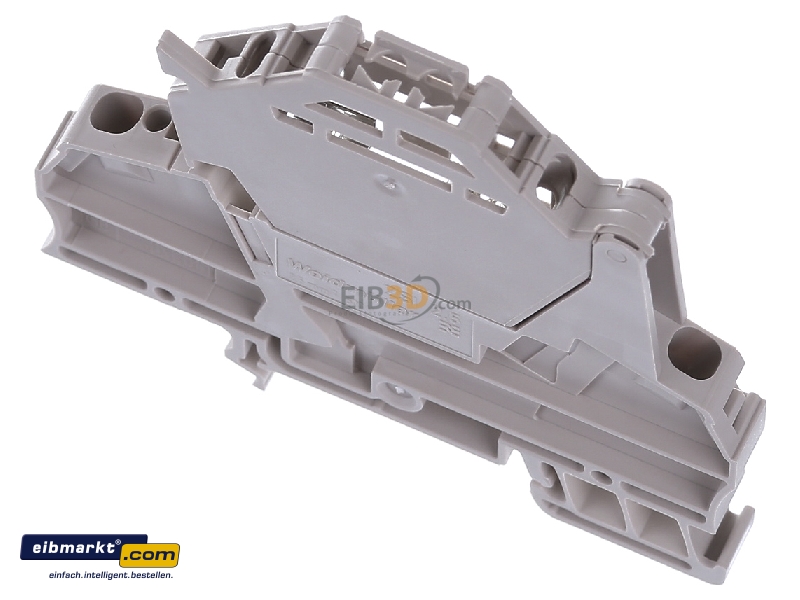

Top rear view Weidmüller ZSI 2.5 Fuse terminal block
Top rear view
