Feed-through terminal block 8,1mm 41A ZDU 6-2/3AN BL

EAN/GTIN: 4032248143153
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: ZDU 6-2/3AN BL
Manufact.-SKU: 1771420000
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,32 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 8,1mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 10mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 10mm², Rated current In 41A, Rated voltage 800V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Inclined, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,1mm, Height at lowest possible mounting height 49,5mm, Length 68mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Blue

More product images:

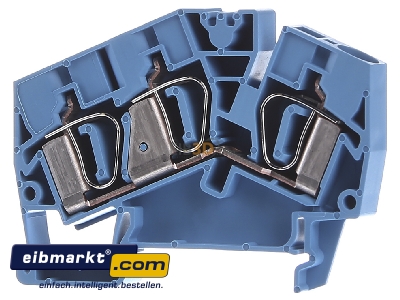

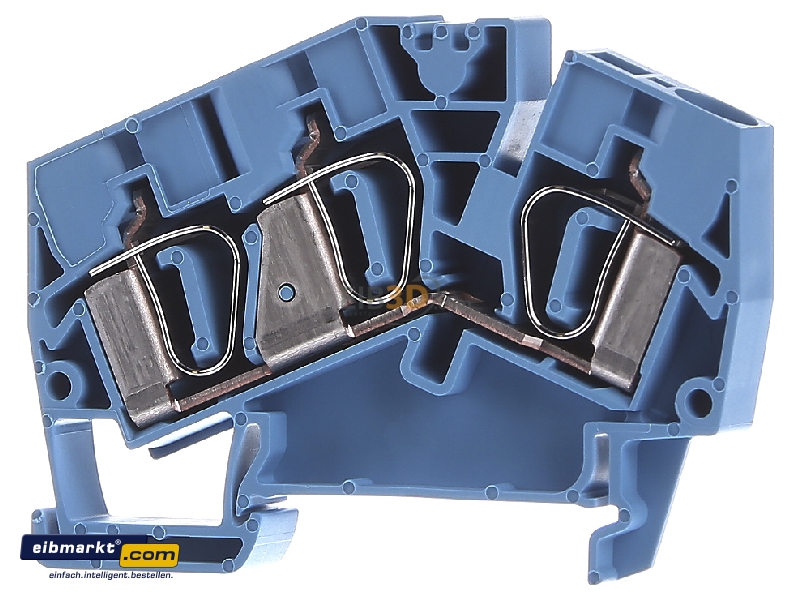

Front view Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
Front view

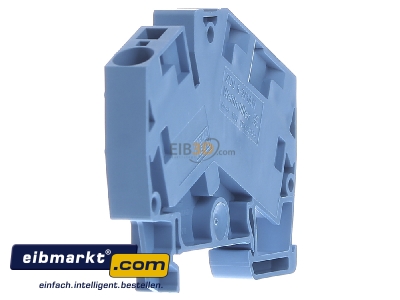

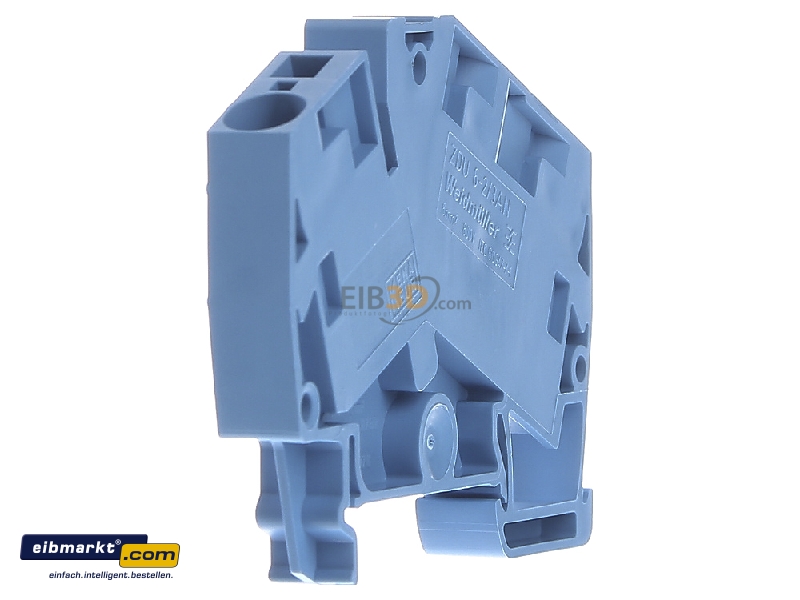

View on the left Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
View on the left

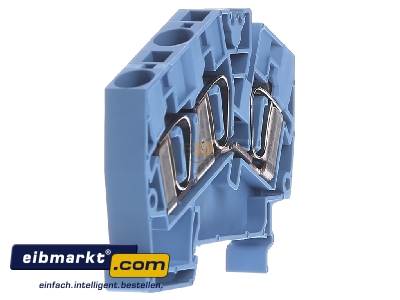

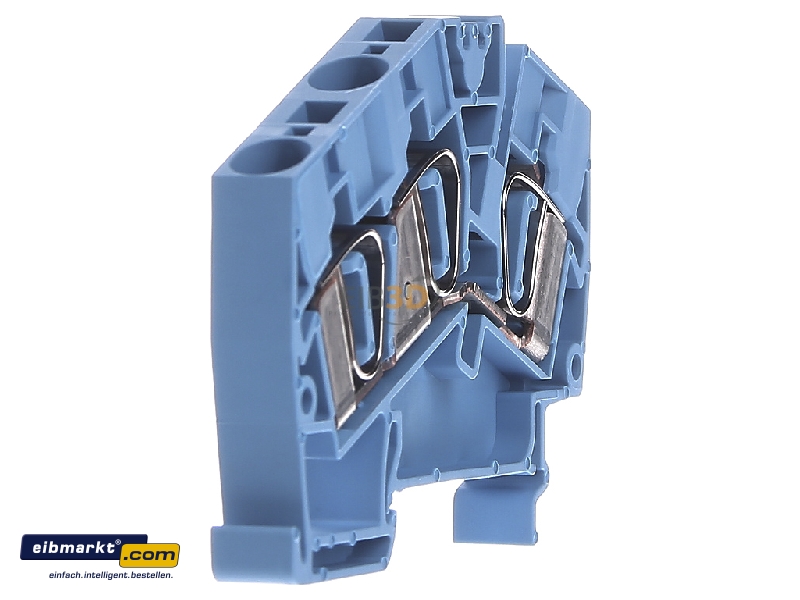

View on the right Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
View on the right

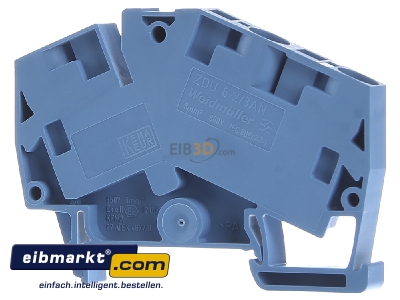

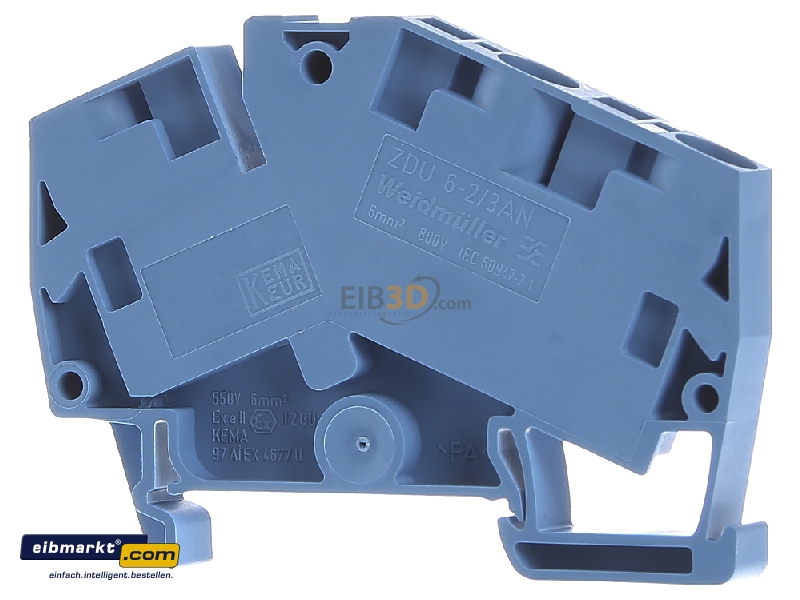

Back view Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
Back view

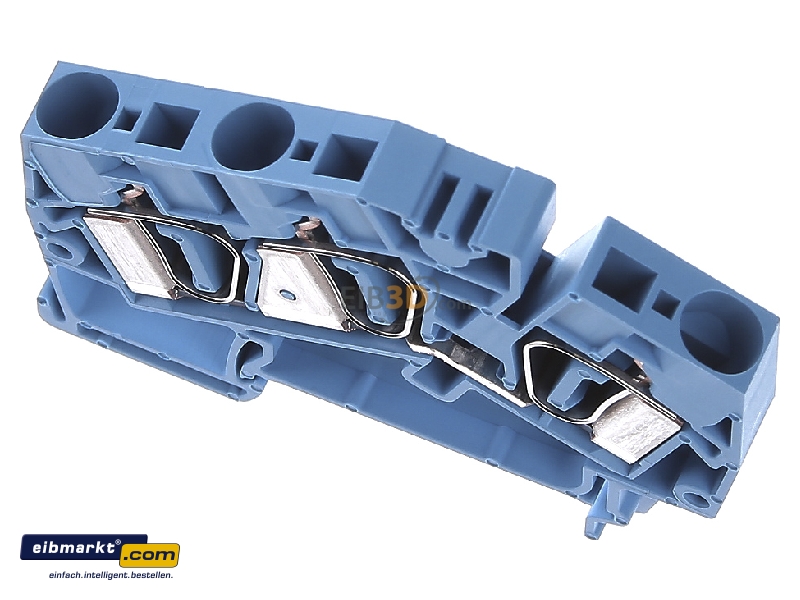

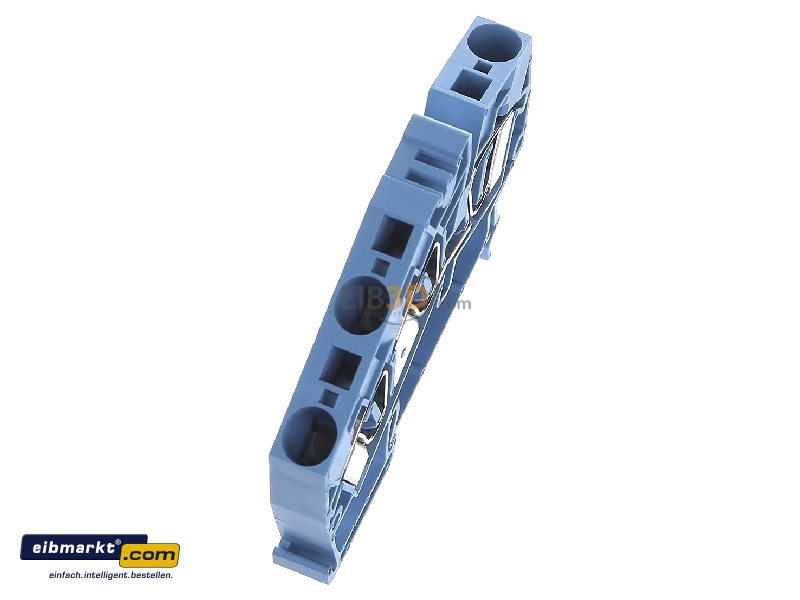

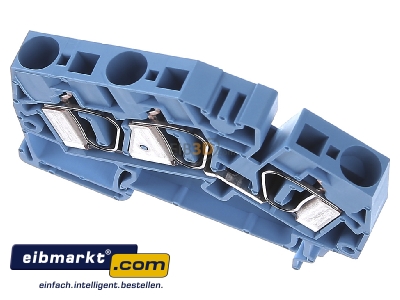

View up front Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
View up front

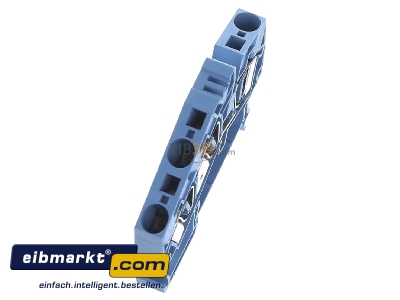

View top left Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
View top left

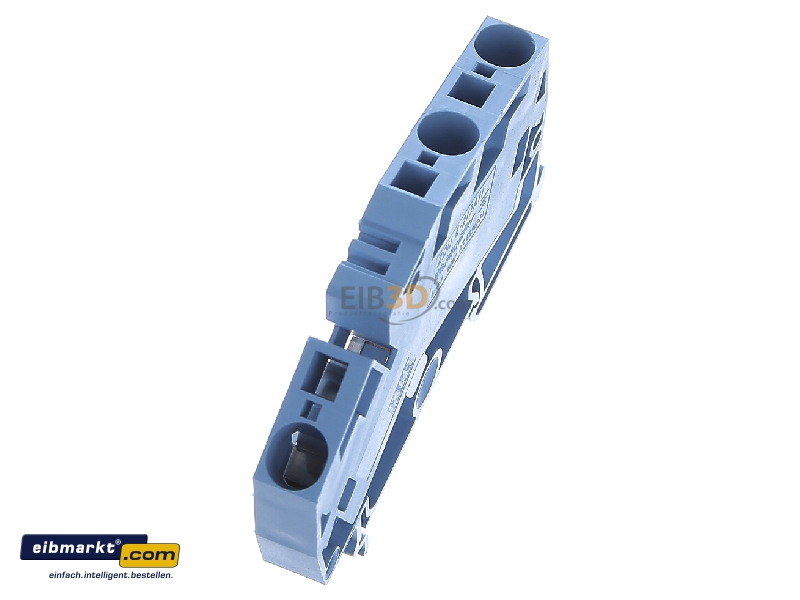

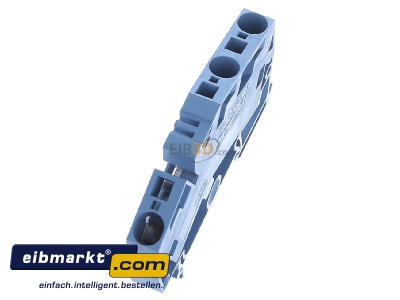

View top right Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
View top right

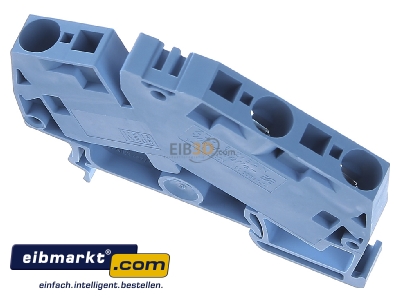

Top rear view Weidmüller ZDU 6-2/3AN BL Feed-through terminal block 8,1mm 41A
Top rear view
