Feed-through terminal block 6mm WDL 2.5/N/L/PE
Source photo:
Weidmüller
(fig. might be different or similar)

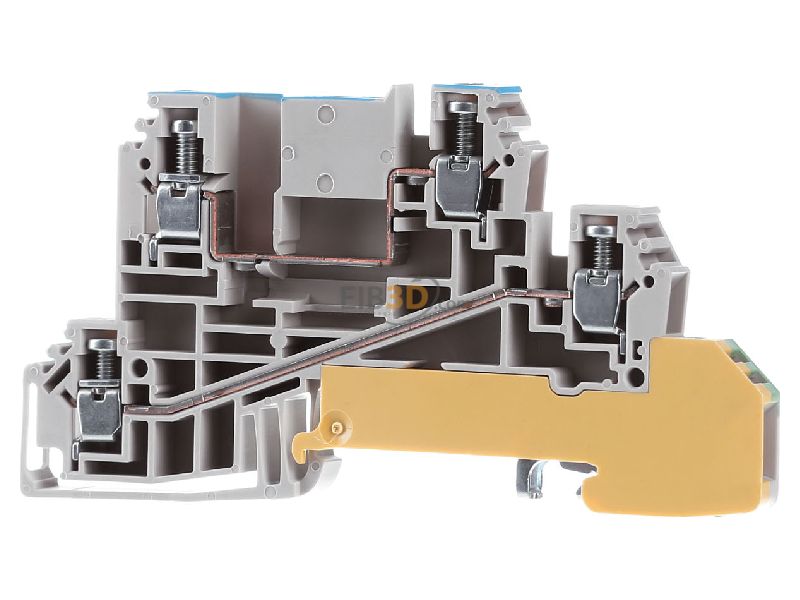

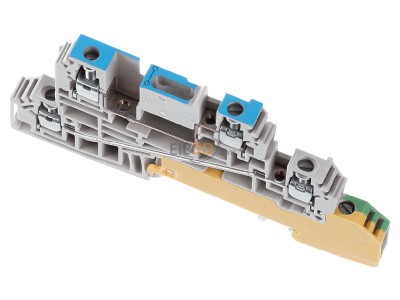

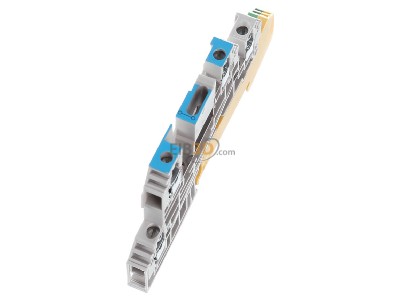

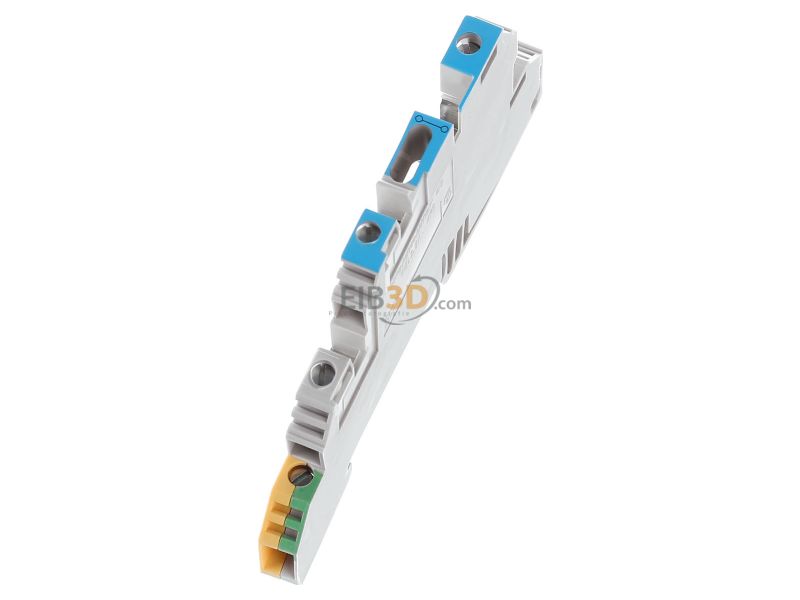

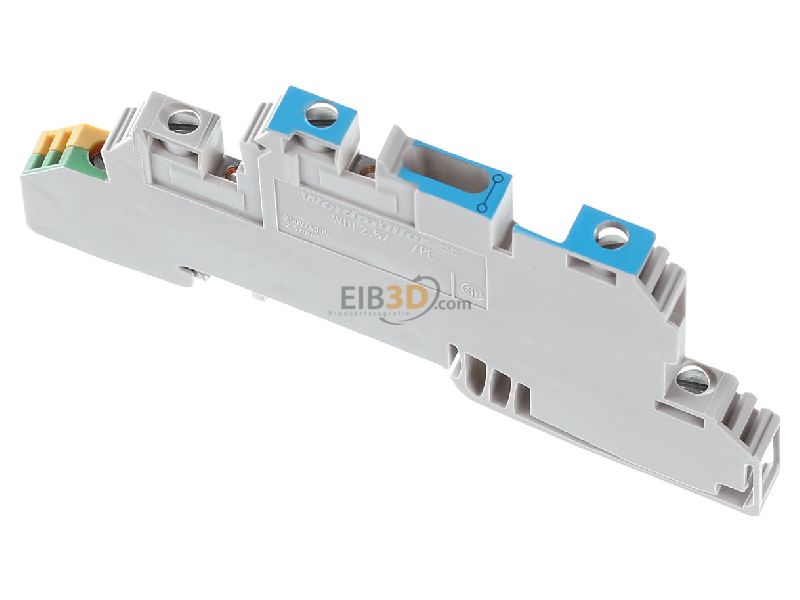

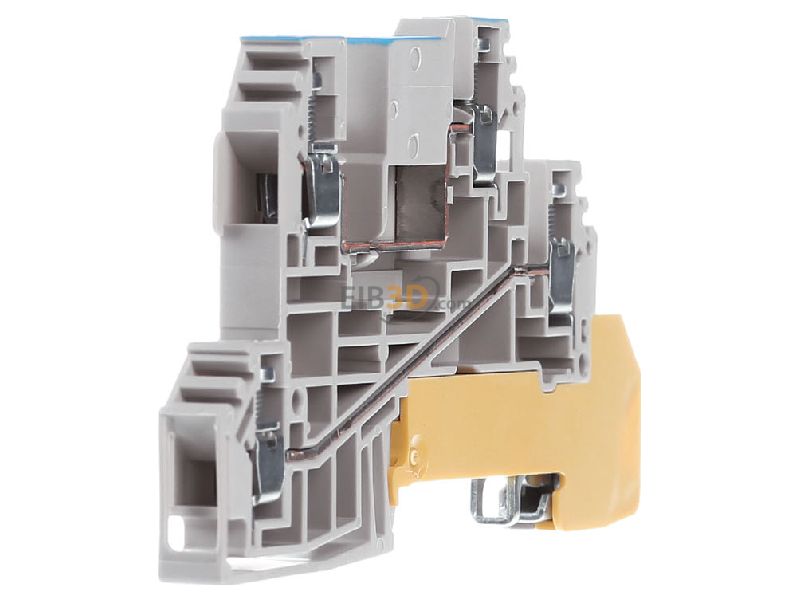

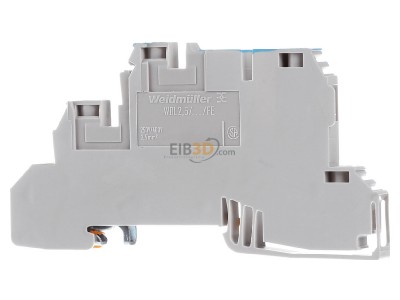

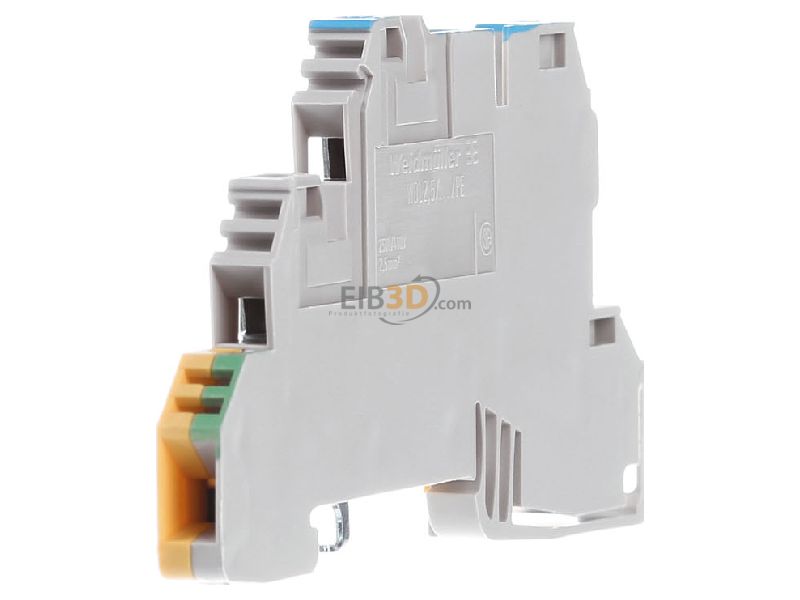

Feed-through terminal block 6mm WDL 2.5/N/L/PE

EAN/GTIN: 4008190178956
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WDL 2.5/N/L/PE
Manufact.-SKU: 1029900000
Customs tariff no.: 85369010
Similar top items: Show now & compare
3,97 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 6mm Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 1,5 ... 4mm², Rated current In 24A, Rated voltage 400V, Type of electrical connection 1 Screw connection, Connection position Sideways, Number of levels 3, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,1mm, Height at lowest possible mounting height 48mm, Length 90mm, Colour Beige
