Feed-through terminal block 6mm 32A DK 4Q/35

EAN/GTIN: 4008190103521
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: DK 4Q/35
Manufact.-SKU: 0590160000
Customs tariff no.: 85369010
Similar top items: Show now & compare
8,33 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 6mm 32A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 4mm², Rated current In 32A, Rated voltage 500V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 2, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 100°C, Inflammability class of insulation material acc. with UL94 V2, Width/grid dimension 6mm, Height at lowest possible mounting height 59,9mm, Length 54mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Multi colour

More product images:

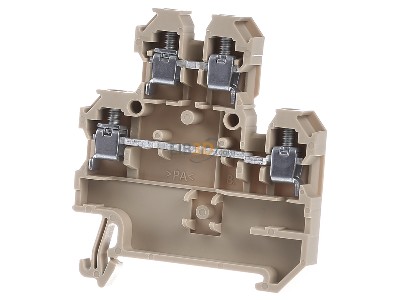

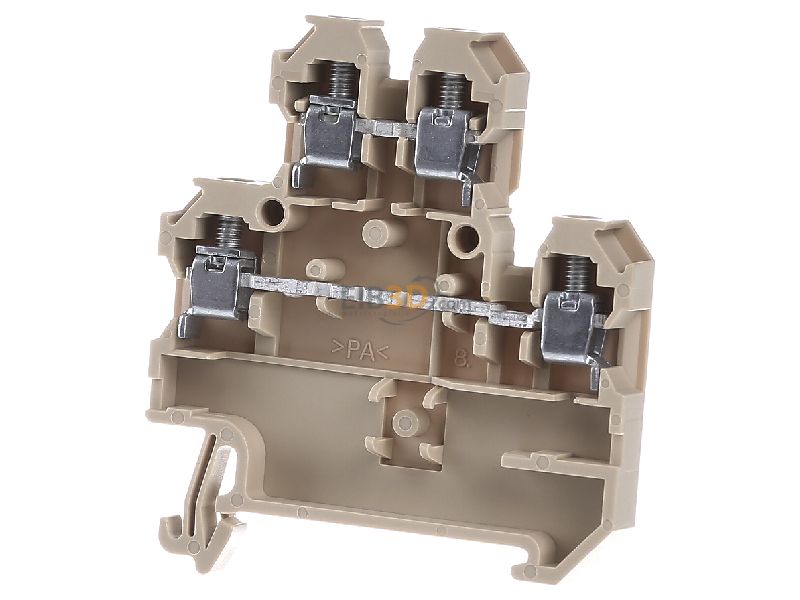

Front view Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
Front view

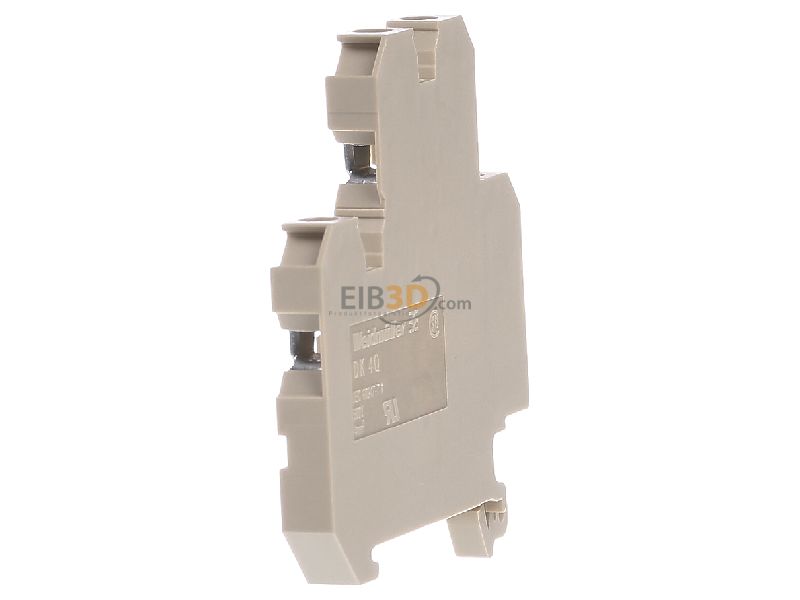

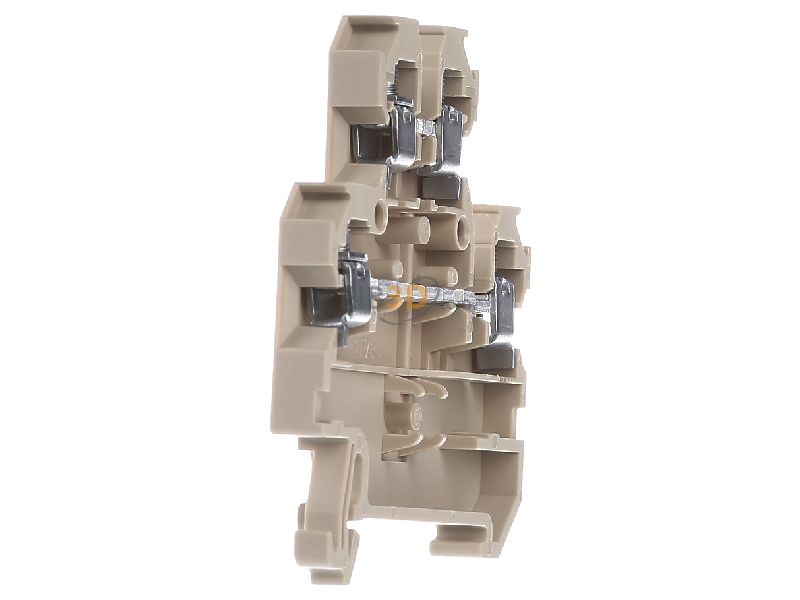

View on the left Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
View on the left

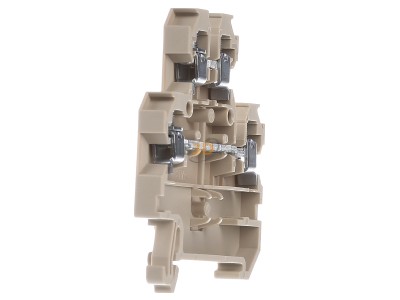

View on the right Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
View on the right

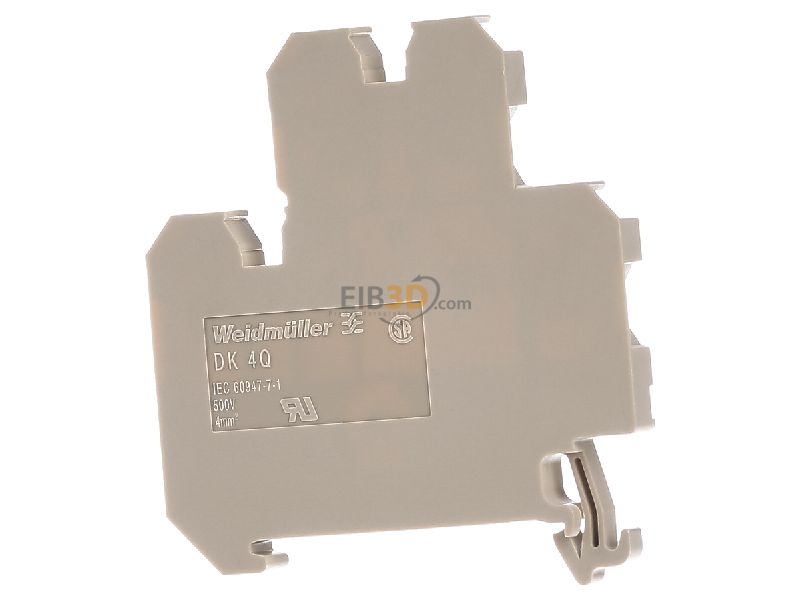

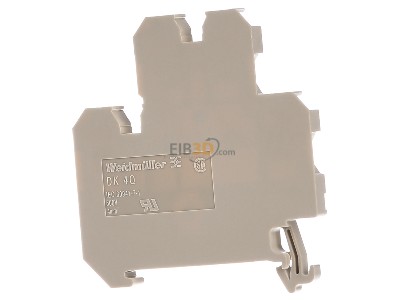

Back view Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
Back view

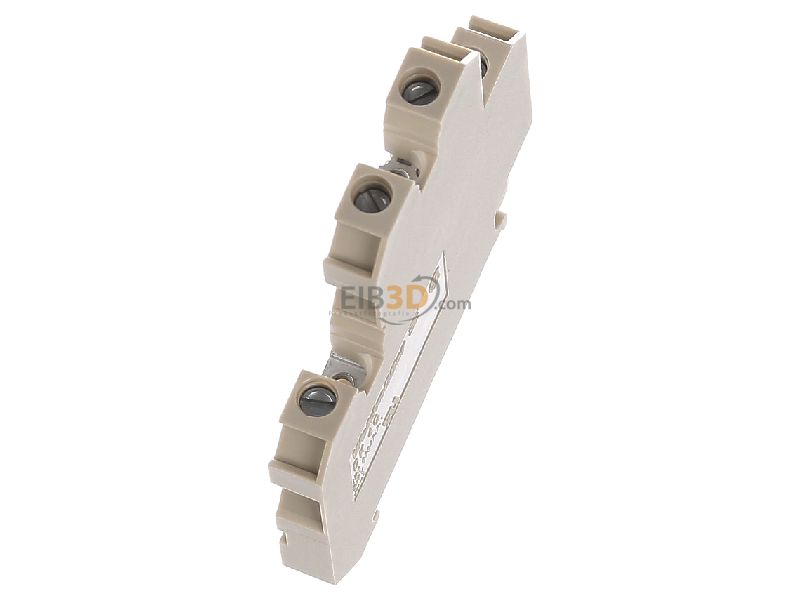

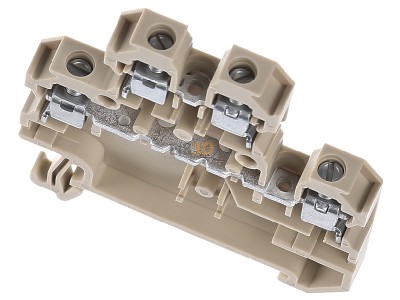

View up front Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
View up front

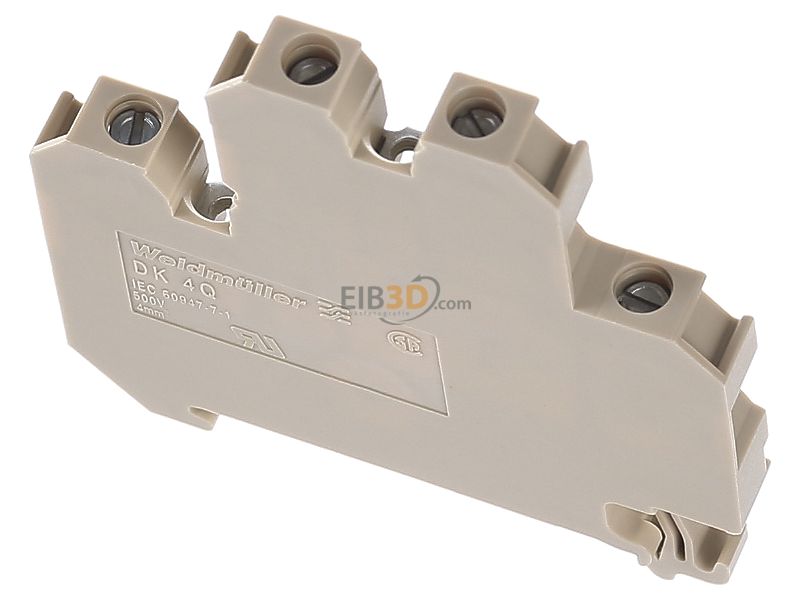

View top left Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
View top left

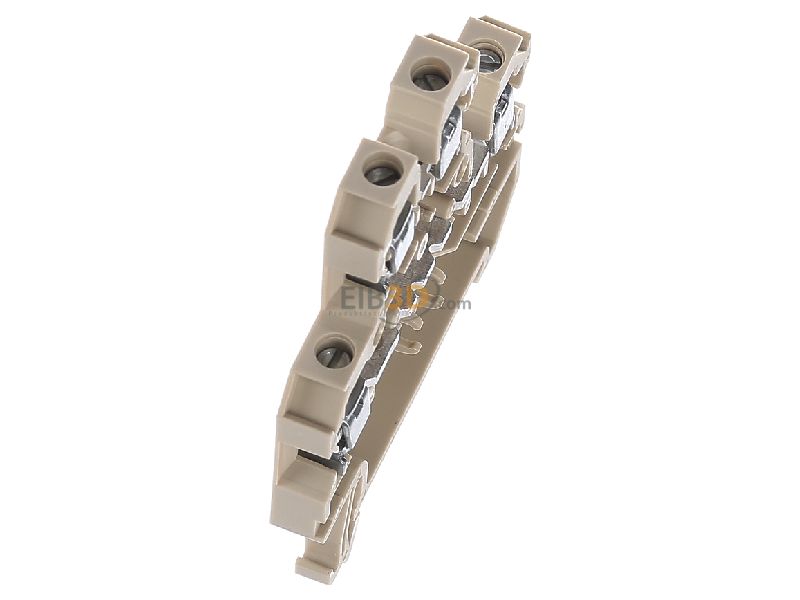

View top right Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
View top right

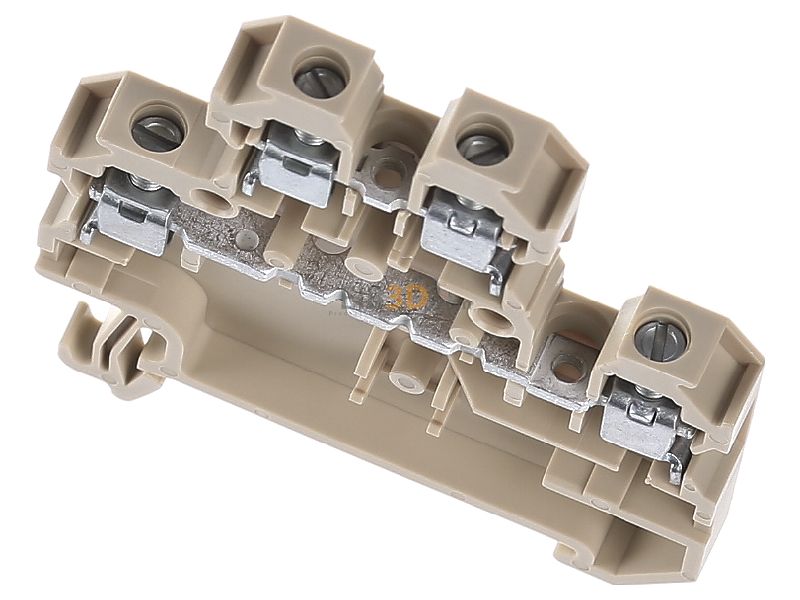

Top rear view Weidmüller DK 4Q/35 Feed-through terminal block 6mm 32A
Top rear view
