Source photo: www.EIB3D.com

Feed-through terminal block 5mm 24A WDU 2.5

EAN/GTIN: 4008190099633
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WDU 2.5
Manufact.-SKU: 1020000000
Customs tariff no.: 85369010
Similar top items: Show now & compare
0,78 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 5mm 24A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 1,5 ... 4mm², Rated current In 24A, Rated voltage 800V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,1mm, Height at lowest possible mounting height 46,5mm, Length 60mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Beige

More product images:

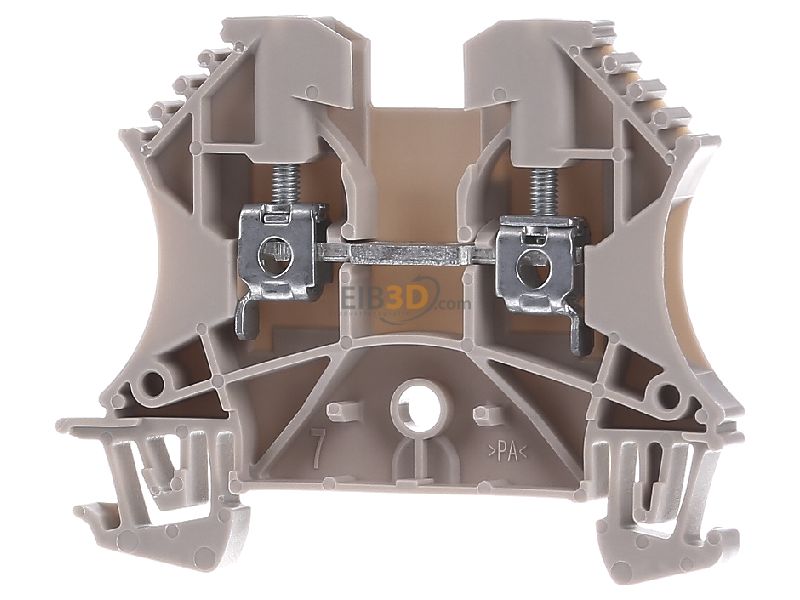

Front view Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
Front view

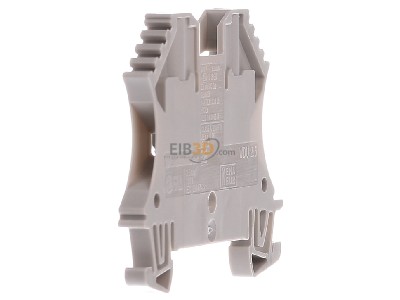

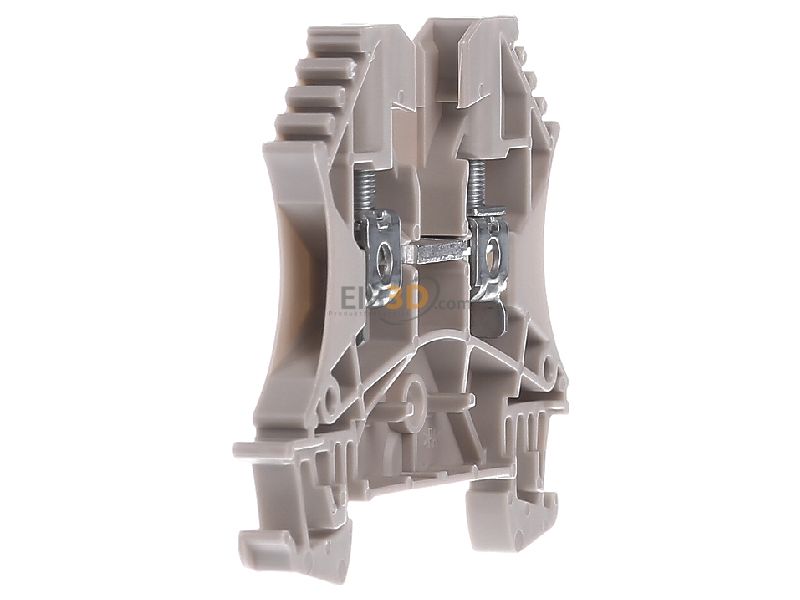

View on the left Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
View on the left

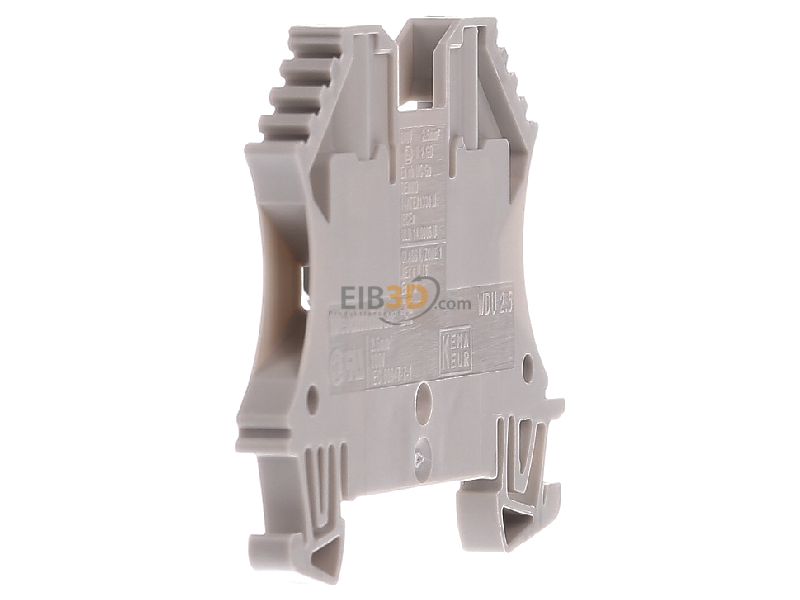

View on the right Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
View on the right

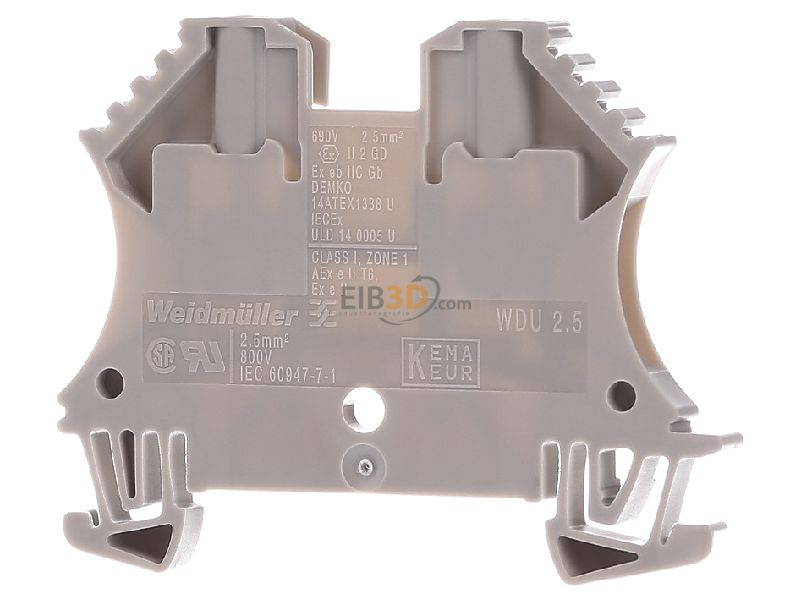

Back view Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
Back view

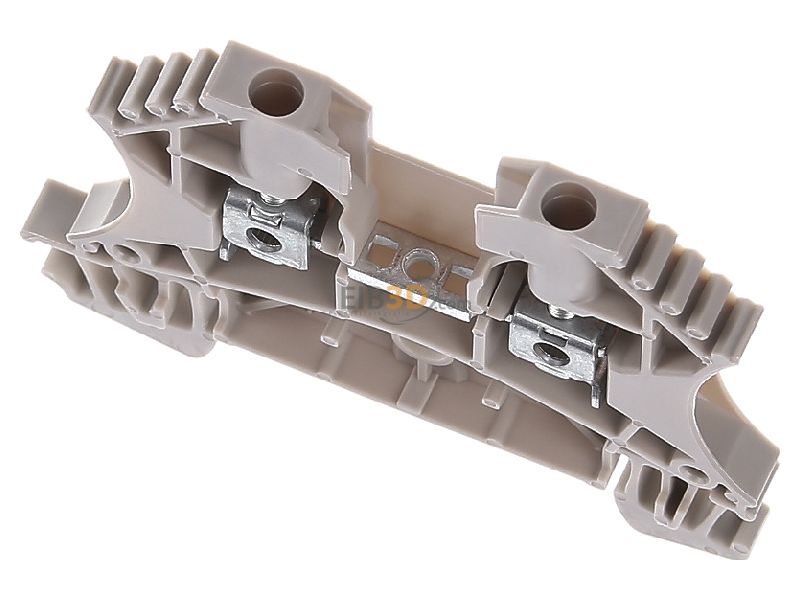

View up front Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
View up front

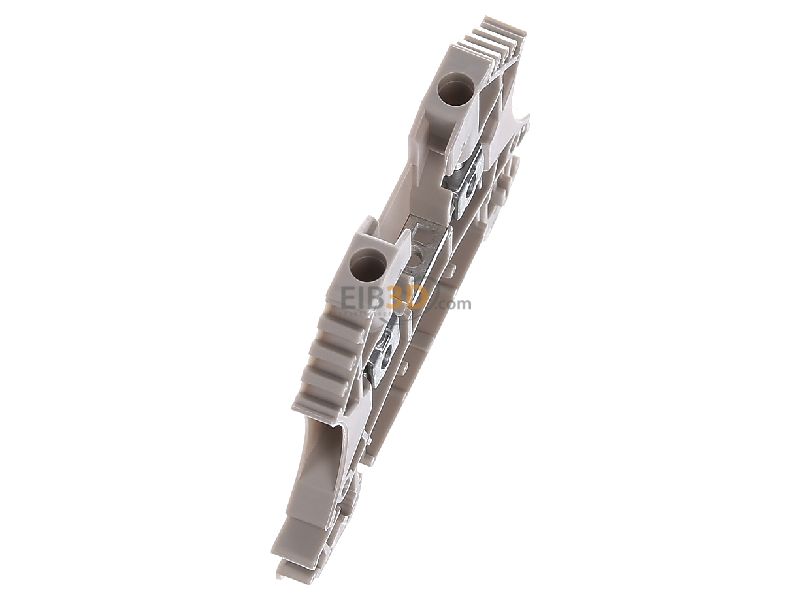

View top left Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
View top left

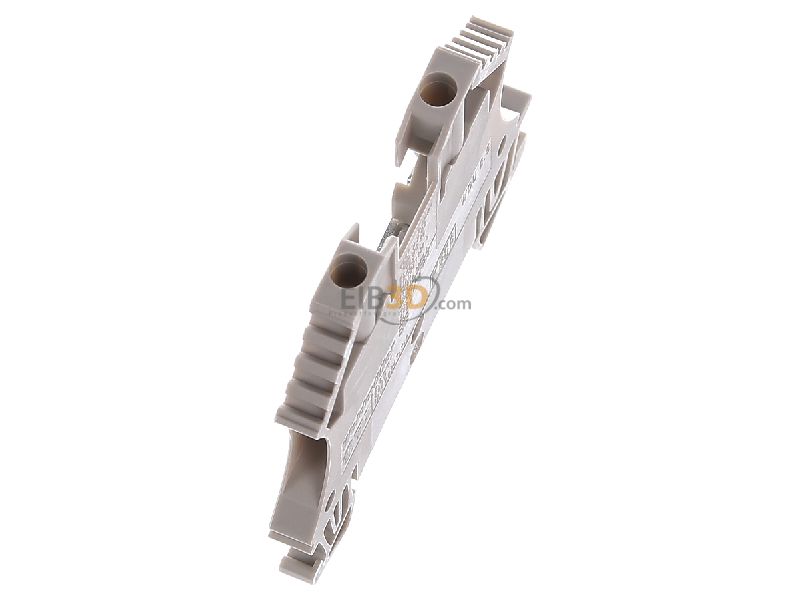

View top right Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
View top right

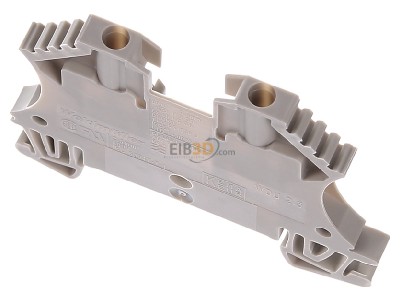

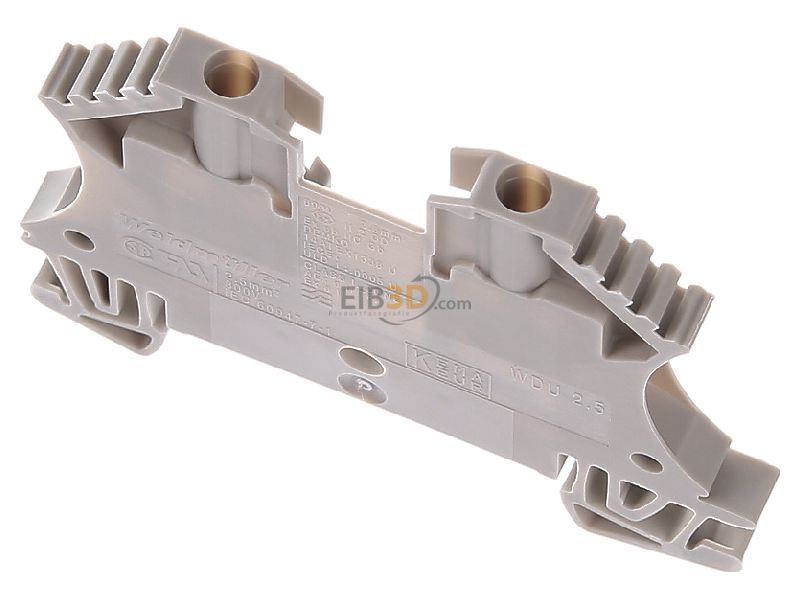

Top rear view Weidmüller WDU 2.5 Feed-through terminal block 5mm 24A
Top rear view
