Feed-through terminal block 5mm 24A WDK 2.5

EAN/GTIN: 4008190169527
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: WDK 2.5
Manufact.-SKU: 1021500000
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,08 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 5mm 24A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 1,5 ... 4mm², Rated current In 24A, Rated voltage 400V, Type of electrical connection 1 Screw connection, Type of electrical connection 2 Screw connection, Connection position Sideways, Number of levels 2, Number of clamp positions per level 2, Mounting method Direct mounting, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,1mm, Height at lowest possible mounting height 62,5mm, Length 69,5mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Beige

More product images:

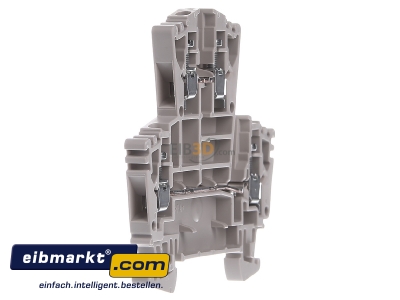

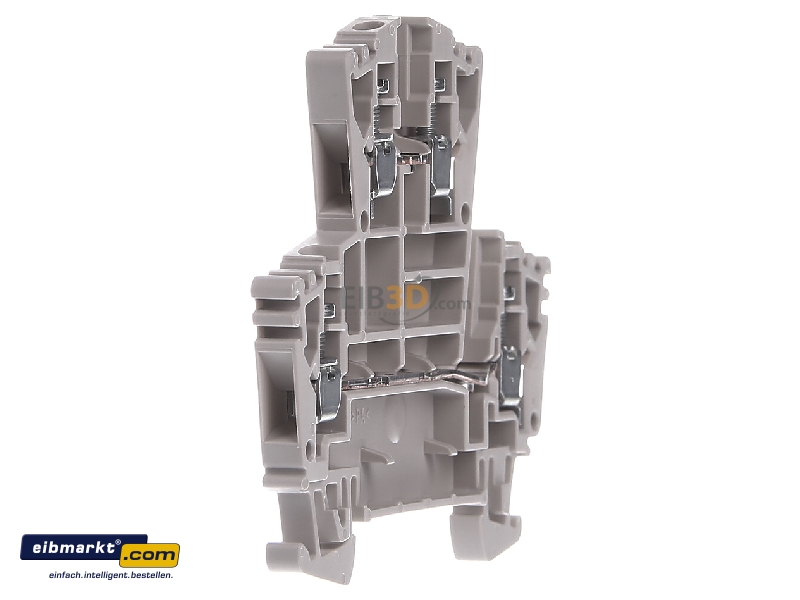

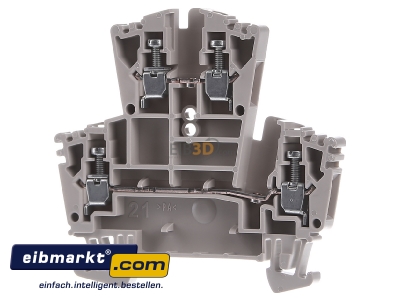

Front view Weidmüller 1021500000 Feed-through terminal block 5mm 24A
Front view
View on the left Weidmüller 1021500000 Feed-through terminal block 5mm 24A
View on the left

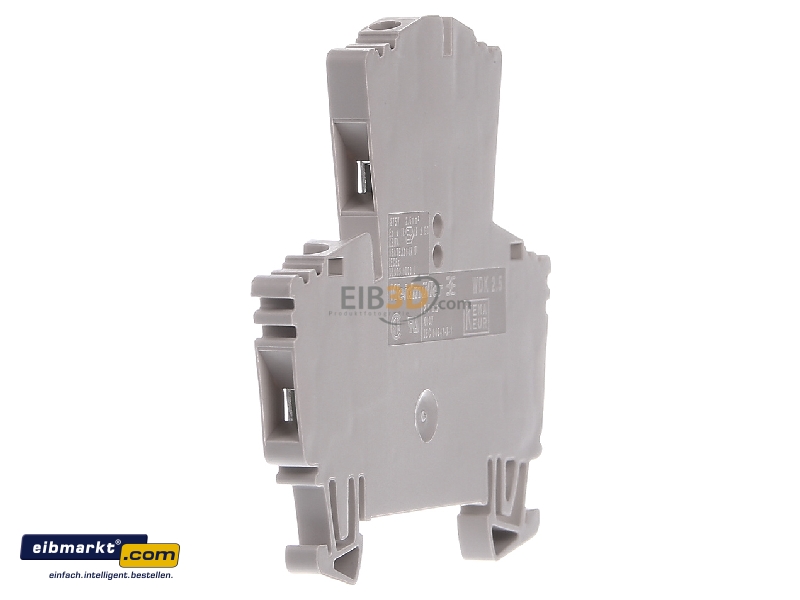

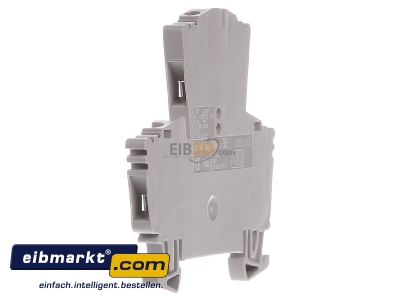

View on the right Weidmüller 1021500000 Feed-through terminal block 5mm 24A
View on the right

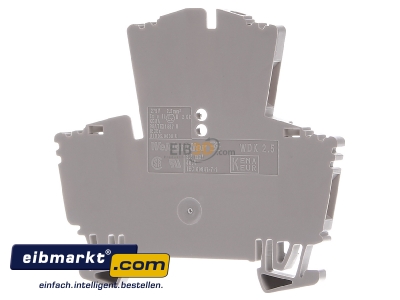

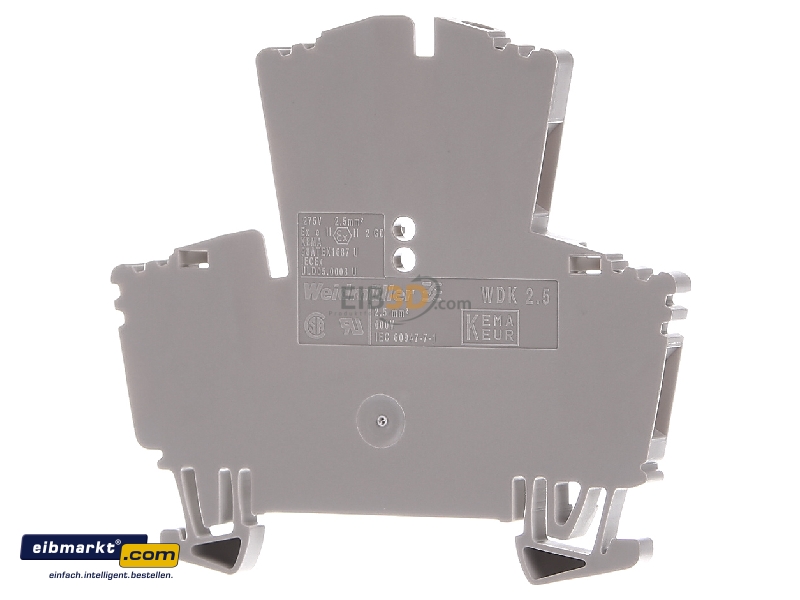

Back view Weidmüller 1021500000 Feed-through terminal block 5mm 24A
Back view

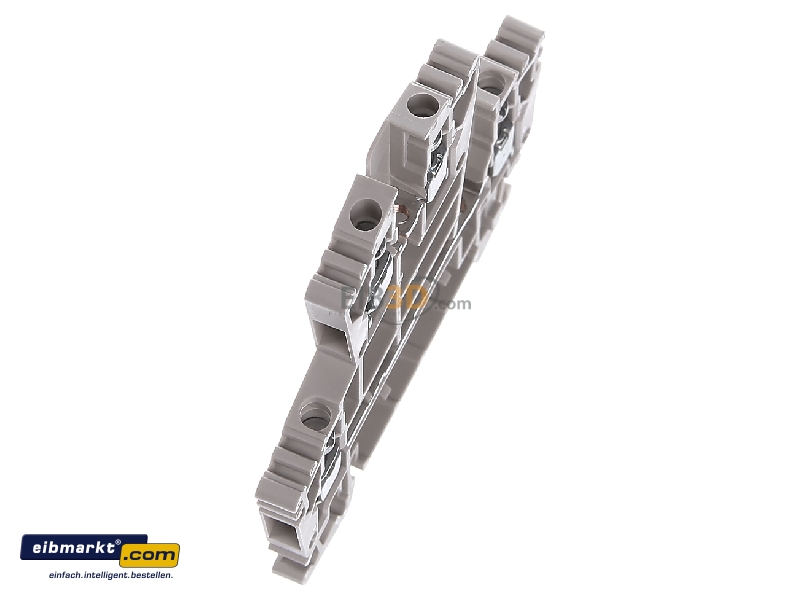

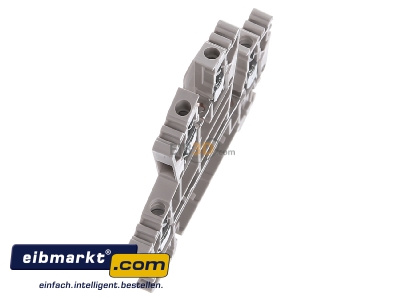

View up front Weidmüller 1021500000 Feed-through terminal block 5mm 24A
View up front

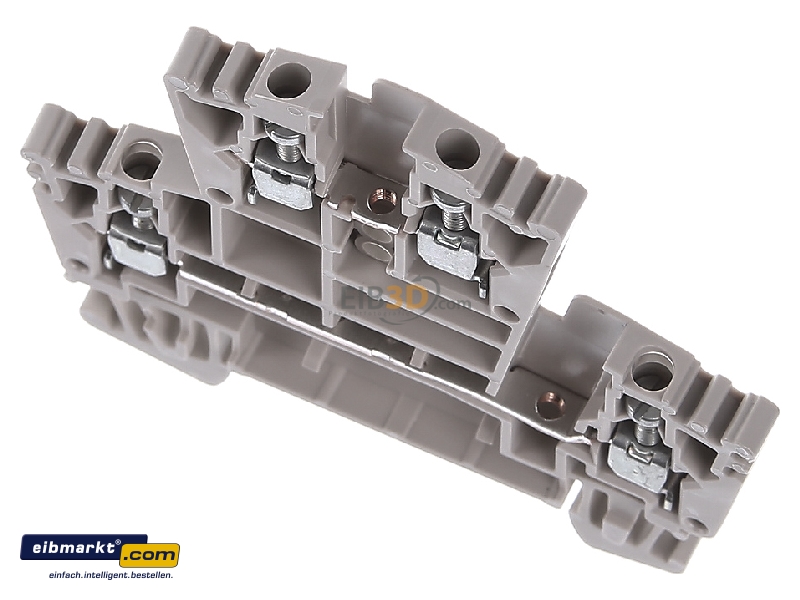

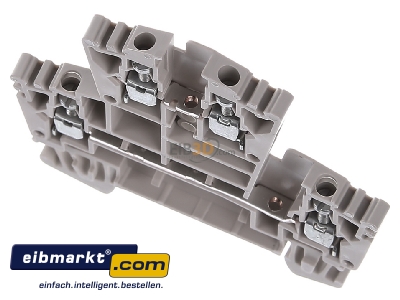

View top left Weidmüller 1021500000 Feed-through terminal block 5mm 24A
View top left

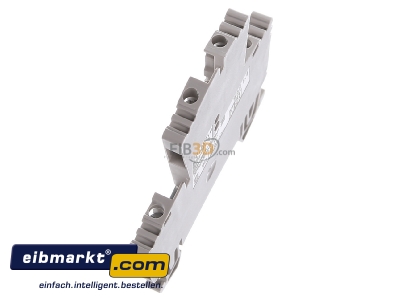

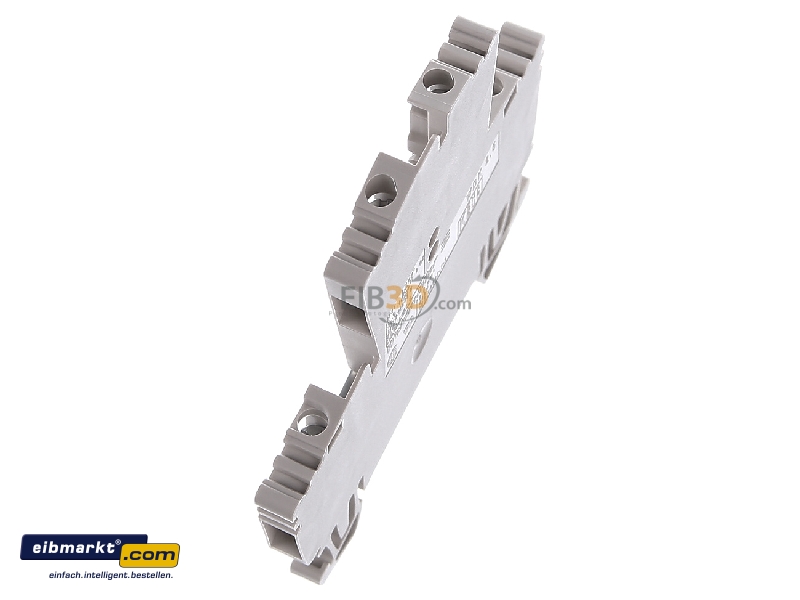

View top right Weidmüller 1021500000 Feed-through terminal block 5mm 24A
View top right

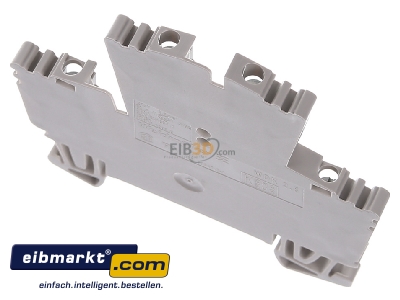

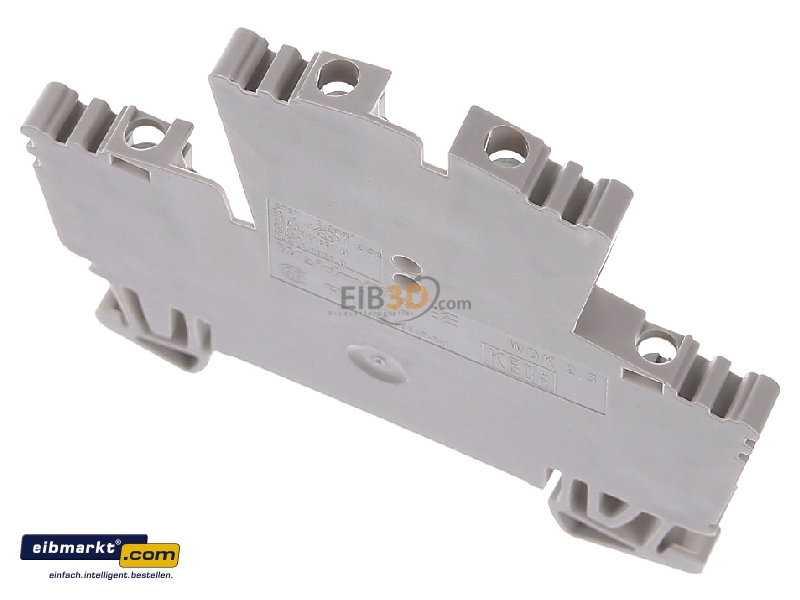

Top rear view Weidmüller 1021500000 Feed-through terminal block 5mm 24A
Top rear view
