Feed-through terminal block 5,1mm 22,5A ZDK 2.5

EAN/GTIN: 4008190444884
WEEE: DE 73937473
Manufacturer: Weidmüller
Manufacturer no.: ZDK 2.5
Manufact.-SKU: 1674300000
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,15 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 5,1mm 22,5A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 2,5mm², Connectable conductor cross section solid-core 0,5 ... 2,5mm², Rated current In 20A, Rated voltage 500V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 2, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,1mm, Height at lowest possible mounting height 53mm, Length 79,5mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Beige

More product images:

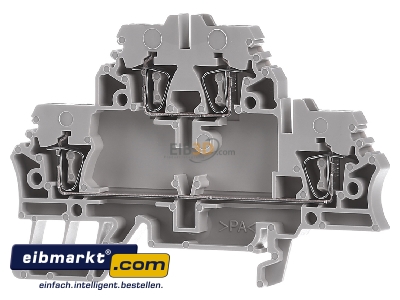

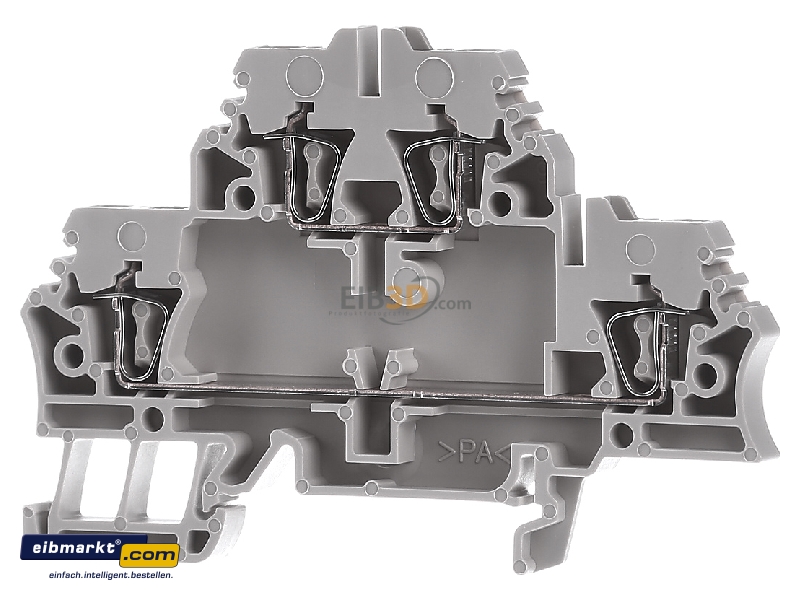

Front view Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
Front view

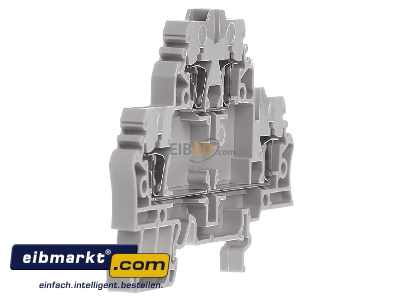

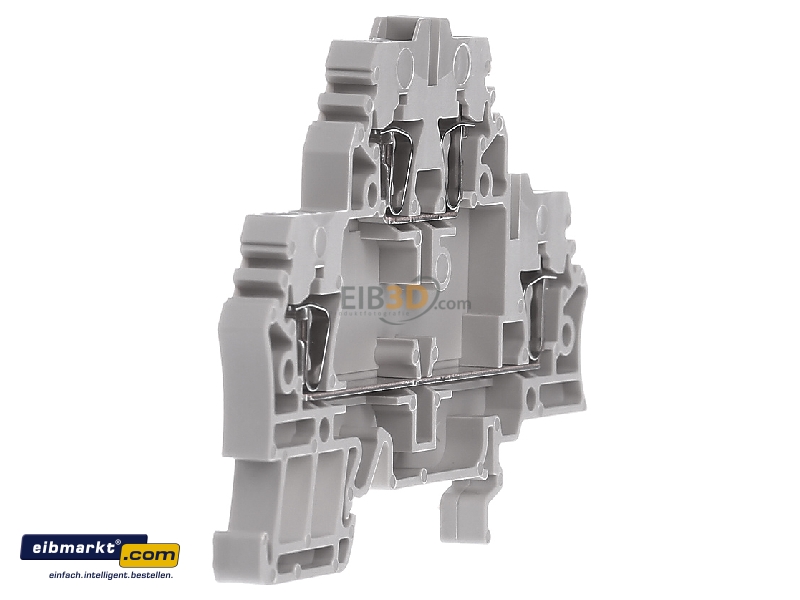

View on the left Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
View on the left

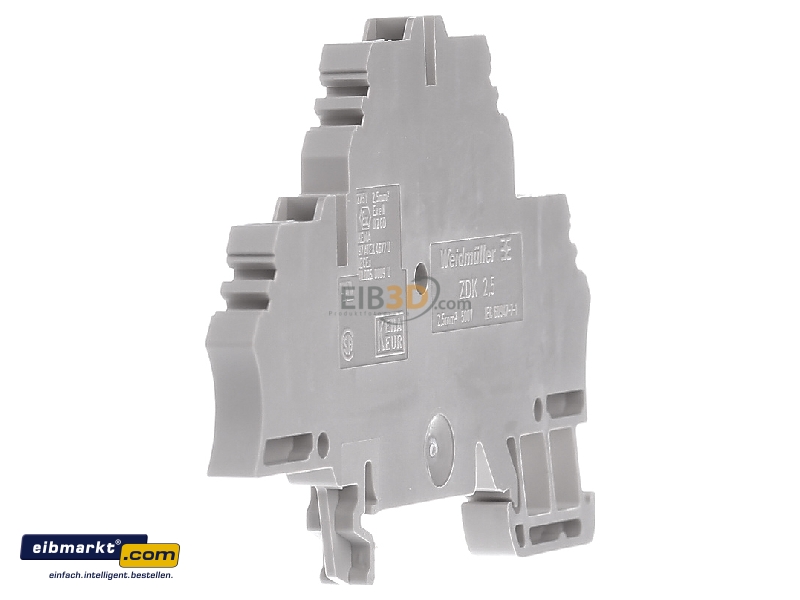

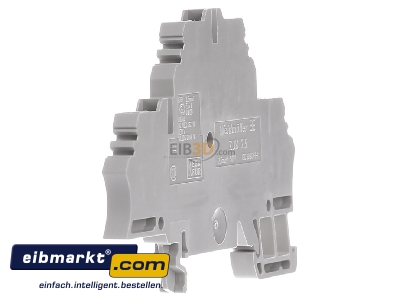

View on the right Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
View on the right

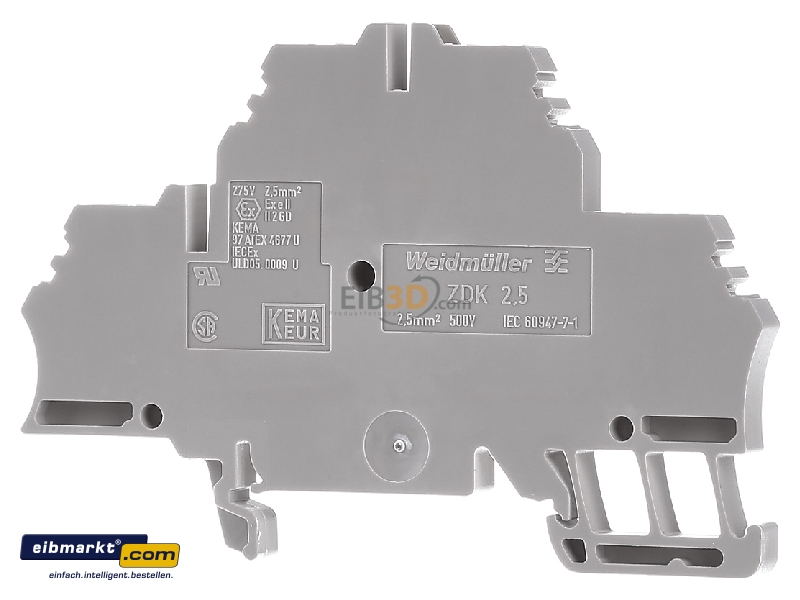

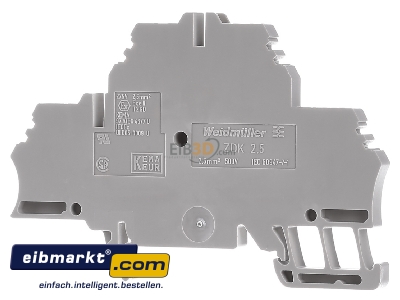

Back view Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
Back view

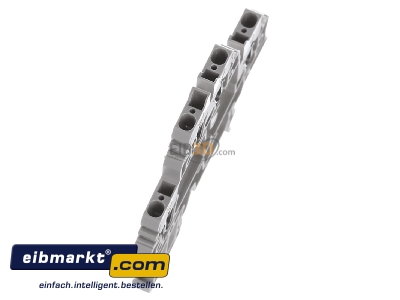

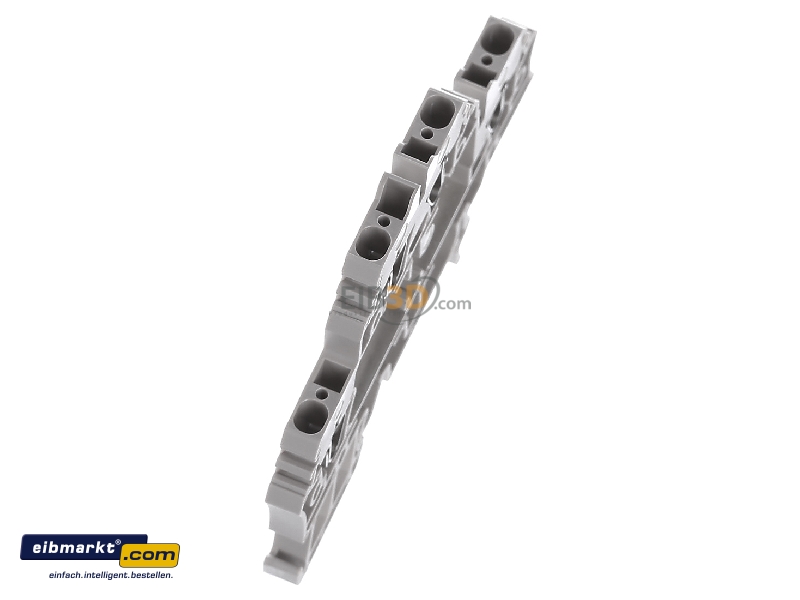

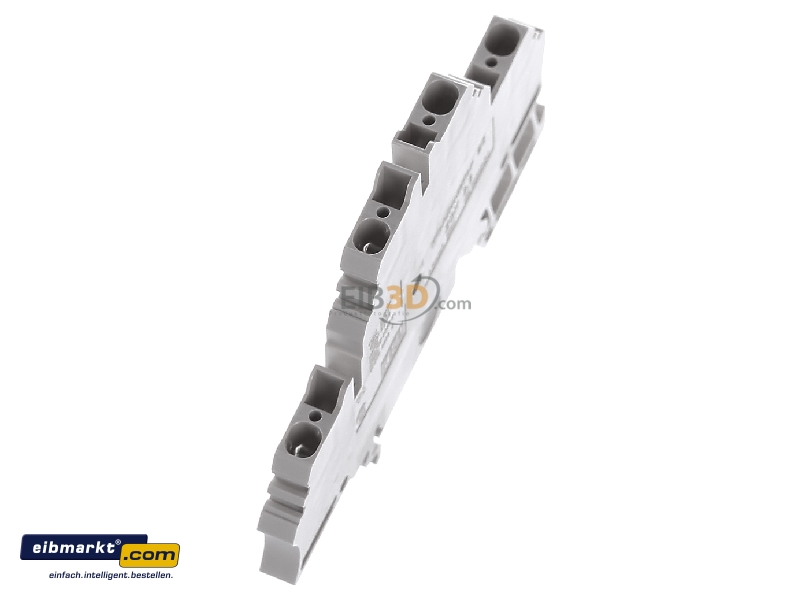

View up front Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
View up front

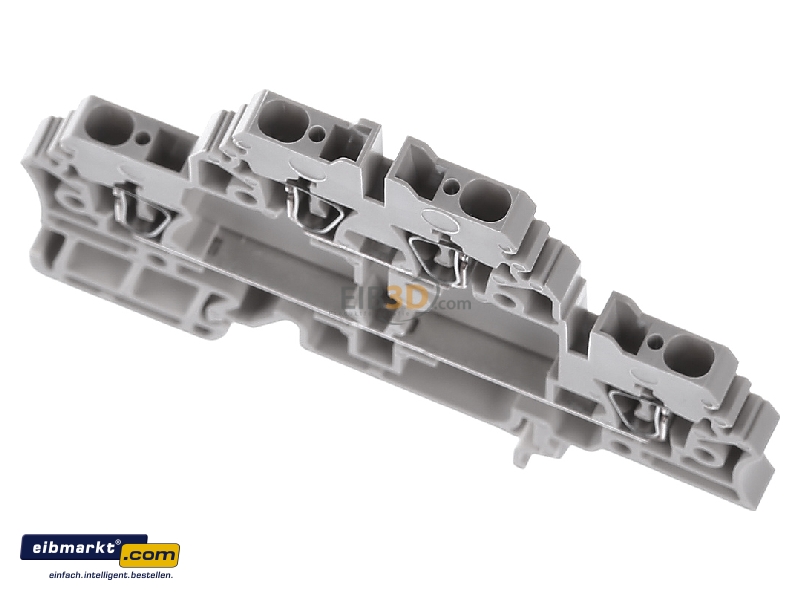

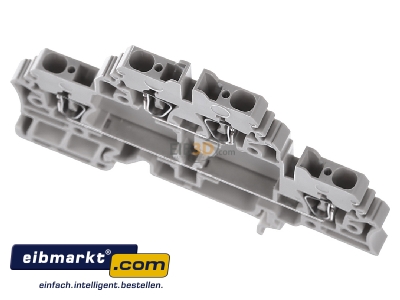

View top left Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
View top left

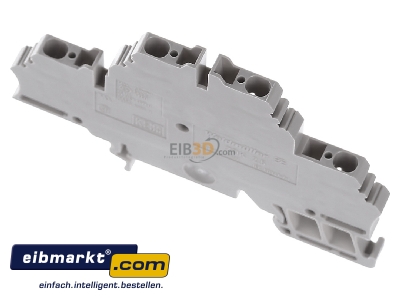

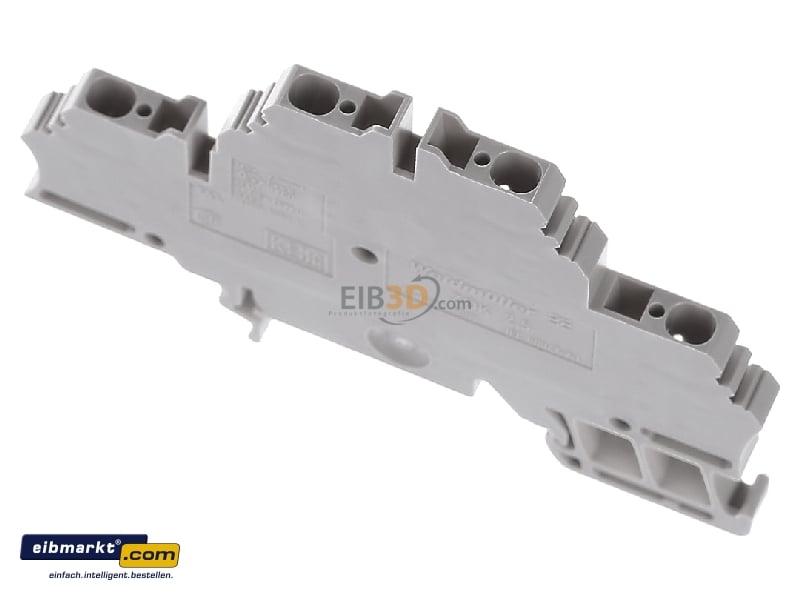

View top right Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
View top right
Top rear view Weidmüller ZDK 2.5 Feed-through terminal block 5,1mm 22,5A -
Top rear view
