Pin insert for connector 6p 710621
Source photo:
WALTHER
(fig. might be different or similar)

Pin insert for connector 6p 710621

EAN/GTIN: 4015609028047
WEEE: DE 22131895
Manufacturer: WALTHER
Manufacturer no.: 710621
Customs tariff no.: 85366990
Similar top items: Show now & compare
28,20 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

Pin insert for connector 6p Contact type Pin, Number of poles 6, Material connector of connector insert Thermoplastic, Rated current In 35A, Ambient temperature -40 ... 125°C, Rated voltage 500V, Rated surge voltage 6kV, Over voltage category III, Pollution degree 3, Type of electric connection Screw connection, With wire protection, Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve -6 ... -6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Material of contact surface Silver, Material contact Other copper alloys, Inflammability class of insulation material acc. with UL94 V0, With protective conductor

More product images:

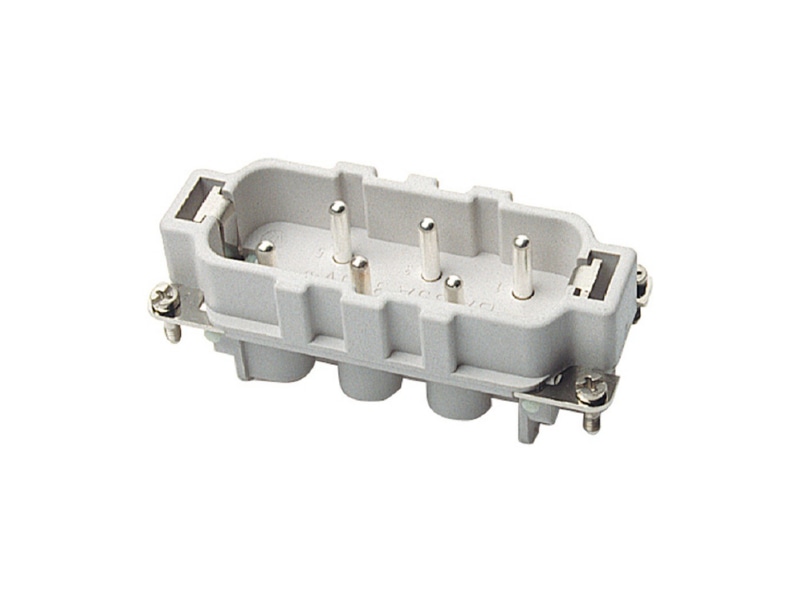

Product image 1 Walther 710621 Pin insert for connector 6p
Product image 1

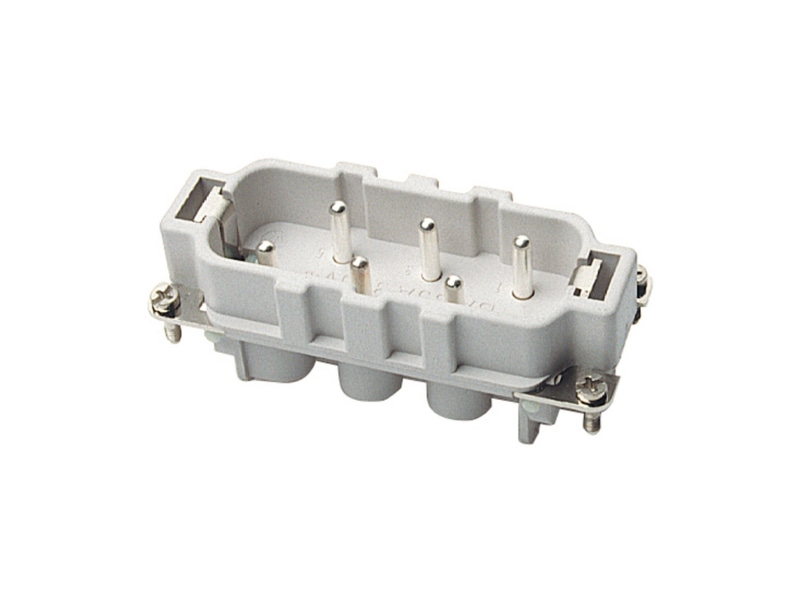

Product image 2 Walther 710621 Pin insert for connector 6p
Product image 2

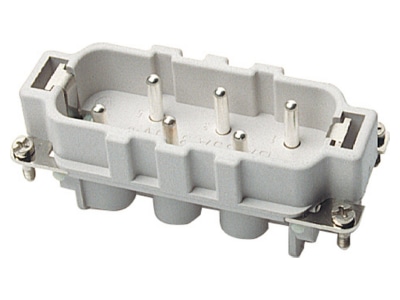

Product image 3 Walther 710621 Pin insert for connector 6p
Product image 3
