CEE-Panel socket 32A 5p 6h 532NI
Source photo:
WALTHER
(fig. might be different or similar)

CEE-Panel socket 32A 5p 6h 532NI

EAN/GTIN: 4015609169573
WEEE: DE 22131895
Manufacturer: WALTHER
Manufacturer no.: 532NI
Customs tariff no.: 85366990
Similar top items: Show now & compare
74,99 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

bought
Useful
Interesting

CEE-Panel socket 32A 5p 6h IEC-amperage 32A, Amperage acc. UL/CSA (for UL-version) 30A, Voltage acc. EN 60309-2 400 V (50+60 Hz) red, Number of poles 5, Clock hour position 6h, Identification colour Red, RAL-number 3000, Degree of protection (IP) IP44, Connection system Screwed terminal, Angle of plug Angled, Cable entry Other, Material Plastic, Flange size vertical 110mm, Drill hole distance vertical 90mm, Flange size horizontal 110mm, Drill hole distance horizontal 90mm

More product images:

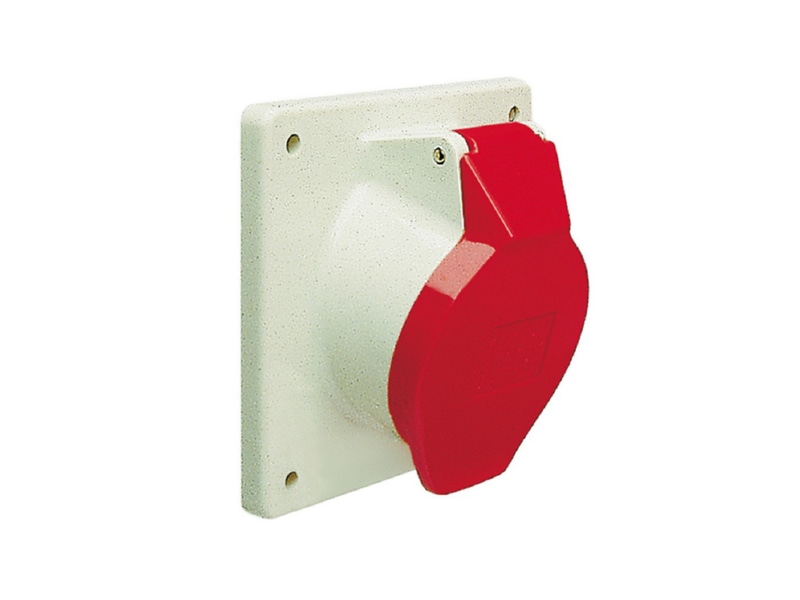

Product image 1 Walther 532NI CEE Panel socket 32A 5p 6h
Product image 1

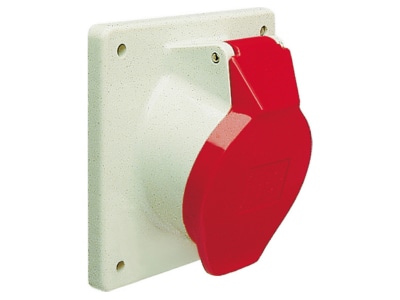

Product image 2 Walther 532NI CEE Panel socket 32A 5p 6h
Product image 2

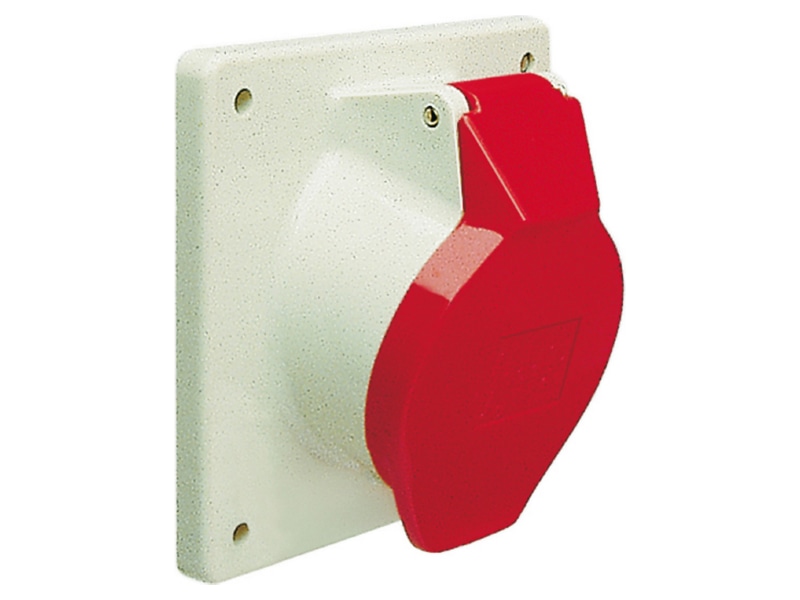

Product image 3 Walther 532NI CEE Panel socket 32A 5p 6h
Product image 3
