Switching relay DC 24V 8A 789-312
Source photo:
WAGO
(fig. might be different or similar)

Switching relay DC 24V 8A 789-312

EAN/GTIN: 4045454313043
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 789-312
Customs tariff no.: 85364900
Similar top items: Show now & compare
36,55 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Type of electric connection=Spring clamp connection, With detachable clamps=no, Nominal current=8 A, Rated control supply voltage Us at DC=24 V, Voltage type for actuating=DC, Drive, polarization=Polarized, Drive, switching attitude=Mono stable, Number of contacts as change-over contact=2, With forced-guided contacts=no, Type of switch contact=Single contact, Complete with socket=yes, With LED indication=yes, Degree of protection (IP)=IP20, Width=17,5 mm, Height=55 mm, Depth=90 mm

More product images:

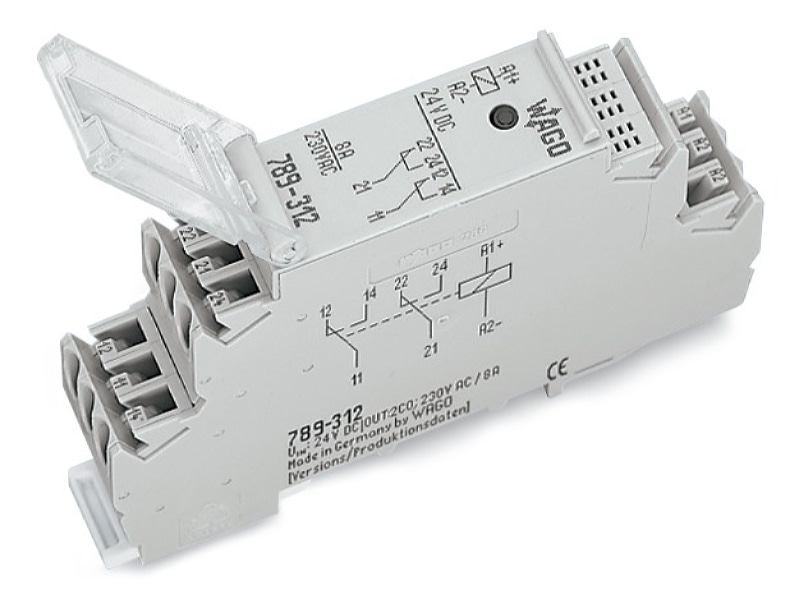

Product image WAGO 789 312 Switching relay DC 24V 8A
Product image

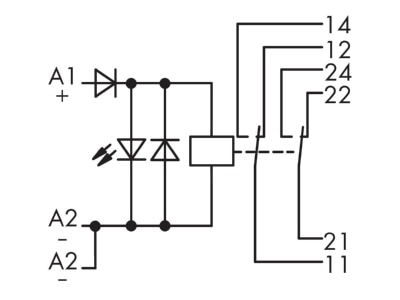

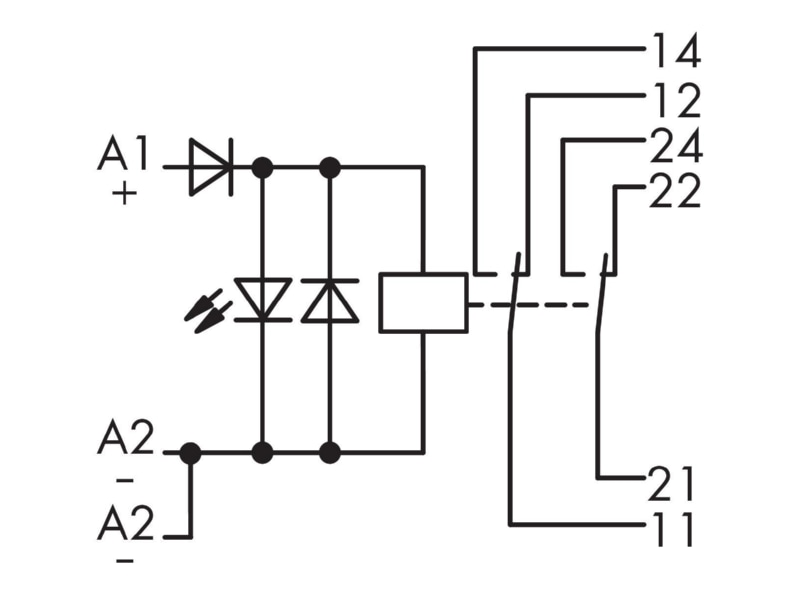

Circuit diagram WAGO 789 312 Switching relay DC 24V 8A
Circuit diagram
