Sensor/actuator terminal block 3-p 7mm 2000-5311/1102-950

EAN/GTIN: 4055143452892
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2000-5311/1102-950
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
537,53 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Sensor/actuator terminal block 3-p 7mm Connectable conductor cross section fine-strand without cable end sleeve 0,14 ... 1,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 0,75mm², Connectable conductor cross section solid-core 0,5 ... 1,5mm², Connectable conductor cross section multi-wired 0,14 ... 1mm², Rated current In 13,5A, Rated voltage 24V, Number of levels 3, Number of clamp positions per level 2, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Mounting method DIN rail (top hat rail) 35 mm, Cross connectable, Material insulation body Thermoplastic, Operating temperature 105 ... 105°C, Inflammability class of insulation material according to with UL94 V0, Width 7mm, Depth 81,1mm, Closing plate required, Colour Grey, Colour lamp Other, LED switching for PNP

More product images:

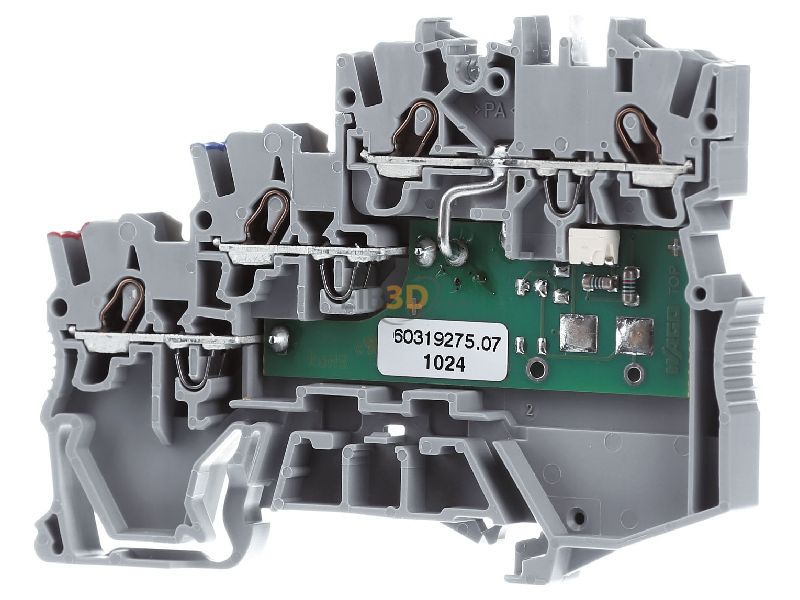

Front view WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
Front view
View on the left WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
View on the left

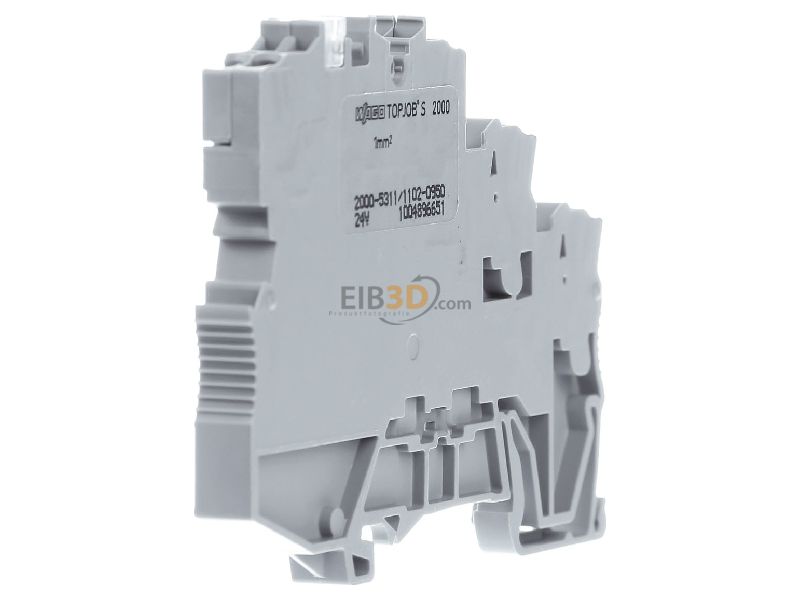

View on the right WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
View on the right

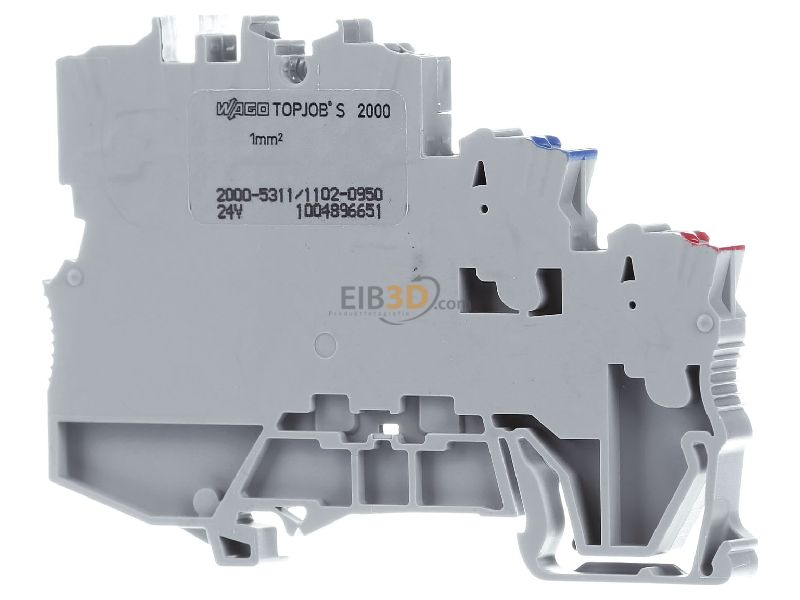

Back view WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
Back view

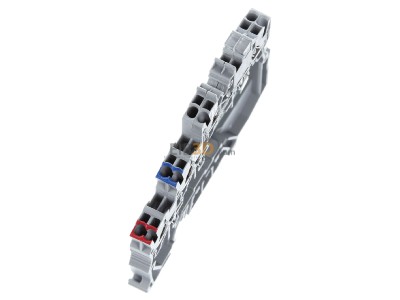

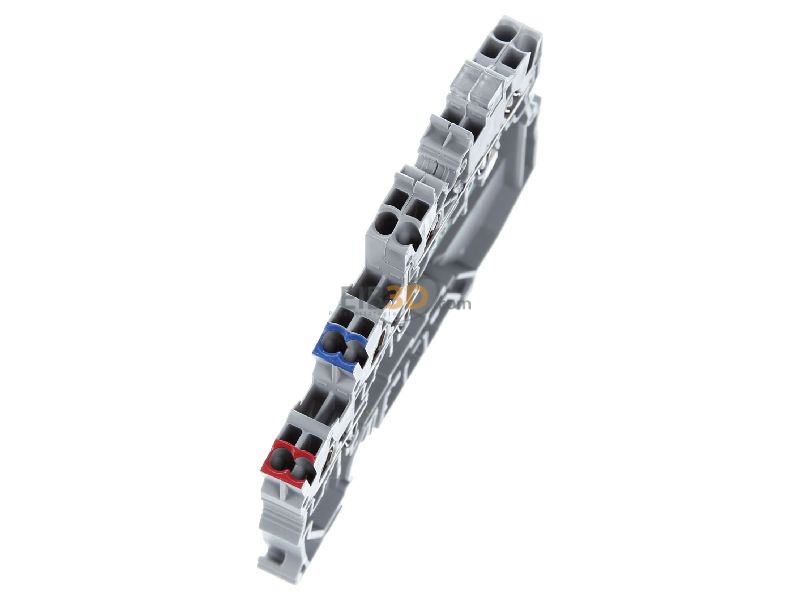

View up front WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
View up front

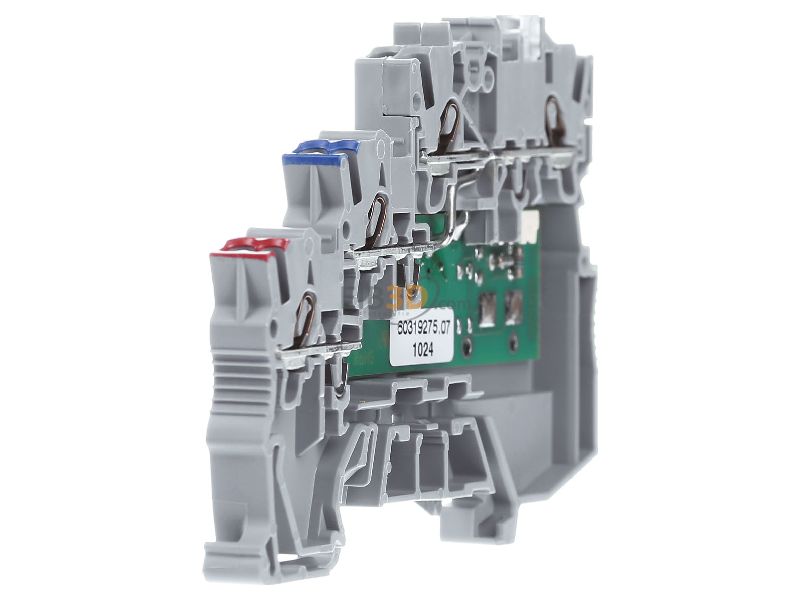

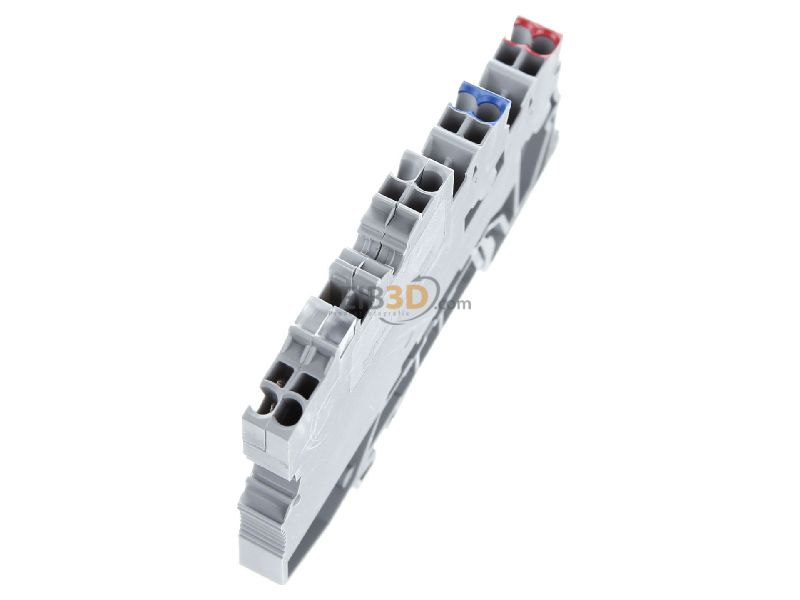

View top left WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
View top left

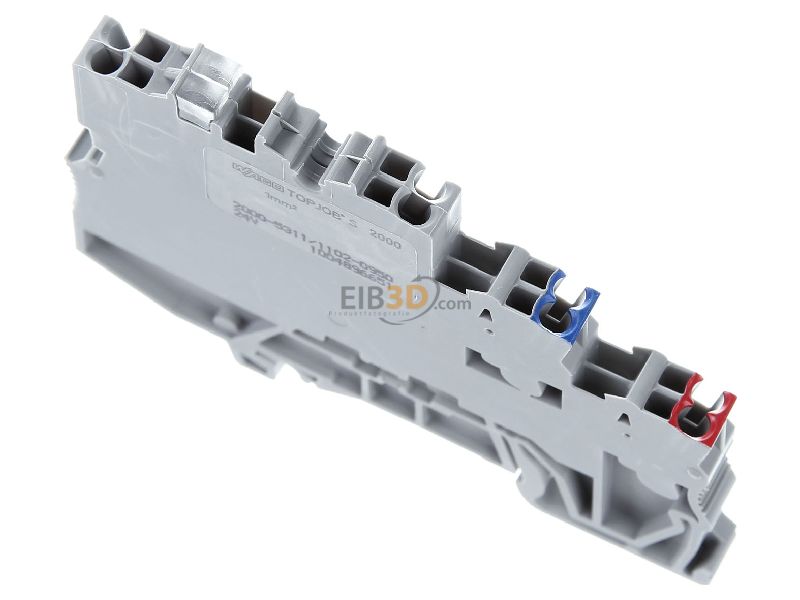

View top right WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
View top right

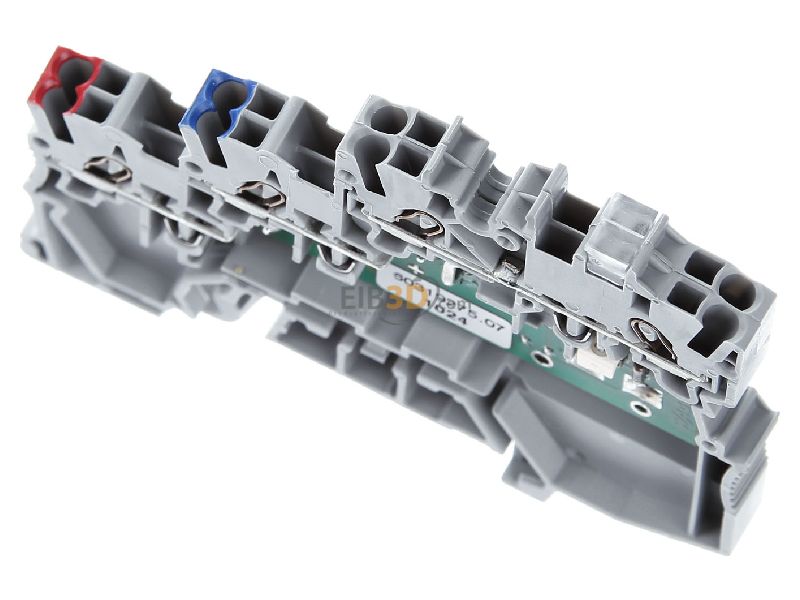

Top rear view WAGO 2000-5311/1102-950 Sensor/actuator terminal block 3-p 7mm
Top rear view

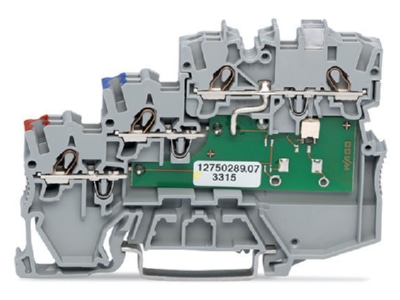

Product image WAGO 2000 5311 1102 950 Sensor actuator terminal block 3 p 7mm
Product image

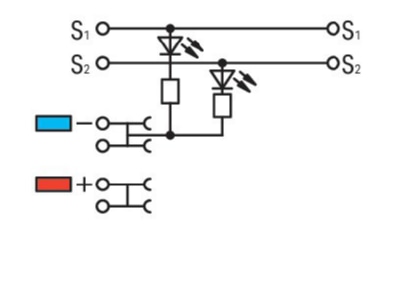

Circuit diagram WAGO 2000 5311 1102 950 Sensor actuator terminal block 3 p 7mm
Circuit diagram
