Patch cord building installation 3-pole 771-9993/206-202
Source photo:
WAGO
(fig. might be different or similar)

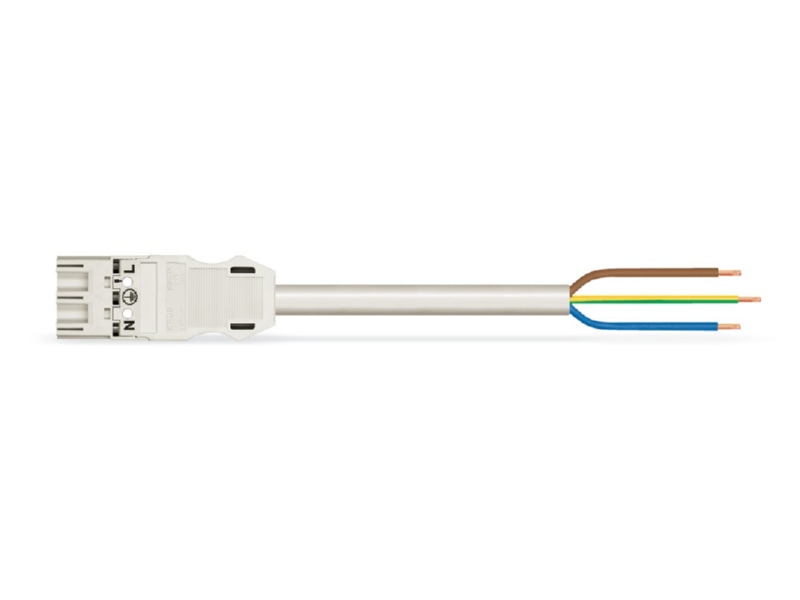

Patch cord building installation 3-pole 771-9993/206-202

EAN/GTIN: 4044918272858
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 771-9993/206-202
Customs tariff no.: 85444290
Similar top items: Show now & compare
5,90 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

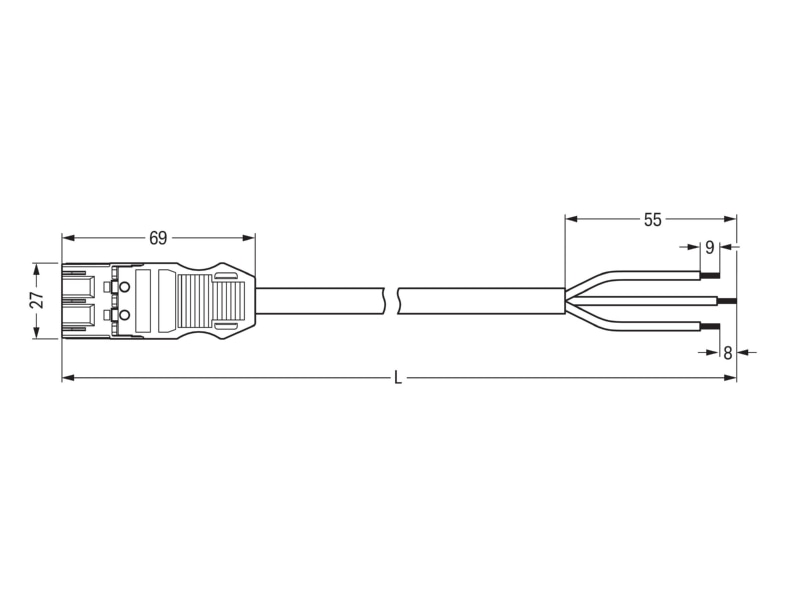

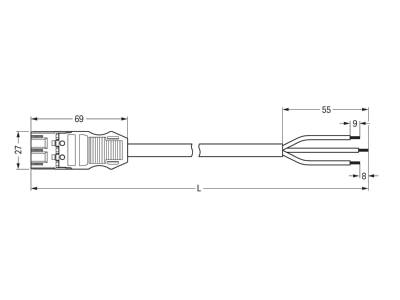

Rated voltage=250 V, Rated current=16 A, Number of poles=3, Degree of protection (IP)=IP20, Type of finished cable=Other, Type side 1=Plug, Type side 2=Free conductor end, Conductor end treatment=Ultrasonic compressed wire ends, Total length=2000 mm, Mechanical coding=yes, Colour coding/contact insert=White, Colour housing=White, Cable type=H03VV-F, Cable diameter=7,4..9,4 mm, Dismantle length=55 mm, Strip length=9 mm, Colour outer sheath=White, Pole codification=L, N, PE, Nominal cross section conductor=1,5 mm˛, Locking mechanism=Separate, Insulating piece permanent temperature-resistant=105 °C, Cable permanent temperature-resistant to=70 °C, Max. operating temperature at conductor=75 °C, Halogen free=no, Surface treatment contacts=Other, Pollution degree=3, Continuity resistor=3 mOhm, Rated surge voltage=4 kV
