Compact distributor installation 770-618
Source photo:
WAGO
(fig. might be different or similar)

Compact distributor installation 770-618

EAN/GTIN: 4050821394778
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 770-618
Customs tariff no.: 85366990
Order level:
(minimum)
25 pce
Similar top items: Show now & compare
391,33 EUR Price incl. tax. 19,00%
(for 25 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 25 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Compact distributor installation Rated voltage 400V, Rated current 25A, Rated current to luminaire 25A, Number of poles 5, Degree of protection (IP) IP20, Number of inputs 5, Number of outputs 15, Mechanical coding, Colour coding/contact insert Blue, Colour of the separate adapter piece Without adapter piece, Locking mechanism Integrated in plug-in connector, Halogen free, Max. continuous temperature resistance contact part 85°C, Max. continuous temperature resistance strain relief 105°C, Material housing Polyamide (PA), Contact material Other, Surface finish contacts Other, Pollution degree 3, Continuity resistor 0,5mOhm, Rated surge voltage 6kV, Length 46mm, Height 36,7mm, Width 50mm, Type of distributor Other, Type of integrated switching None, Mounting possibility No

More product images:

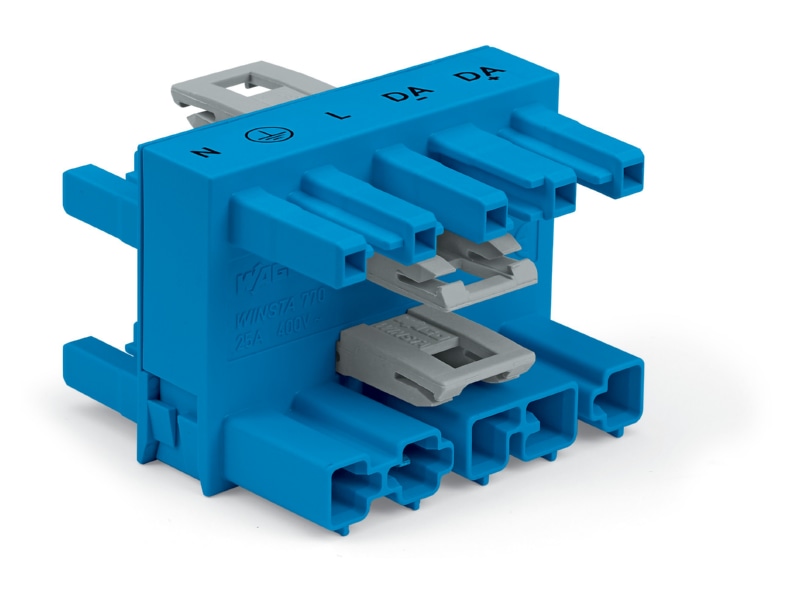

Product image WAGO 770 618 Compact distributor installation
Product image

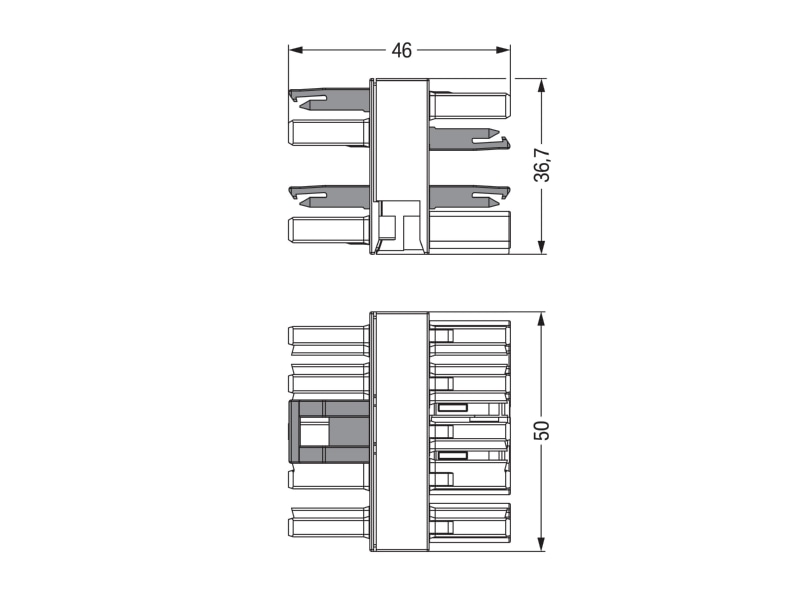

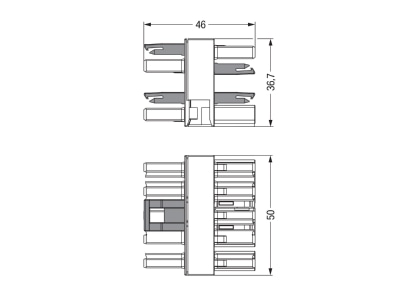

Dimensional drawing WAGO 770 618 Compact distributor installation
Dimensional drawing
