Timer relay 0,1...360000s DC 24V 857-640
Source photo:
WAGO
(fig. might be different or similar)

Timer relay 0,1...360000s DC 24V 857-640

EAN/GTIN: 4050821565703
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 857-640
Customs tariff no.: 85364900
Similar top items: Show now & compare
110,27 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Timer relay 0,1...360000s DC 24V Type of electric connection Spring clamp connection, Function delay-on energization, Function delay on de-energization, Function floating contact on energization, Function floating contact on de-energization, Function flashing, starting with pause, fixed time, Function flashing, starting with pulse, fixed time, With plug-in socket, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Time range 0,1 ... 360000s, Number of outputs, undelayed, normally closed contact 0, Number of outputs, undelayed, normally open contact 0, Number of outputs, undelayed, change-over contact 0, Number of outputs, delayed, normally closed contact 0, Number of outputs, delayed, normally open contact 0, Number of outputs, delayed, change-over contact 1, Width 6mm, Height 96mm, Depth 94mm

More product images:

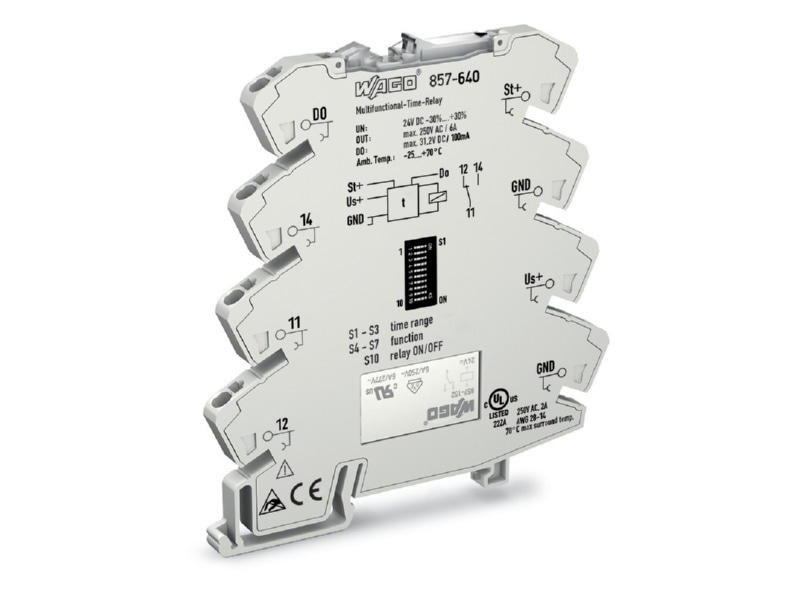

Product image WAGO 857 640 Timer relay 0 1   360000s DC 24V
Product image

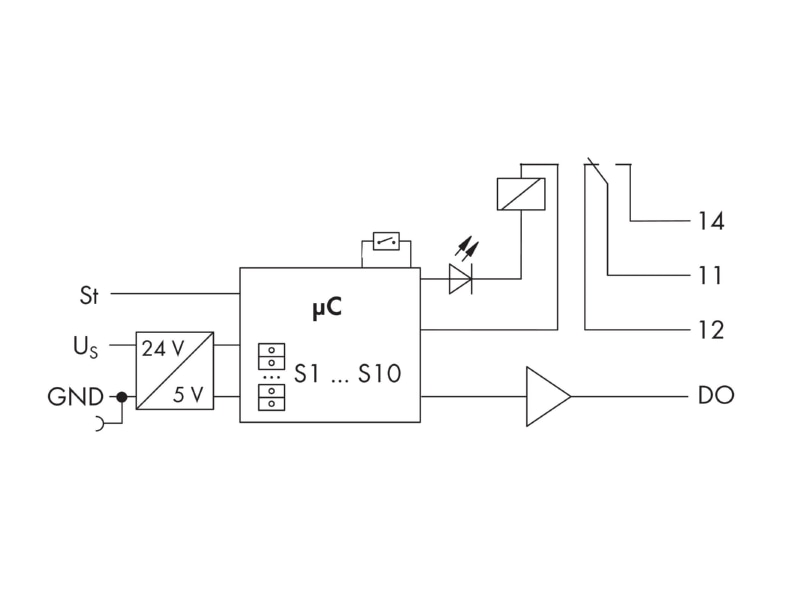

Circuit diagram WAGO 857 640 Timer relay 0 1   360000s DC 24V
Circuit diagram

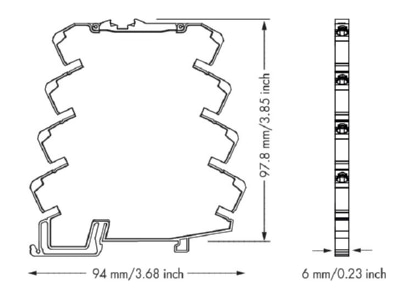

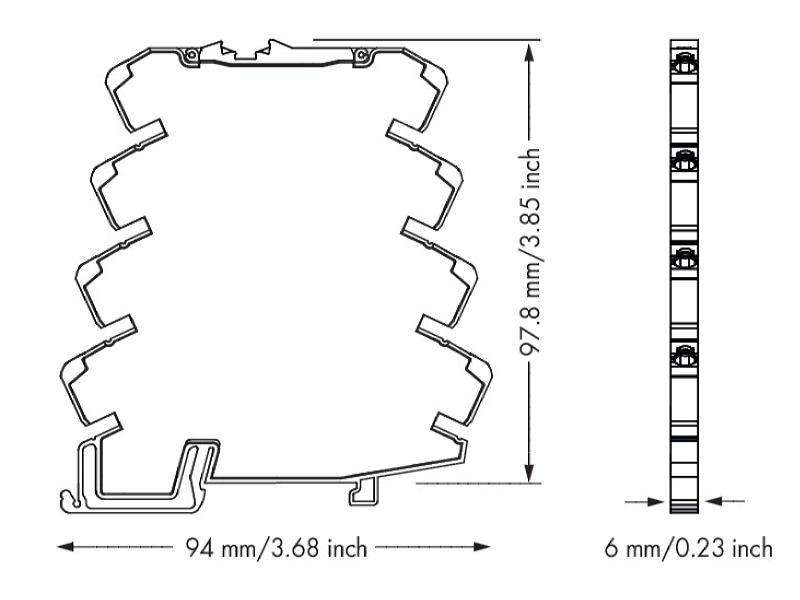

Dimensional drawing WAGO 857 640 Timer relay 0 1   360000s DC 24V
Dimensional drawing
