Terminal strip 2-p 0,08...1,5mm² 260-102
Source photo:
WAGO
(fig. might be different or similar)

Terminal strip 2-p 0,08...1,5mm² 260-102

EAN/GTIN: 4044918598767
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 260-102
Customs tariff no.: 85369010
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
68,94 EUR Price incl. tax. 19,00%
(for 100 pce)
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Drill hole distance centrically=18,1 mm, Explosion-tested version ´Ex e´=no, Connectable conductor cross section fine-strand without cable end sleeve=0,08..1,5 mm², Connectable conductor cross section solid-core=0,08..1,5 mm², Connectable conductor cross section multi-wired=0,08..1,5 mm², Rated current In=18 A, Rated voltage=400 V, Type of electrical connection 1=Spring clamp connection, Type of electrical connection 2=Spring clamp connection, Number of poles=2, Number of clamp positions per pole=2, Mounting method=Other, Material insulation body=Thermoplastic, Operating temperature=-30..85 °C, Inflammability class of insulation material according to with UL94=V0, Width=24,5 mm, Depth=25 mm, Closing plate required=no, Colour=Grey, Transparent=no

More product images:

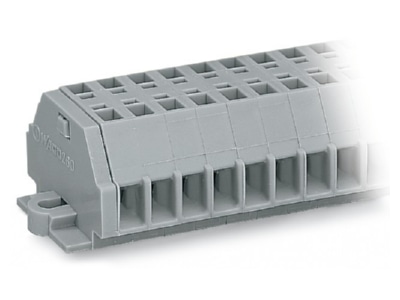

Product image WAGO 260 102 Terminal strip 2 p 0 08   1 5mm
Product image

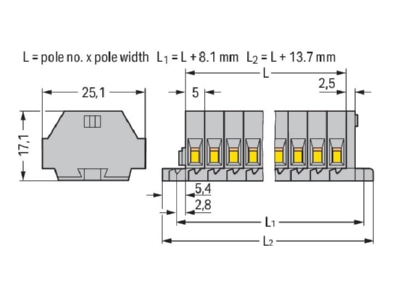

Dimensional drawing WAGO 260 102 Terminal strip 2 p 0 08   1 5mm
Dimensional drawing
