Switching relay DC 24V 857-304
Source photo:
WAGO
(fig. might be different or similar)

Switching relay DC 24V 857-304

EAN/GTIN: 4050821797807
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 857-304
Customs tariff no.: 85364900
Similar top items: Show now & compare
15,63 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Switching relay DC 24V Type of electric connection Spring clamp connection, Nominal current 5A, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Drive, polarization Polarized, Drive, switching attitude Mono stable, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 1, Type of switch contact Simple contact, Complete with socket, Degree of protection (IP) IP20, Width 6mm, Height 81mm, Depth 94mm

More product images:

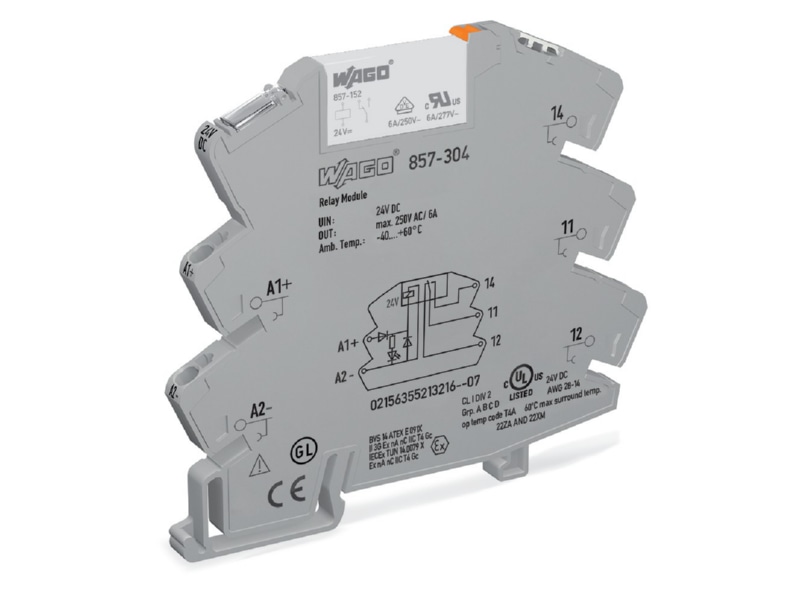

Product image WAGO 857 304 Switching relay DC 24V
Product image

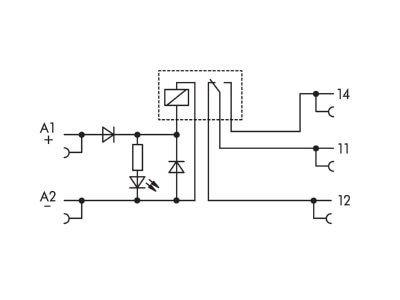

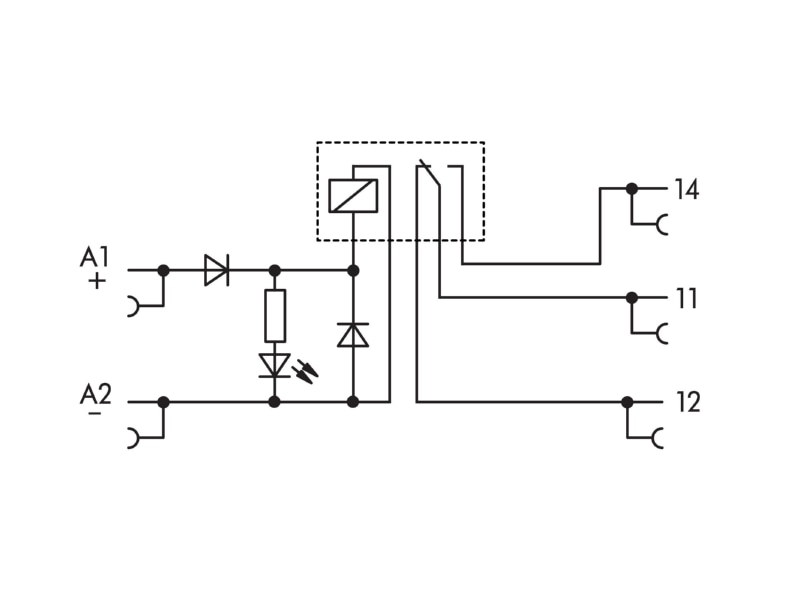

Circuit diagram WAGO 857 304 Switching relay DC 24V
Circuit diagram

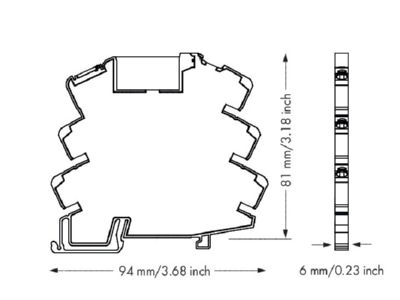

Dimensional drawing WAGO 857 304 Switching relay DC 24V
Dimensional drawing
