Switching relay DC 24V 3A 859-390

EAN/GTIN: 4055143607629
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 859-390
Customs tariff no.: 85364900
Similar top items: Show now & compare
16,19 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Switching relay DC 24V 3A Type of electric connection Spring clamp connection, Nominal current 3A, Rated control supply voltage Us at DC 24 ... 24V, Voltage type for actuating DC, Drive, polarization Polarized, Drive, switching attitude Mono stable, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 1, Type of switch contact Simple contact, Complete with socket, Degree of protection (IP) IP20, Width 6mm, Height 56mm, Depth 91mm

More product images:

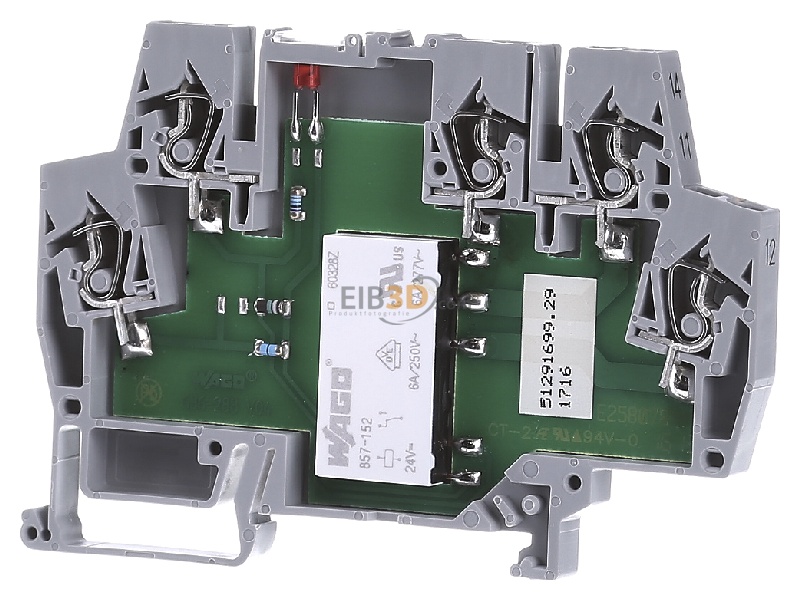

Front view WAGO 859-390 Switching relay DC 24V 3A
Front view

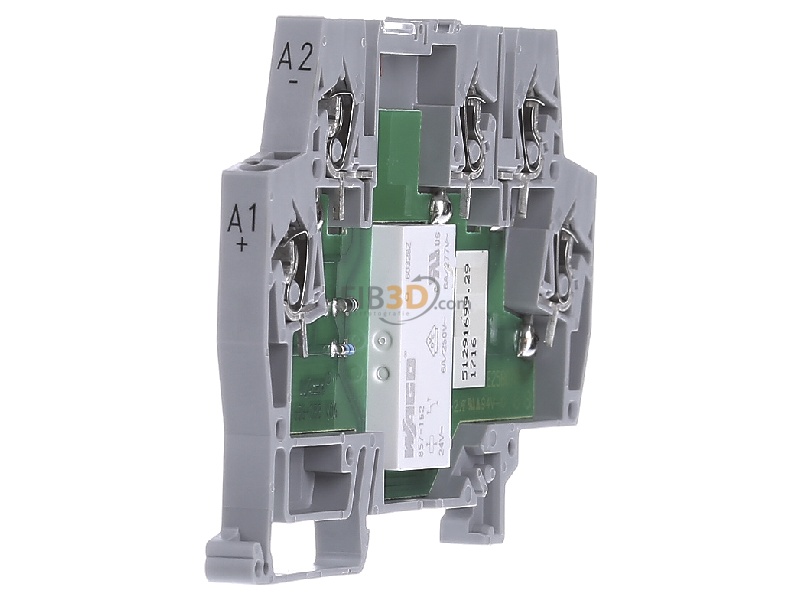

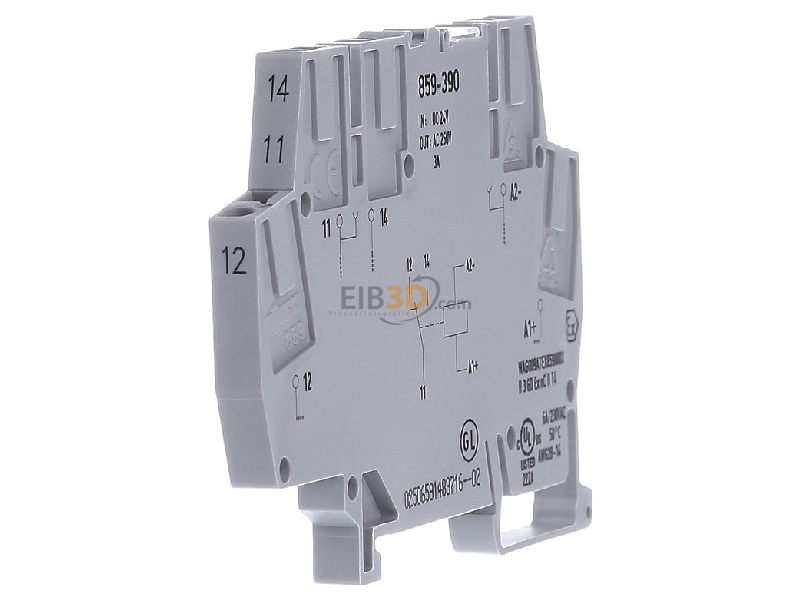

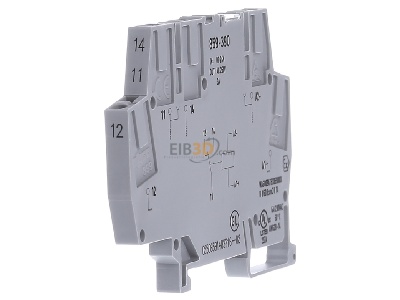

View on the left WAGO 859-390 Switching relay DC 24V 3A
View on the left
View on the right WAGO 859-390 Switching relay DC 24V 3A
View on the right

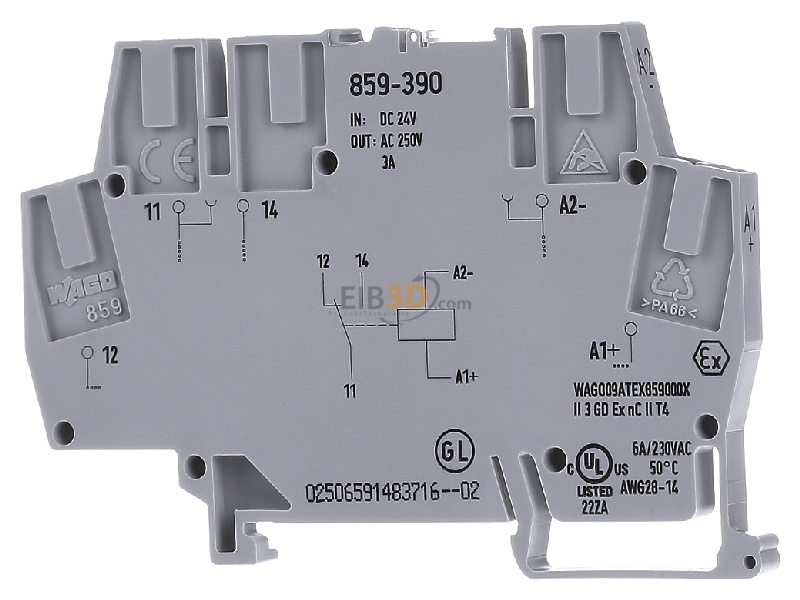

Back view WAGO 859-390 Switching relay DC 24V 3A
Back view

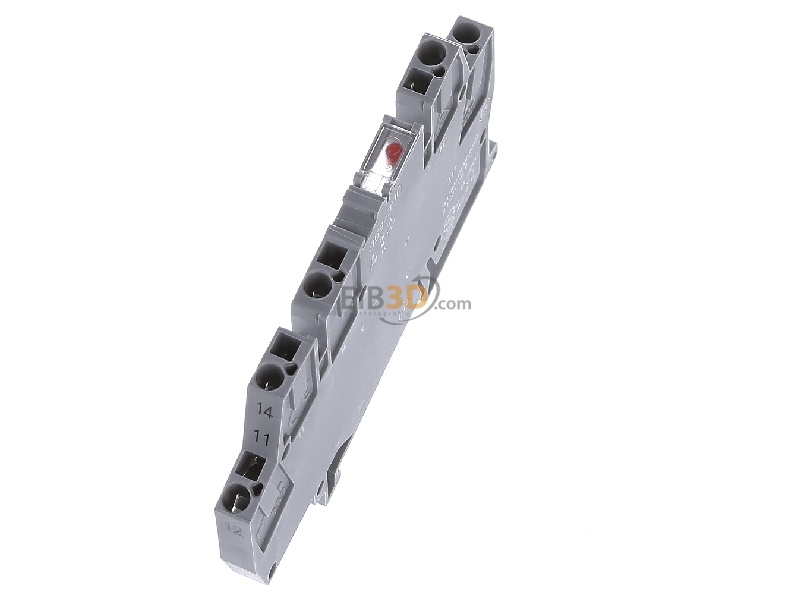

View up front WAGO 859-390 Switching relay DC 24V 3A
View up front

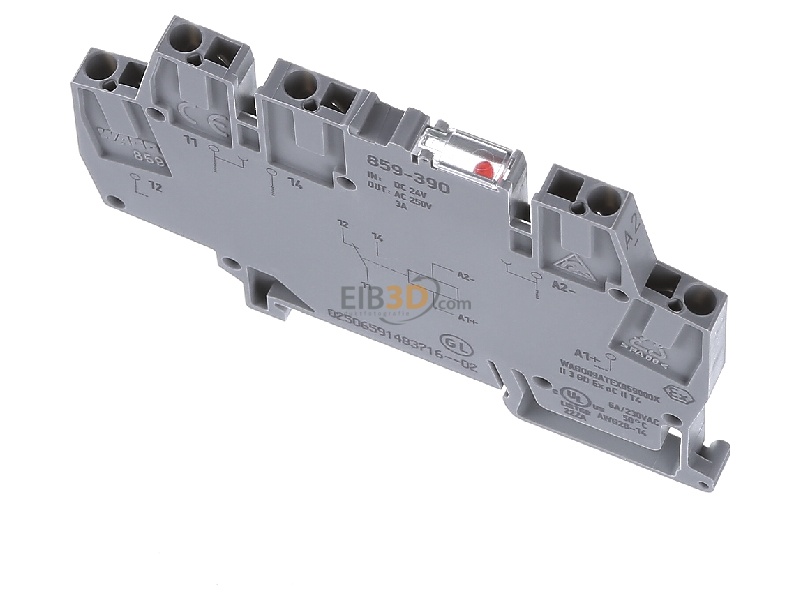

View top left WAGO 859-390 Switching relay DC 24V 3A
View top left
View top right WAGO 859-390 Switching relay DC 24V 3A
View top right
Top rear view WAGO 859-390 Switching relay DC 24V 3A
Top rear view

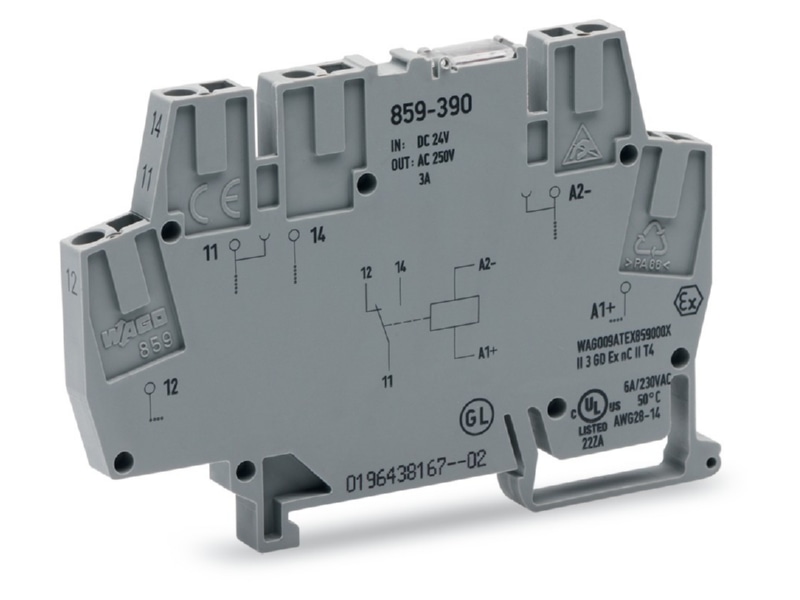

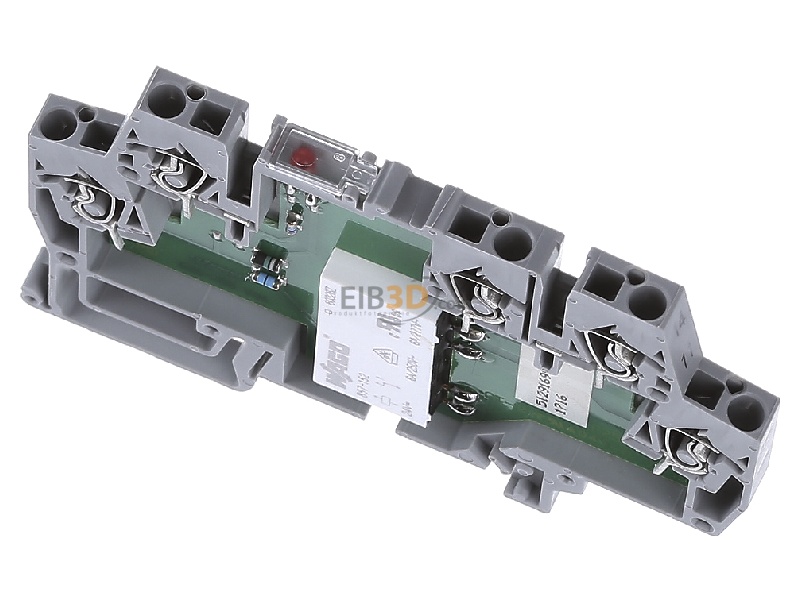

Product image WAGO 859 390 Switching relay DC 24V 3A
Product image

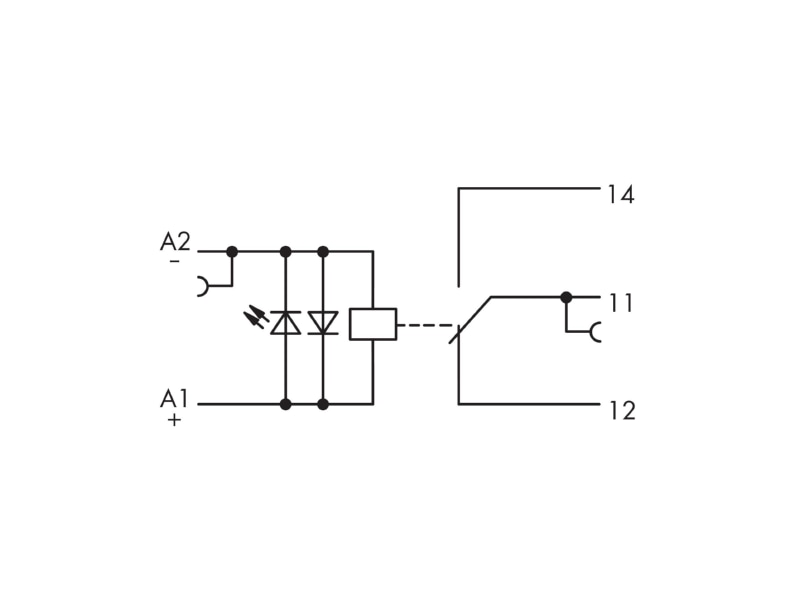

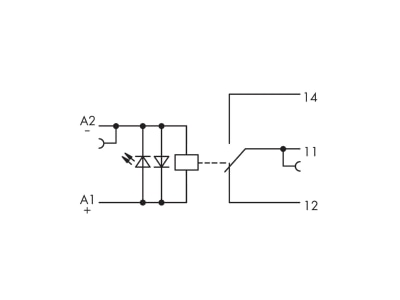

Circuit diagram WAGO 859 390 Switching relay DC 24V 3A
Circuit diagram

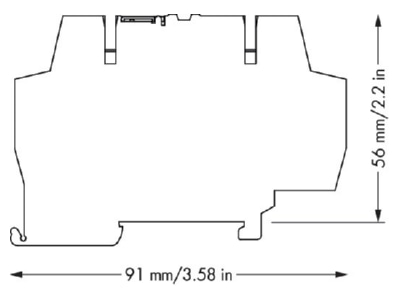

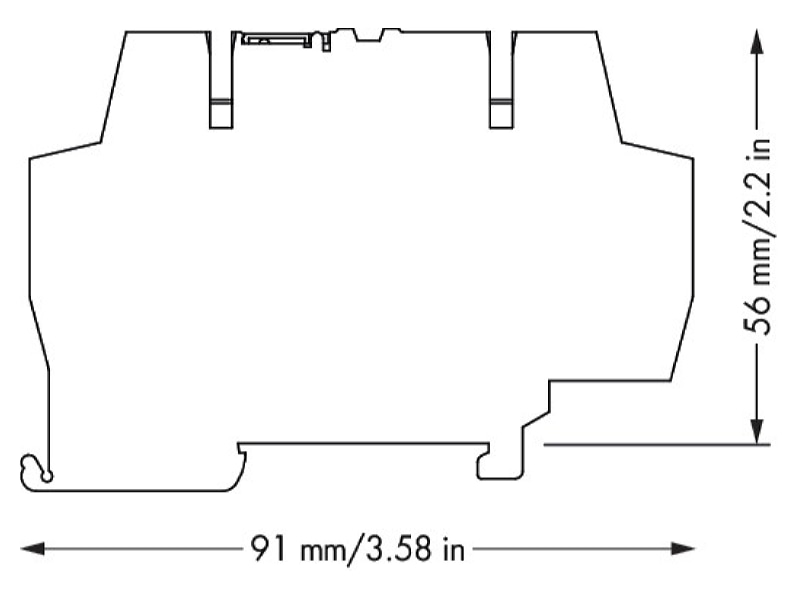

Dimensional drawing WAGO 859 390 Switching relay DC 24V 3A
Dimensional drawing
