Surge protection for power supply 792-803
Source photo:
WAGO
(fig. might be different or similar)

Surge protection for power supply 792-803

EAN/GTIN: 4017332780766
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 792-803
Customs tariff no.: 85363010
Similar top items: Show now & compare
86,77 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

System configuration DC=no, System configuration IT=no, System configuration TN=no, System configuration TN-C=no, System configuration TN-C-S=no, System configuration TN-S=no, System configuration TT=no, System configuration other=no, Nominal discharge surge current (8/20)=5 kA, Max. discharge surge current (8/20)=10 kA, Nominal voltage DC=24 V, Max. continuous voltage AC=23 V, Max. continuous voltage DC=33 V, Voltage protection level=50 kV, Voltage protection level L-N=0,05 kV, Voltage protection level N-PE=1,5 kV, Integrated backup fuse=no, Max. conductor cross section solid (solid, stranded)=2,5 mm², Max. conductor cross section flexible (fine-strand)=2,5 mm², With remote signalling contact=no, Category type 2=yes

More product images:

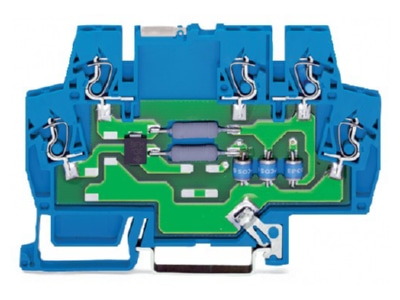

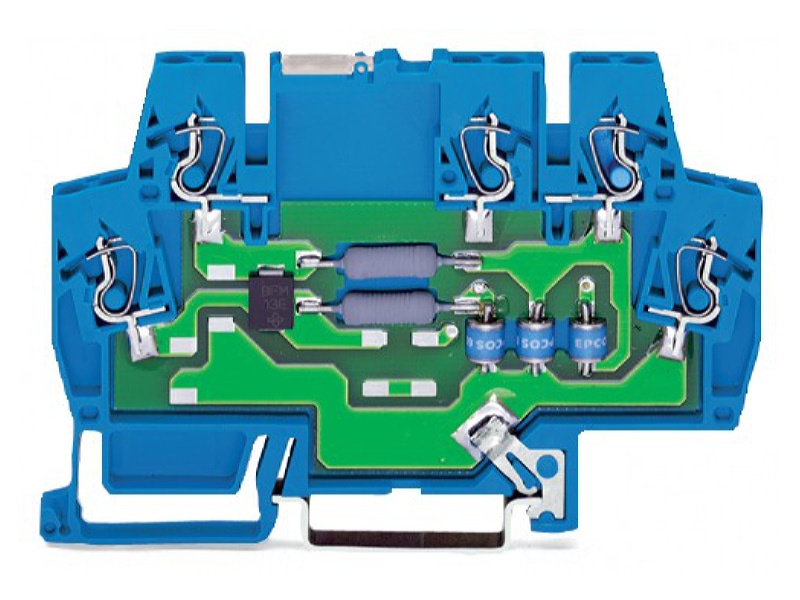

Product image WAGO 792 803 Surge protection for power supply
Product image

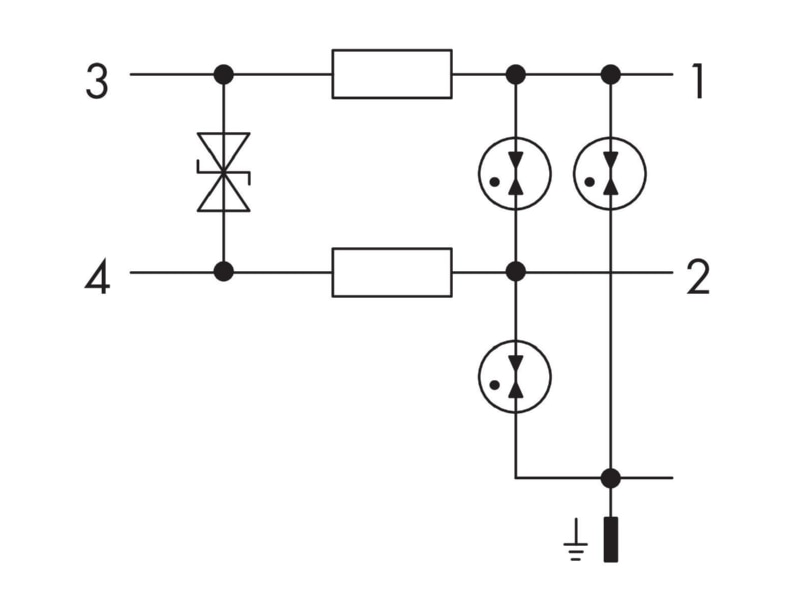

Circuit diagram WAGO 792 803 Surge protection for power supply
Circuit diagram

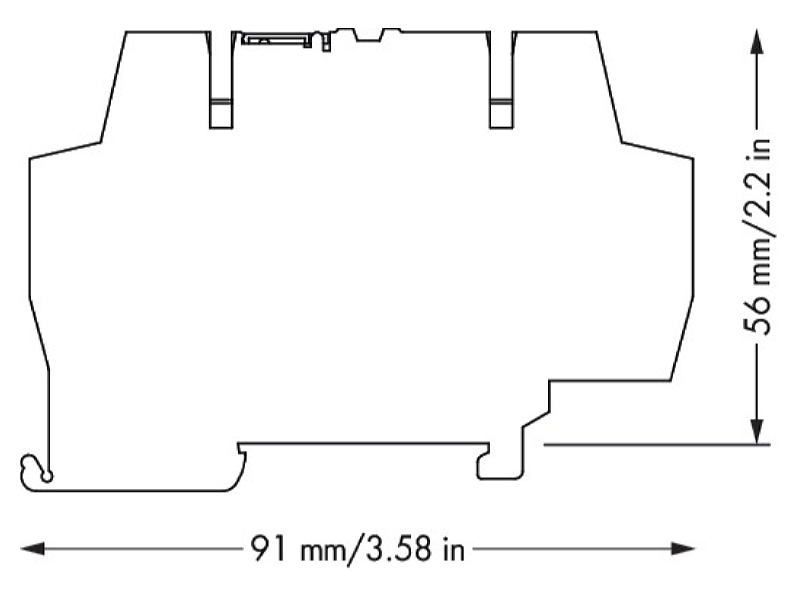

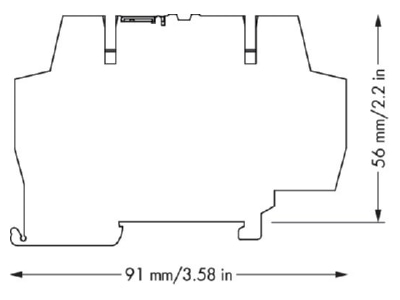

Dimensional drawing WAGO 792 803 Surge protection for power supply
Dimensional drawing
