Patch cord building installation 5-pole 771-9985/006-301
Source photo:
WAGO
(fig. might be different or similar)

Patch cord building installation 5-pole 771-9985/006-301

EAN/GTIN: 4044918947220
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 771-9985/006-301
Customs tariff no.: 85444290
Similar top items: Show now & compare
19,36 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Patch cord building installation 5-pole Rated voltage 400V, Rated current 16A, Number of poles 5, Degree of protection (IP) IP20, Type of finished cable Other, Type side 1 Socket, Type side 2 Plug, Conductor end treatment Ultrasonic compressed wire ends, Total length 3000mm, Mechanical coding, Colour coding/contact insert Blue, Colour housing Black, Cable type H05VV-F, Cable diameter 9,3 ... 11,6mm, Colour outer sheath Black, Nominal cross section conductor 1,5mm², Locking mechanism Separate, Insulating piece permanent temperature-resistant 105°C, Cable permanent temperature-resistant to 70°C, Max. operation temperature at conductor 75°C, Surface finish contacts Other, Pollution degree 3, Continuity resistor 3mOhm, Rated surge voltage 6kV

More product images:

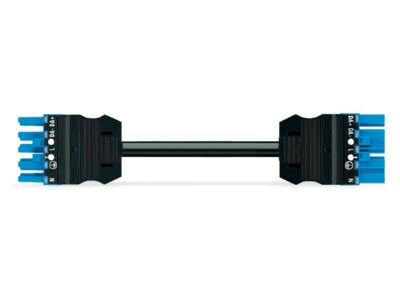

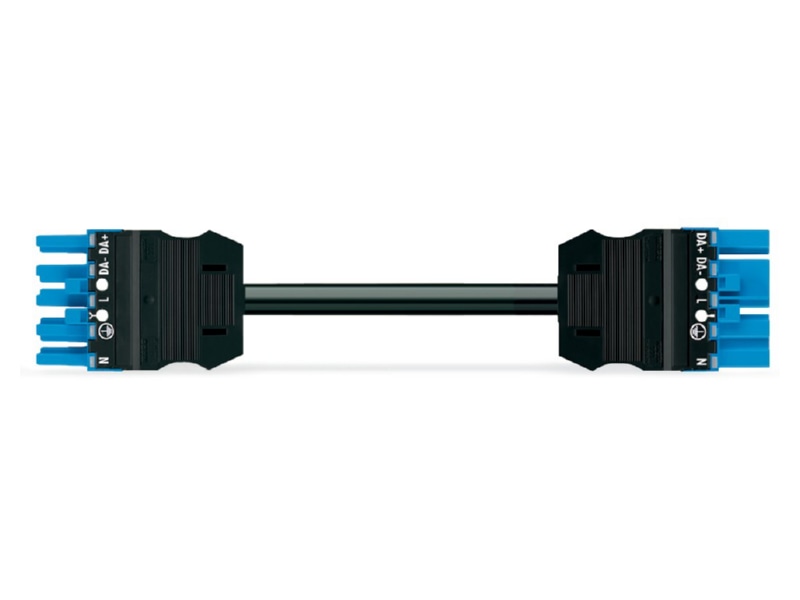

Product image WAGO 771 9985 006 301 Patch cord building installation 5 pole
Product image

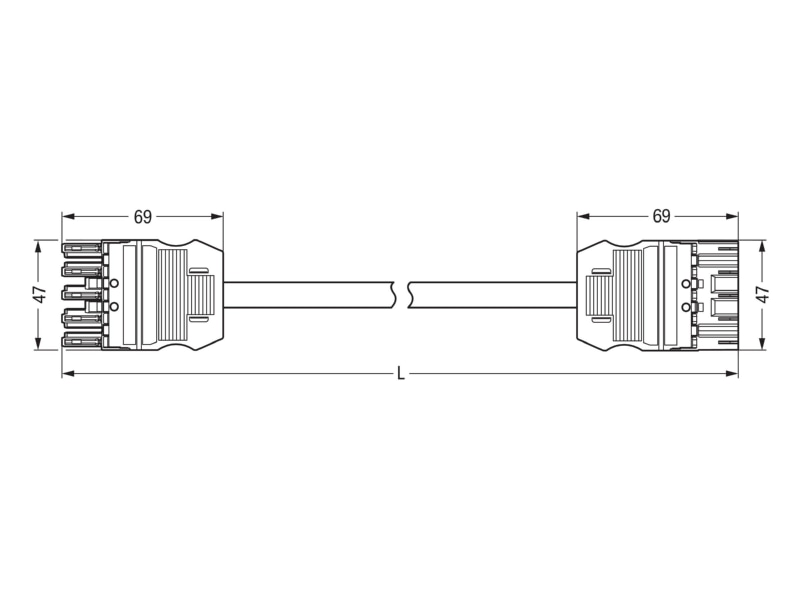

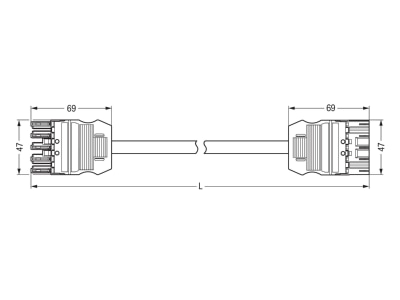

Dimensional drawing WAGO 771 9985 006 301 Patch cord building installation 5 pole
Dimensional drawing
