Passive sensor-actuator interface (with 757-463/000-005
Source photo:
WAGO
(fig. might be different or similar)

Passive sensor-actuator interface (with 757-463/000-005

EAN/GTIN: 4044918978613
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 757-463/000-005
Customs tariff no.: 85366990
Similar top items: Show now & compare
92,99 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Cable outer diameter for cable gland=7,2 mm, Length of the preassembled cable=5 m, Cable length configurable=yes, Number of sensor-/actuator-slots=6, Number of channels per connector slot=6, Type of branches for sensor-/actuator cables=M8, Number of poles sensor/actuator slots=3, Rated voltage=32 V, Pollution degree=3, Operating voltage=10..30 V, Max. current carrying capacity per I/O signal=2 A, Max. current carrying capacity per socket=6 A, Material contact body=Brass, Material of contact surface=Gold, Material insulation body=Polyamide (PA), Thread sleeves sensor/actuator slots=M8, With LED indication=yes, With potential separation=no, Connection for NPN-sensors=no, Fix cable version suitable for cable guide chain=yes, Material housing=Plastic, Colour housing=Other, Operating temperature=-25..80 °C, Degree of protection (IP)=IP68, Explosion safety category for gas=None, Explosion safety category for dust=None, Width=30 mm, Height=20 mm, Depth=123 mm

More product images:

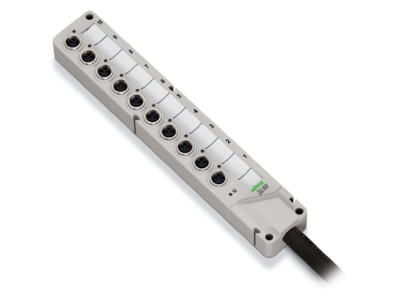

Product image WAGO 757 463 000 005 Passive sensor actuator interface  with
Product image

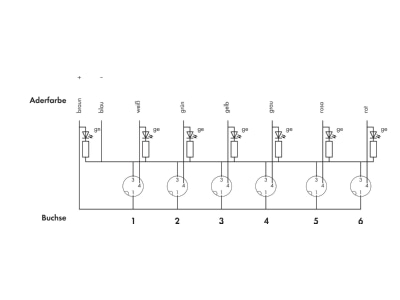

Circuit diagram WAGO 757 463 000 005 Passive sensor actuator interface  with
Circuit diagram
