Installation terminal block 6,2mm 36A 2005-7641

EAN/GTIN: 4055143042239
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2005-7641
Customs tariff no.: 85369010
Similar top items: Show now & compare
4,60 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Installation terminal block 6,2mm 36A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 4mm², Connectable conductor cross section solid-core 0,5 ... 4mm², Connectable conductor cross section multi-wired 0,5 ... 4mm², Rated current In 36A, Rated voltage 250V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of potentials 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature 105 ... 105°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 6,2mm, Height at lowest possible mounting height 42mm, Length 124mm, Closing plate required, Basic colour Grey, With N-disconnect slide

More product images:

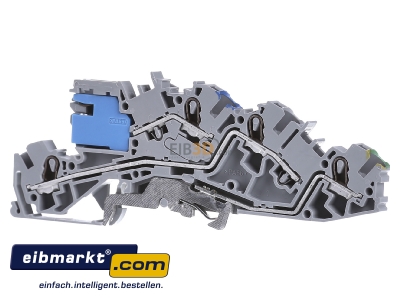

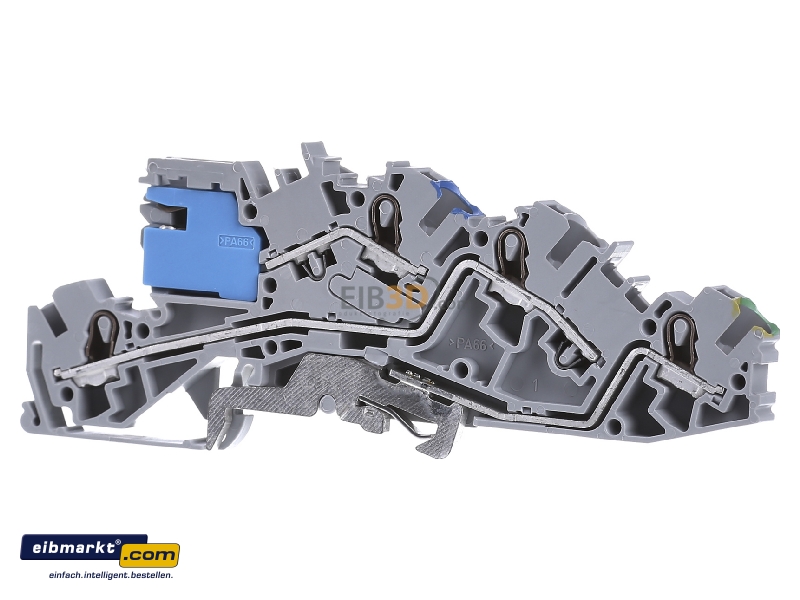

Front view WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
Front view

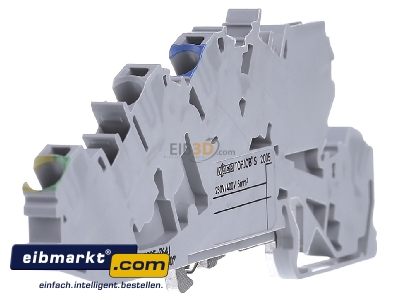

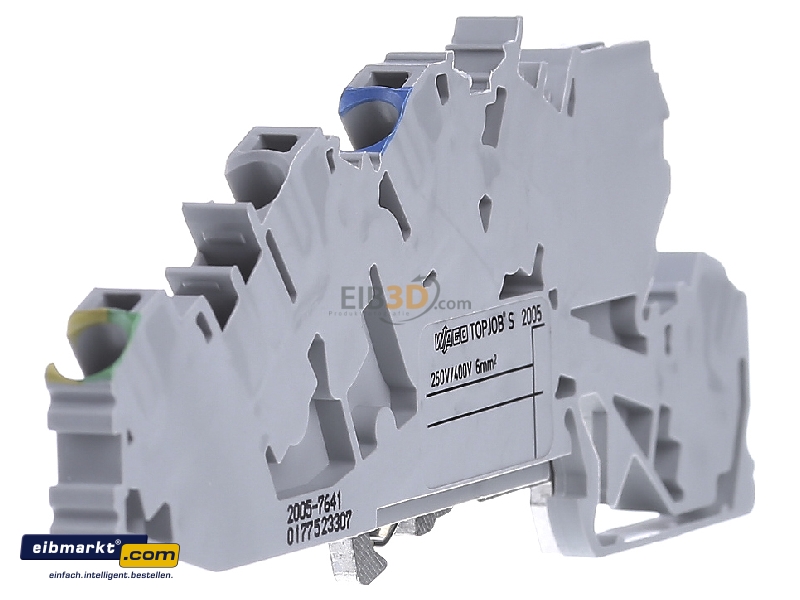

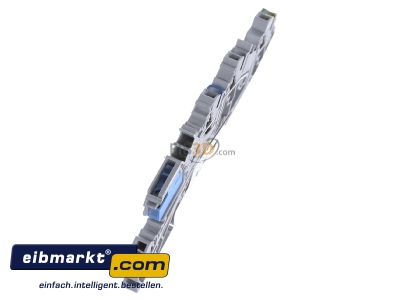

View on the left WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
View on the left

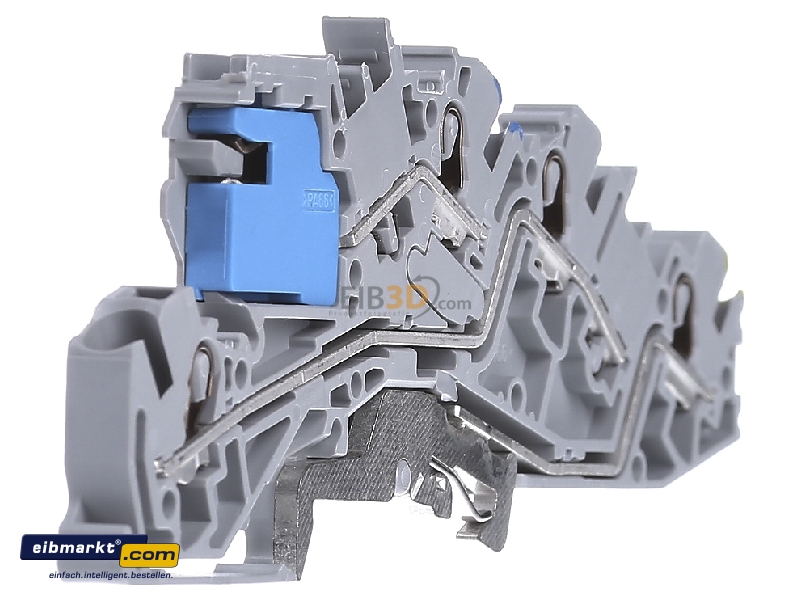

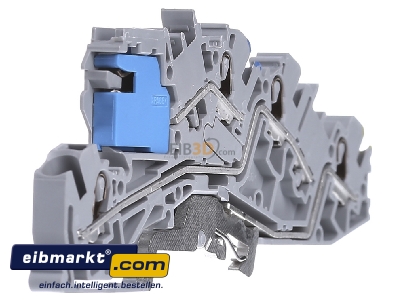

View on the right WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
View on the right

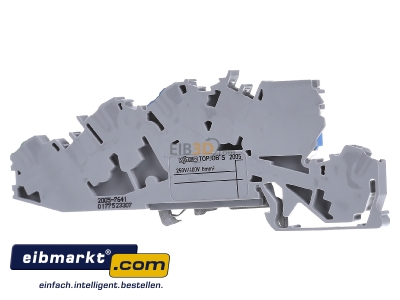

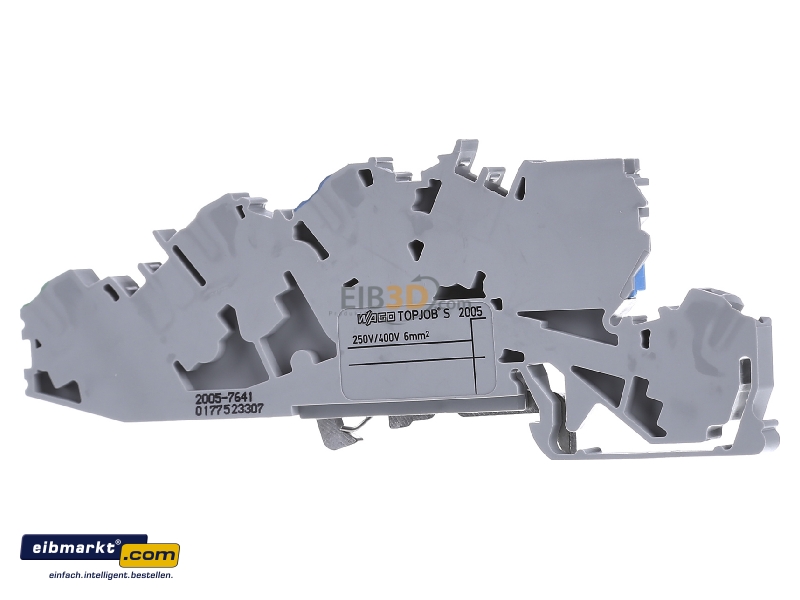

Back view WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
Back view

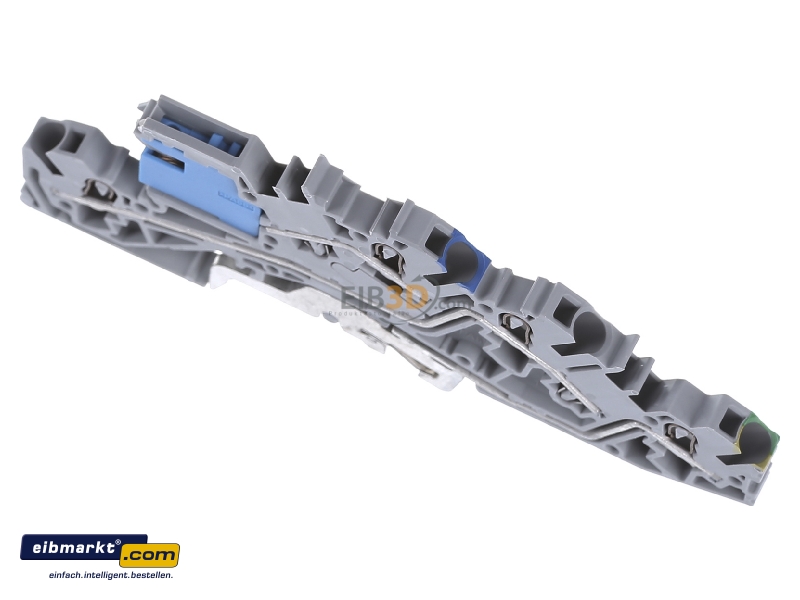

View up front WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
View up front

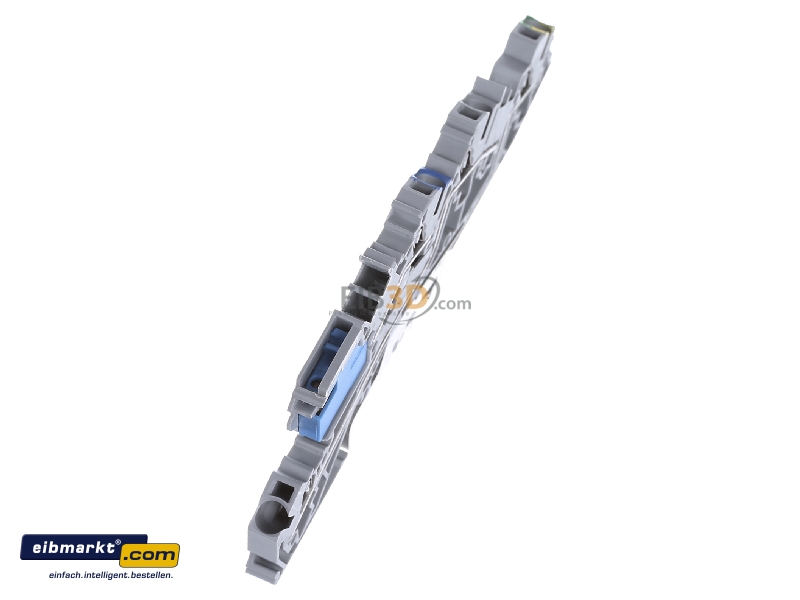

View top left WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
View top left
View top right WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
View top right
Top rear view WAGO Kontakttechnik 2005-7641 Installation terminal block 6,2mm 36A -
Top rear view
Product image WAGO 2005 7641 Installation terminal block 6 2mm 36A
Product image

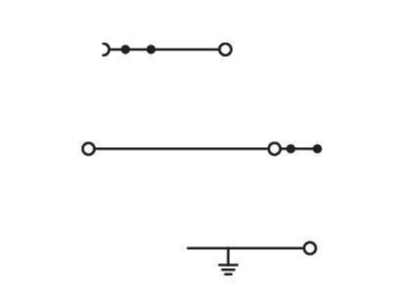

Circuit diagram WAGO 2005 7641 Installation terminal block 6 2mm 36A
Circuit diagram
