Installation terminal block 5,2mm 25A 2003-6651
Source photo:
WAGO
(fig. might be different or similar)

Installation terminal block 5,2mm 25A 2003-6651

EAN/GTIN: 4050821322092
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2003-6651
Customs tariff no.: 85369010
Similar top items: Show now & compare
2,14 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Installation terminal block 5,2mm 25A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 2,5mm², Rated current In 25A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Inclined, Number of potentials 1, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 44,3mm, Length 110mm, Closing plate required, Basic colour Grey, N function possible

More product images:

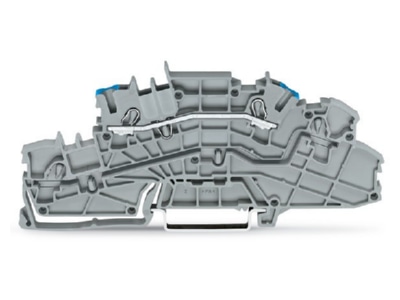

Product image WAGO 2003 6651 Installation terminal block 5 2mm 25A
Product image

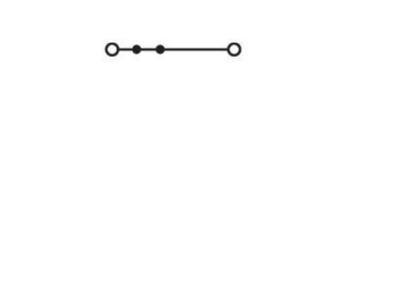

Circuit diagram WAGO 2003 6651 Installation terminal block 5 2mm 25A
Circuit diagram
