Installation terminal block 5,2mm 25A 2003-6650

EAN/GTIN: 4050821322085
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2003-6650
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
106,81 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Installation terminal block 5,2mm 25A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 2,5mm², Rated current In 25A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Inclined, Number of potentials 1, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5,2mm, Height at lowest possible mounting height 44,3mm, Length 110mm, Closing plate required, Basic colour Grey

More product images:

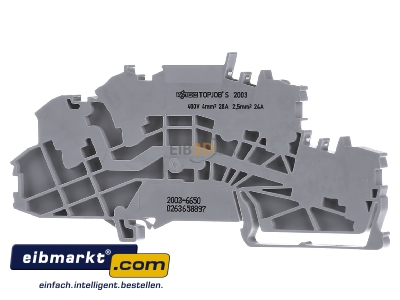

Front view WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
Front view

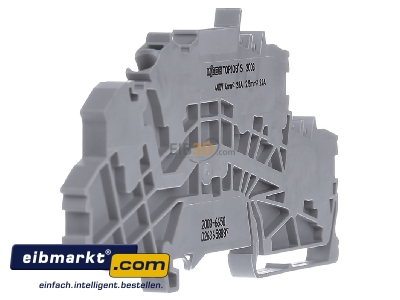

View on the left WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
View on the left
View on the right WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
View on the right

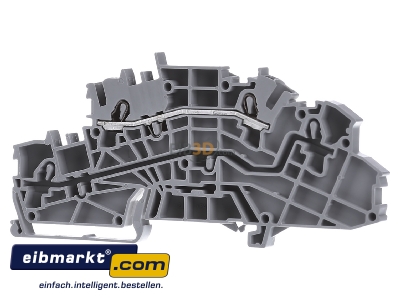

Back view WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
Back view
View up front WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
View up front
View top left WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
View top left
View top right WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
View top right
Top rear view WAGO Kontakttechnik 2003-6650 Installation terminal block 5,2mm 25A
Top rear view
Product image WAGO 2003 6650 Installation terminal block 5 2mm 25A
Product image
Circuit diagram WAGO 2003 6650 Installation terminal block 5 2mm 25A
Circuit diagram
