Ground terminal block 2-p 5mm 870-535

EAN/GTIN: 4045454094508
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 870-535
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
179,72 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Ground terminal block 2-p 5mm PEN function possible, Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section solid-core 0,08 ... 2,5mm², Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 2, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Width/grid dimension 5mm, Height at lowest possible mounting height 40mm, Length 91mm, Closing plate required, Colour Other

More product images:

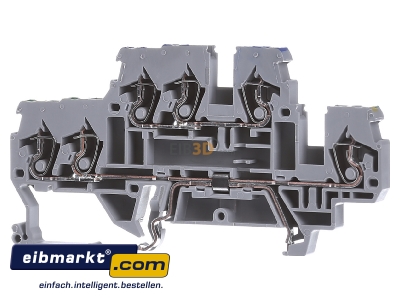

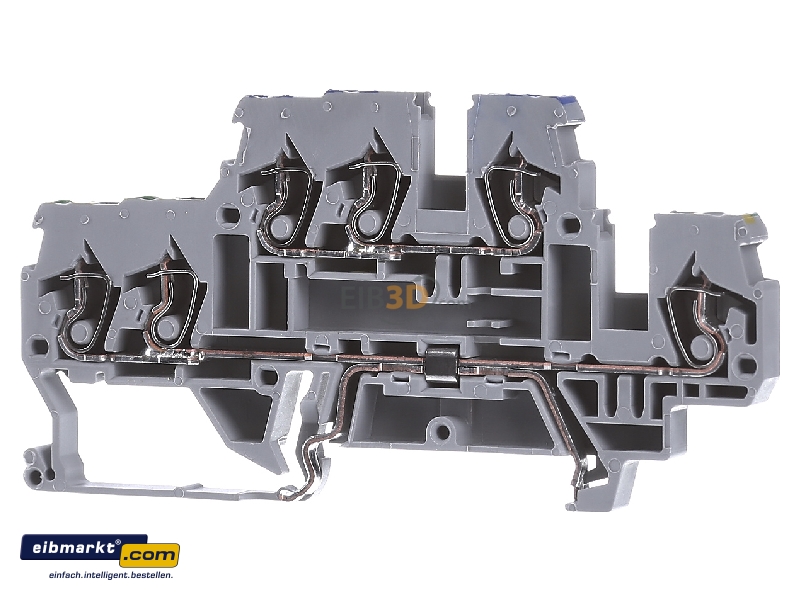

Front view WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
Front view

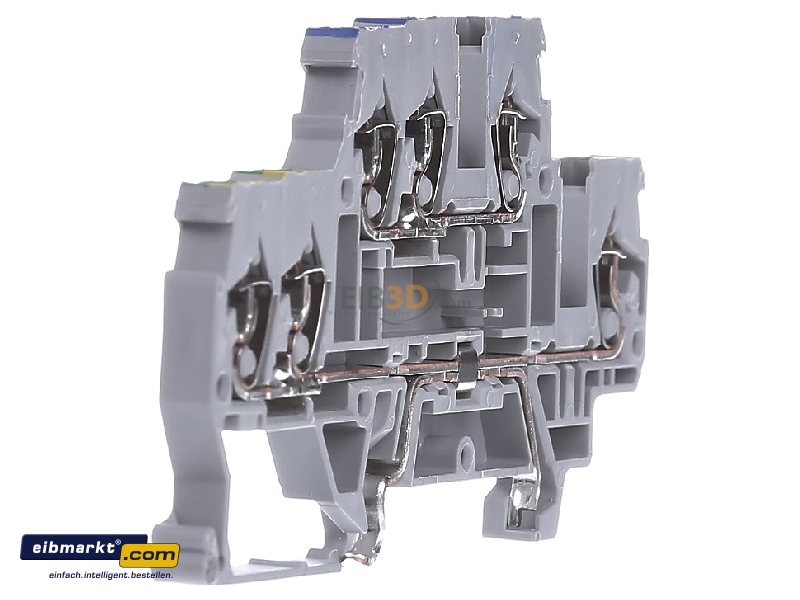

View on the left WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
View on the left
View on the right WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
View on the right

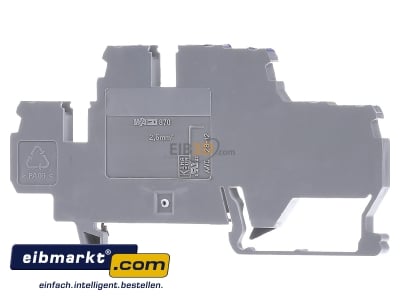

Back view WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
Back view

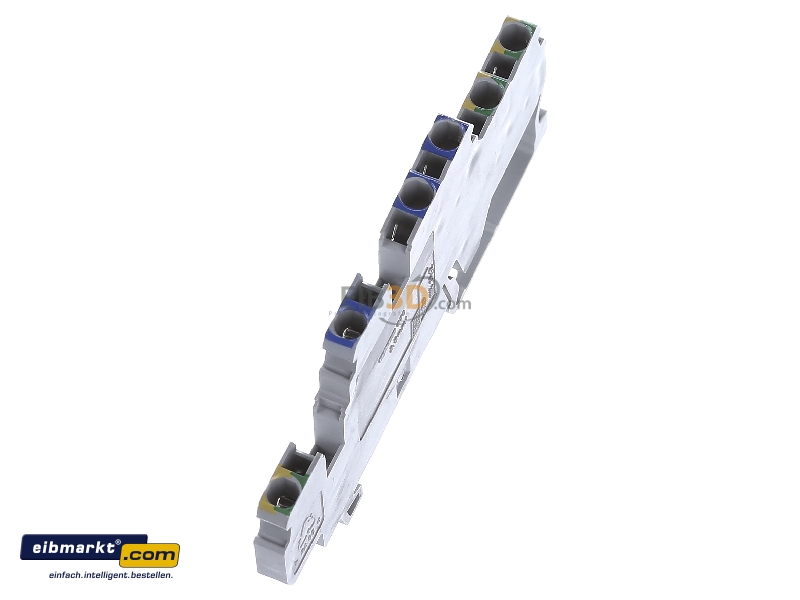

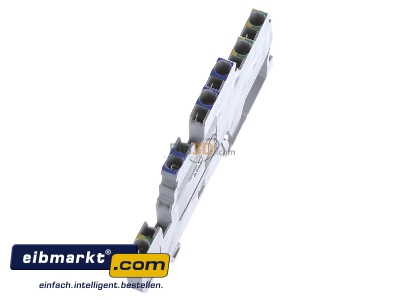

View up front WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
View up front

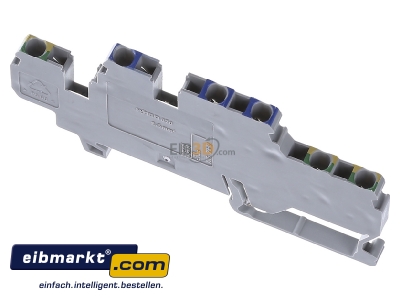

View top left WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
View top left

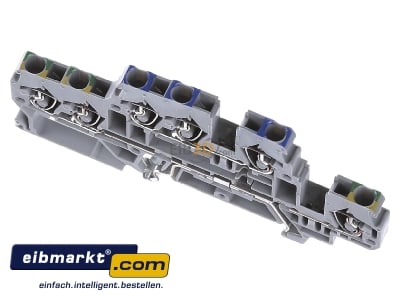

View top right WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
View top right
Top rear view WAGO Kontakttechnik 870-535 Ground terminal block 2-p 5mm -
Top rear view
Product image WAGO 870 535 Ground terminal block 2 p 5mm
Product image
Circuit diagram WAGO 870 535 Ground terminal block 2 p 5mm
Circuit diagram
