Fieldbus digital module 8 In / 8 Out 750-1502
Source photo:
WAGO
(fig. might be different or similar)

Fieldbus digital module 8 In / 8 Out 750-1502

EAN/GTIN: 4045454898281
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-1502
Customs tariff no.: 85371098
Similar top items: Show now & compare
148,68 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus digital module 8 In / 8 Out Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Number of digital inputs 8, Number of digital outputs 8, Input current at signal 1 0,6mA, Permitted voltage at input -3 ... 30V, Type of input voltage DC, Type of digital output Other, Output current 0,5A, Permitted voltage at output 24 ... 24V, Type of output voltage DC, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces USB 0, Number of HW-interfaces other 0, Supporting protocol for other bus systems, System accessory, Degree of protection (IP) IP20, Type of electric connection Spring clamp connection, Signal change delay 0,2 ... 0,2ms, Fieldbus connection over separate bus coupler possible, Rail mounting possible, Explosion safety category for gas None, Explosion safety category for dust None, Width 12mm, Height 64mm, Depth 100mm

More product images:

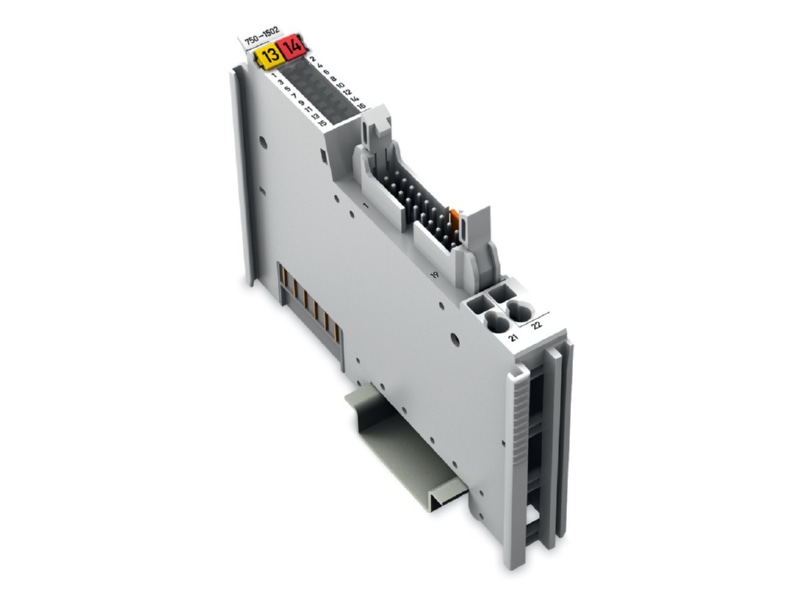

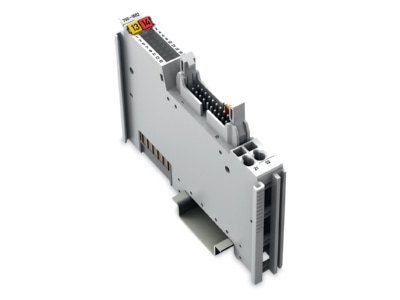

Product image WAGO 750 1502 Fieldbus digital module 8 In   8 Out
Product image

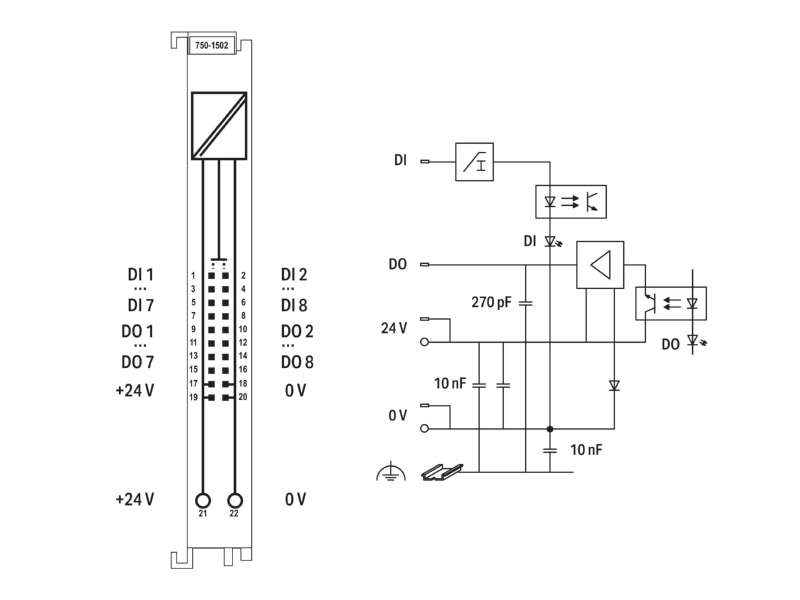

Circuit diagram WAGO 750 1502 Fieldbus digital module 8 In   8 Out
Circuit diagram
