Fieldbus digital module 0 In / 2 Out 750-502

EAN/GTIN: 4045454586652
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-502
Customs tariff no.: 85371098
Similar top items: Show now & compare
77,43 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus digital module 0 In / 2 Out Supply voltage DC 24 ... 24V, Voltage type of supply voltage DC, Number of digital inputs 0, Number of digital outputs 2, Type of digital output Other, Output current 2A, Permitted voltage at output 24 ... 24V, Type of output voltage DC, Short-circuit protection, outputs available, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 0, Number of HW-interfaces serial TTY 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces USB 0, Number of HW-interfaces other 0, Supporting protocol for other bus systems, System accessory, Degree of protection (IP) IP20, Type of electric connection Spring clamp connection, Fieldbus connection over separate bus coupler possible, Rail mounting possible, Explosion safety category for gas ATEX gas-ex-protection, Cat. 3G, Explosion safety category for dust ATEX dust-ex-protection, Cat. 3D, Width 12mm, Height 64mm, Depth 100mm

More product images:

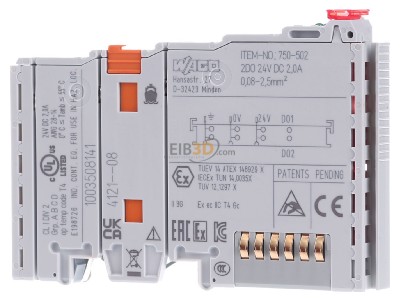

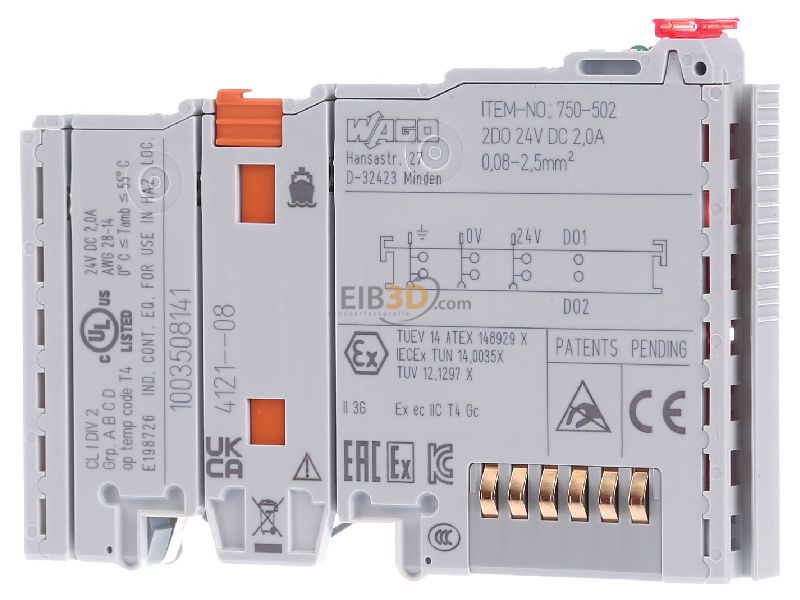

Front view WAGO 750-502 Fieldbus digital module 0 In / 2 Out
Front view

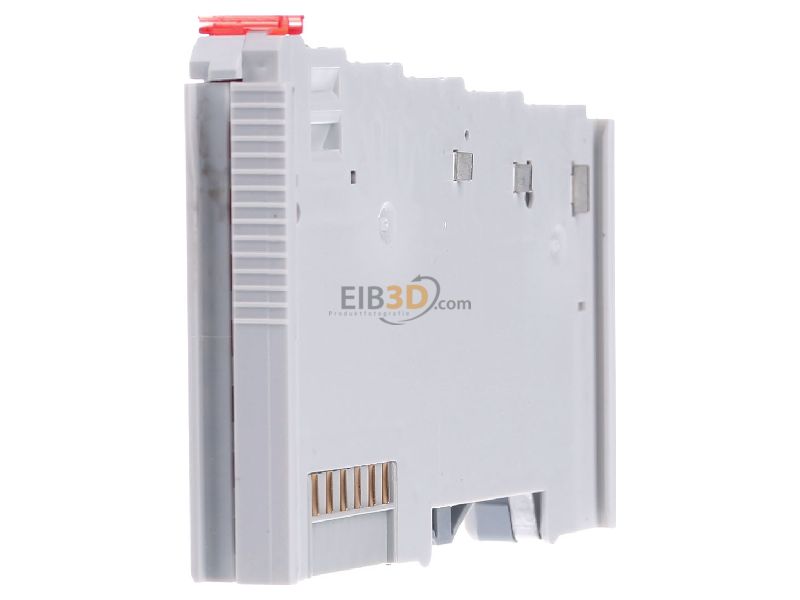

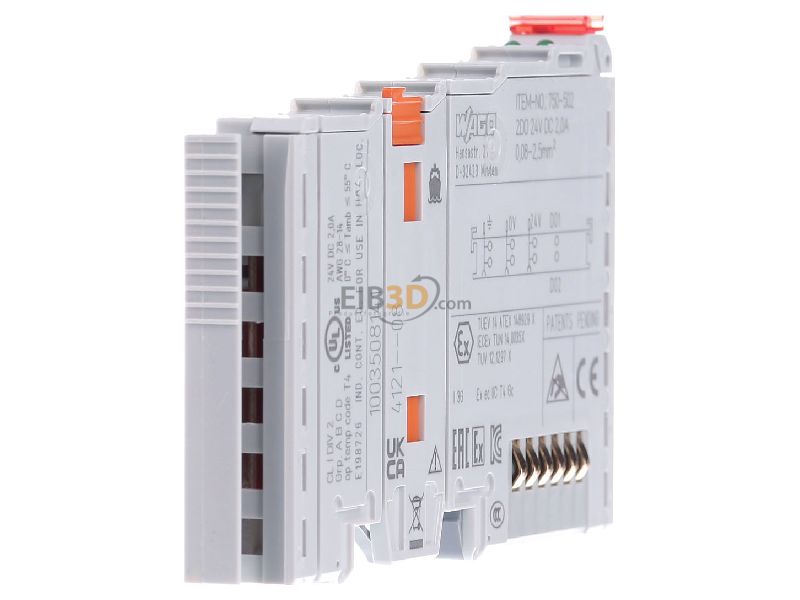

View on the left WAGO 750-502 Fieldbus digital module 0 In / 2 Out
View on the left
View on the right WAGO 750-502 Fieldbus digital module 0 In / 2 Out
View on the right

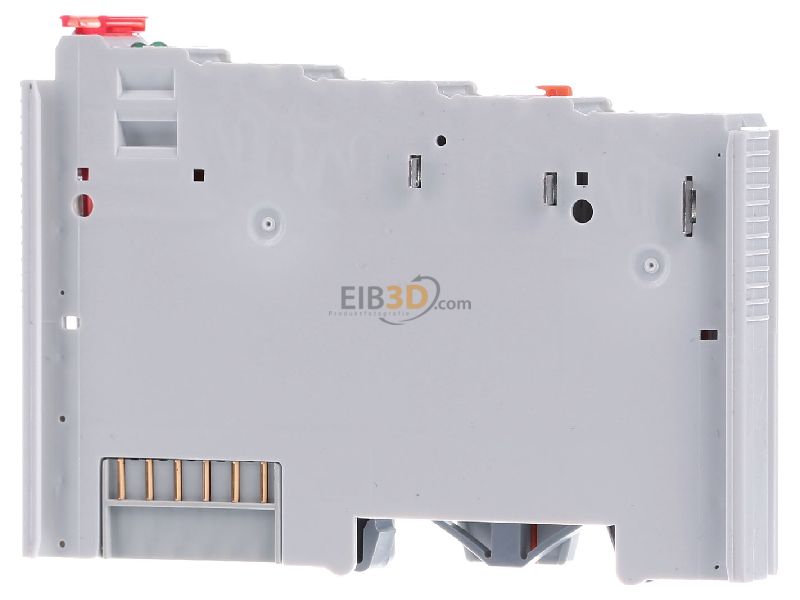

Back view WAGO 750-502 Fieldbus digital module 0 In / 2 Out
Back view

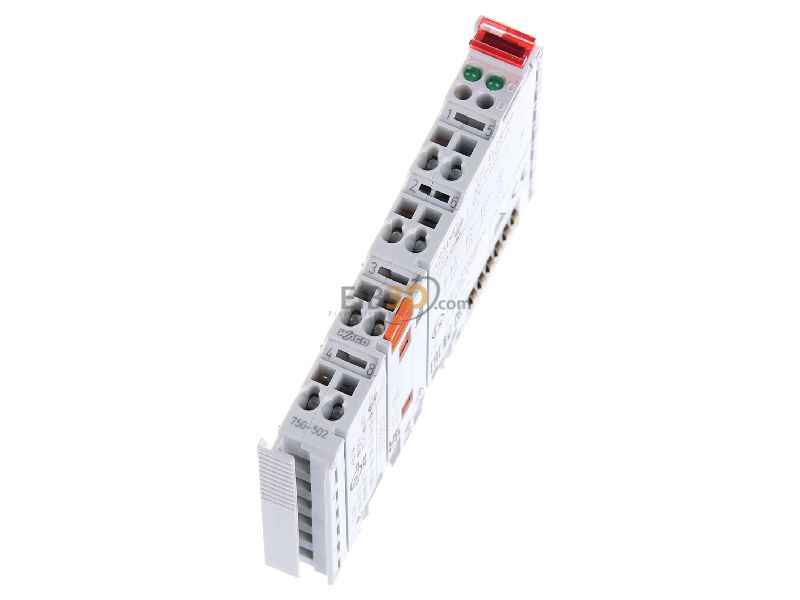

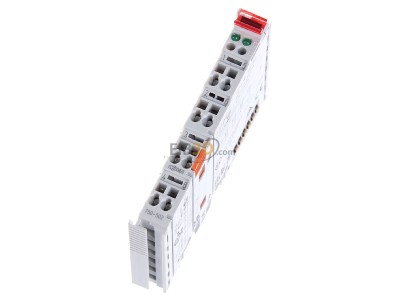

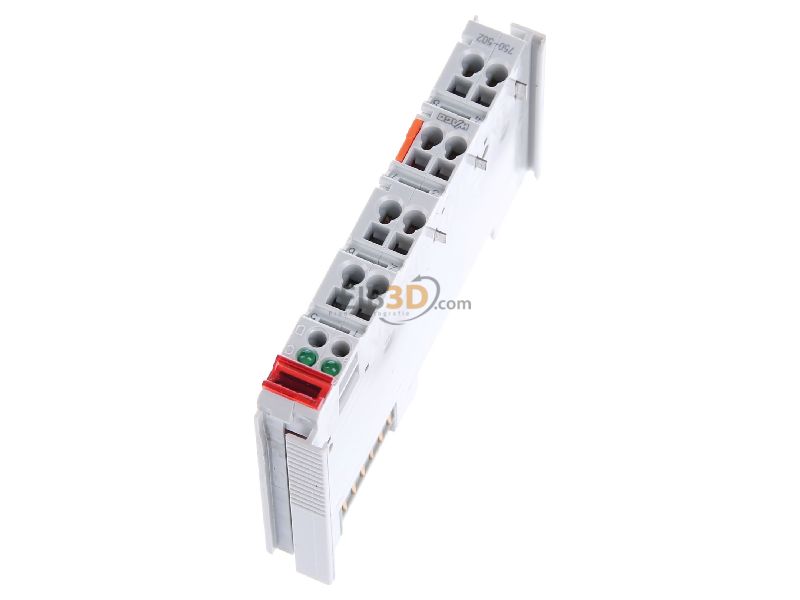

View up front WAGO 750-502 Fieldbus digital module 0 In / 2 Out
View up front

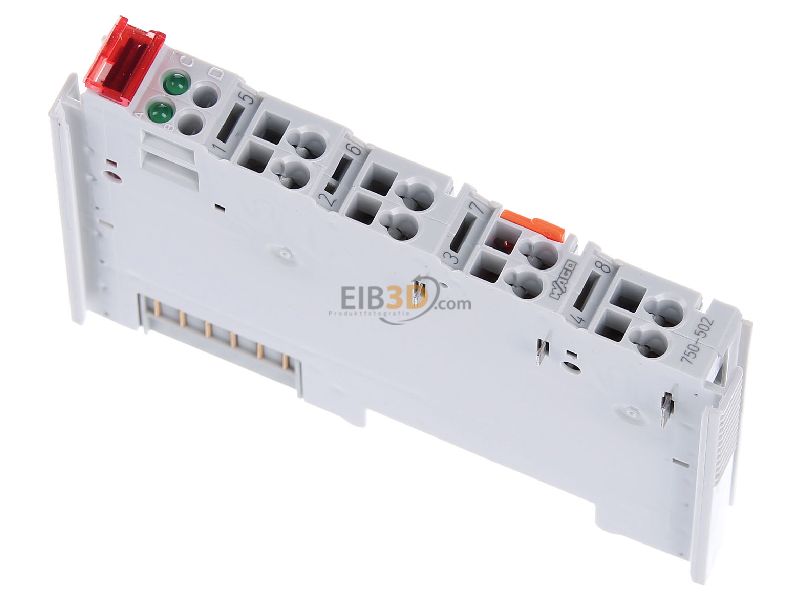

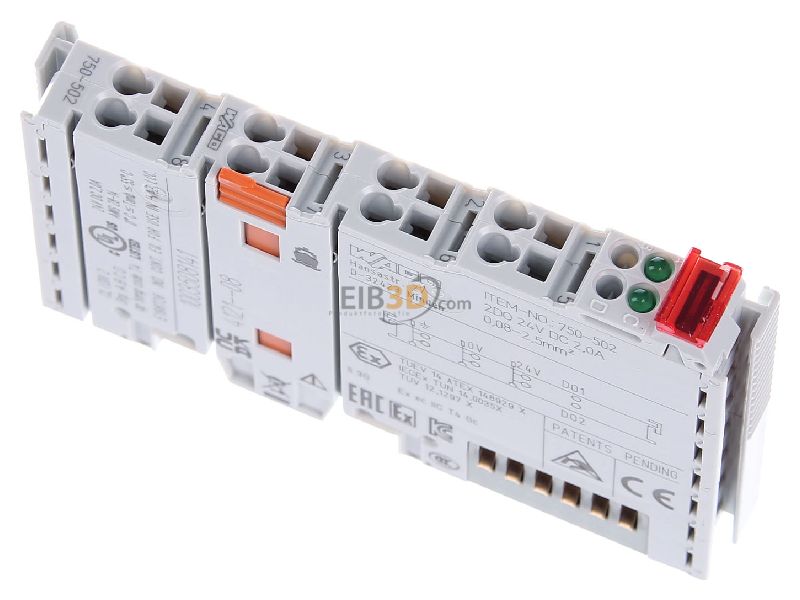

View top left WAGO 750-502 Fieldbus digital module 0 In / 2 Out
View top left
View top right WAGO 750-502 Fieldbus digital module 0 In / 2 Out
View top right
Top rear view WAGO 750-502 Fieldbus digital module 0 In / 2 Out
Top rear view

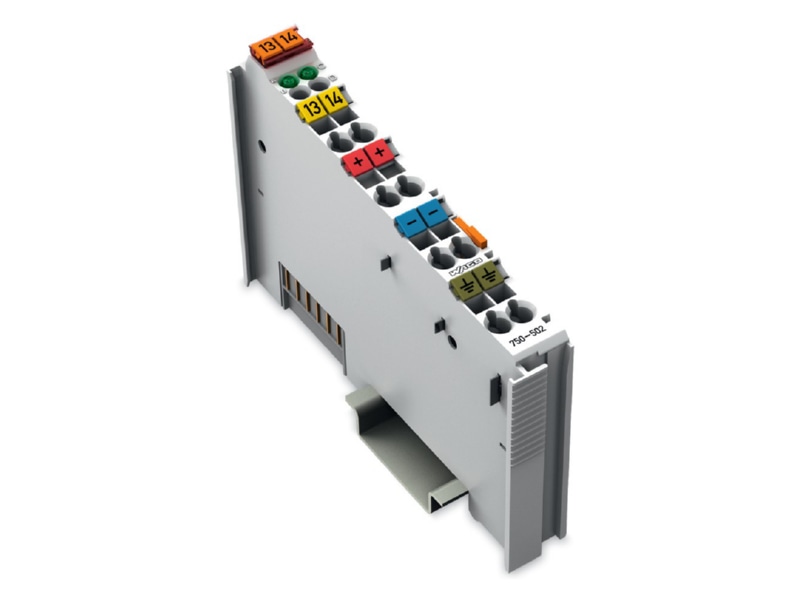

Product image WAGO 750 502 Fieldbus digital module 0 In   2 Out
Product image

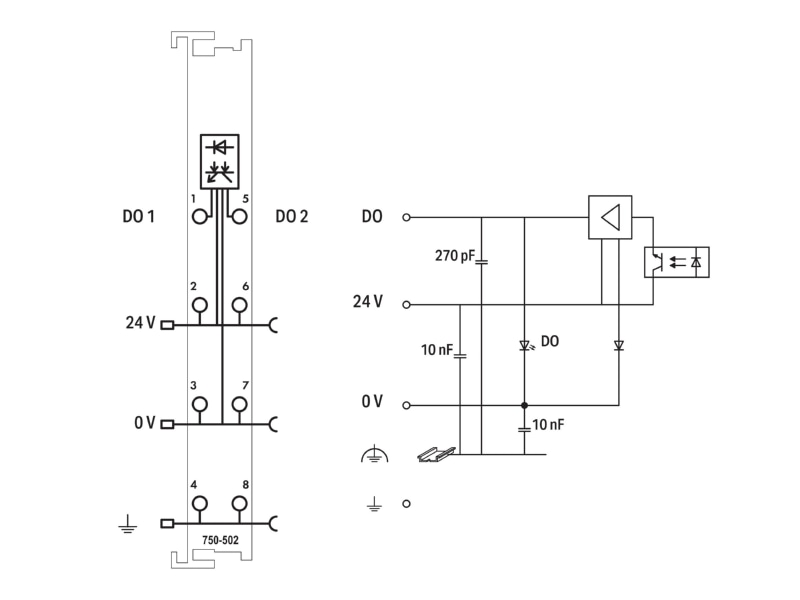

Circuit diagram WAGO 750 502 Fieldbus digital module 0 In   2 Out
Circuit diagram
