Fieldbus basic device DC24V 750-333/040-000
Source photo:
WAGO
(fig. might be different or similar)

Fieldbus basic device DC24V 750-333/040-000

EAN/GTIN: 4050821460138
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 750-333/040-000
Customs tariff no.: 85176200
Similar top items: Show now & compare
548,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Fieldbus basic device DC24V With integrated power supply, Input voltage at DC 24 ... 24V, Type of input voltage DC, Max. input current DC 0,5A, Number of HW-interfaces industrial Ethernet 0, Number of interfaces PROFINET 0, Number of HW-interfaces RS-232 0, Number of HW-interfaces RS-422 0, Number of HW-interfaces RS-485 1, Number of HW-interfaces serial TTY 0, Number of HW-interfaces USB 0, Number of HW-interfaces parallel 0, Number of HW-interfaces Wireless 0, Number of HW-interfaces other 0, Supporting protocol for PROFIBUS, System accessory, Degree of protection (IP) IP20, Number of slots 1, With pluggable modules, digital I/O, With pluggable modules, analogue I/O, With pluggable modules, communication modules, With pluggable modules, function and technology modules, With pluggable modules, central modules, With pluggable modules, others, Type of electric connection Spring clamp connection, With potential separation, With bus coupler for modular station connection, Rail mounting possible, Explosion safety category for gas None, Explosion safety category for dust None, Width 51mm, Height 65mm, Depth 100mm

More product images:

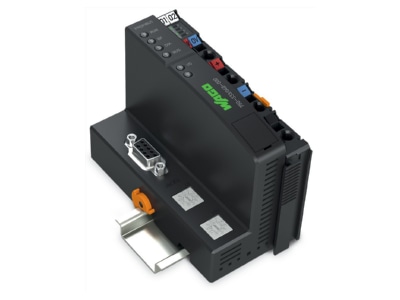

Product image WAGO 750 333 040 000 Fieldbus basic device DC24V
Product image

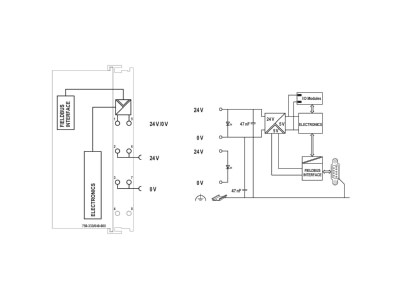

Circuit diagram WAGO 750 333 040 000 Fieldbus basic device DC24V
Circuit diagram
