Feed-through terminal block 5mm 22A 870-909
Source photo:
WAGO
(fig. might be different or similar)

Feed-through terminal block 5mm 22A 870-909

EAN/GTIN: 4066966450422
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 870-909
Customs tariff no.: 85369010
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
68,84 EUR Price incl. tax. 19,00%
(for 100 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Feed-through terminal block 5mm 22A Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 4mm², Connectable conductor cross section fine-strand with cable end sleeve 0,25 ... 2,5mm², Connectable conductor cross section solid-core 0,2 ... 2,5mm², Connectable conductor cross section multi-wired 0,2 ... 2,5mm², Rated current In 22A, Rated voltage 420V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature 105 ... 105°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 5mm, Height at lowest possible mounting height 27,5mm, Length 44,5mm, Explosion-tested version ´Ex e´, Closing plate required, Colour Other, Internally connected stages

More product images:

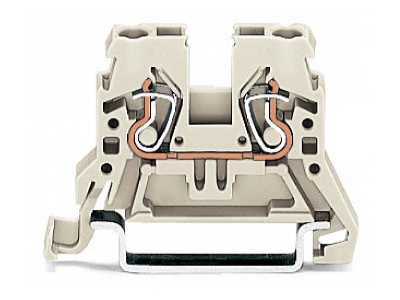

Product image WAGO 870 909 Feed through terminal block 5mm 22A
Product image

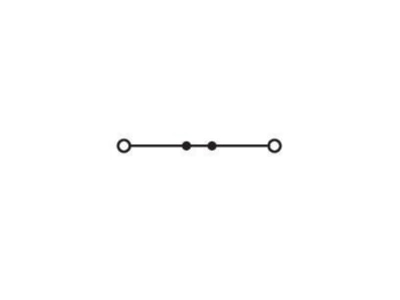

Circuit diagram WAGO 870 909 Feed through terminal block 5mm 22A
Circuit diagram
