Feed-through terminal block 6,2mm 32A 2004-1205
Source photo:
WAGO
(fig. might be different or similar)

Feed-through terminal block 6,2mm 32A 2004-1205

EAN/GTIN: 4045454537449
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2004-1205
Customs tariff no.: 85369010
Order level:
(minimum)
50 pce
Similar top items: Show now & compare
41,73 EUR Price incl. tax. 19,00%
(for 50 pce)
plus shipping
Delivery time:
12 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 50 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Connectable conductor cross section fine-strand without cable end sleeve=0,5..6 mm², Connectable conductor cross section fine-strand with cable end sleeve=0,75..2,5 mm², Connectable conductor cross section solid-core=1,6 mm², Connectable conductor cross section multi-wired=0,5..4 mm², Rated current In=32 A, Rated voltage=800 V, Type of electrical connection 1=Spring clamp connection, Type of electrical connection 2=Spring clamp connection, Number of levels=1, Number of clamp positions per level=2, Mounting method=DIN rail (top hat rail) 35 mm, Material insulation body=Thermoplastic, Operating temperature=105 °C, Inflammability class of insulation material according to with UL94=V0, Width=6,2 mm, Depth=52,5 mm, Explosion-tested version ´Ex e´=yes, Closing plate required=yes, Colour=Black, Internally connected stages=no

More product images:

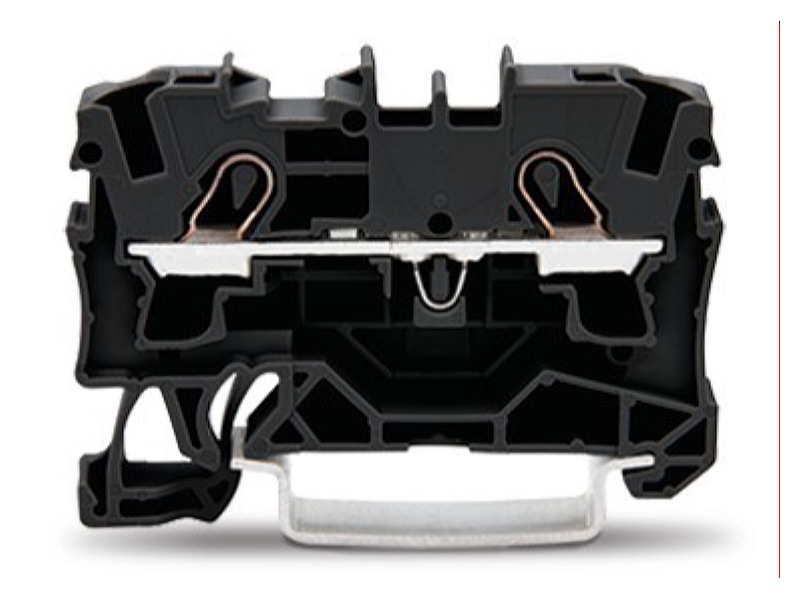

Product image WAGO 2004 1205 Feed through terminal block 6 2mm 32A
Product image

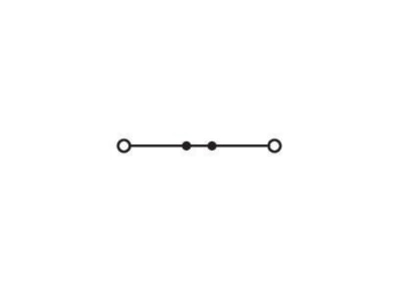

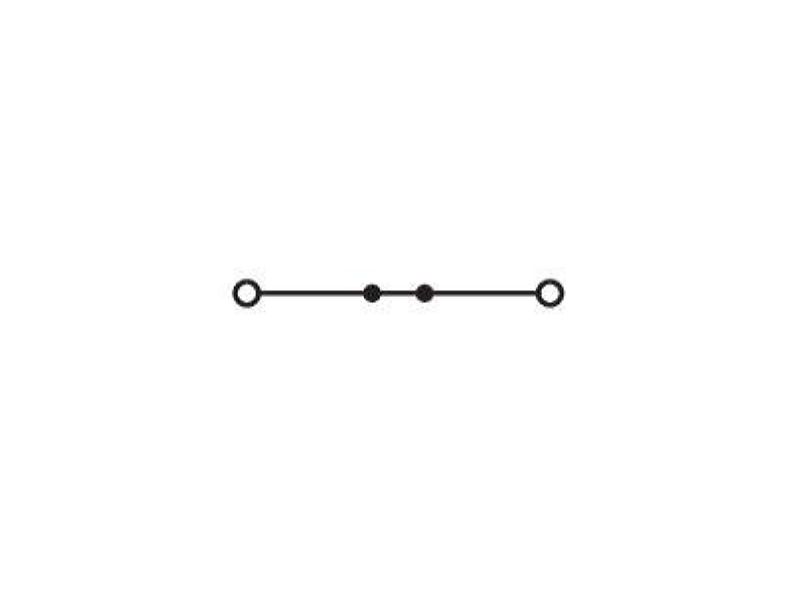

Circuit diagram WAGO 2004 1205 Feed through terminal block 6 2mm 32A
Circuit diagram
