Disconnect terminal block 30A 1-p 8mm 282-870

EAN/GTIN: 4044918692861
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 282-870
Customs tariff no.: 85365080
Similar top items: Show now & compare
9,52 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 30A 1-p 8mm Connectable conductor cross section fine-strand without cable end sleeve 0,2 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,2 ... 6mm², Connectable conductor cross section solid-core 0,2 ... 6mm², Connectable conductor cross section multi-wired 0,2 ... 6mm², Rated current In 30A, Rated voltage 500V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Inclined, Number of levels 1, Number of clamp positions per level 3, Internally connected stages, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Operation temperature 105 ... 105°C, Width/grid dimension 8mm, Height at lowest possible mounting height 75mm, Closing plate required, Colour Grey, Type of slitting Swivelling, Type of cross disconnection None, With integrated test socket

More product images:

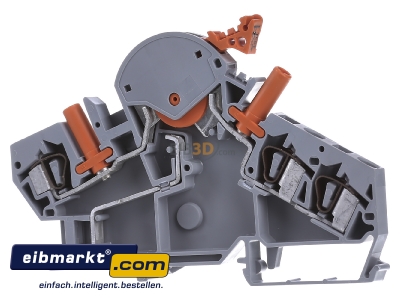

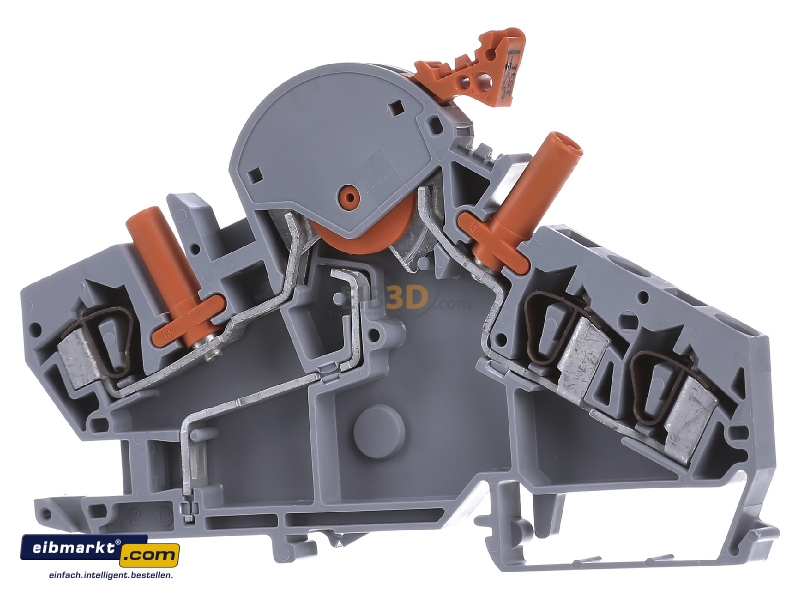

Front view WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
Front view

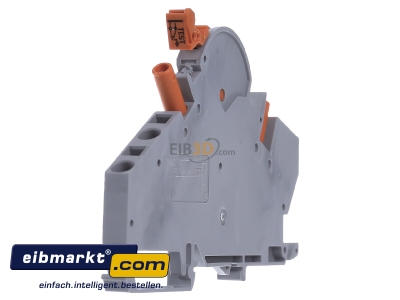

View on the left WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
View on the left

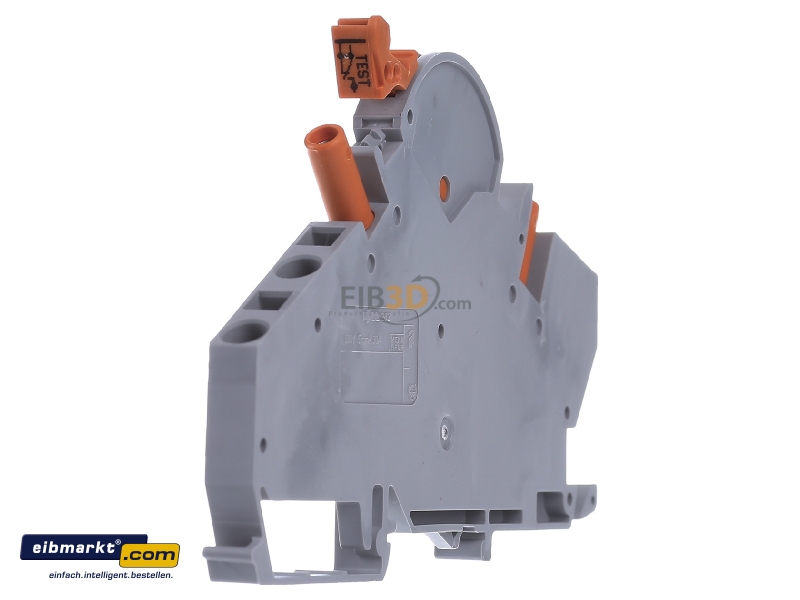

View on the right WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
View on the right

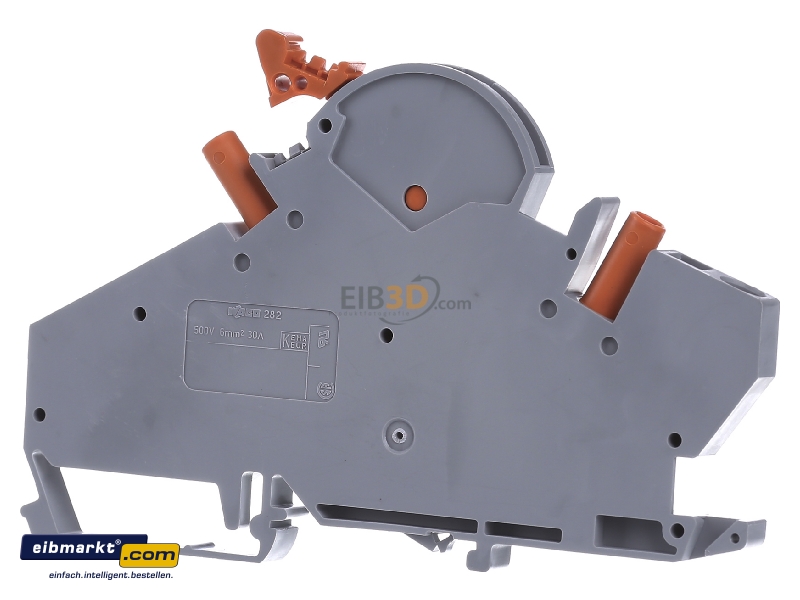

Back view WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
Back view

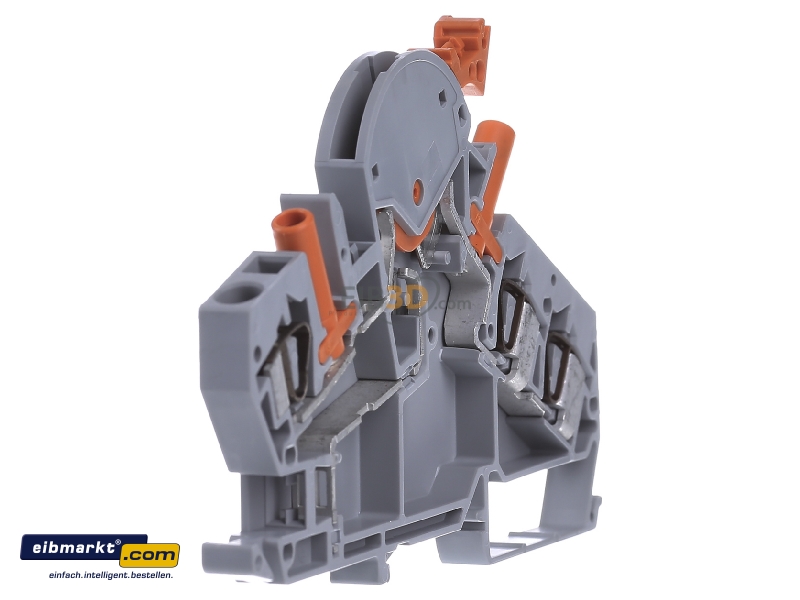

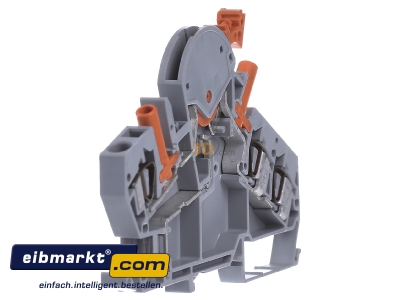

View up front WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
View up front

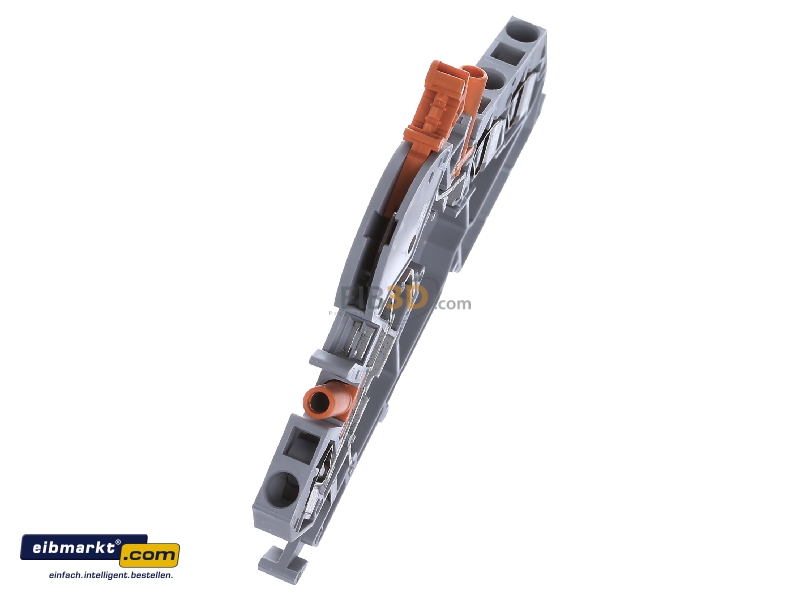

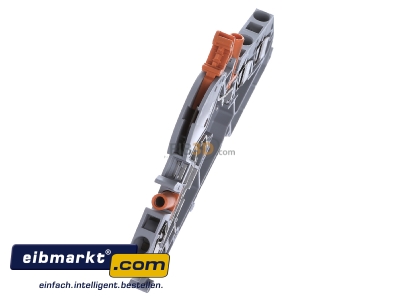

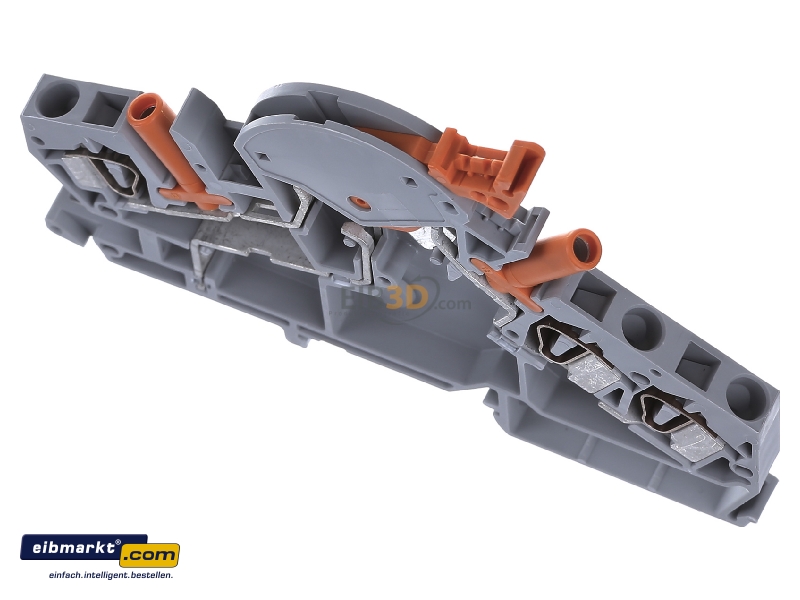

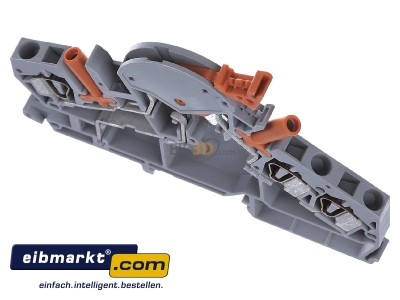

View top left WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
View top left

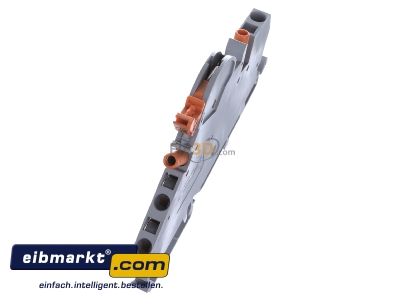

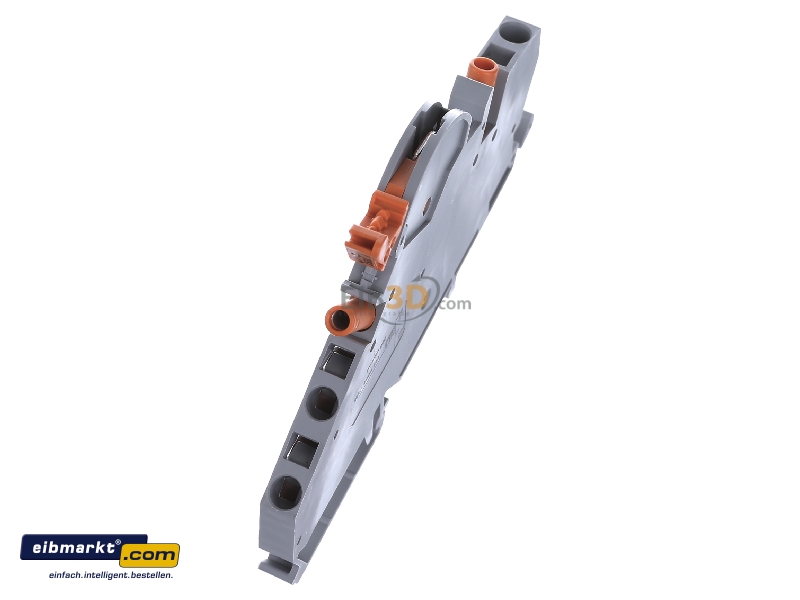

View top right WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
View top right

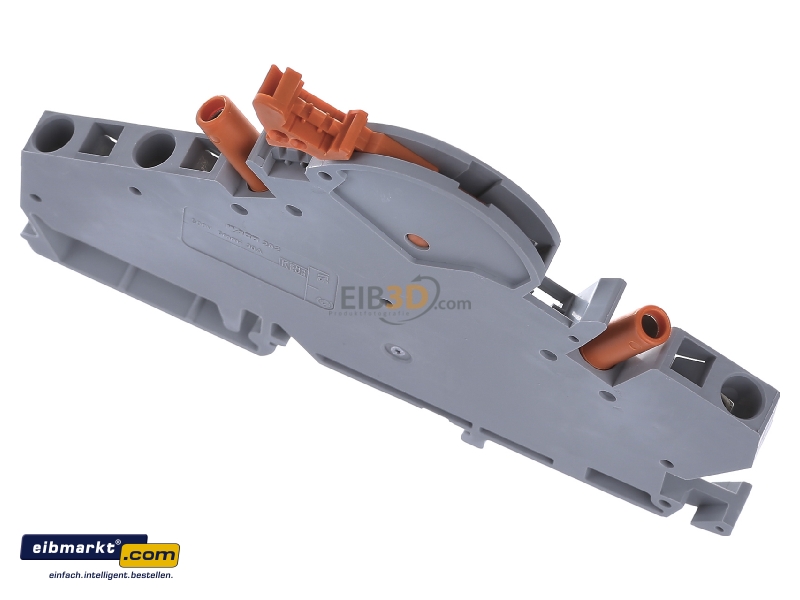

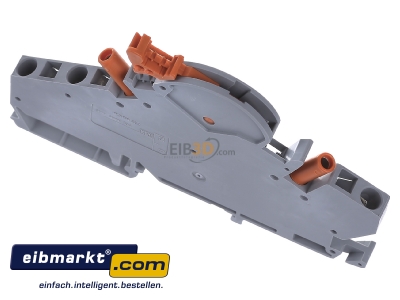

Top rear view WAGO Kontakttechnik 282-870 Disconnect terminal block 30A 1-p 8mm
Top rear view
