Disconnect terminal block 30A 1-p 15mm 2006-1671/1000-848

EAN/GTIN: 4045454789848
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 2006-1671/1000-848
Customs tariff no.: 85365080
Similar top items: Show now & compare
29,26 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 30A 1-p 15mm Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 30A, Rated voltage 500V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 4, Internally connected stages, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Operation temperature 105 ... 105°C, Width/grid dimension 15mm, Height at lowest possible mounting height 37mm, Closing plate required, Colour Grey, Type of slitting None, Type of cross disconnection None, Length 96,3mm

More product images:

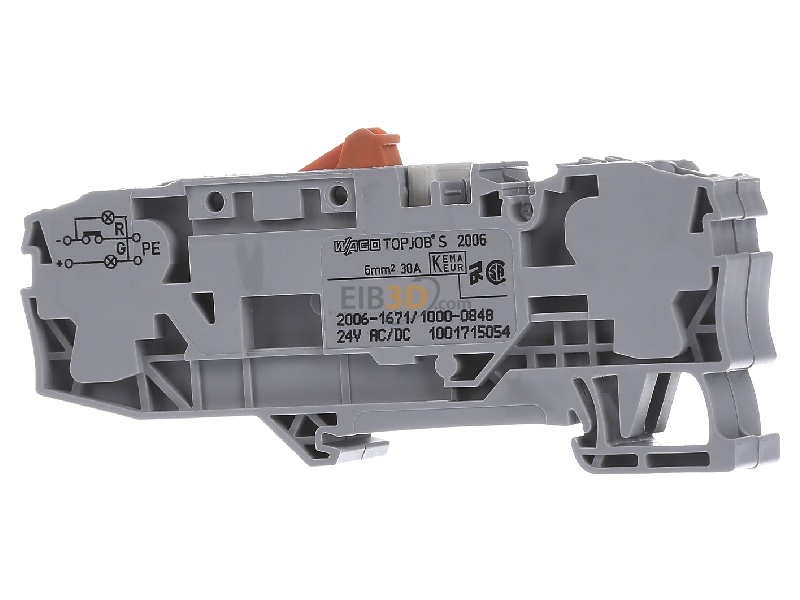

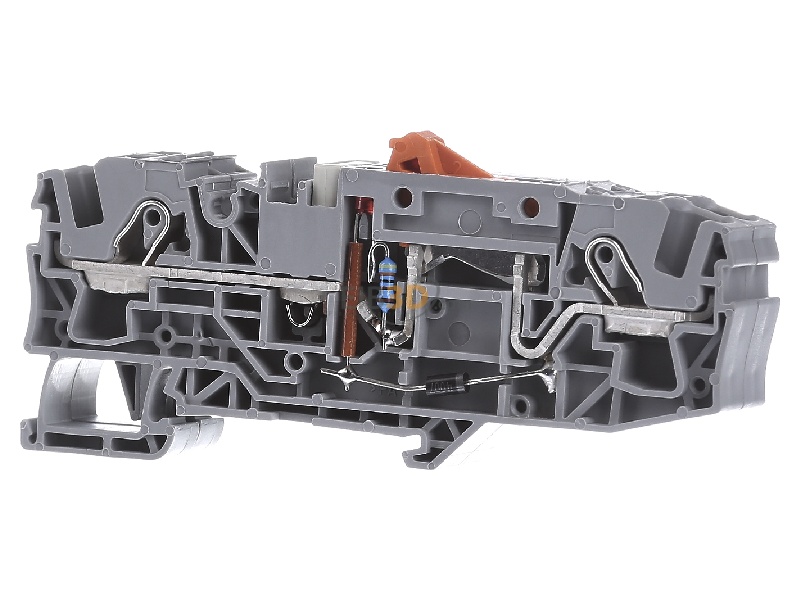

Front view WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
Front view

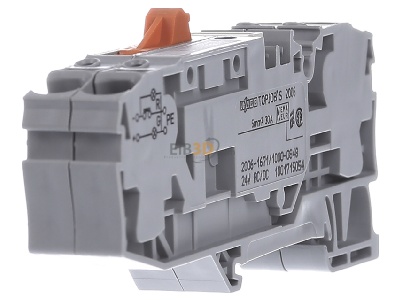

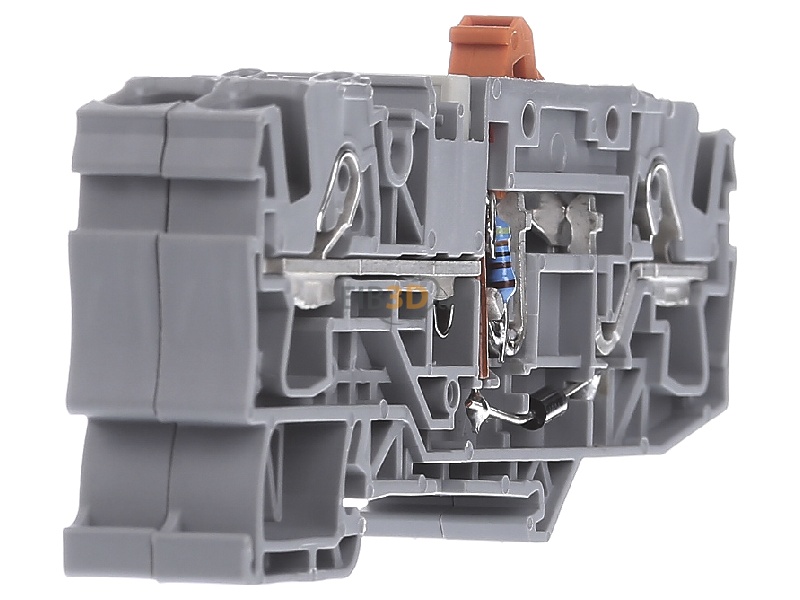

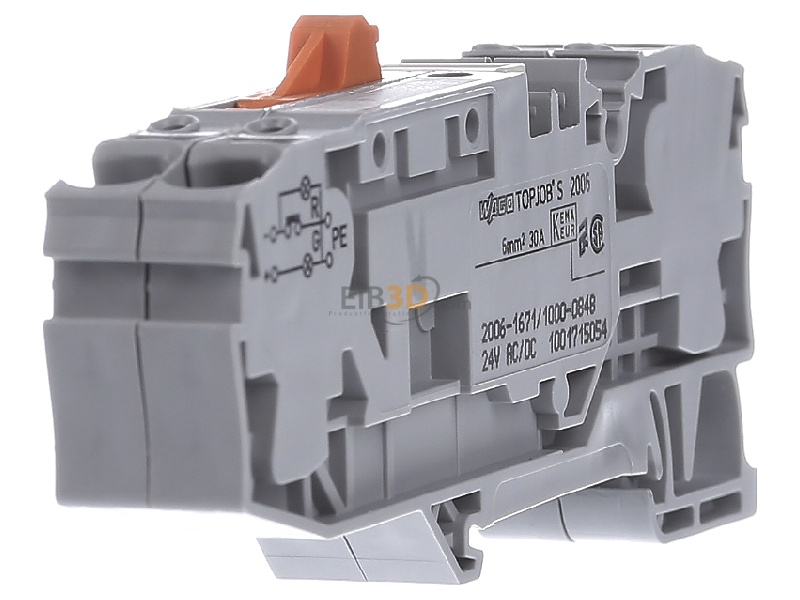

View on the left WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
View on the left

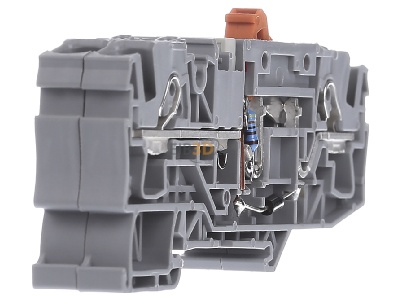

View on the right WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
View on the right
Back view WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
Back view

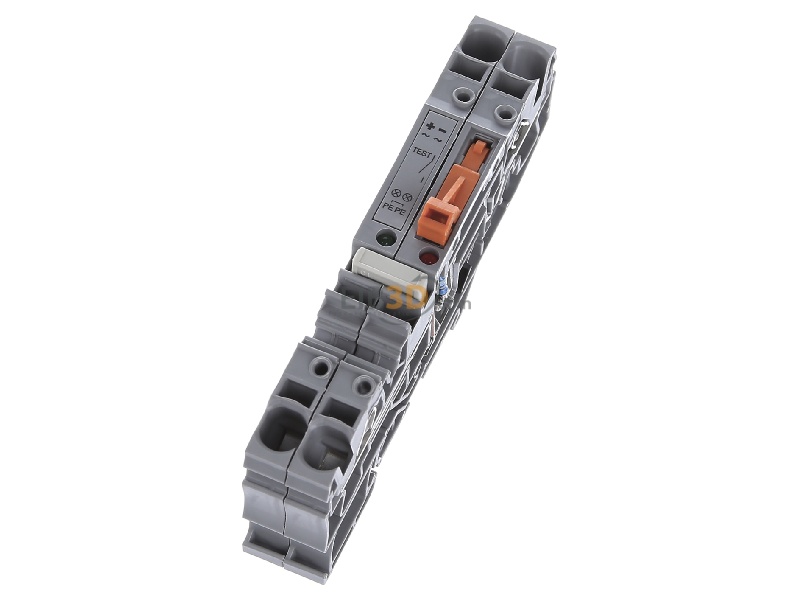

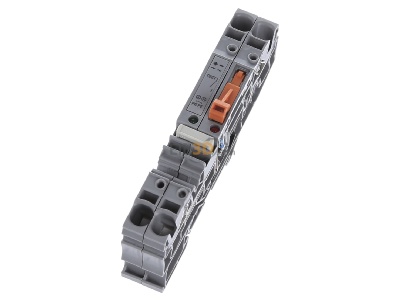

View up front WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
View up front

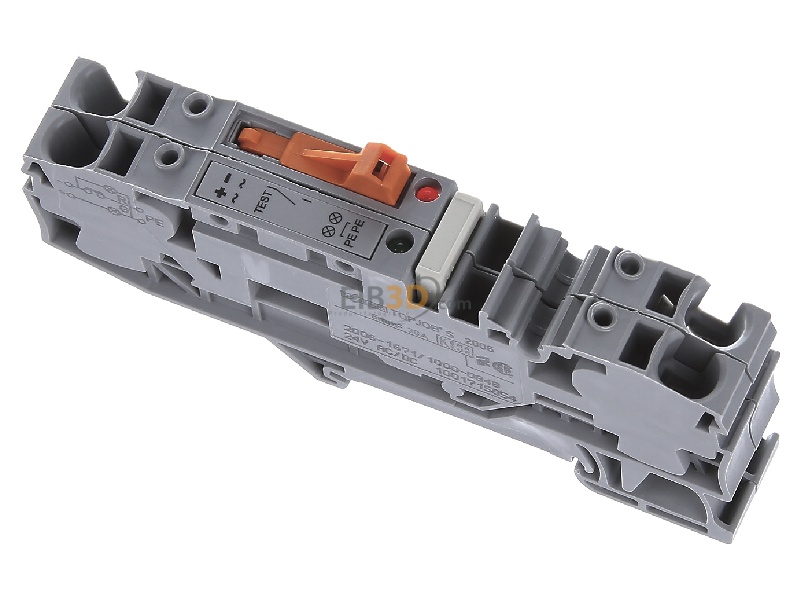

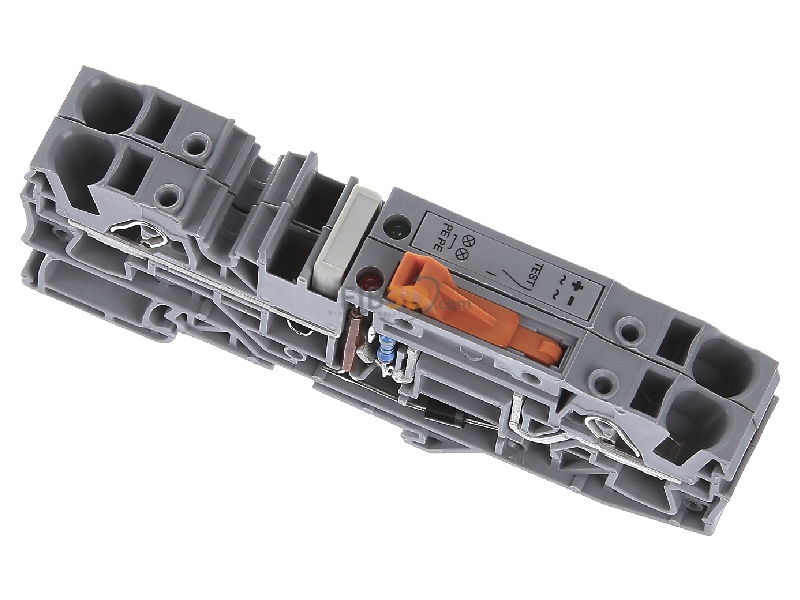

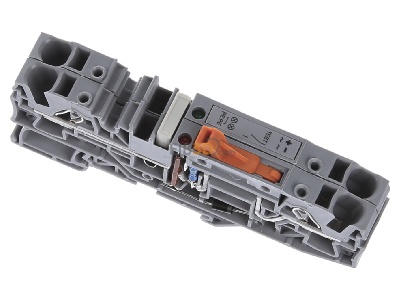

View top left WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
View top left

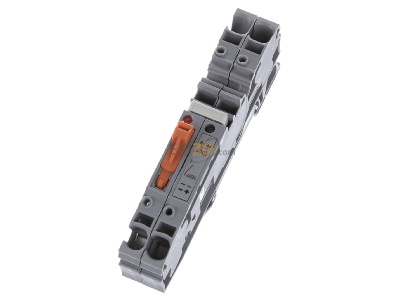

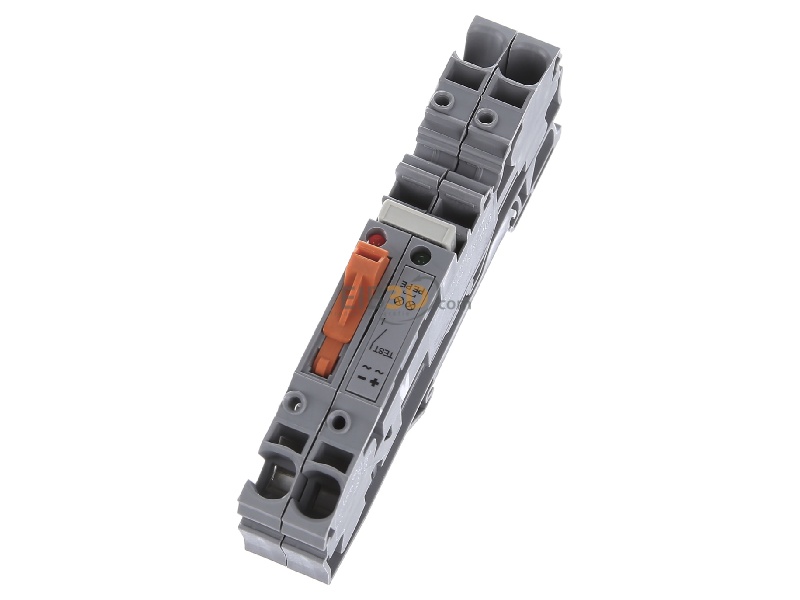

View top right WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
View top right

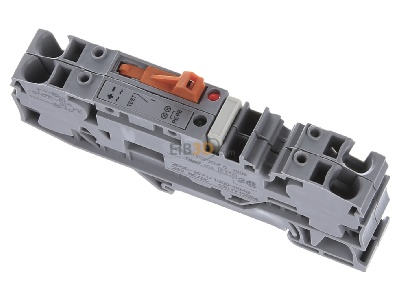

Top rear view WAGO 2006-1671/1000-848 Disconnect terminal block 30A 1-p 15mm
Top rear view

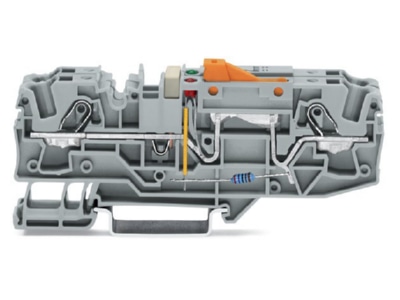

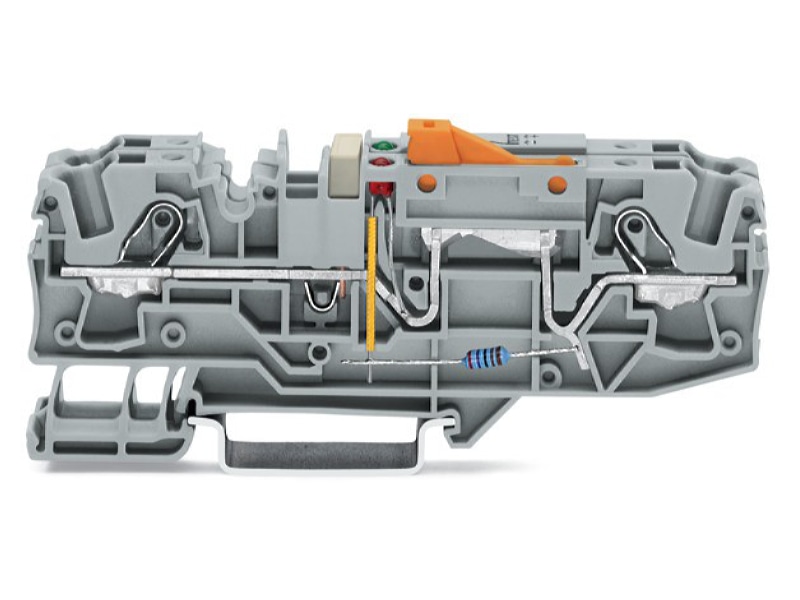

Product image WAGO 2006 1671 1000 848 Disconnect terminal block 30A 1 p 15mm
Product image

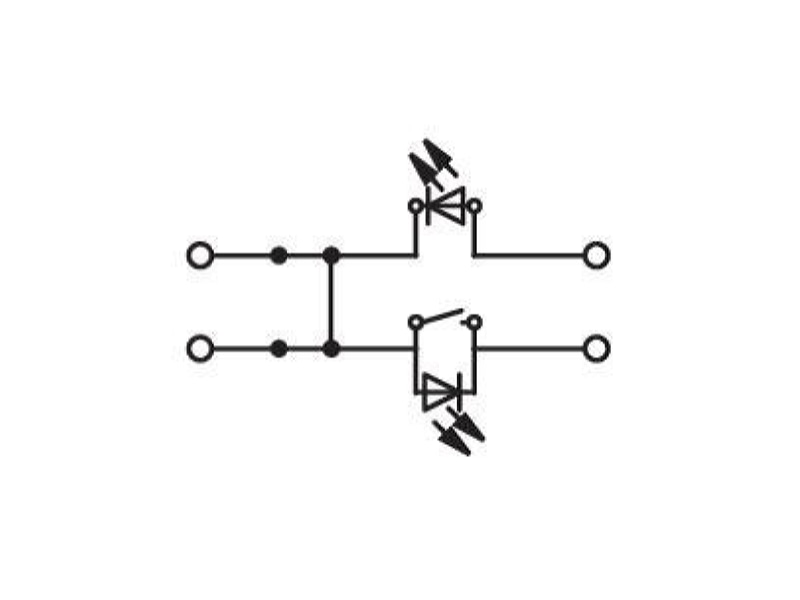

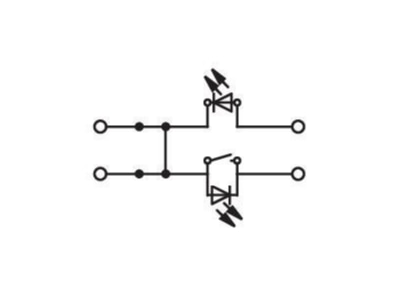

Circuit diagram WAGO 2006 1671 1000 848 Disconnect terminal block 30A 1 p 15mm
Circuit diagram
