Disconnect terminal block 16A 1-p 5mm 280-874

EAN/GTIN: 4050821014607
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 280-874
Customs tariff no.: 85365080
Similar top items: Show now & compare
3,31 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 16A 1-p 5mm Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section solid-core 0,08 ... 2,5mm², Rated current In 16A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 4, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Width/grid dimension 5mm, Height at lowest possible mounting height 45,5mm, Closing plate required, Colour Grey, Type of slitting Swivelling, Type of cross disconnection None

More product images:

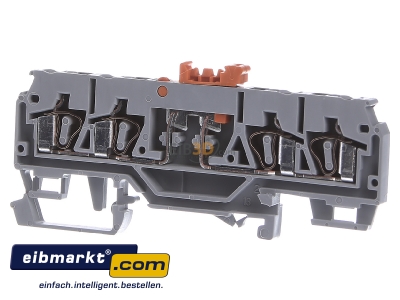

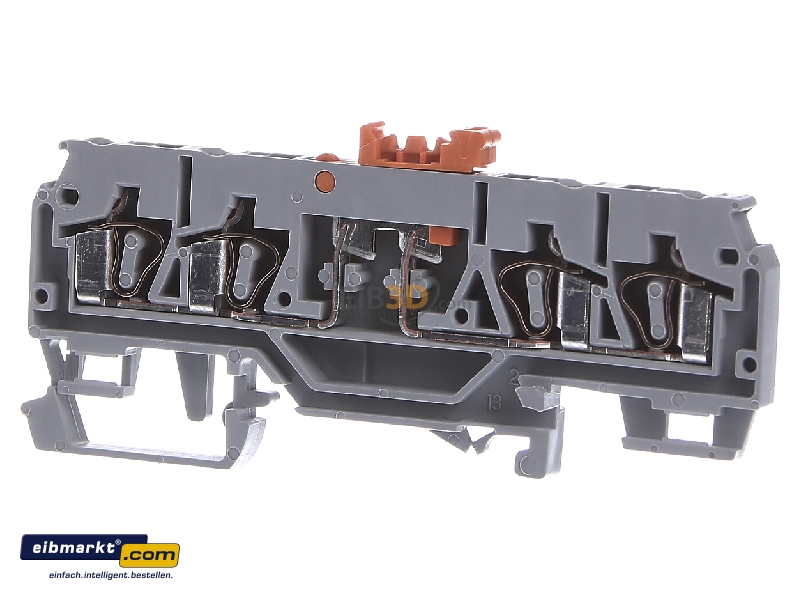

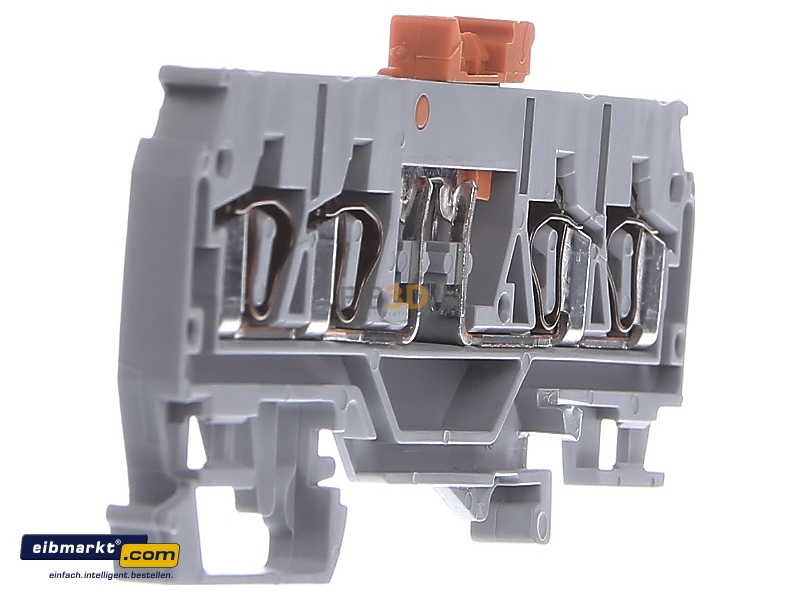

Front view WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
Front view

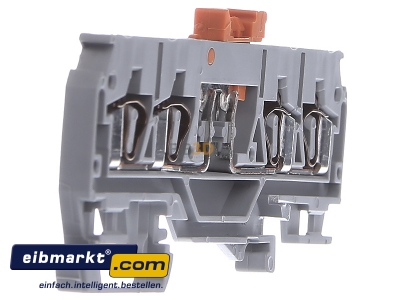

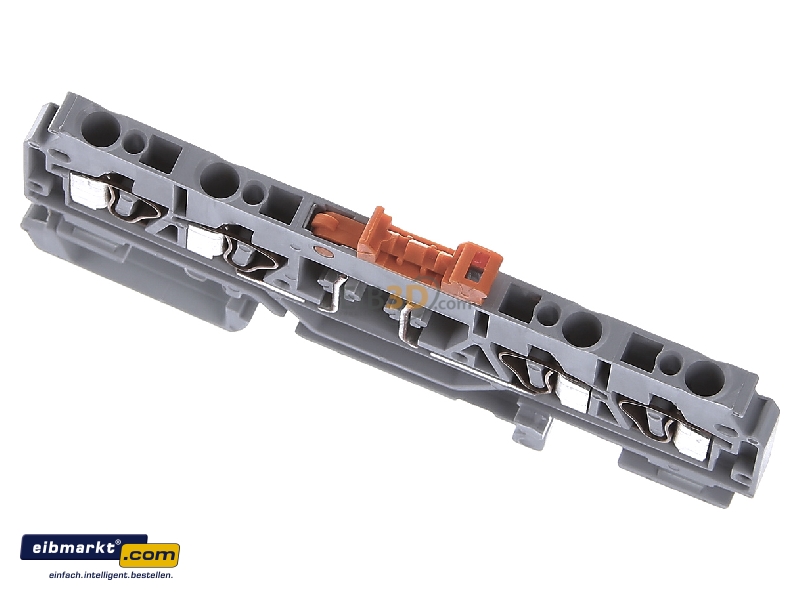

View on the left WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
View on the left

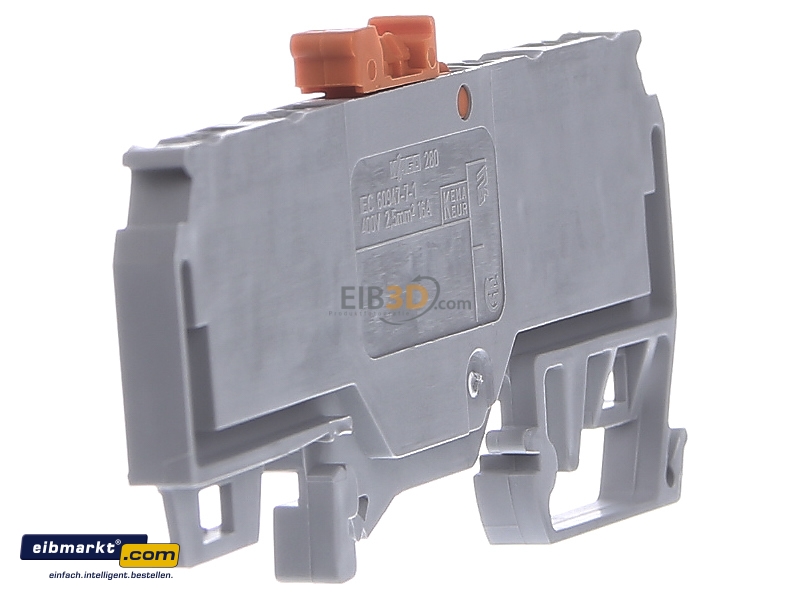

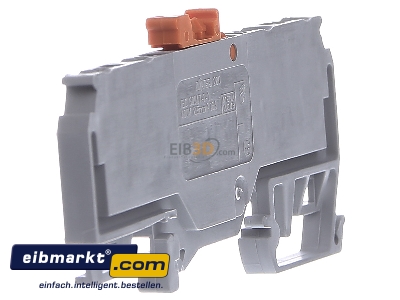

View on the right WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
View on the right

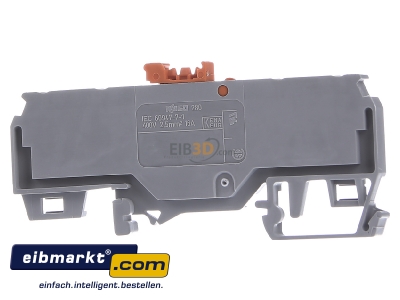

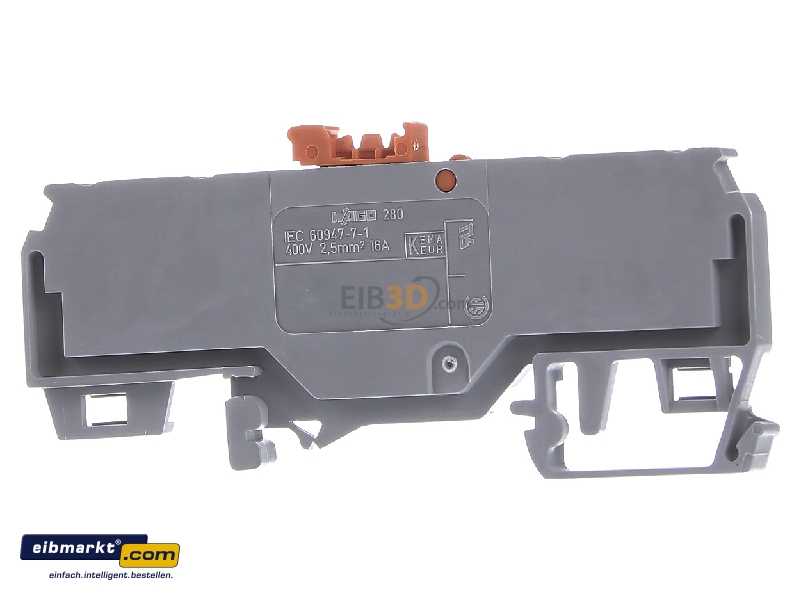

Back view WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
Back view

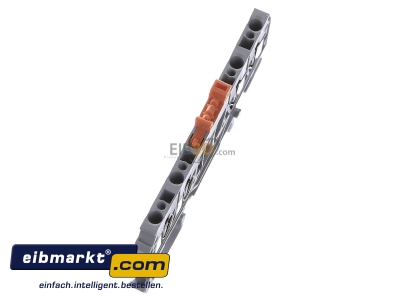

View up front WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
View up front

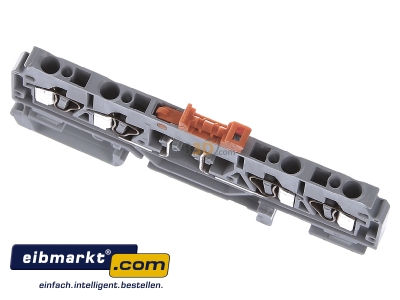

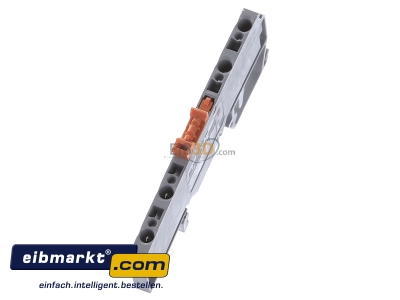

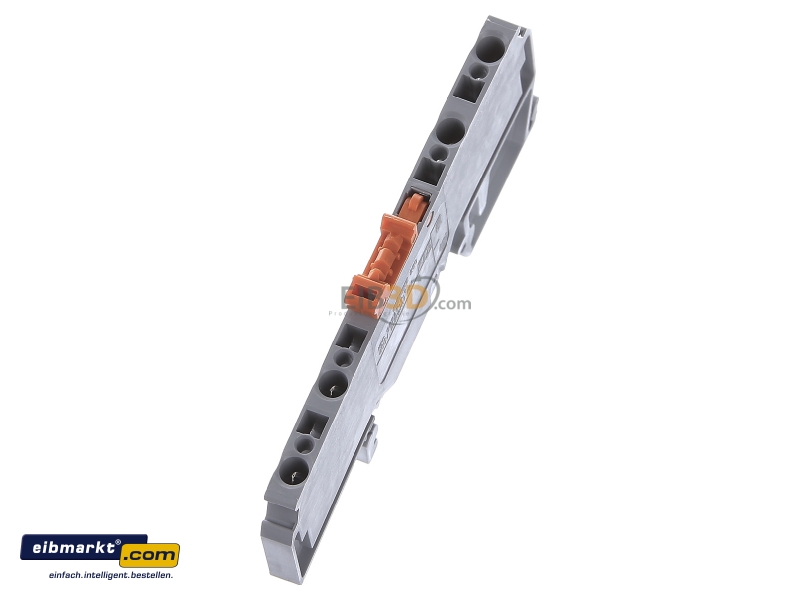

View top left WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
View top left

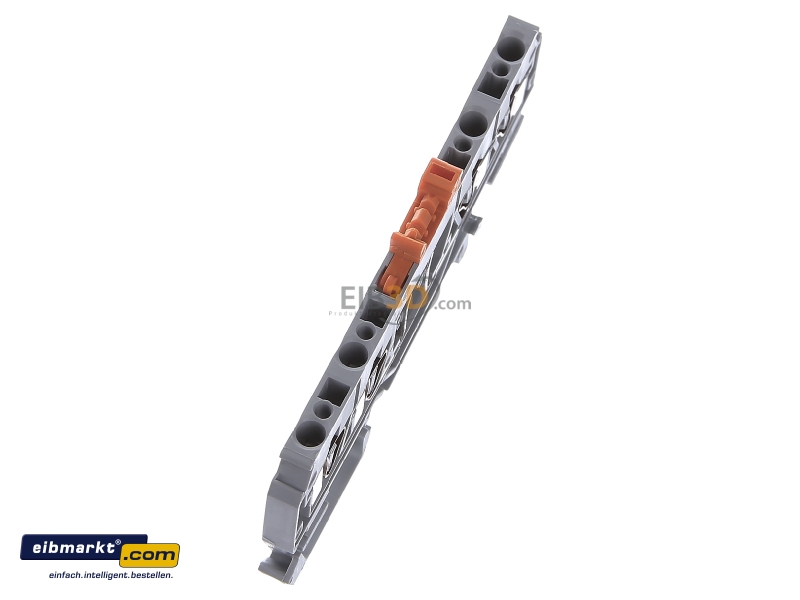

View top right WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
View top right

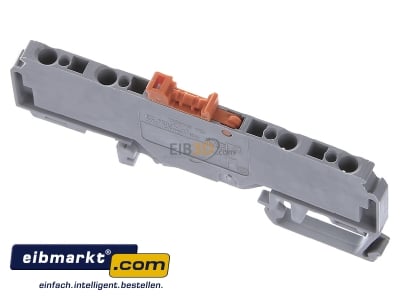

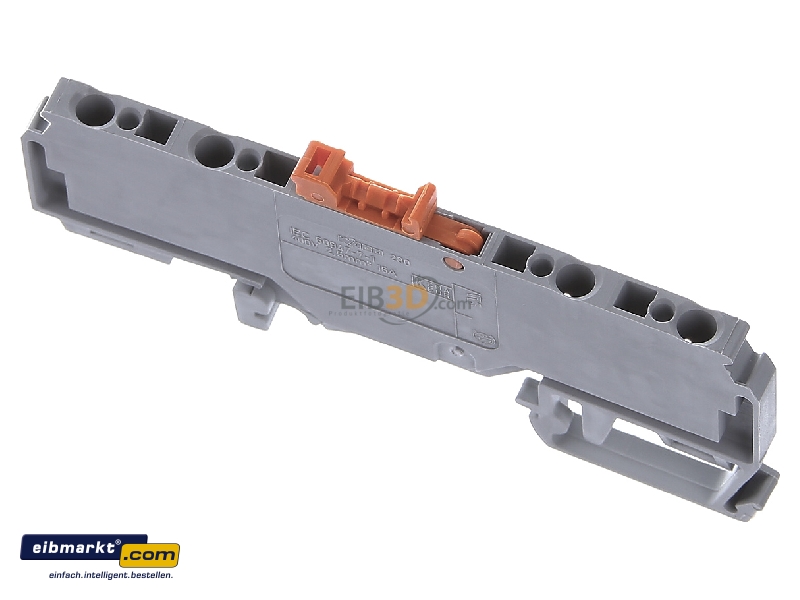

Top rear view WAGO Kontakttechnik 280-874 Disconnect terminal block 16A 1-p 5mm
Top rear view

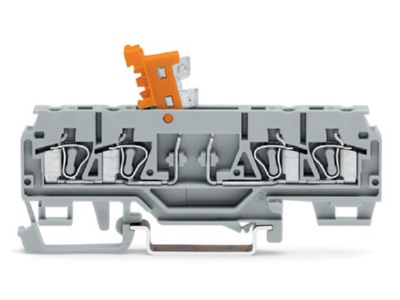

Product image WAGO 280 874 Disconnect terminal block 16A 1 p 5mm
Product image

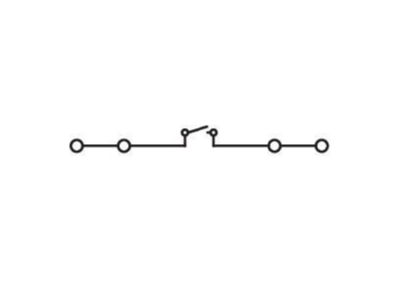

Circuit diagram WAGO 280 874 Disconnect terminal block 16A 1 p 5mm
Circuit diagram
