Disconnect terminal block 16A 1-p 5mm 280-870

EAN/GTIN: 4050821014560
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 280-870
Customs tariff no.: 85365080
Similar top items: Show now & compare
2,46 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 16A 1-p 5mm Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section solid-core 0,08 ... 2,5mm², Rated current In 16A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Width/grid dimension 5mm, Height at lowest possible mounting height 45,5mm, Closing plate required, Colour Grey, Type of slitting Swivelling, Type of cross disconnection None

More product images:

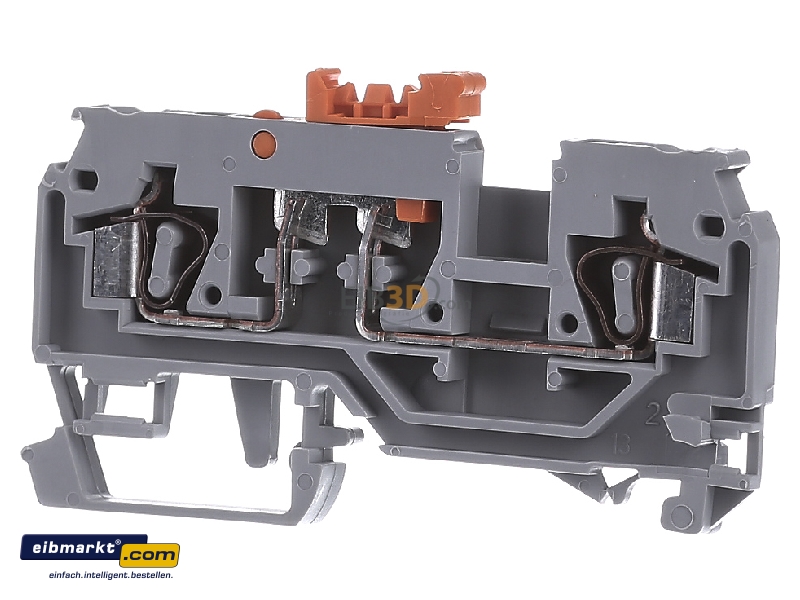

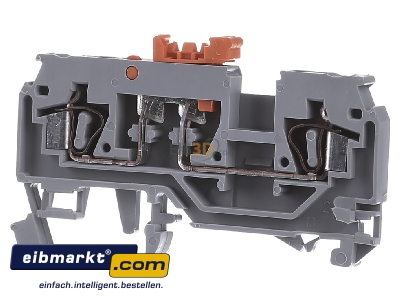

Front view WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
Front view

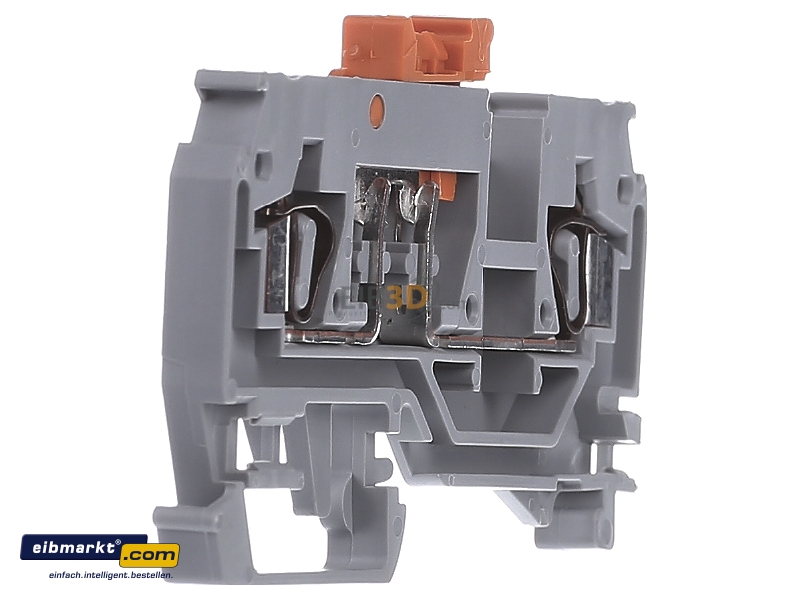

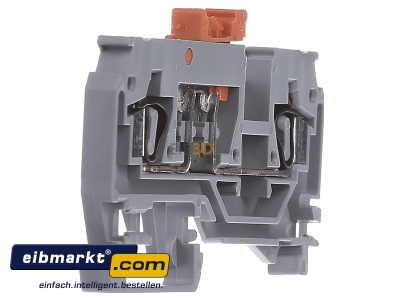

View on the left WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
View on the left

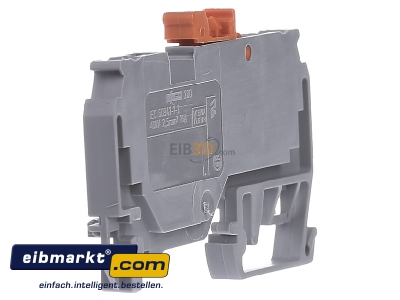

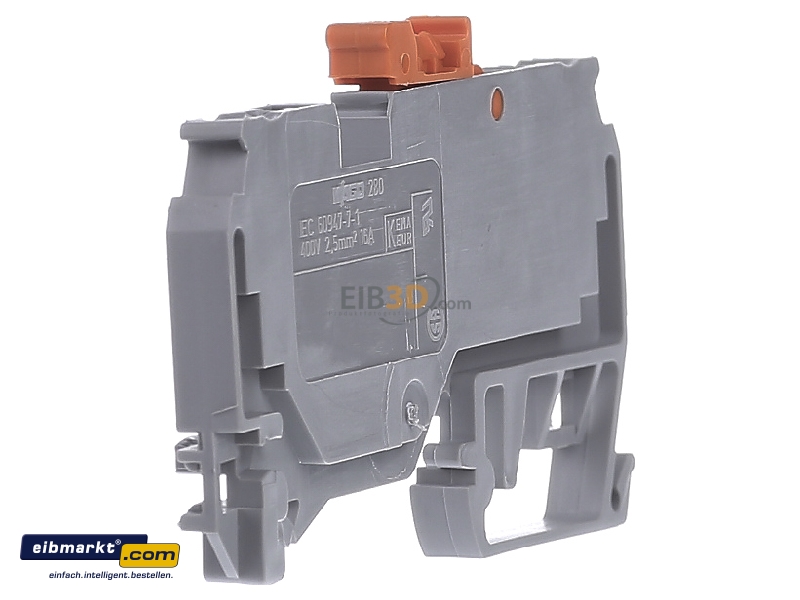

View on the right WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
View on the right

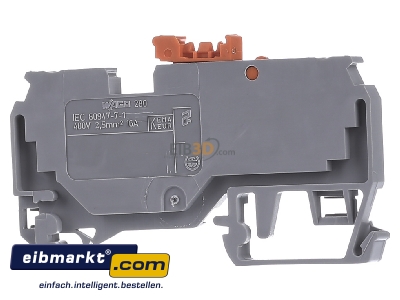

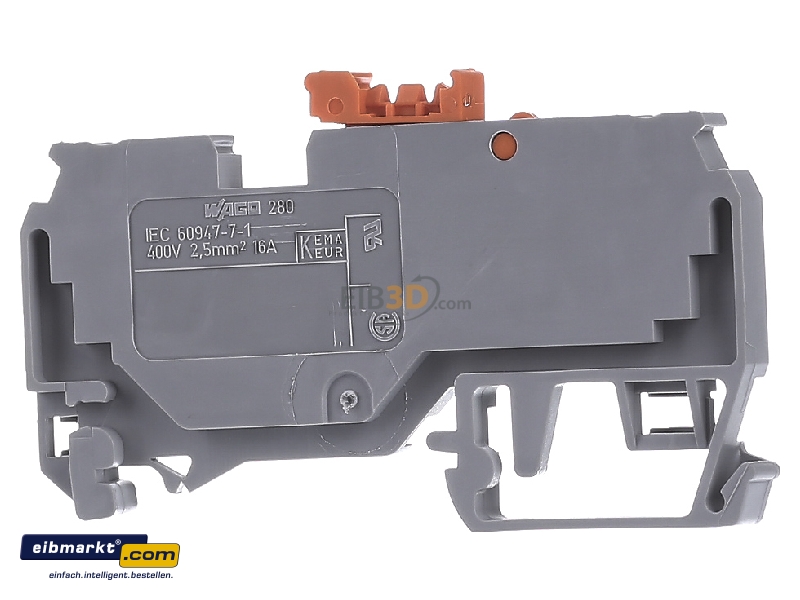

Back view WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
Back view

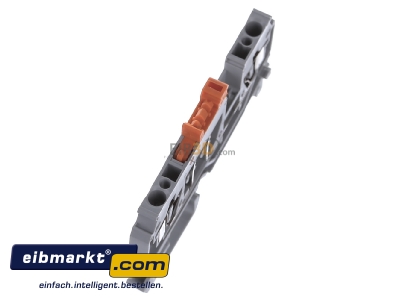

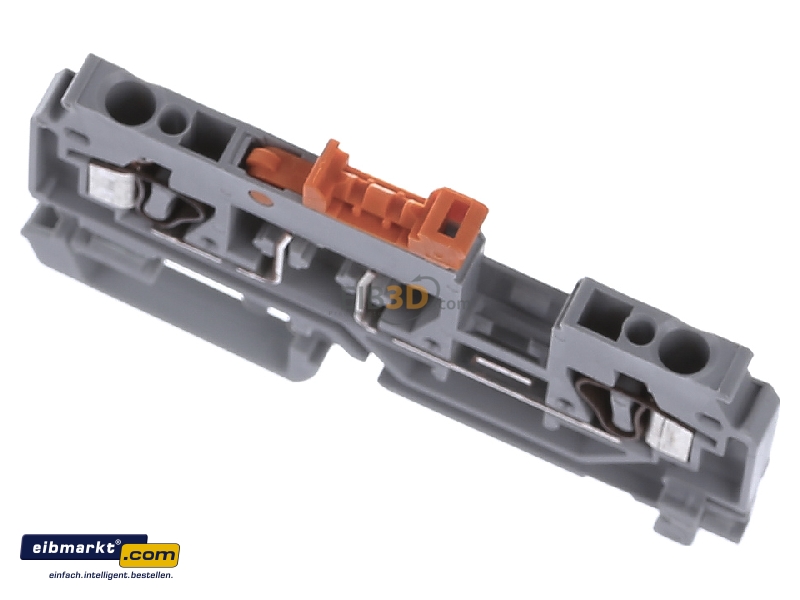

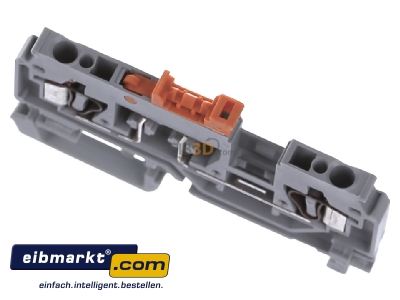

View up front WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
View up front

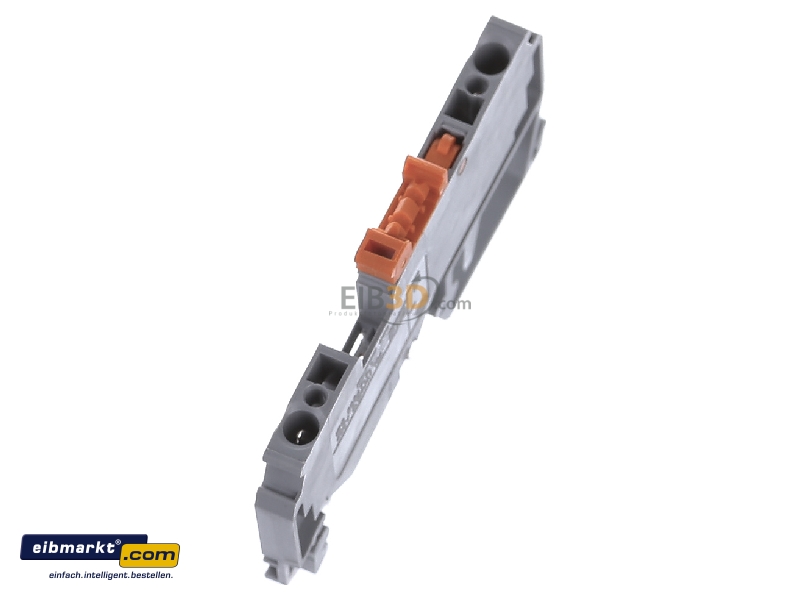

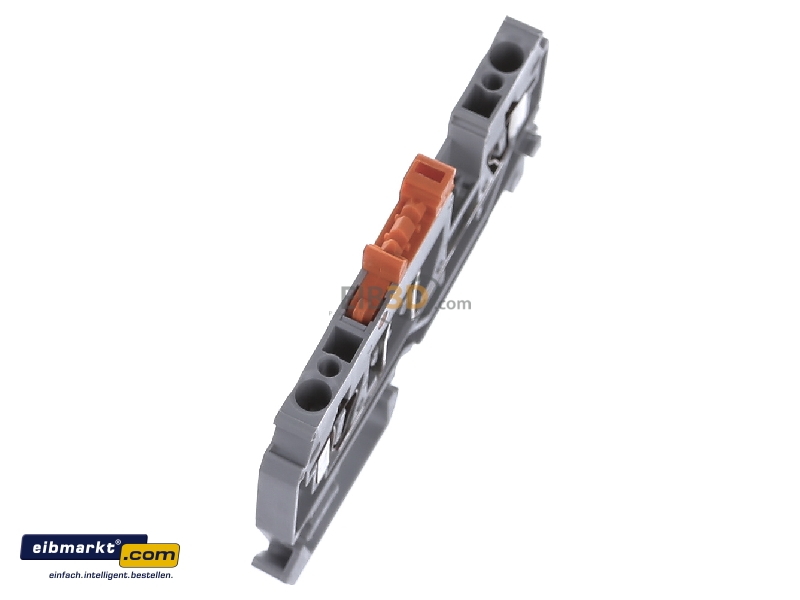

View top left WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
View top left

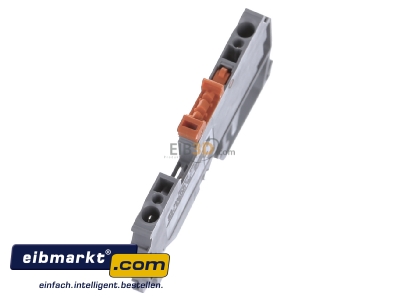

View top right WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
View top right

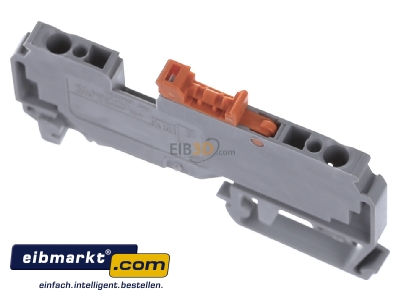

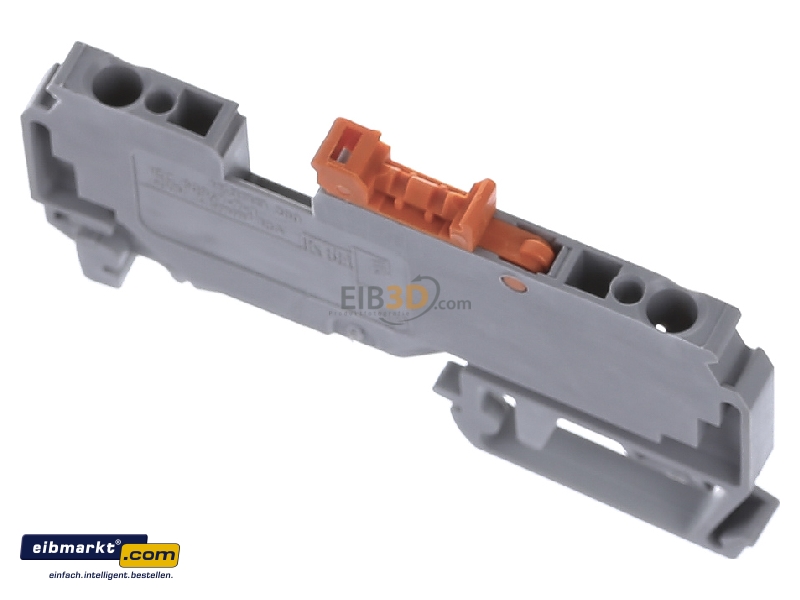

Top rear view WAGO Kontakttechnik 280-870 Disconnect terminal block 16A 1-p 5mm -
Top rear view

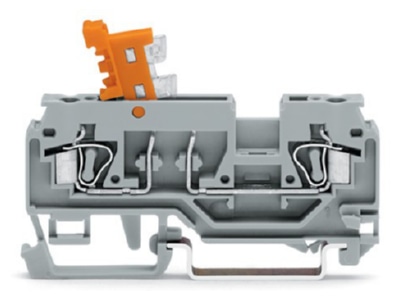

Product image WAGO 280 870 Disconnect terminal block 16A 1 p 5mm
Product image

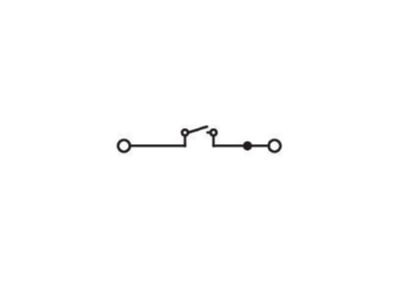

Circuit diagram WAGO 280 870 Disconnect terminal block 16A 1 p 5mm
Circuit diagram
