Disconnect terminal block 16A 1-p 5mm 280-868
Source photo:
WAGO
(fig. might be different or similar)

Disconnect terminal block 16A 1-p 5mm 280-868

EAN/GTIN: 4050821014553
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 280-868
Customs tariff no.: 85365080
Order level:
(minimum)
100 pce
Similar top items: Show now & compare
245,41 EUR Price incl. tax. 19,00%
(for 100 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 100 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Disconnect terminal block 16A 1-p 5mm Connectable conductor cross section fine-strand without cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section fine-strand with cable end sleeve 0,08 ... 2,5mm², Connectable conductor cross section solid-core 0,08 ... 2,5mm², Rated current In 16A, Rated voltage 400V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Width/grid dimension 5mm, Closing plate required, Colour Yellow, Type of slitting Swivelling, Type of cross disconnection None, With integrated test socket

More product images:

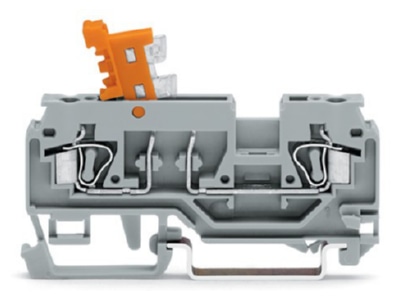

Product image WAGO 280 868 Disconnect terminal block 16A 1 p 5mm
Product image

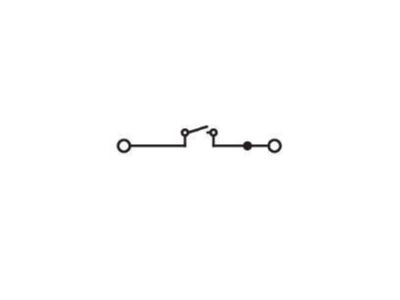

Circuit diagram WAGO 280 868 Disconnect terminal block 16A 1 p 5mm
Circuit diagram
