Device connector plug-in installation 770-7105
Source photo:
WAGO
(fig. might be different or similar)

Device connector plug-in installation 770-7105

EAN/GTIN: 4050821000402
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 770-7105
Customs tariff no.: 85366990
Order level:
(minimum)
20 pce
Similar top items: Show now & compare
184,50 EUR Price incl. tax. 19,00%
(for 20 pce)
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
This article is per 20 pce orderable.
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Device connector plug-in installation Rated voltage 400V, Rated current 25A, Number of poles 5, Degree of protection (IP) IP20, Connection type Spring clamp connection, Model Plug, Built-in version Built-in part/plug-in connection, Angle of plug Straight, Angle of inclination 0°, Connection size thread No thread connection, Number of connections per pole 2, Colour coding/contact insert White, Colour of the separate adapter piece Without adapter piece, Material housing Polyamide (PA), Halogen free, Contact material CuSn, Surface finish contacts Other, Pollution degree 3, Continuity resistor 3mOhm, Rated surge voltage 4kV, Length 56,6mm, Height 35,5mm, Width 75,5mm

More product images:

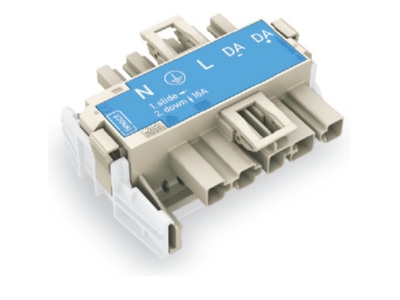

Product image WAGO 770 7105 Device connector plug in installation
Product image

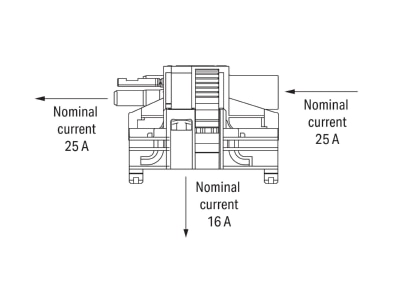

Circuit diagram WAGO 770 7105 Device connector plug in installation
Circuit diagram

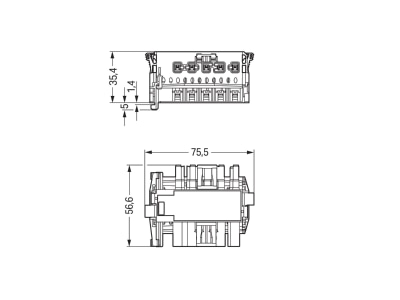

Dimensional drawing WAGO 770 7105 Device connector plug in installation
Dimensional drawing
