Device connector plug-in installation 770-6223
Source photo:
WAGO
(fig. might be different or similar)

Device connector plug-in installation 770-6223

EAN/GTIN: 4050821000389
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 770-6223
Customs tariff no.: 85366990
Similar top items: Show now & compare
5,91 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Device connector plug-in installation Rated voltage 400V, Rated current 25A, Number of poles 3, Degree of protection (IP) IP20, Connection type Spring clamp connection, Model Plug, Built-in version Built-in part/plug-in connection, Angle of plug Straight, Angle of inclination 0°, Connection size thread No thread connection, Number of connections per pole 2, Pole codification L, N, PE, Colour coding/contact insert White, Colour of the separate adapter piece Without adapter piece, Material housing Polyamide (PA), Halogen free, Contact material CuSn, Surface finish contacts Other, Pollution degree 3, Continuity resistor 3mOhm, Rated surge voltage 4kV, Length 56,6mm, Height 34,4mm, Width 50,5mm

More product images:

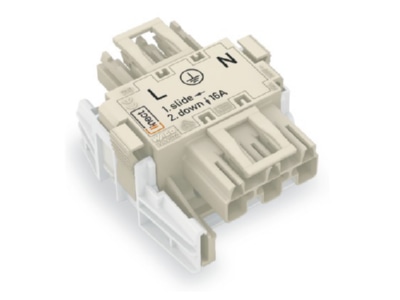

Product image WAGO 770 6223 Device connector plug in installation
Product image

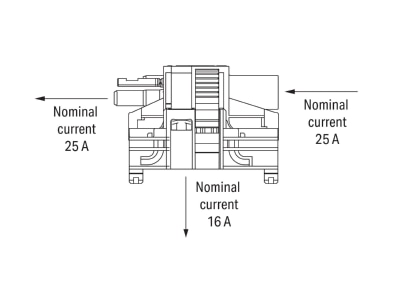

Circuit diagram WAGO 770 6223 Device connector plug in installation
Circuit diagram

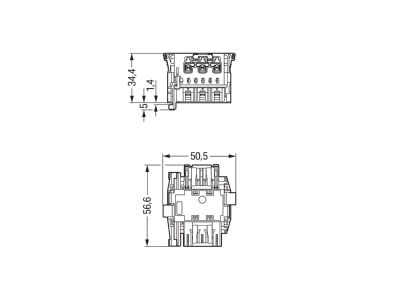

Dimensional drawing WAGO 770 6223 Device connector plug in installation
Dimensional drawing
