DC-power supply 325...575V/22...28V 787-738
Source photo:
WAGO
(fig. might be different or similar)

DC-power supply 325...575V/22...28V 787-738

EAN/GTIN: 4050821847861
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 787-738
Customs tariff no.: 85044083
Similar top items: Show now & compare
209,75 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

DC-power supply 325...575V/22...28V Voltage type of supply voltage AC/DC, 1st secondary output voltage 22 ... 28V, Max. output current 1 6,25A, Secondary voltage adjustable, Nominal value output voltage 1 24V, Nominal value output current 1 6,25A, Short-circuit-proof, Rated supply voltage at AC 50 Hz 325 ... 575V, Rated supply voltage at AC 60 Hz 325 ... 575V, Rated supply voltage at DC 460 ... 800V, Output voltage stabilized, Stabilized, Type of electric connection Spring clamp connection, Rail mounting possible, Width in number of modular spacings 3, Width 50mm, Height 130mm, Depth 92mm, Degree of protection (IP) IP20

More product images:

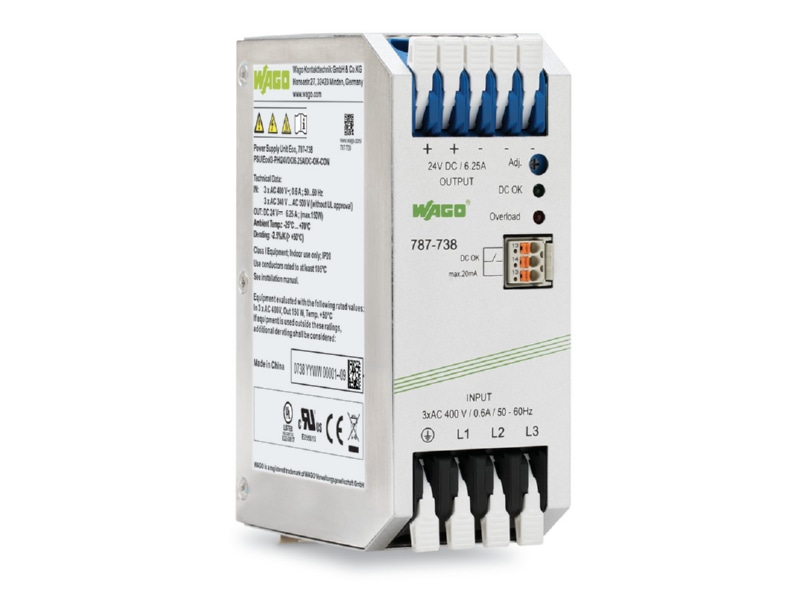

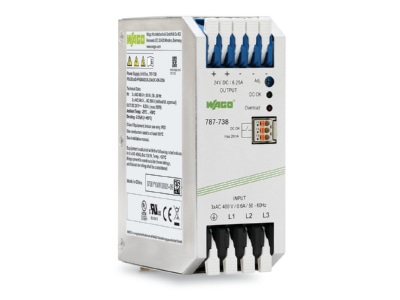

Product image WAGO 787 738 DC power supply 325   575V 22   28V
Product image

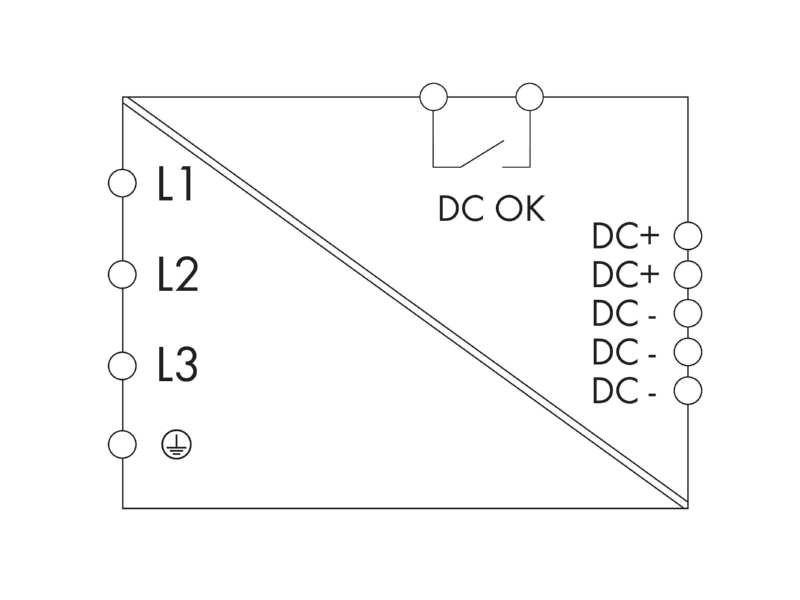

Circuit diagram WAGO 787 738 DC power supply 325   575V 22   28V
Circuit diagram
