Source photo: www.EIB3D.com

Amperage measuring transformer 150/5A 855-4005/150-101

EAN/GTIN: 4055143056342
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 855-4005/150-101
Customs tariff no.: 85043180
Similar top items: Show now & compare
88,68 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
1 days [EN] 24 hour delivery, click here for more infoCentral warehouse item (regularly available) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Amperage measuring transformer 150/5A Model Split core current transformer, Primary rated current 150A, Secondary rated current 5A, Secondary rated apparent power 1VA, Accuracy class 1, Over current limiting factor FS 5, With shock protection, Height opening 19mm, Width opening 18mm, Opening diameter 18mm, Snap mounting, Secondary connection Plug-in connection, Number of primary inputs 1

More product images:

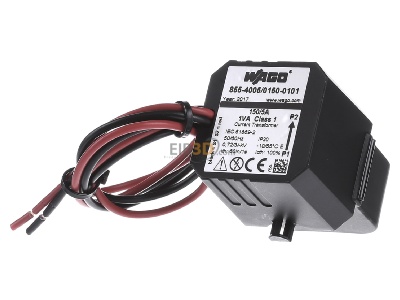

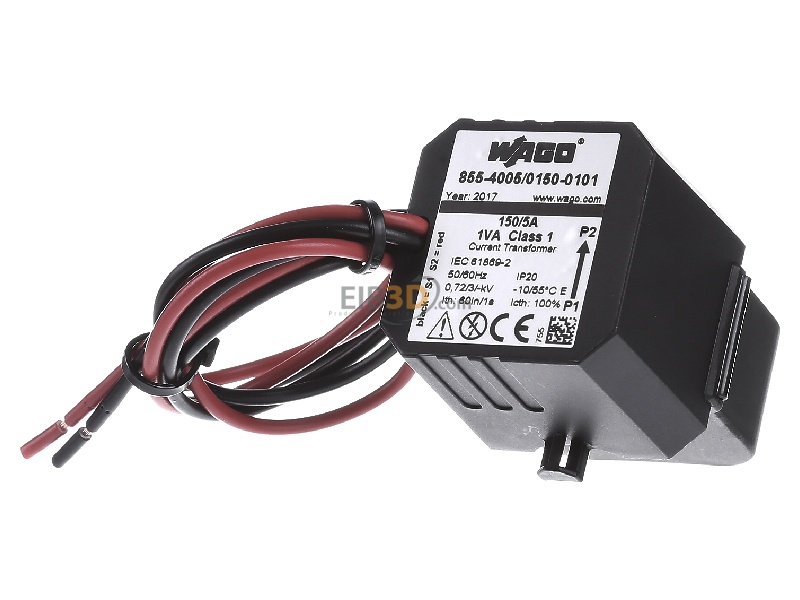

Front view WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
Front view
View on the left WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
View on the left

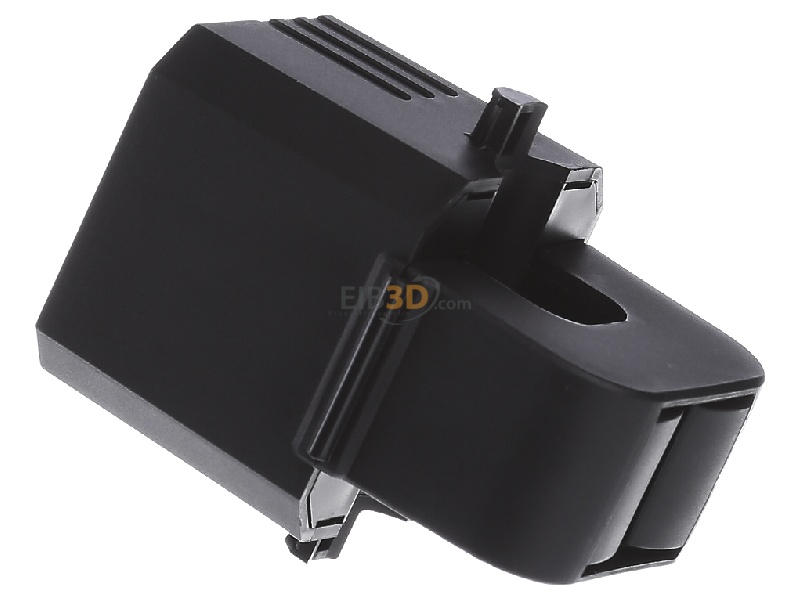

View on the right WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
View on the right

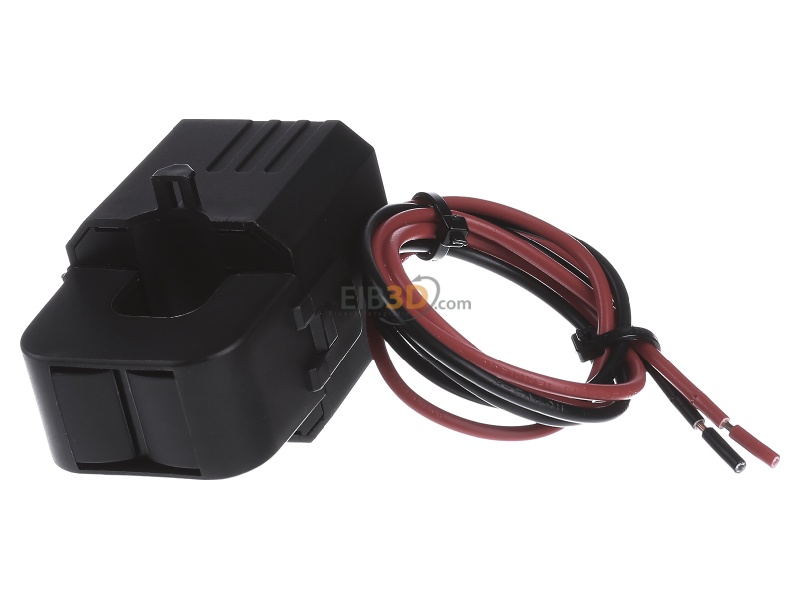

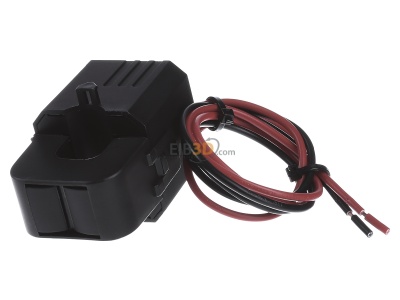

Back view WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
Back view
View up front WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
View up front
View top left WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
View top left
View top right WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
View top right

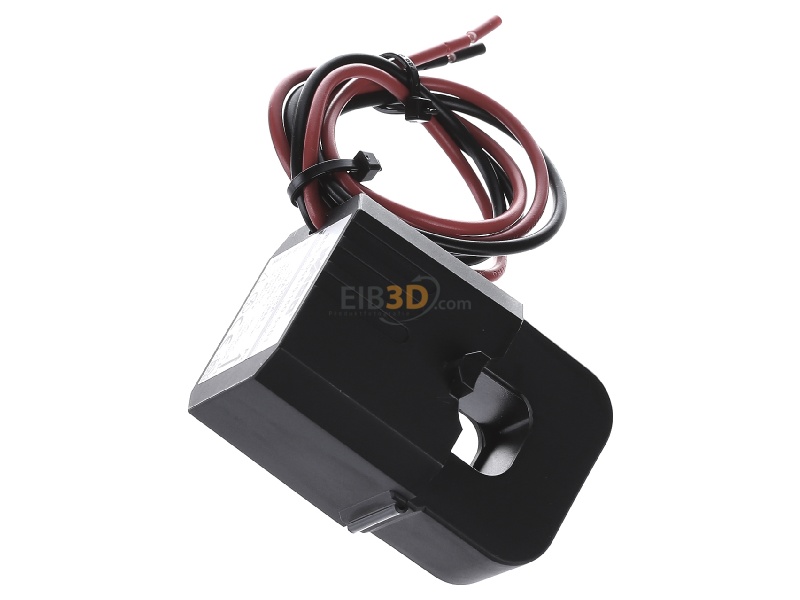

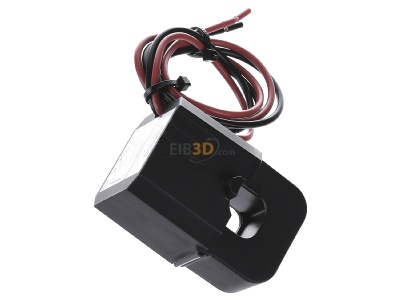

Top rear view WAGO 855-4005/150-101 Amperage measuring transformer 150/5A
Top rear view

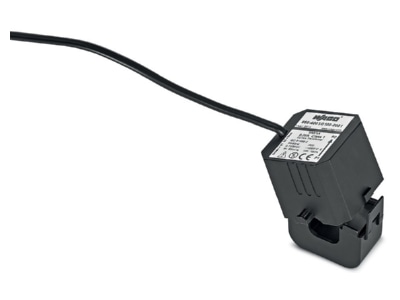

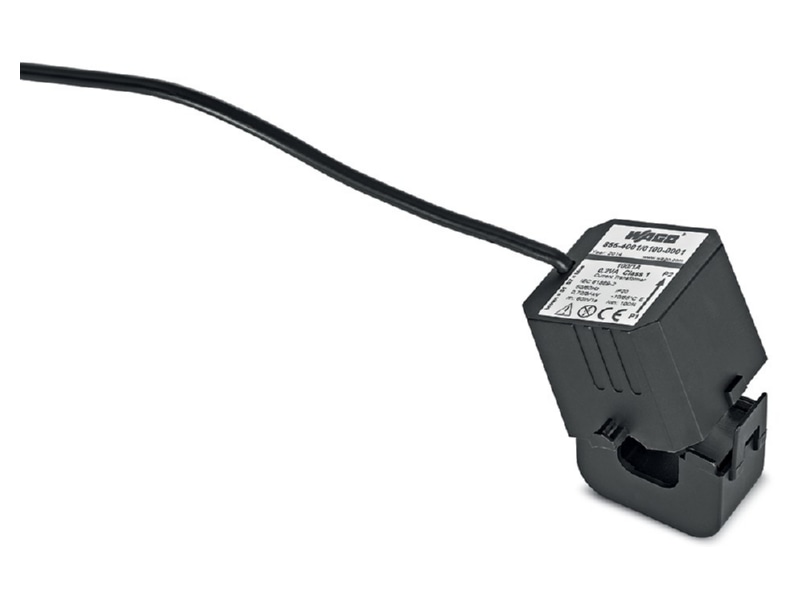

Product image WAGO 855 4005 150 101 Amperage measuring transformer 150 5A
Product image

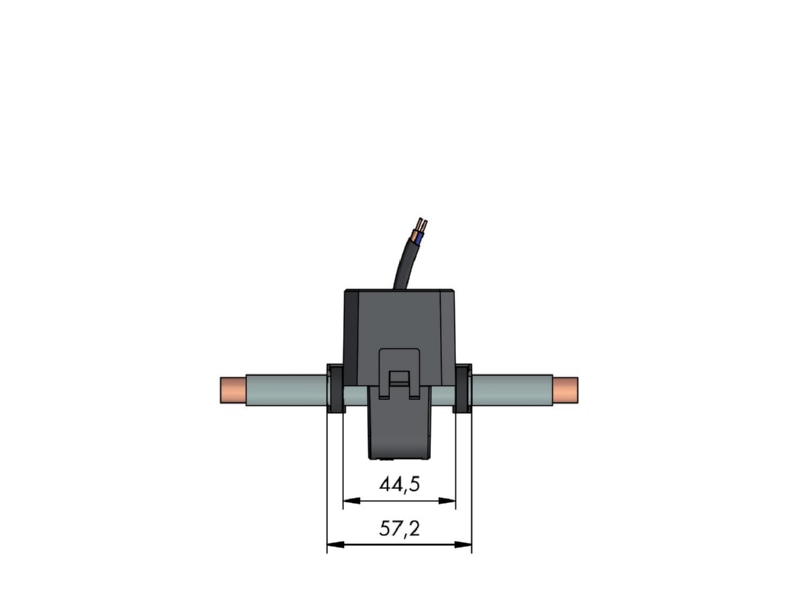

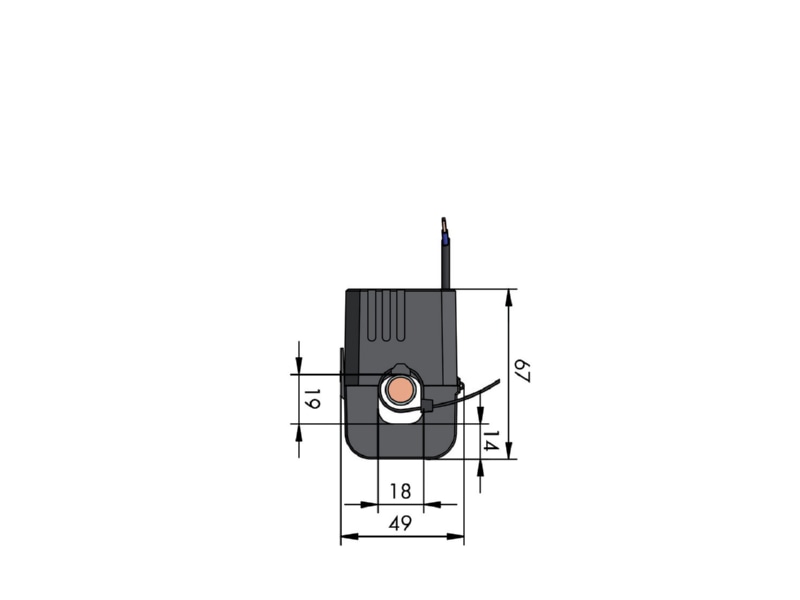

Dimensional drawing 1 WAGO 855 4005 150 101 Amperage measuring transformer 150 5A
Dimensional drawing 1
Dimensional drawing 2 WAGO 855 4005 150 101 Amperage measuring transformer 150 5A
Dimensional drawing 2
