Current transformer 400/1A 855-301/400-1001
Source photo:
WAGO
(fig. might be different or similar)

Current transformer 400/1A 855-301/400-1001

EAN/GTIN: 4050821616917
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 855-301/400-1001
Customs tariff no.: 85043129
Similar top items: Show now & compare
25,69 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
11 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Model=Attachable current transformer, Primary rated current=400 A, Secondary rated current=1 A, Secondary rated apparent power=10 VA, Over current limiting factor=FS 5, Calibrated=no, With shock protection=yes, Opening diameter=25,7 mm, Snap mounting=yes, With copper rail=no, Secondary connection=Plug-in connection, Number of primary inputs=1

More product images:

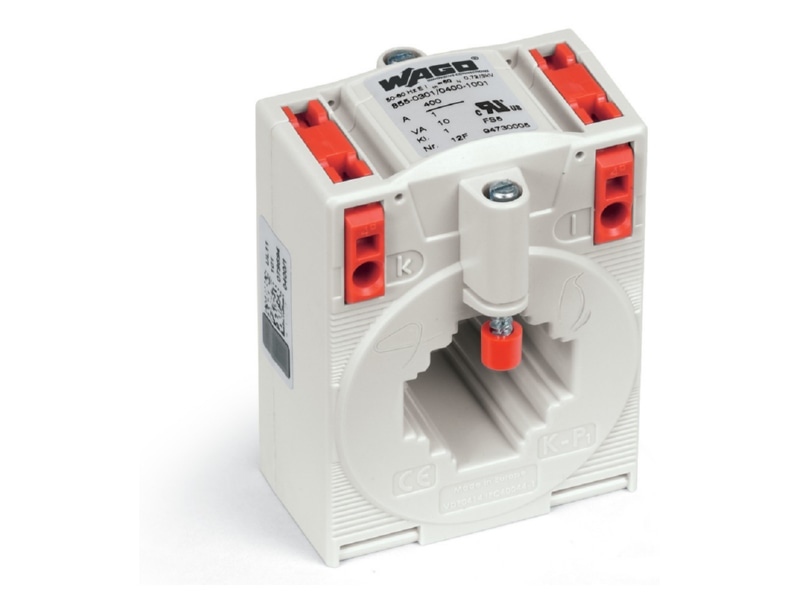

Product image WAGO 855 301 400 1001 Current transformer 400 1A
Product image

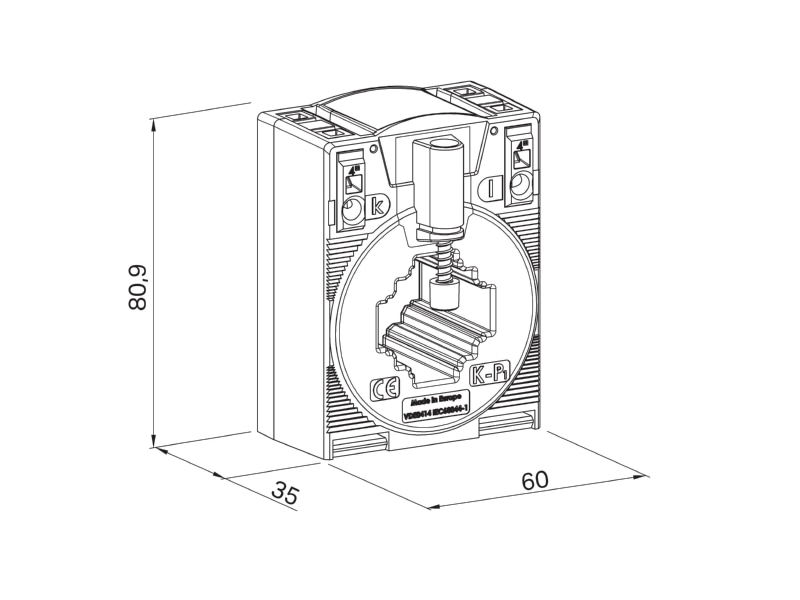

Dimensional drawing 1 WAGO 855 301 400 1001 Current transformer 400 1A
Dimensional drawing 1

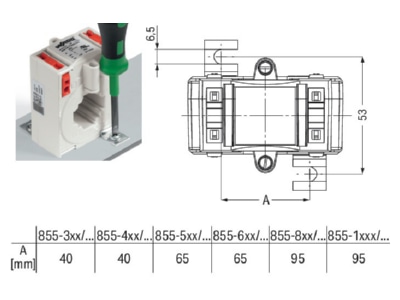

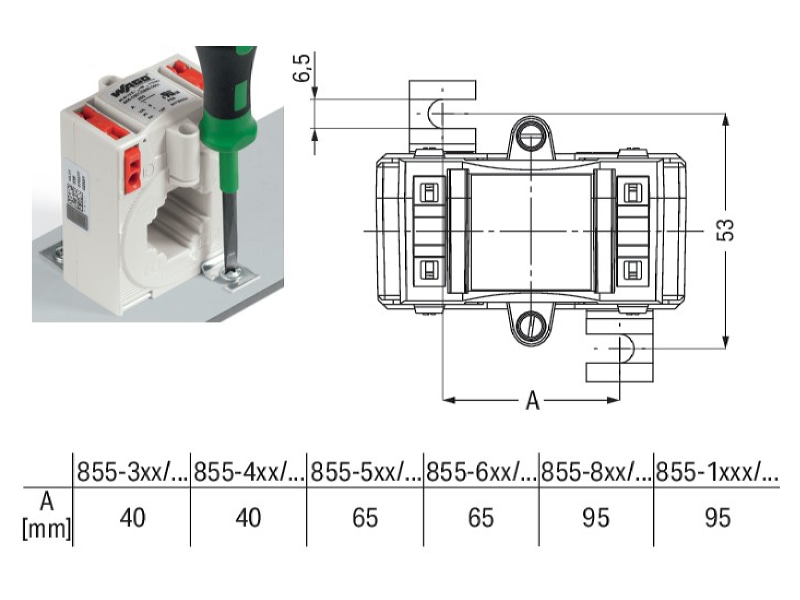

Dimensional drawing 2 WAGO 855 301 400 1001 Current transformer 400 1A
Dimensional drawing 2
