Amperage measuring transformer 250/5A 855-405/250-501
Source photo:
WAGO
(fig. might be different or similar)

Amperage measuring transformer 250/5A 855-405/250-501

EAN/GTIN: 4050821845706
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 855-405/250-501
Customs tariff no.: 85043129
Similar top items: Show now & compare
26,09 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Amperage measuring transformer 250/5A Model Attachable current transformer, Primary rated current 250A, Secondary rated current 5A, Secondary rated apparent power 5VA, Accuracy class 1, Over current limiting factor FS 5, With shock protection, Height opening 30,3mm, Width opening 30,3mm, Opening diameter 31,8mm, Snap mounting, Secondary connection Plug-in connection, Number of primary inputs 1

More product images:

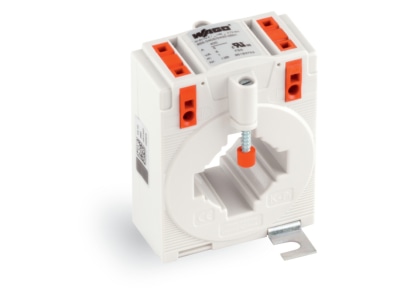

Product image WAGO 855 405 250 501 Amperage measuring transformer 250 5A
Product image

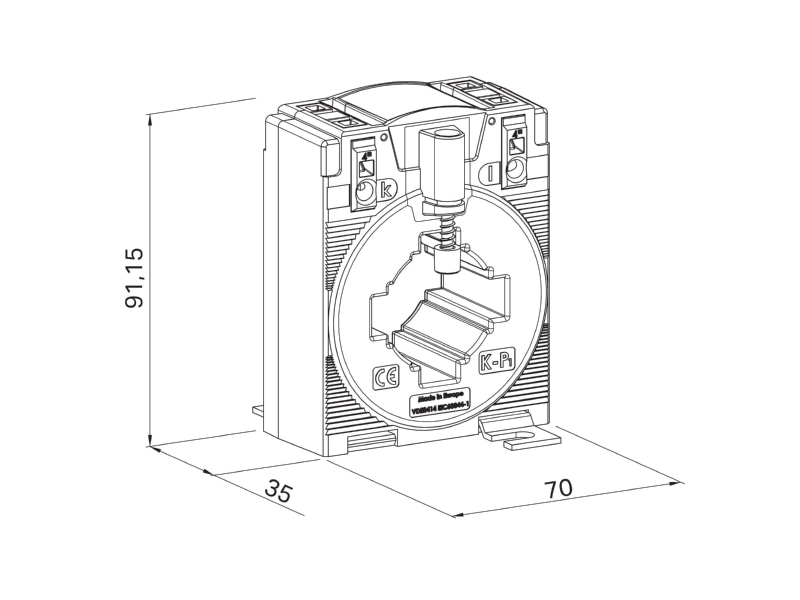

Dimensional drawing 1 WAGO 855 405 250 501 Amperage measuring transformer 250 5A
Dimensional drawing 1

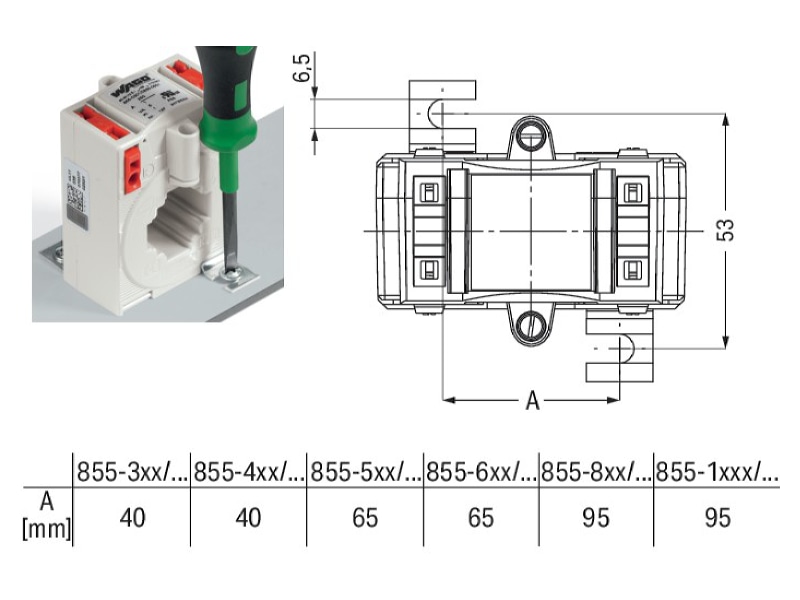

Dimensional drawing 2 WAGO 855 405 250 501 Amperage measuring transformer 250 5A
Dimensional drawing 2
