Current monitoring relay 1...6A 787-1662/106-000
Source photo:
WAGO
(fig. might be different or similar)

Current monitoring relay 1...6A 787-1662/106-000

EAN/GTIN: 4050821848356
WEEE: DE 40917098
Manufacturer: WAGO
Manufacturer no.: 787-1662/106-000
Customs tariff no.: 85363010
Similar top items: Show now & compare
138,03 EUR Price incl. tax. 19,00%
plus shipping
Delivery time:
18 days [EN] Items to be procured that can be ordered (no central warehouse item) - live request to the central warehouse directly in the cart or click the link below the price >Quantity available?<
pce

We always deliver the latest available article version.

Note:
The installation of electrical devices may only be carried out by an approved electrician and, in the case of high-voltage systems (> = 400V and country-specific nominal power), only with the consent of the respective electricity network operator.

Details

Accessory
bought
Useful
Interesting

Current monitoring relay 1...6A Type of electric connection Spring clamp connection, With detachable clamps, Single-phase over current possible, Contains function DC-voltage over current, Rated control supply voltage Us at DC 18 ... 30V, Voltage type for actuating DC, Current measurement range 1 ... 6A, Number of contacts as normally closed contact 0, Number of contacts as normally open contact 0, Number of contacts as change-over contact 0, Width 45mm, Height 90mm, Depth 115,5mm

More product images:

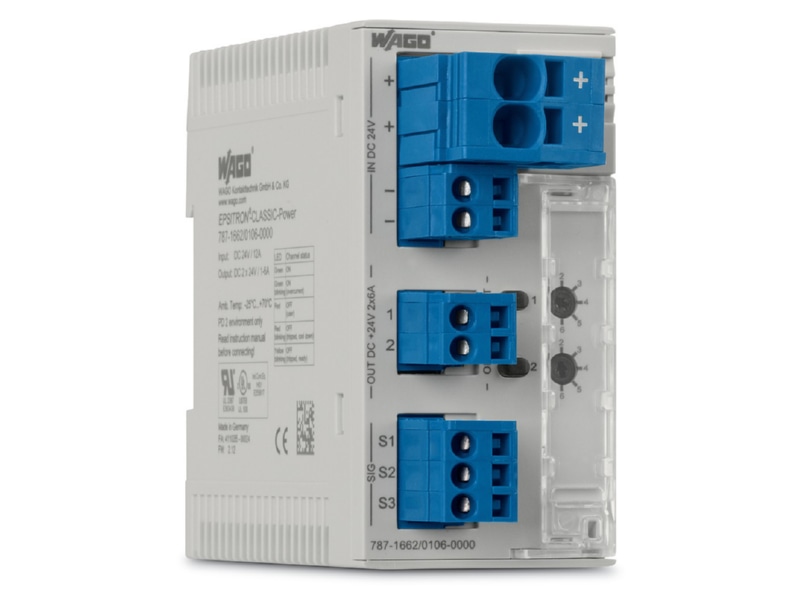

Product image WAGO 787 1662 106 000 Current monitoring relay 1   6A
Product image

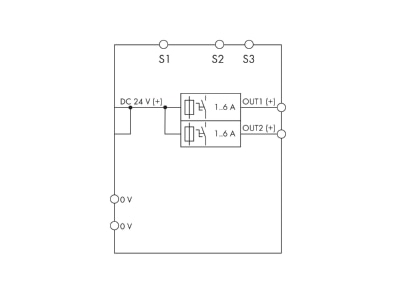

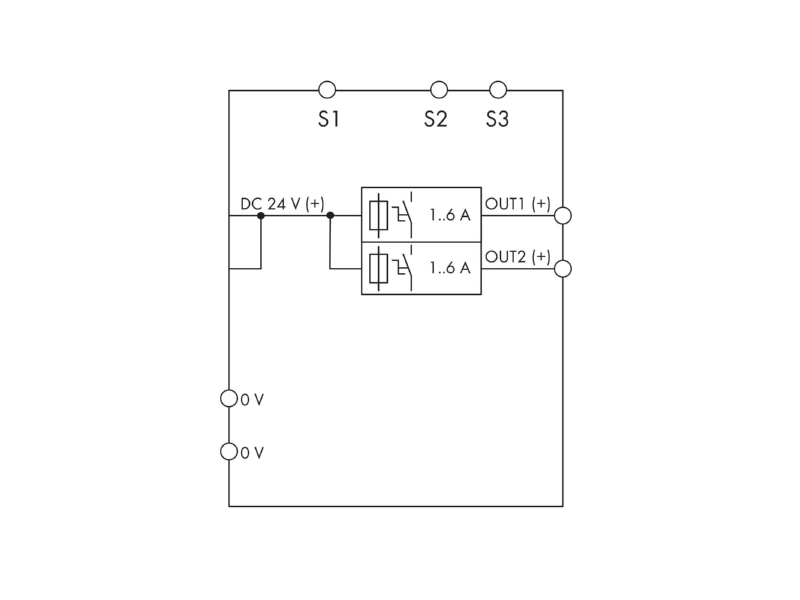

Circuit diagram WAGO 787 1662 106 000 Current monitoring relay 1   6A
Circuit diagram

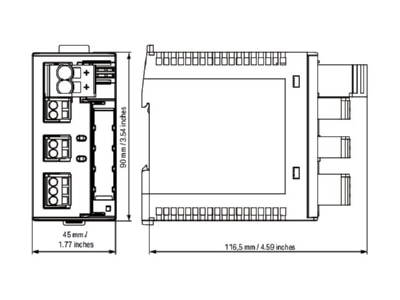

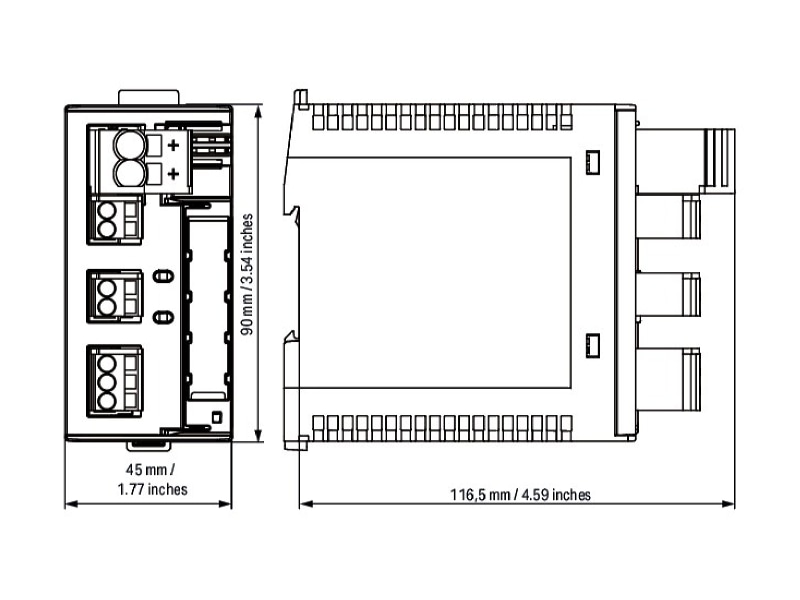

Dimensional drawing WAGO 787 1662 106 000 Current monitoring relay 1   6A
Dimensional drawing
